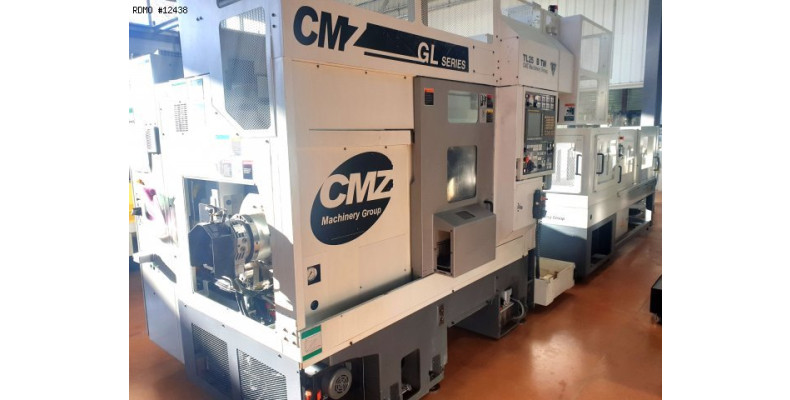

Cmz TL25 BTM 4 axis

12438
Brand: Cmz
Model: TL25 BTM
Year:
Serial: 1017
12438
Cmz TL25 BTM 4 axis
Brand: Cmz
Model: TL25 BTM
Year:
Serial: 1017

Caracteristics & Equipment

Caracteristics
- Number of axes : 4
MAIN SPINDLE
- Spindle nose : A2-8
- Spindle power : 25 / 18 [kW]
- Spindle speeds : 50 - 3.500 [rpm]
- Max. bar diameter : 77 [mm]
- Max. turning diameter : 400 [mm]
- C axis indexing precision : 0,001 [°]

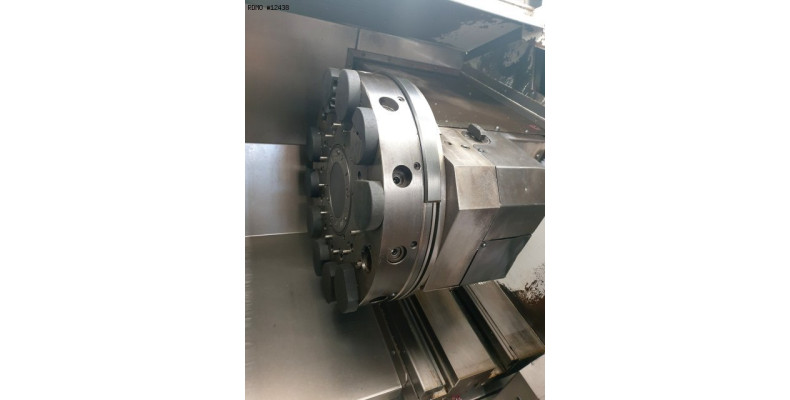

TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 240 / 640 [mm]
- Tool type : VDI 40

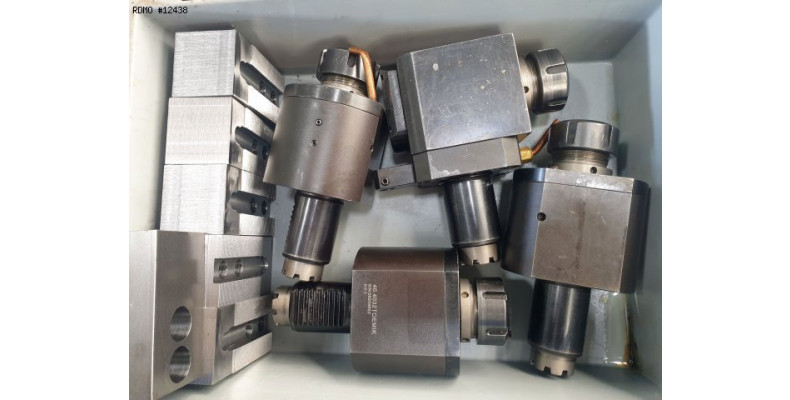

- Live tools speed : 4.000 [rpm]
- Live tools power : 5 [kW]

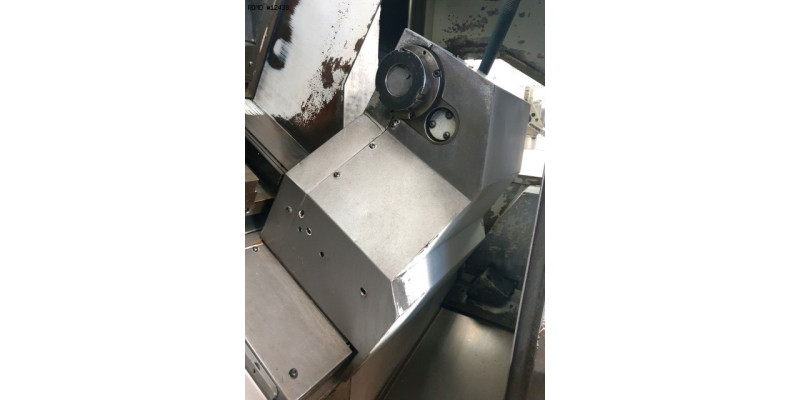

TAILSTOCK
- Tailstock type : Numeric
- Counter-spindle stroke : 520 [mm]
- Distance between centers : 676 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 50 [kW]
MACHINE HOURS
- Number of working hours : 11.572 [h]
Equipment

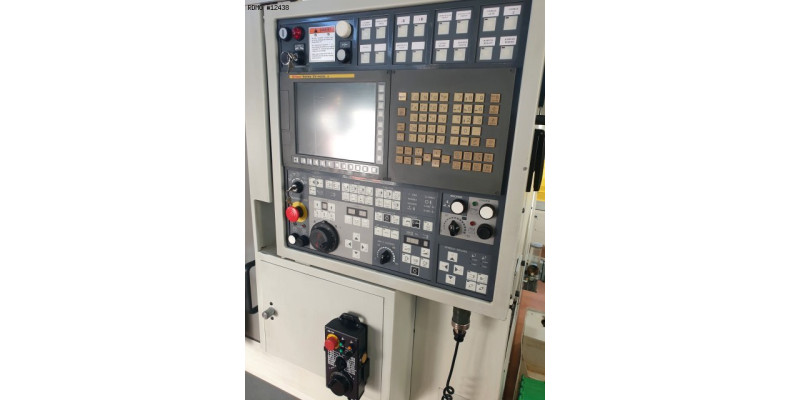

- CNC : 31i-TA
- Interface : PCMCIA / RJ45 / RS232
- 3 colors status lamp
- Coolant tank : 240 [l]
* with high-pressure pump
- refrigerated hydraulic oil
- Chips conveyor
- Parts catcher
- Predisposition for barfeeder
- loading/ unloading system : CMZ GL20 (2008)
* Electronic handwheel
* Max. part dimensions : Ø 270 / L 153,5 [mm]
* Max. part weight : 2 x 10 [kg]

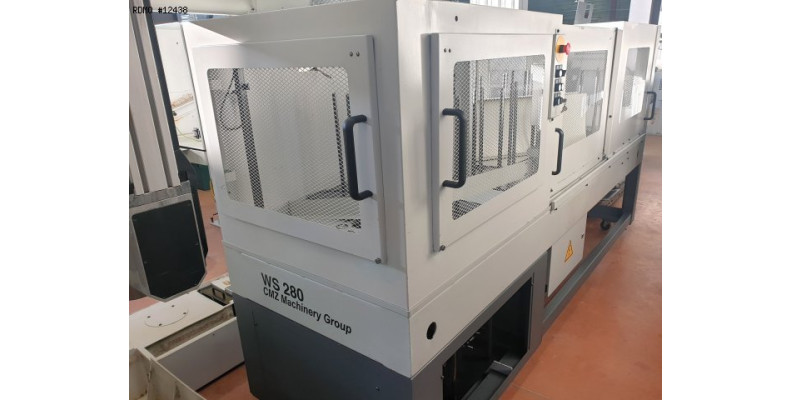

- Part storage : CMZ WS280 (2008)
* Pallet number : 14
* Cylindrical parts max. dimensions : Ø 175 / L 286 [mm]
* Non-cylindrical parts max. dimensions : section 286 x 175 [mm]

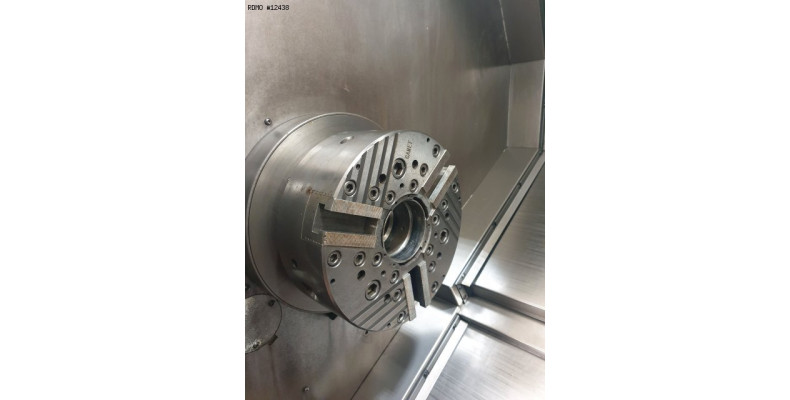

- Chuck 3 jaws : GAMET 260 DE
- Number of turning tool holders : 4
