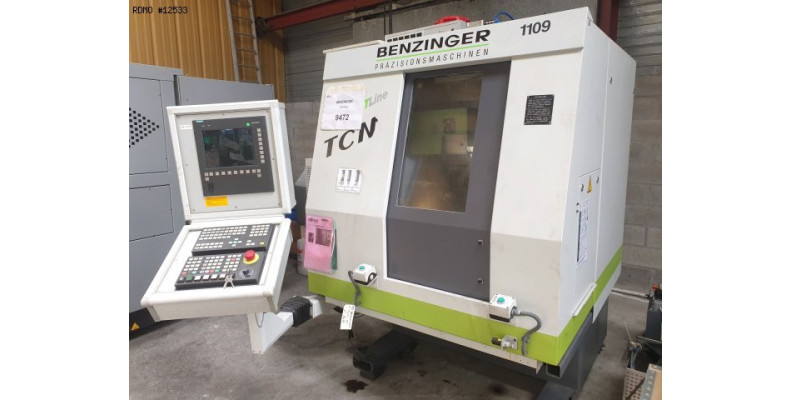

Benzinger TCM B4 4 axis

Brand: Benzinger
Model: TCM B4
Year: 2006
Serial: 460024
12533
Benzinger TCM B4 4 axis
Brand: Benzinger
Model: TCM B4
Year: 2006
Serial: 460024

Caracteristics & Equipment

Caracteristics

- Number of axes : 4
MAIN SPINDLE
- Spindle nose : A2-4"
- Spindle power : 15,5 [kW]
- Spindle speeds : 8.000 [rpm]
- Max. bar diameter : 32 [mm]
- C axis indexing precision : 0,001 [°]

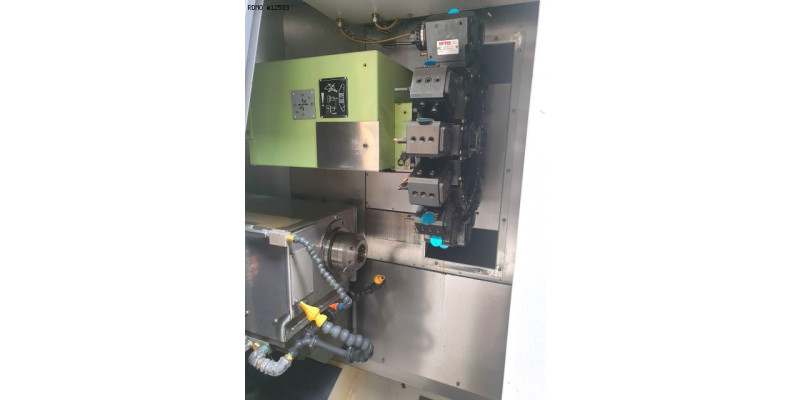

TURRET
- Number of positions : 16
- Number of motorized positions : 16
- X/Z stroke : 135 / 220 [mm]
- Y stroke : 84 [mm]
- Tool type : VDI 20
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 15 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1.800 x 2.000 [mm]
- Machine height : 2.200 [mm]
- Machine weight : 2.800 [kg]
MACHINE HOURS
- Number of working hours : 5.392 [h]
Equipment

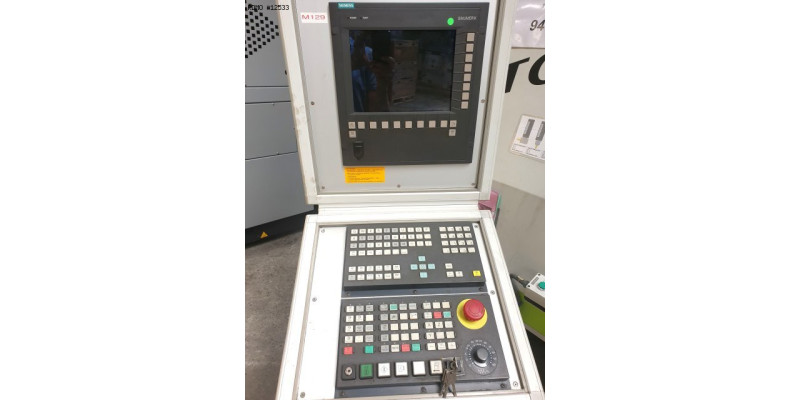

- CNC : Siemens 840D
- Interface : Ethernet / RS232 / USB
- Interactive programming : ShopTURN
- Linear scales

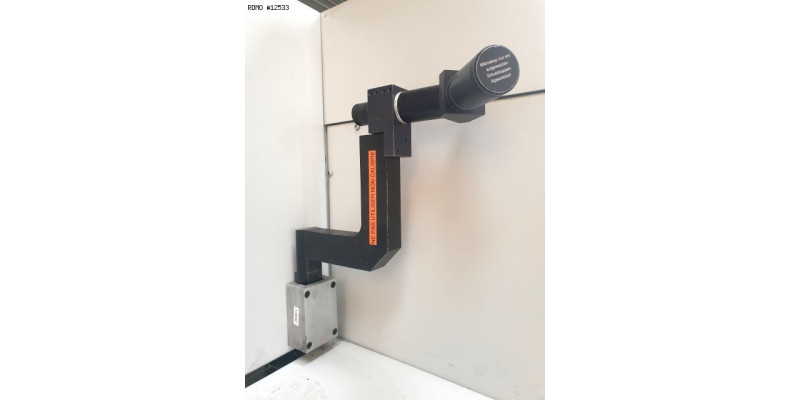

- Tool-eye
- 3 colors status lamp

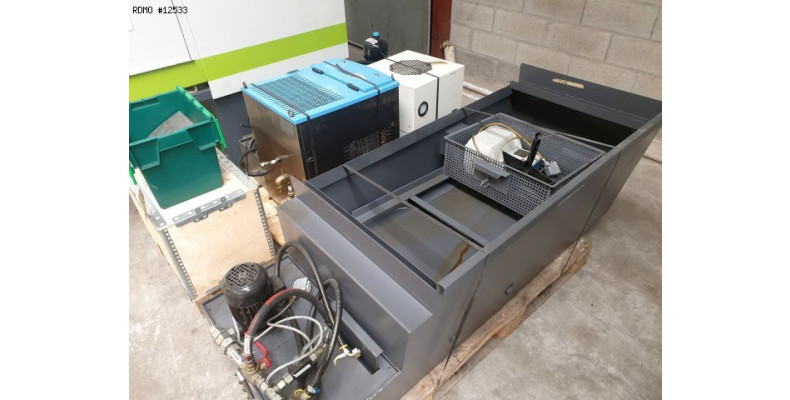

- Coolant tank
* With washing gun

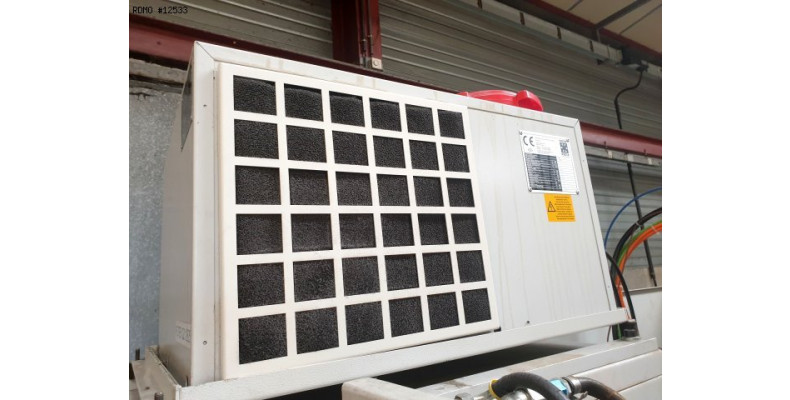

- Spindle cooling unit : HYFRA PEDIA
- Oil mist extractor
- Tool breakage detection
- Number of turning tool holders : 12
- Number of fixed tool holders : 12
