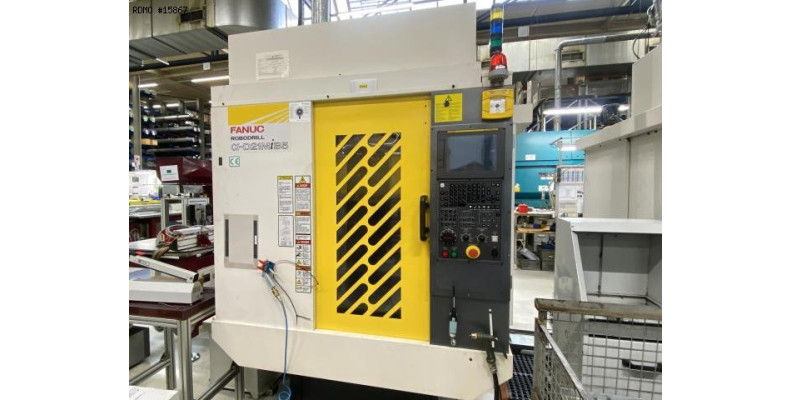

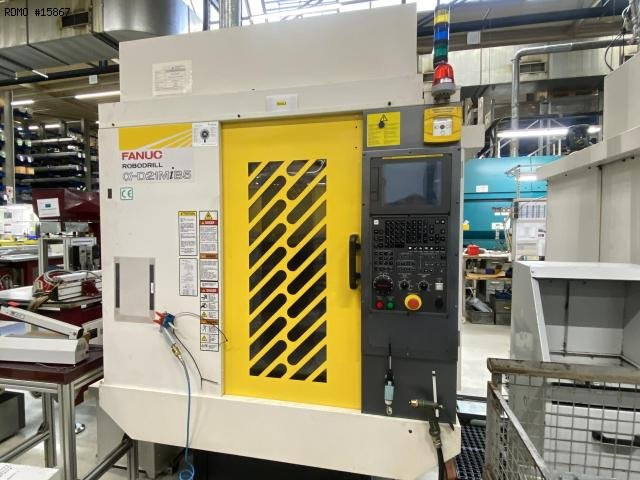

FANUC ROBODRILL ALPHA-D21MiB 5 5 axis

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : BBT 30 (Big-Plus)
- Spindle power : 12 [kW]
- Spindle speeds : 24.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 500/400/330 [mm]
- Rapid traverses rates (X/Y/Z) : 54 [m/min]
- Cutting feed rates (X/Y/Z) : 1-30.000 [mm/min]

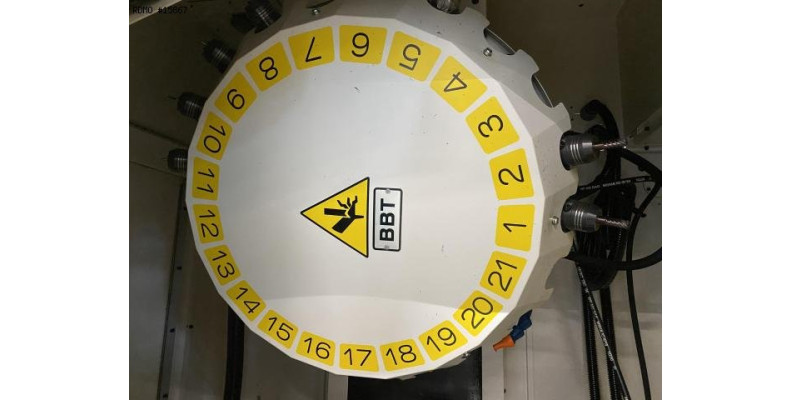

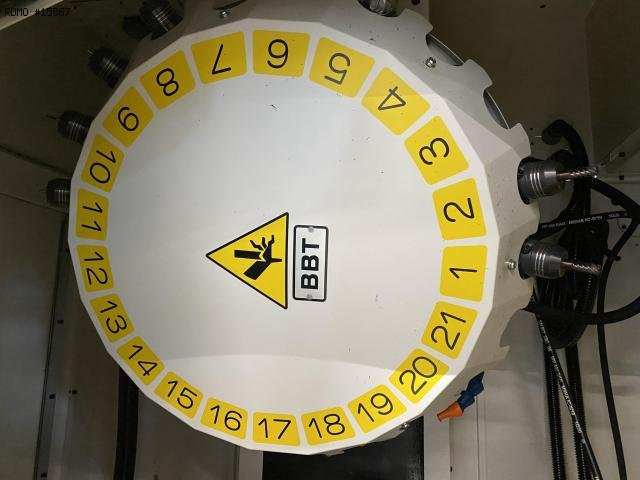

TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 21
TABLE
- Table dimensions : 650 x 400 [mm]
- Maximum weight upon table : 300 [kg]
- Distance table / spindle nose (min./max.) : 250-580 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 11 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1565 X 2027 [mm]
- Machine height : 2325 [mm]
- Machine weight : 2200 [kg]

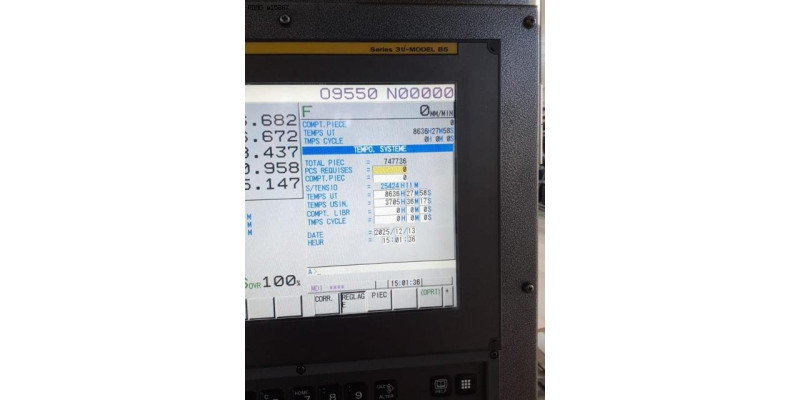

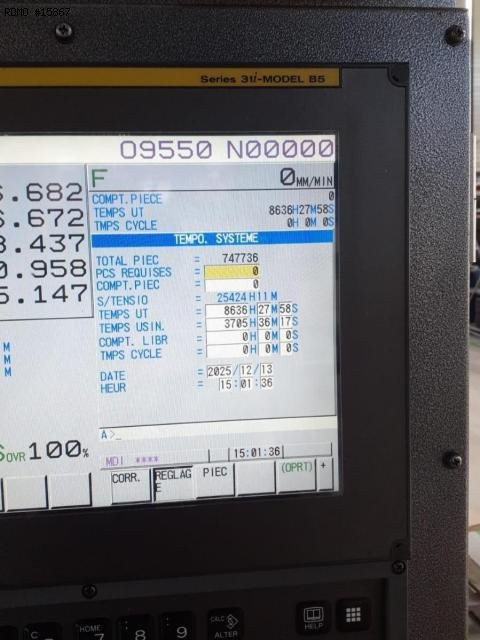

- CNC : Fanuc 31i-Model B5
- 3 colors status lamp

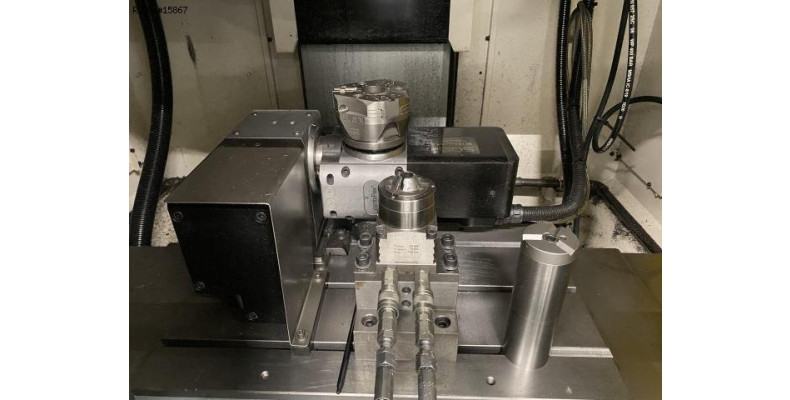

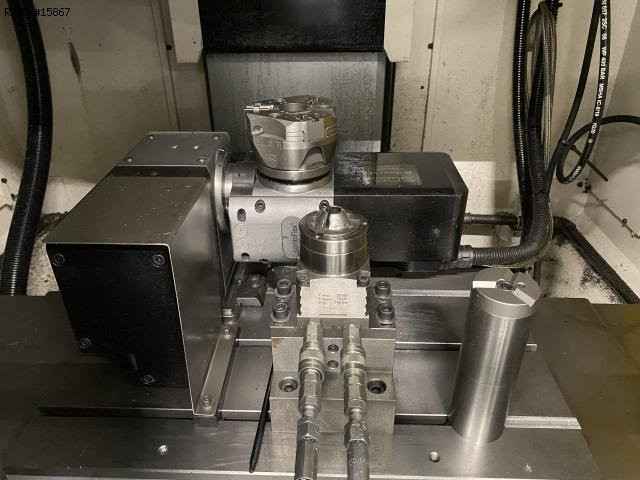

- Type of divisor : 4e-5e axe intégré
* manufacturer : LEHMANN
* model : Serie 500

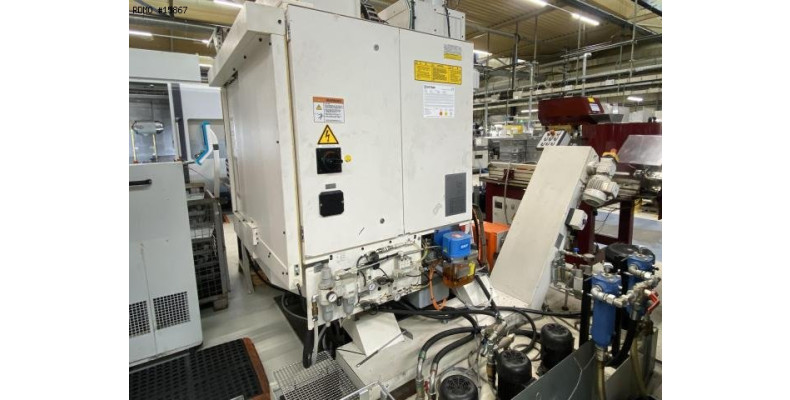

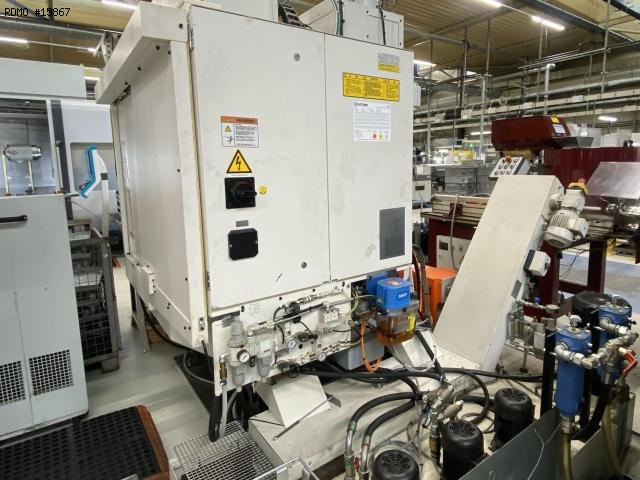

- Coolant tank
* with high-pressure pump : 70 [bars]
- Coolant through spindle
- Chips conveyor : ARRIERE
- Tool probe : HEXAGON
- Workpiece probe : HEXAGON
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
- Chuck 3 jaws : SCHUNK
