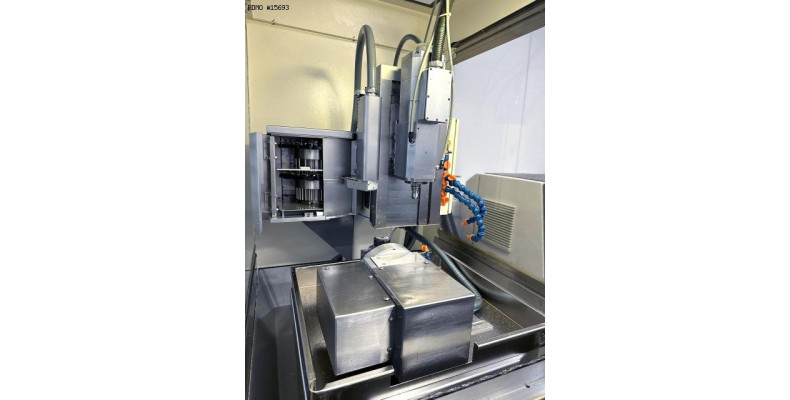

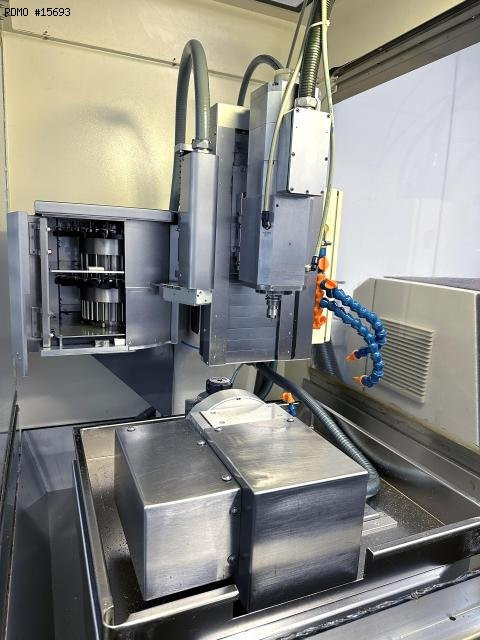

PRIMACON PFM24

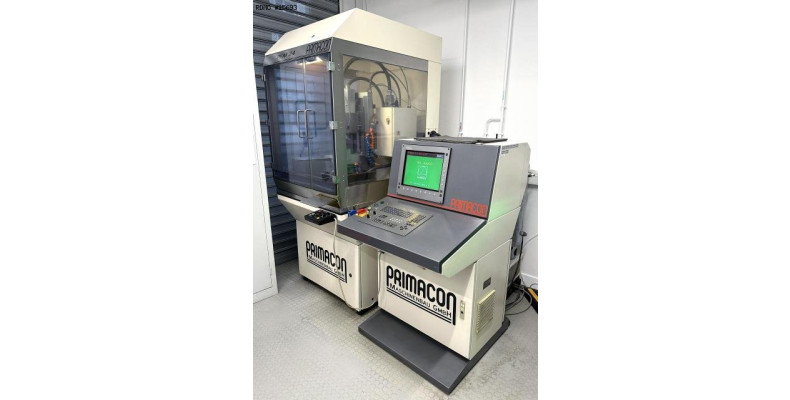

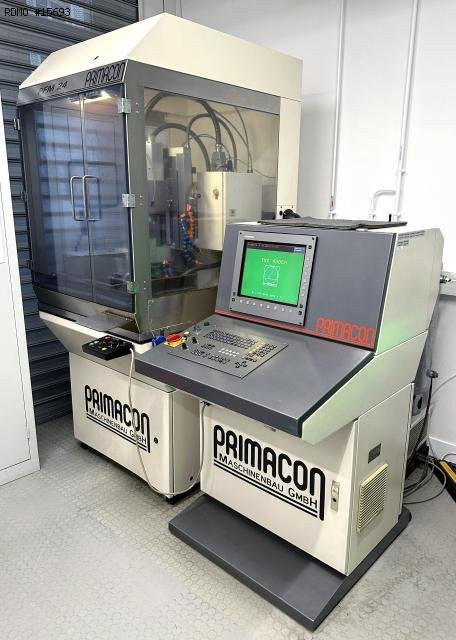

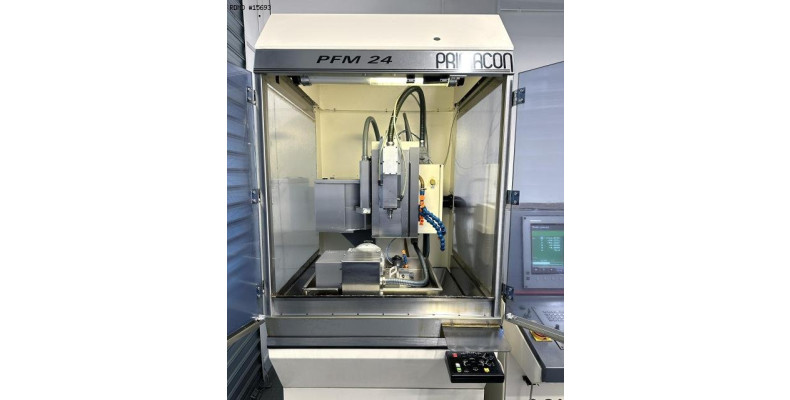

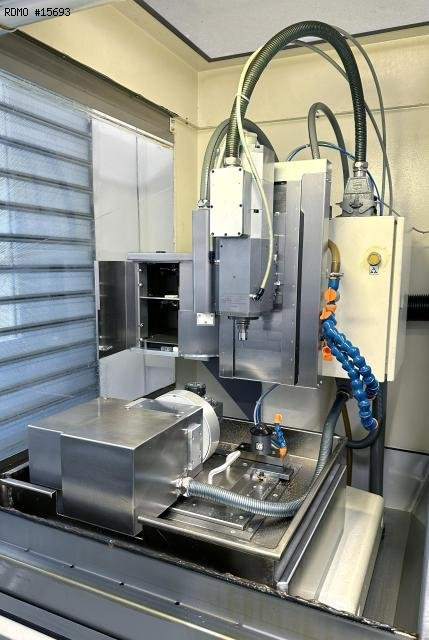

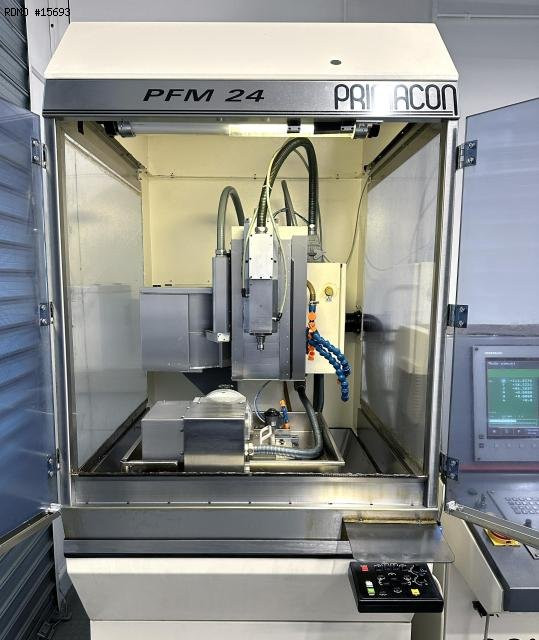

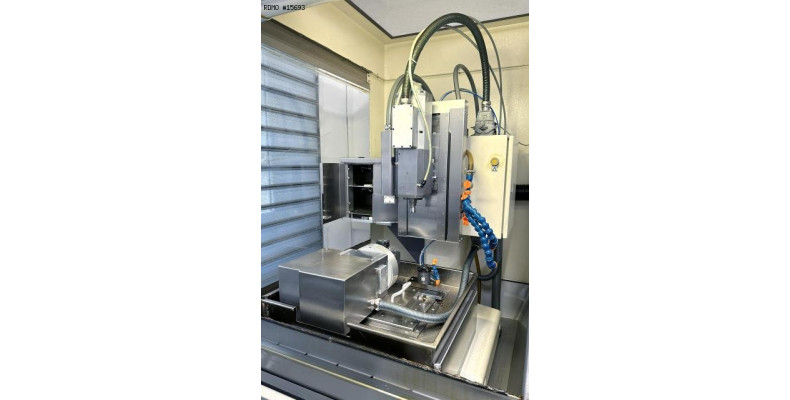

Name: Vertical machining center PRIMACON PFM24
Brand: PRIMACON
Availability: InStock

Milling Vertical machining center

15693

PDF datasheet to download:

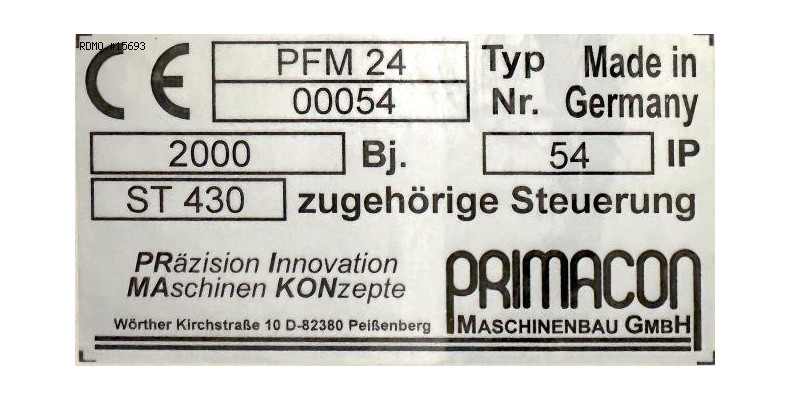

Brand: PRIMACON

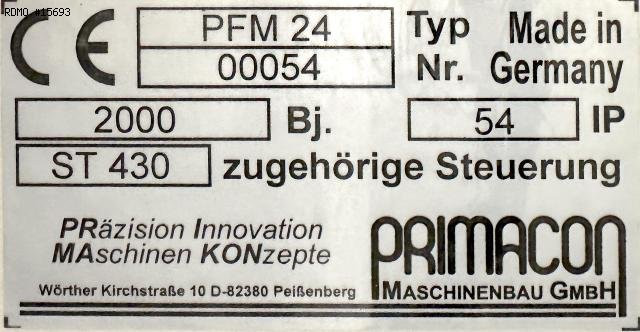

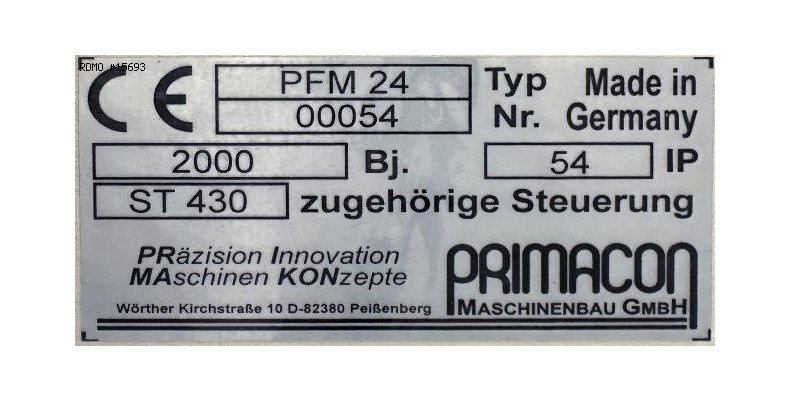

Model: PFM24

Year: 2000

Serial: 00054

15693

PRIMACON PFM24

Milling Vertical machining center

PDF datasheet to download:

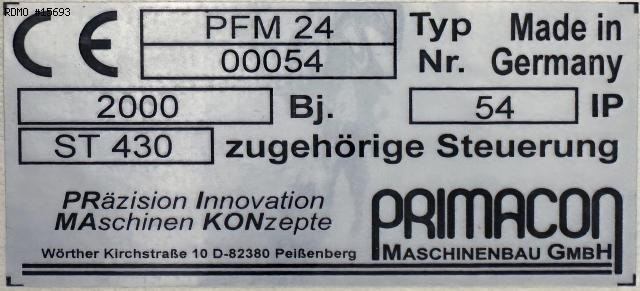

Brand: PRIMACON

Model: PFM24

Year: 2000

Serial: 00054

Ask Price

Caracteristics

- Number of axes : 5

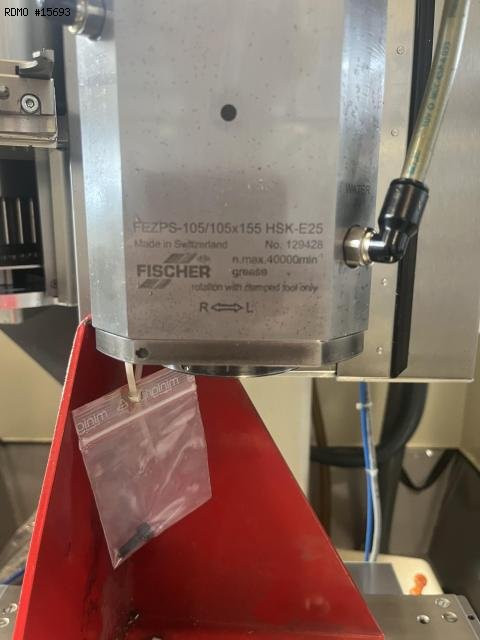

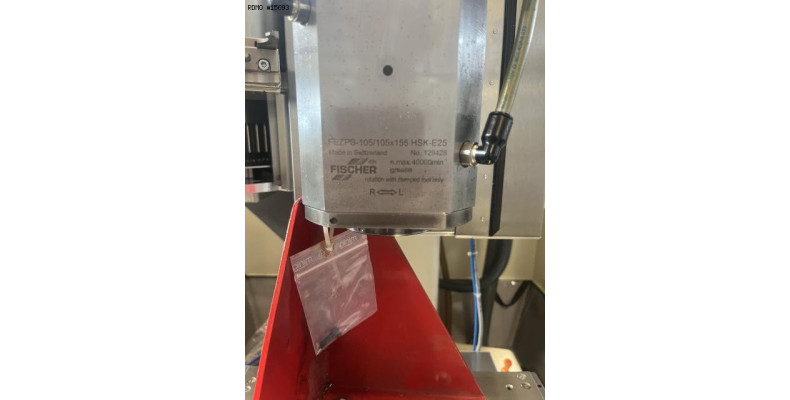

MILLING SPINDLE

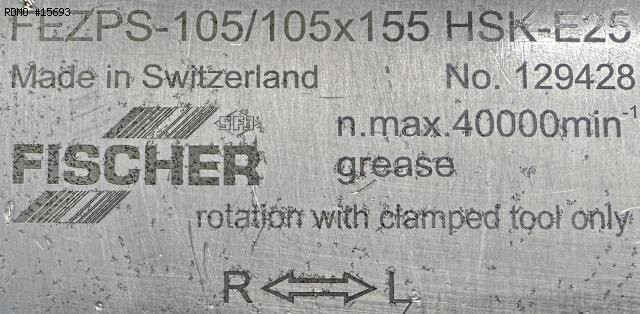

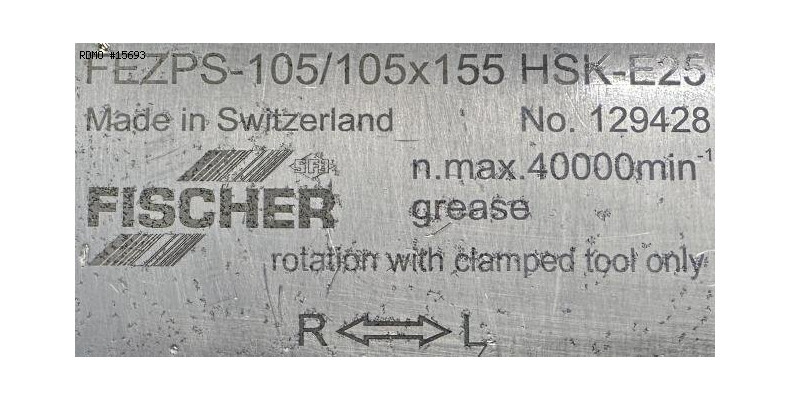

- Tool holder type : HSK E-25
- Spindle power : 3.9 [kW]
- Spindle speeds : 40000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 240/240/240 [mm]
- Rapid traverses rates (X/Y/Z) : 5000 [mm/min]
- Cutting feed rates (X/Y/Z) : 0.02 - 5000 [mm/min]
A ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0.001 [°]
- Maximum workpiece diameter : 100 [mm]
B ROTARY AXIS
- Travel : -30 / +210 [°]
- Indexing precision : 0.001 [°]

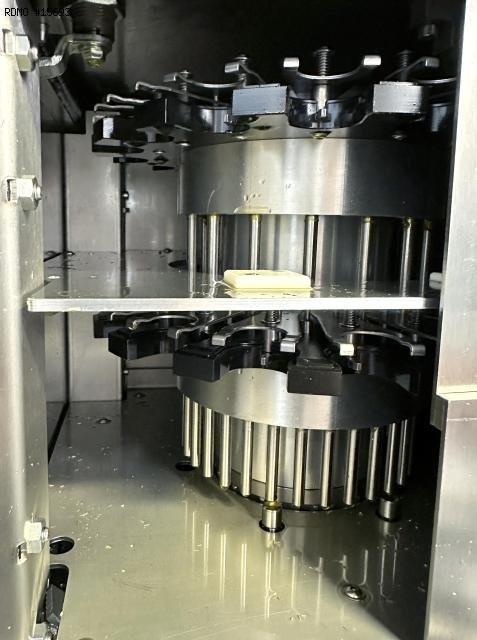

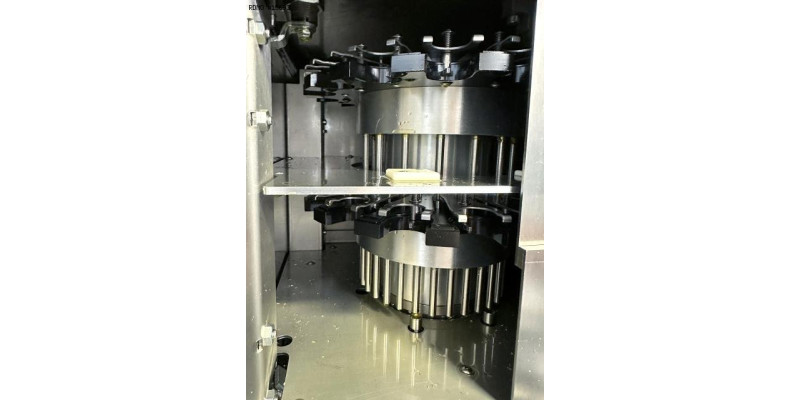

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 32
- Tool exchange time : 7 [sec]
TABLE
- Maximum weight upon table : 60 [kg]

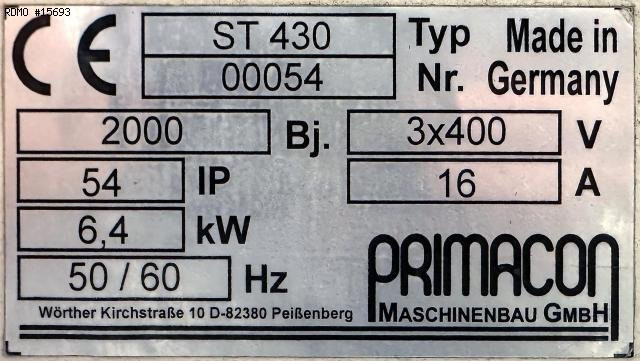

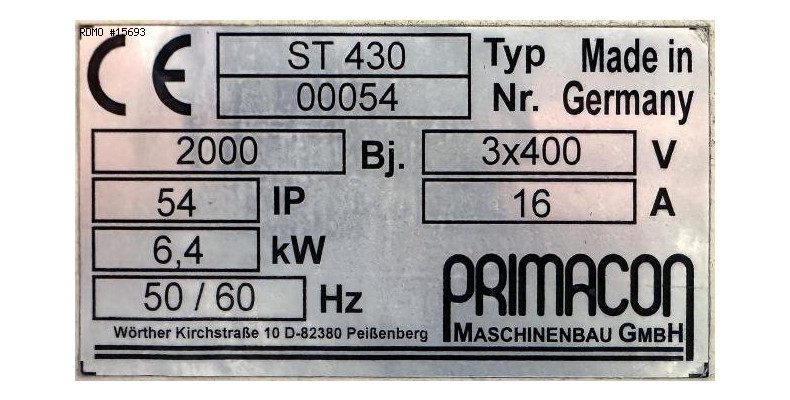

POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 6.4 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1.900 x 1.600 [mm]
- Machine height : 2.200 [mm]
- Machine weight : 1000 [kg]

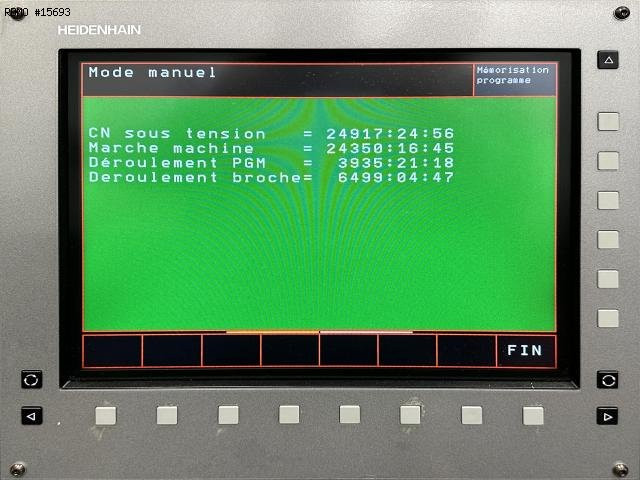

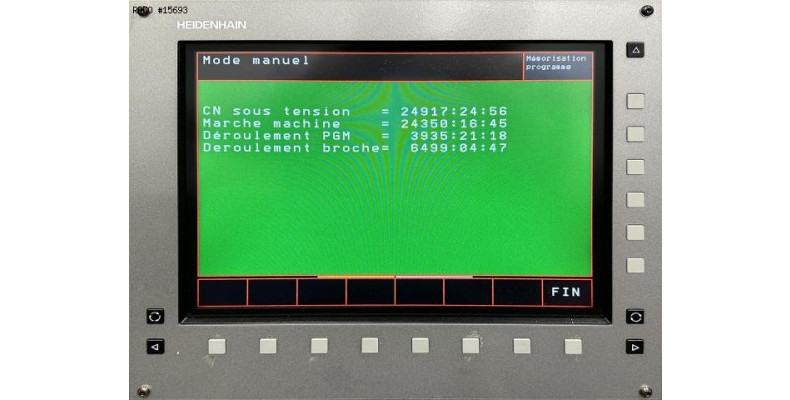

MACHINE HOURS
- Number of hours under power : 24350 [h]
- Number of working hours : 6500 [h]

Equipment

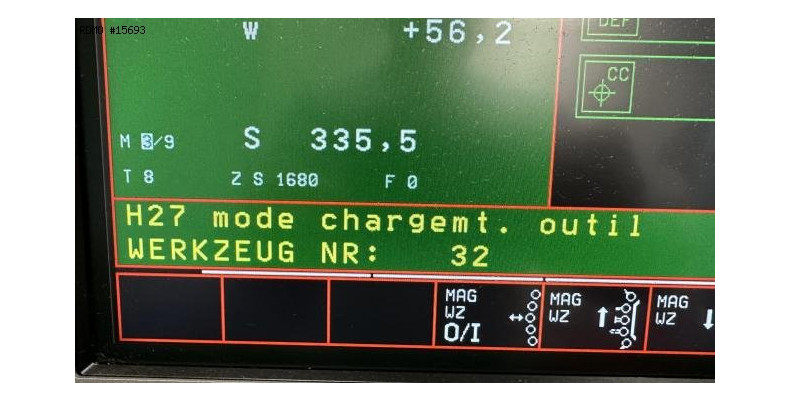

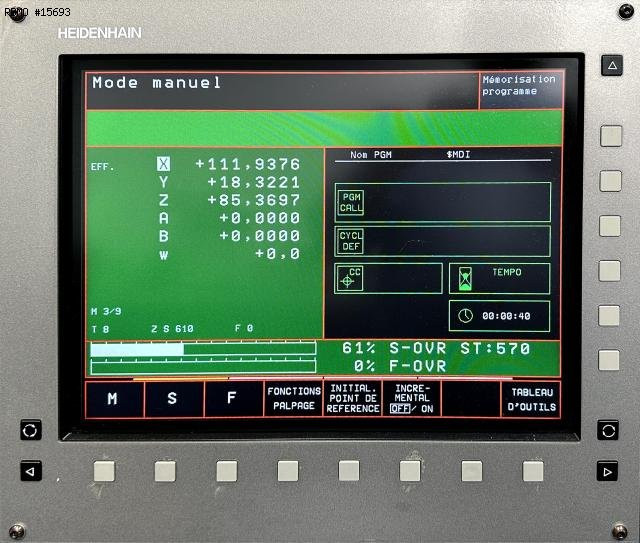

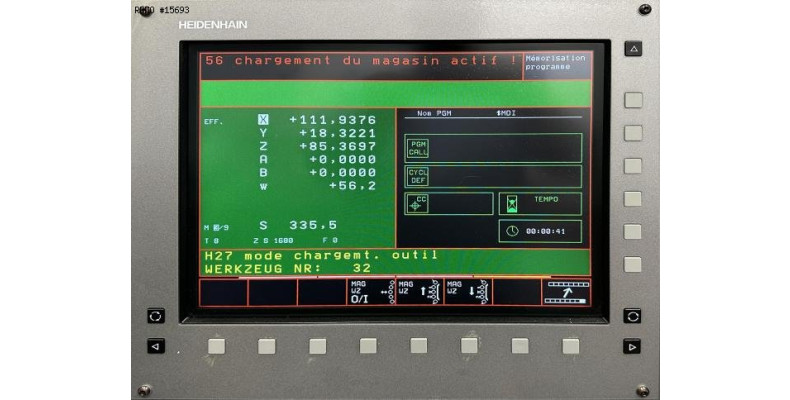

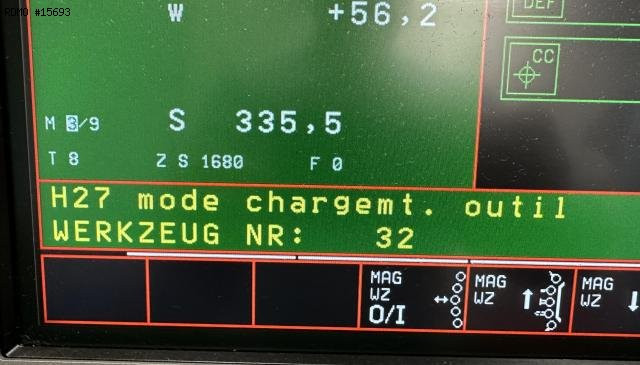

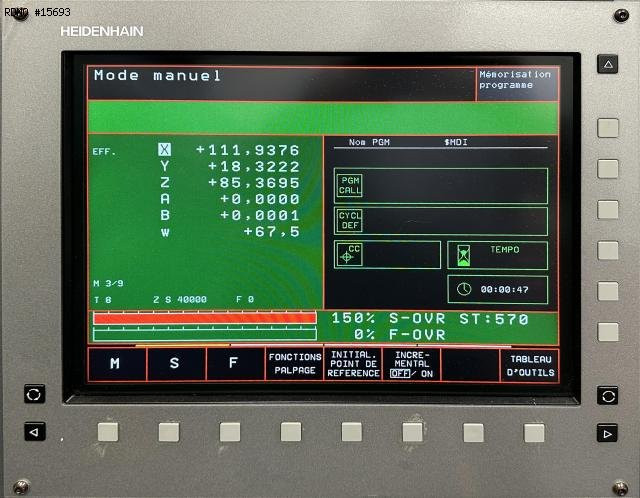

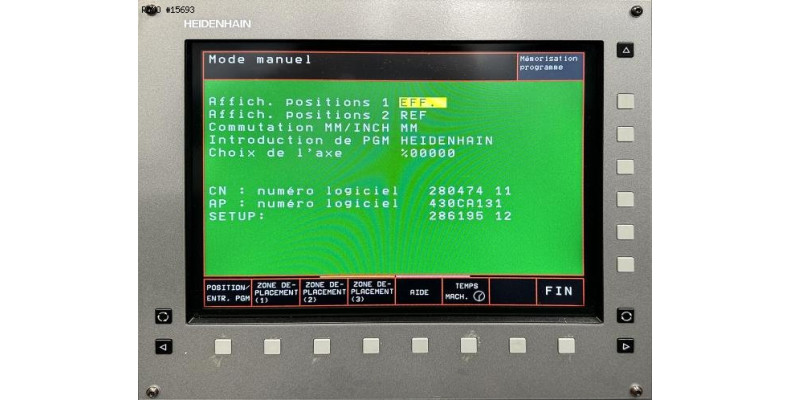

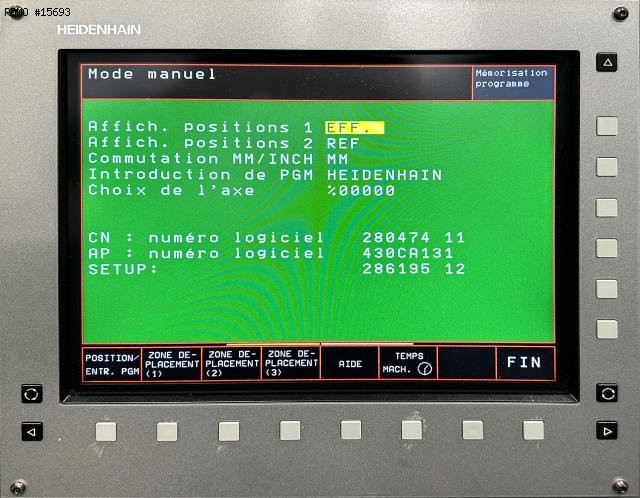

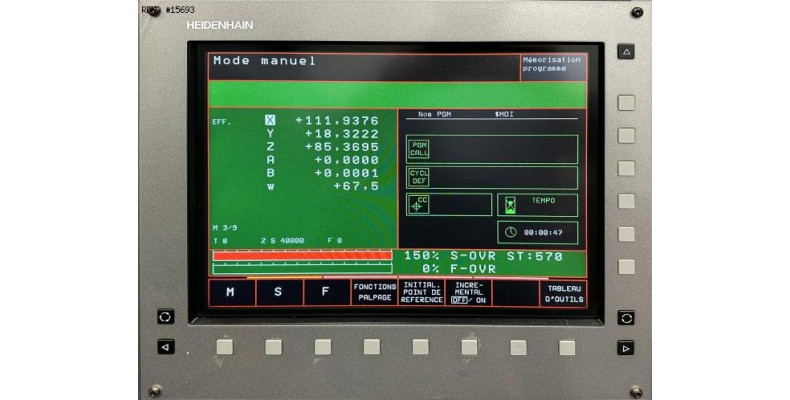

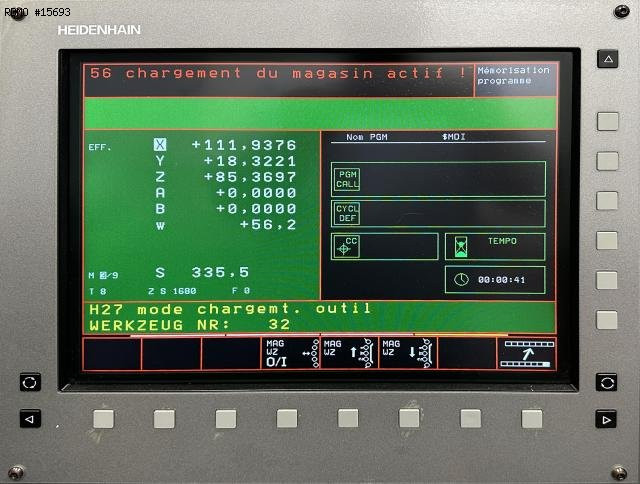

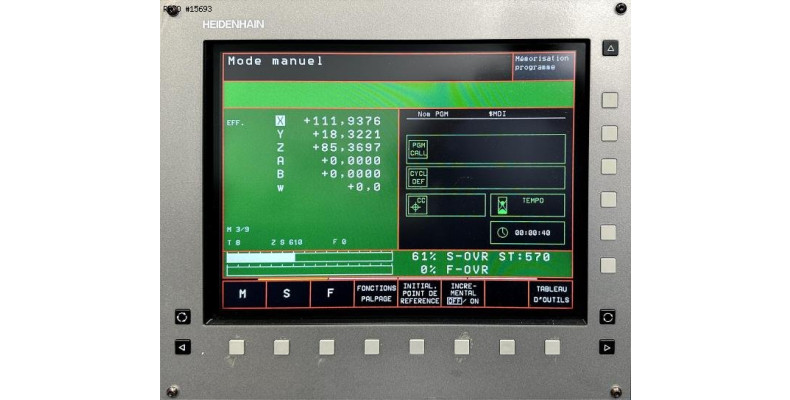

- CNC : HEIDENHAIN TNC 430
- Type of divisor : 4e-5e axe intégré
- Coolant tank
- Cooling unit : HYFRA
- Tool probe

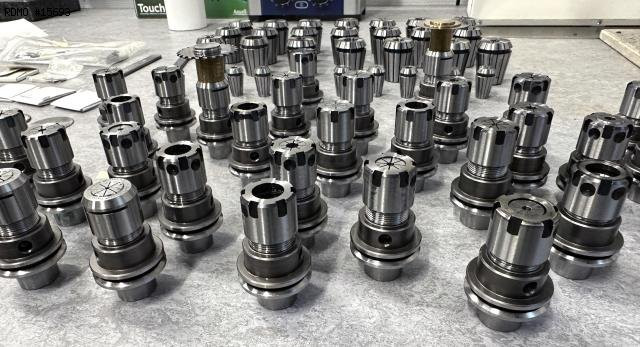

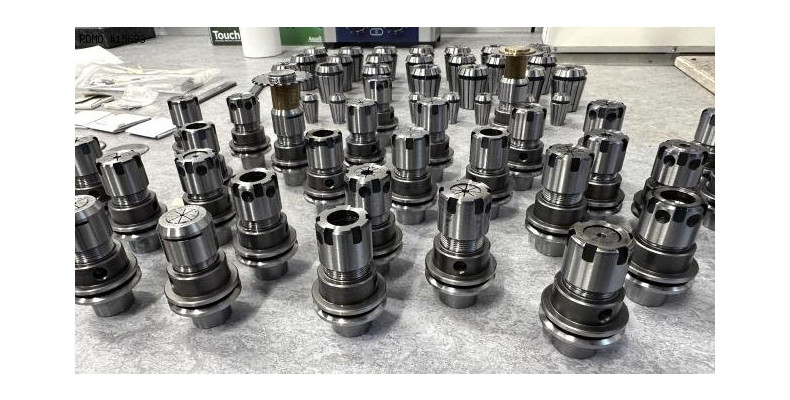

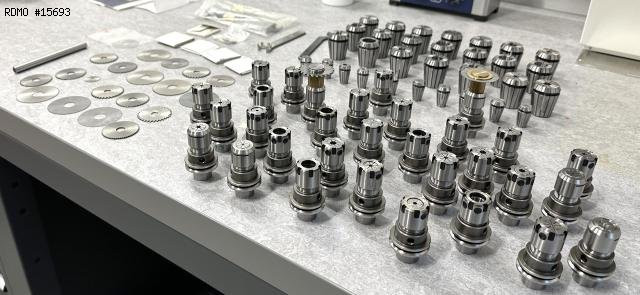

- Tool-holders : 31
