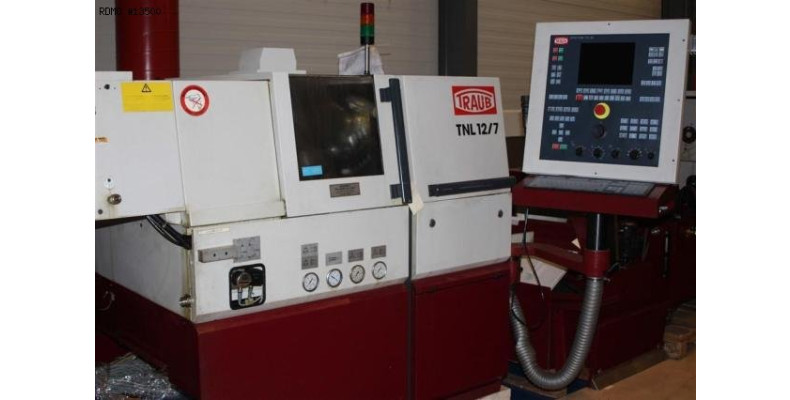

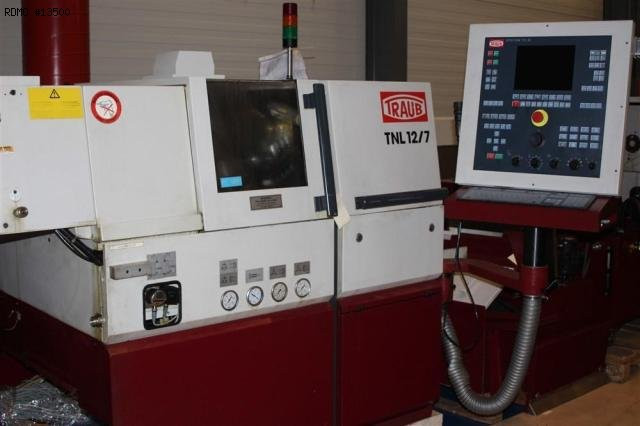

Brand: TRAUB
Model: TNL12/7
Year: 2000
Serial: 239
Brand: TRAUB
Model: TNL12/7
Year: 2000
Serial: 239

Caracteristics & Equipment

Caracteristics
- Number of axes : 9
- Number of spindles : 2

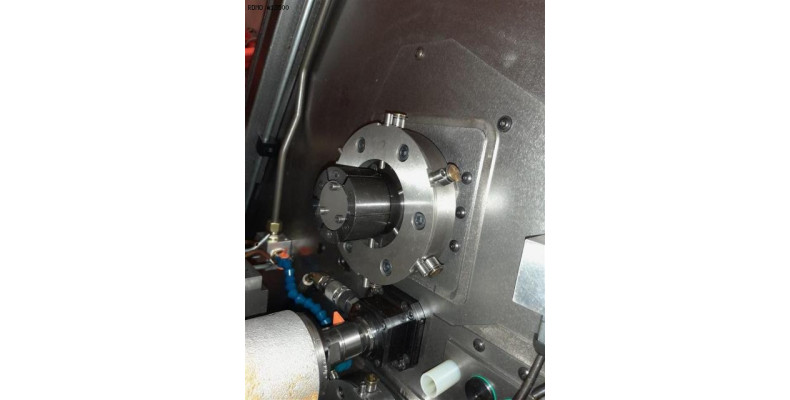

MAIN SPINDLE
- Max. bar diameter : 12.7 [mm]
- Max. machining length : 130 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 2.5 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 12.7 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 2.5 [kW]
- C axis indexing precision : 0.001 [°]
- Number of turrets : 2

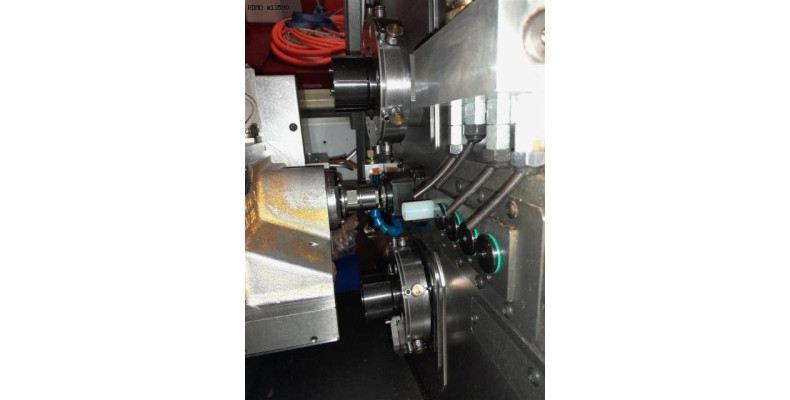

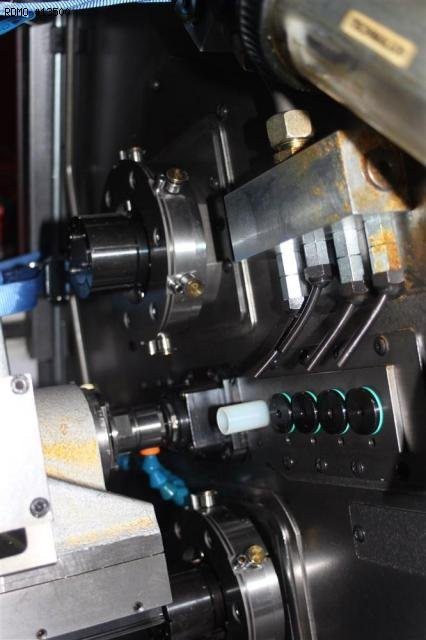

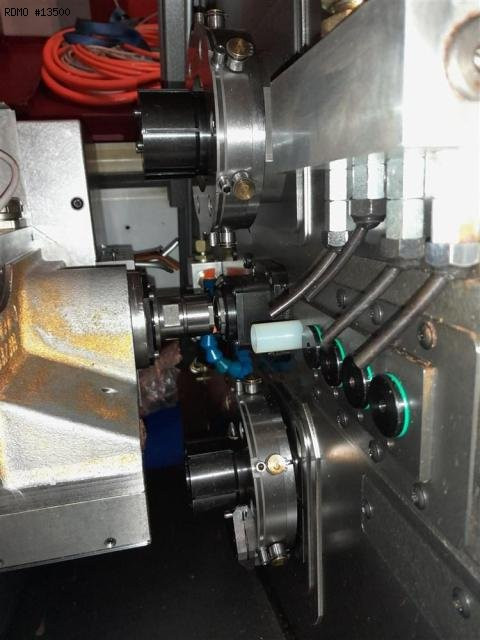

UPPER TURRET
- Number of positions : 6
- Number of motorized positions : 6
- X stroke : 35 [mm]
- Z stroke : 48 [mm]
- Y stroke : -9.5/+28 [mm]
LOWER TURRET
- Number of positions : 6
- Number of motorized positions : 6
- X/Z stroke : 35/79.5 [mm]
END ATTACHMENT
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 10000 [rpm]
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 10000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2850 x 1100 [mm]
- Machine height : 1480 [mm]
MACHINE HOURS
- Number of hours under power : 18,801 [h]
Equipment

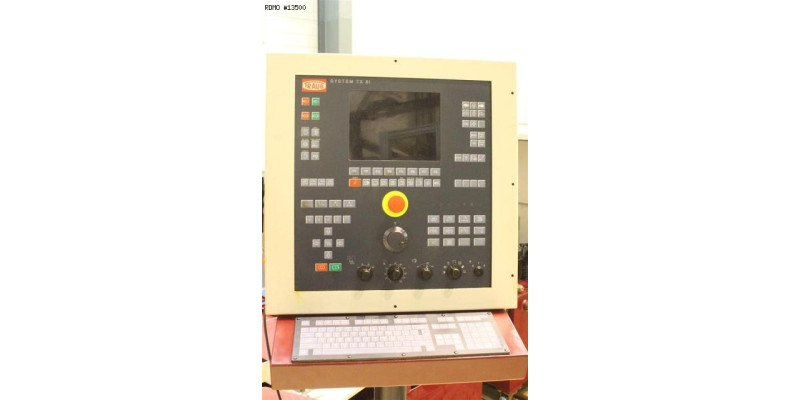

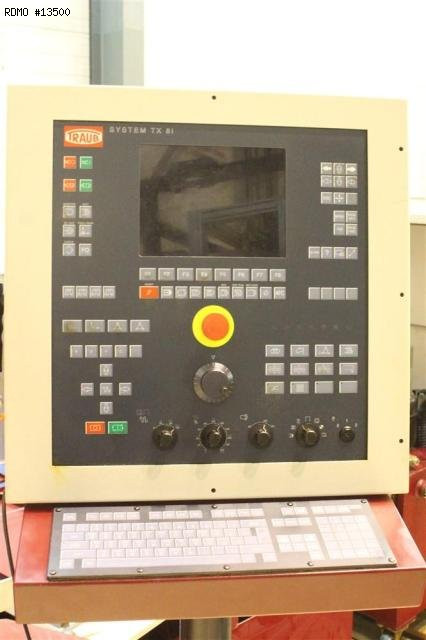

- CNC : TRAUB TX8i
- 3 colors status lamp
- Rotating guide bush

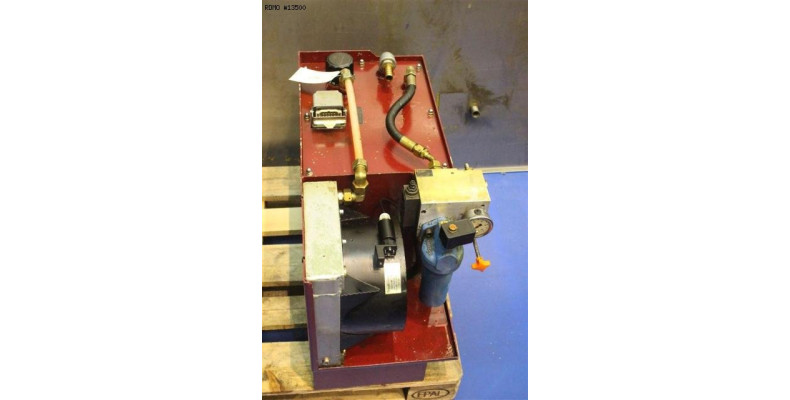

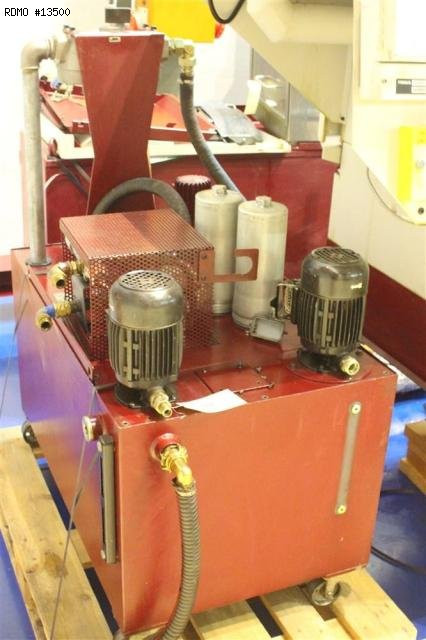

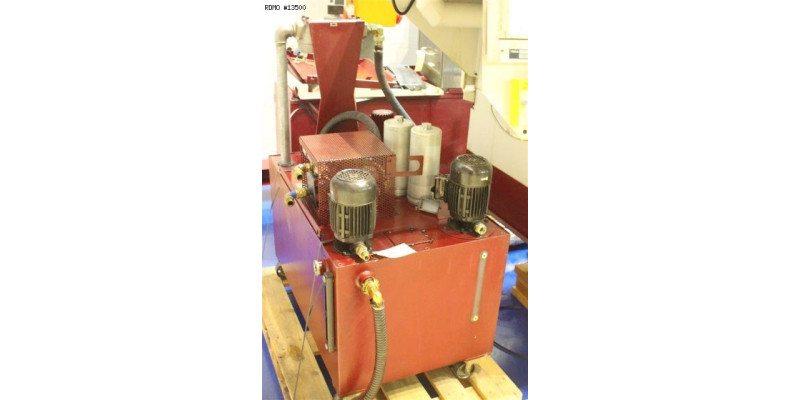

- Coolant tank

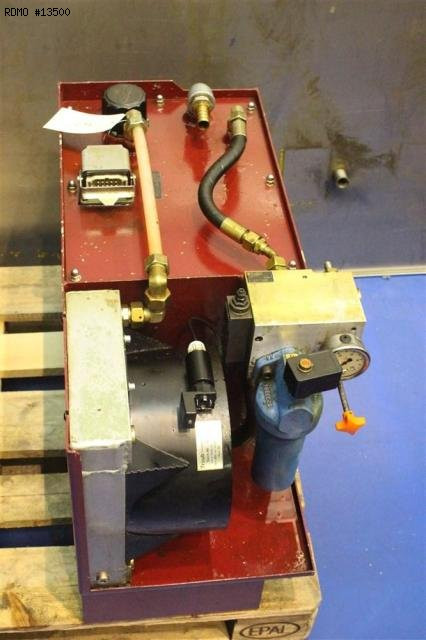

* with high-pressure pump

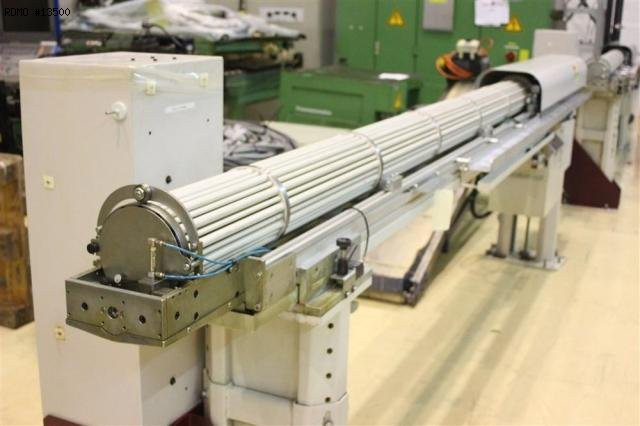

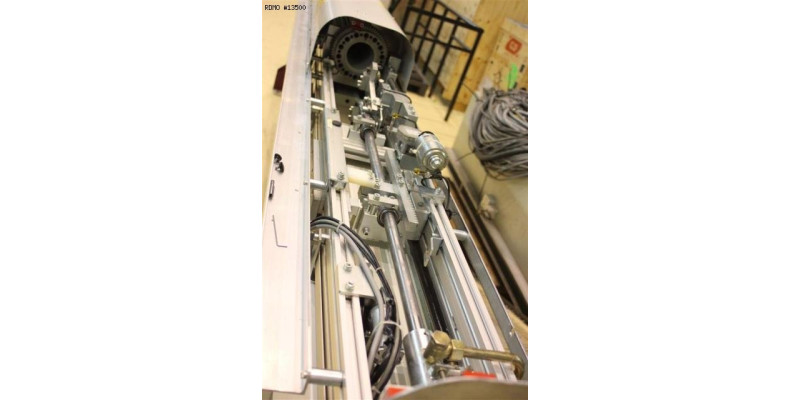

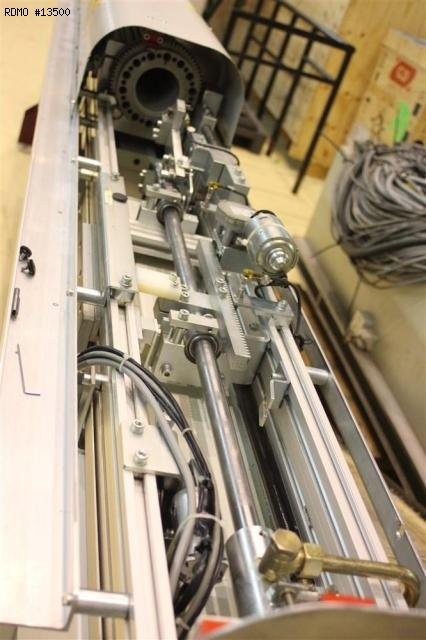

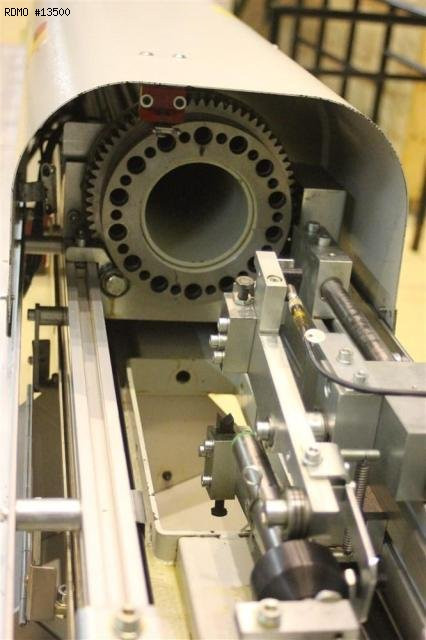

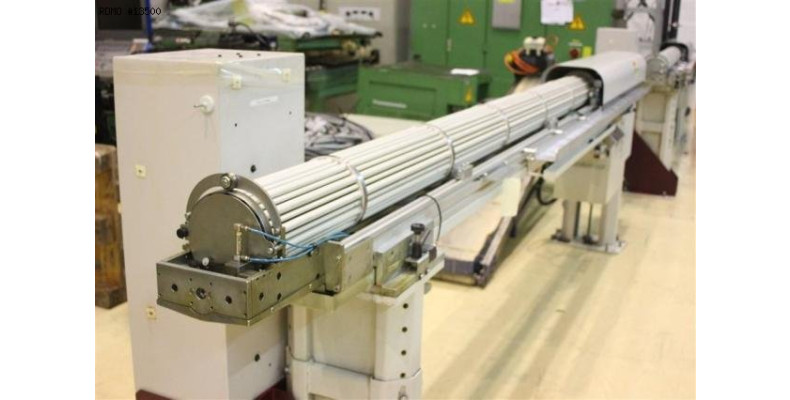

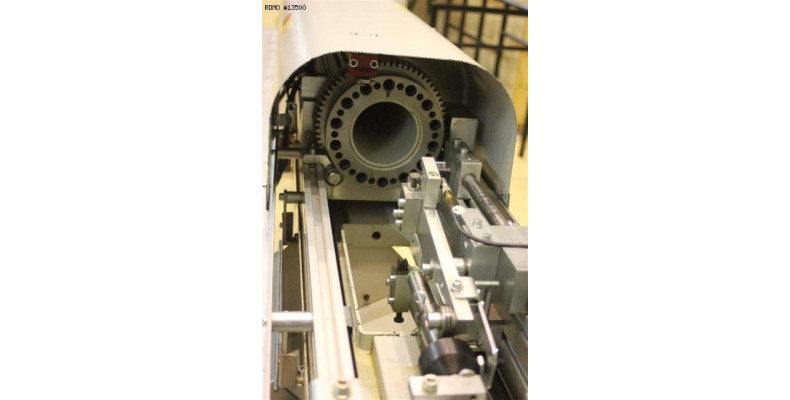

- Bar loader : LNS TRYTON 112

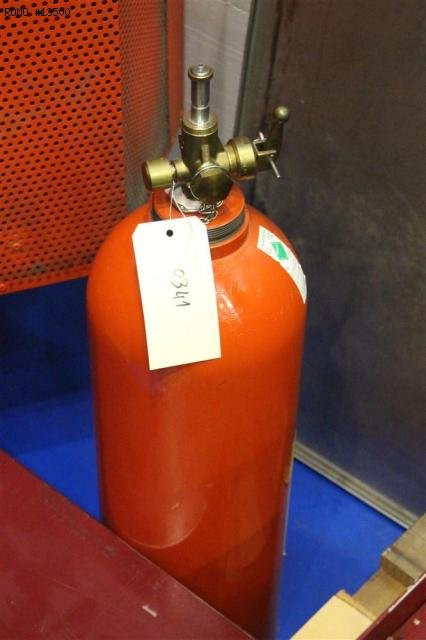

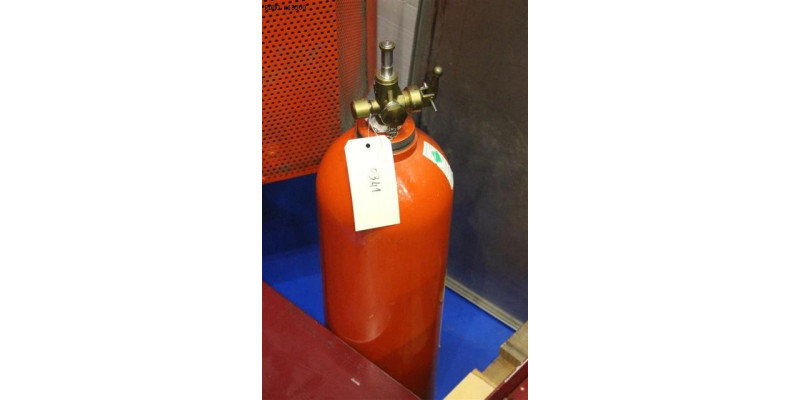

- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
