- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 18 [mm]
- Spindle speeds : 12.000 [rpm]
- Spindle power : 3.0 / 5.5 [kW]
- C axis indexing precision : 0,001 [°]
- Z stroke : 205 [mm]

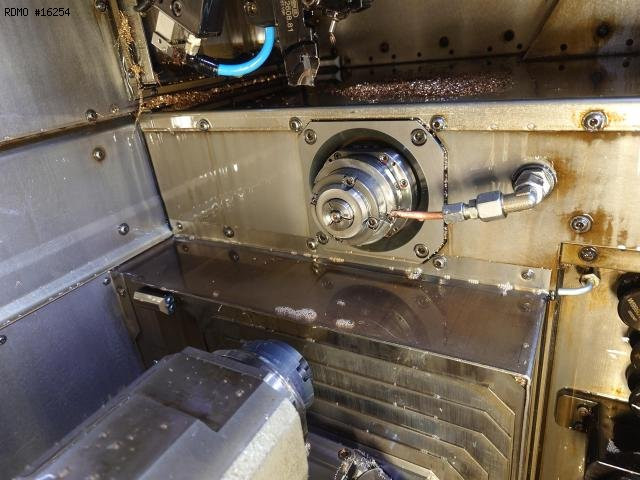

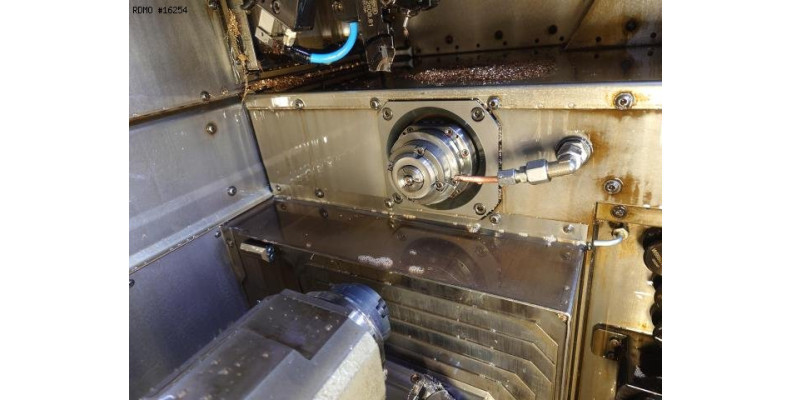

COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 12.000 [rpm]
- Spindle power : 1,5 / 2,5 [kW]
- C axis indexing precision : 0,001 [°]
- Number of turrets : 2

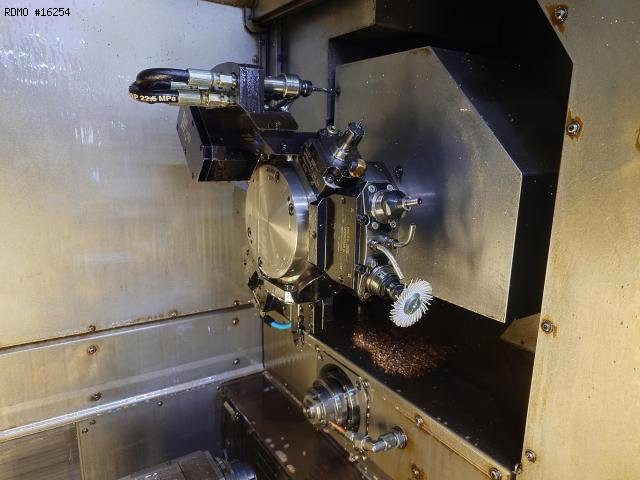

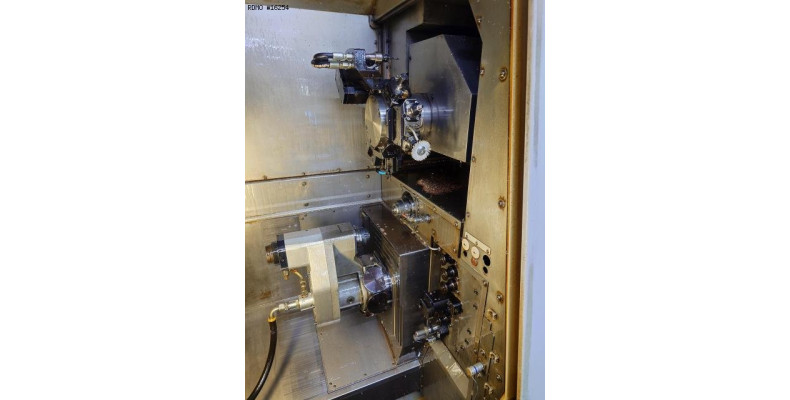

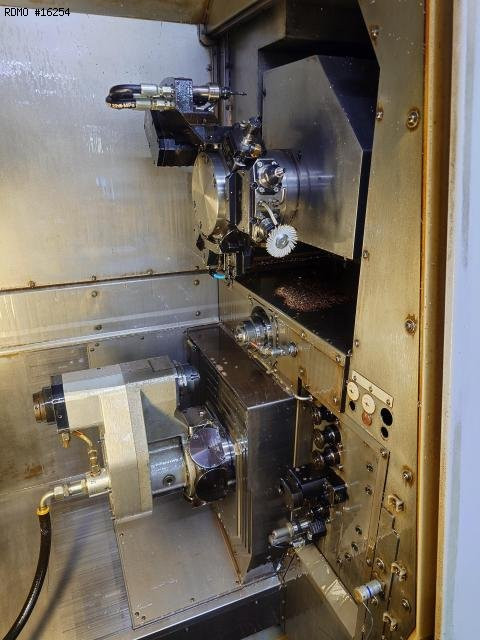

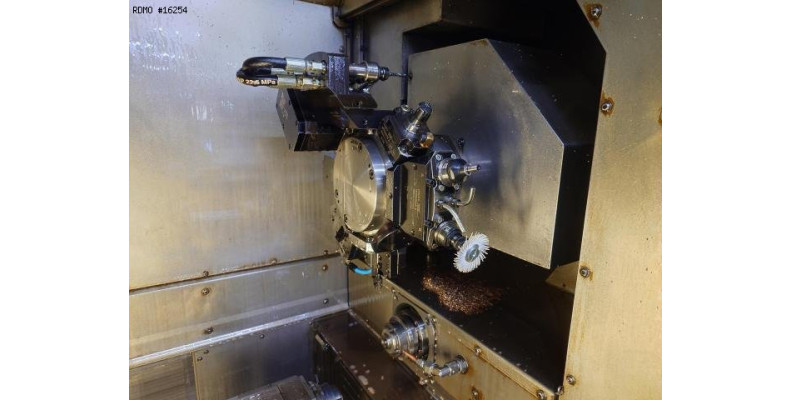

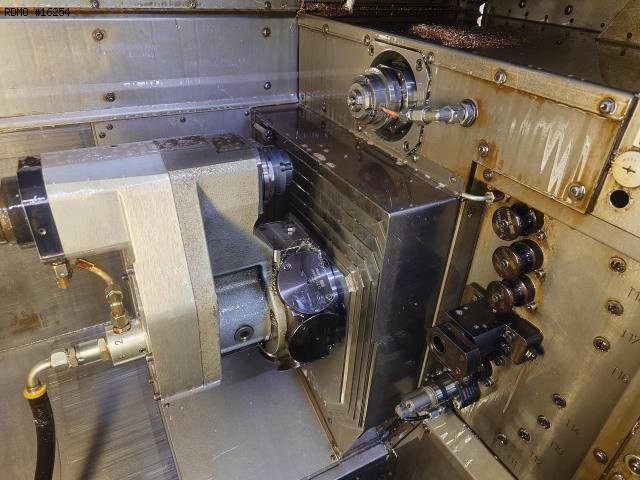

UPPER TURRET
- Number of positions : 8
- Number of motorized positions : 8
- Live tools speed : 12.000 [rpm]
- Live tools power : 1 / 2 [kW]
- X/Z stroke : 165 / 550 [mm]
- Y stroke : -40 / +25 [mm]
- Rapid traverses rates (X/Y/Z) : 21 / 21 / 42 [m/min]
- B Axis stroke : 100 [°]

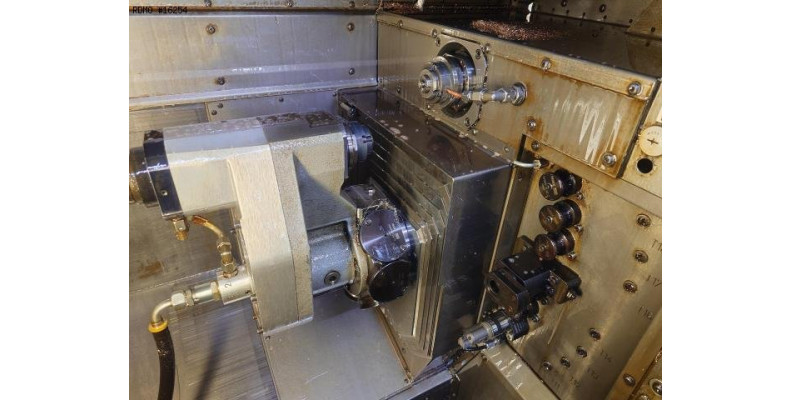

LOWER TURRET
- Number of positions : 7
- Number of motorized positions : 7
- Live tools speed : 12.000 [rpm]
- Live tools power : 1.5 / 2.5 [kW]
- X/Z stroke : 120 / 250 [mm]
- Y stroke : -20 / +40 [mm]
- Rapid traverses rates (X/Y/Z) : 21 / 21 / 50 [mm/min]
SECONDARY OPERATION
- Number of positions : 7
- Number of motorized positions : 3
- Live tools speed : 10.000 [rpm]
- Live tools power : 1 / 2 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 24 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.060 x 1.480 [mm]
- Machine height : 2.420 [mm]
- Machine weight : 4300 [kg]

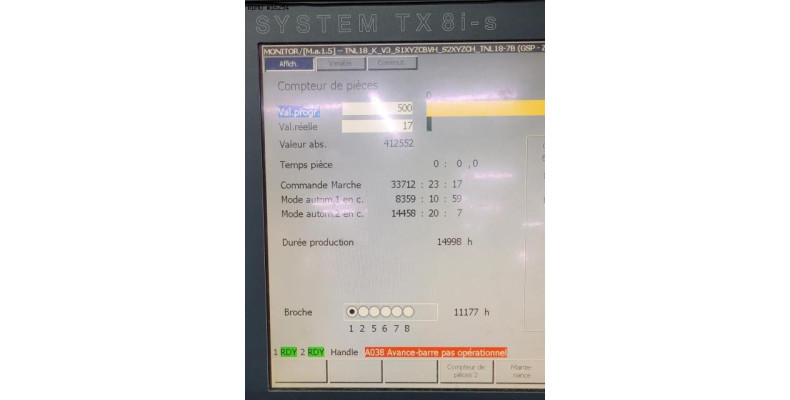

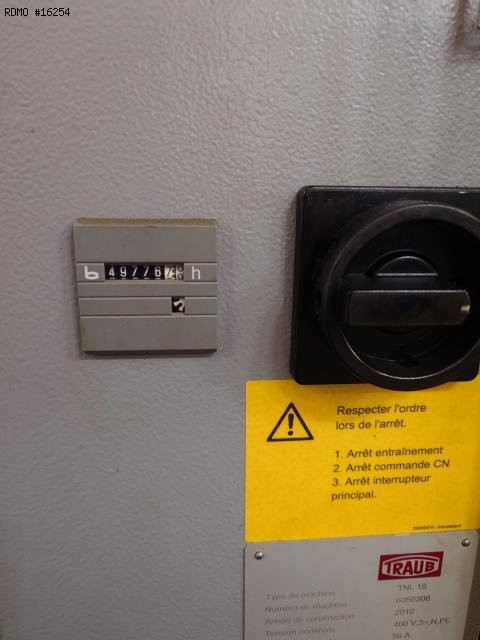

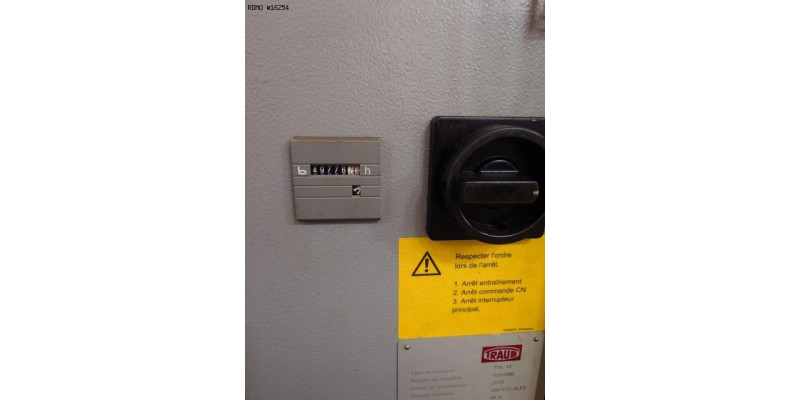

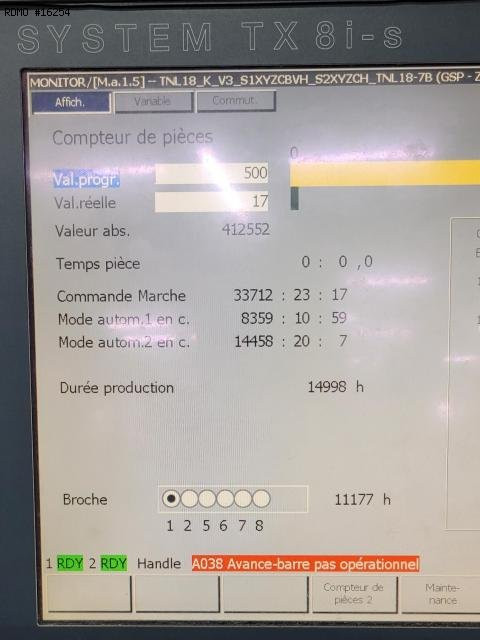

MACHINE HOURS
- Number of working hours : 14998 [h]
- Number of spindle hours : 11177 [h]
Equipment

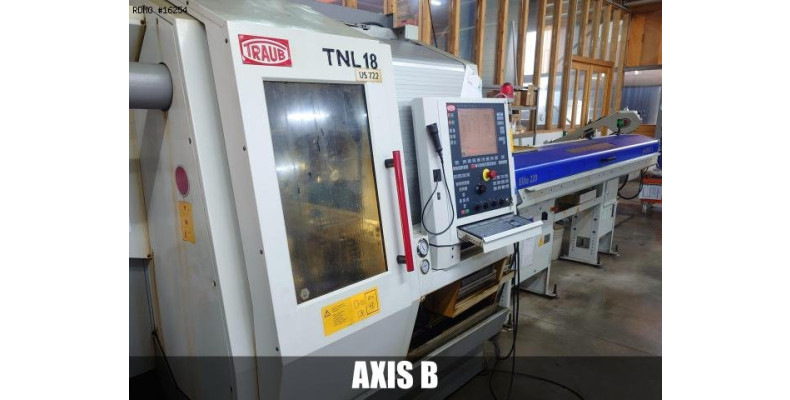

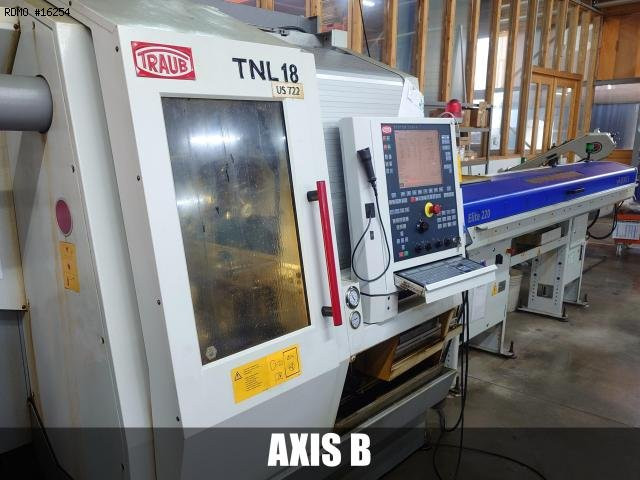

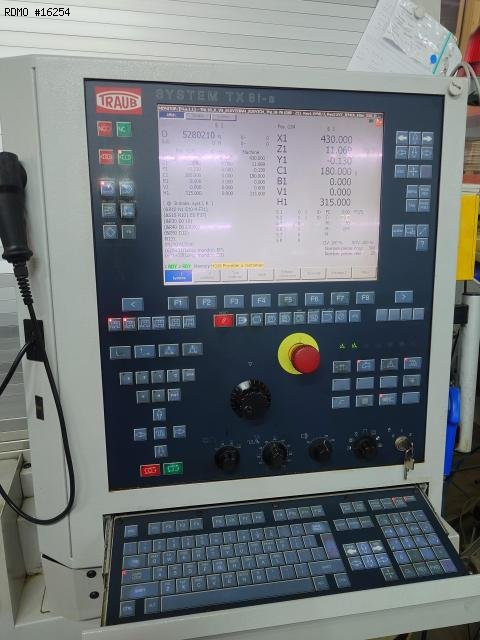

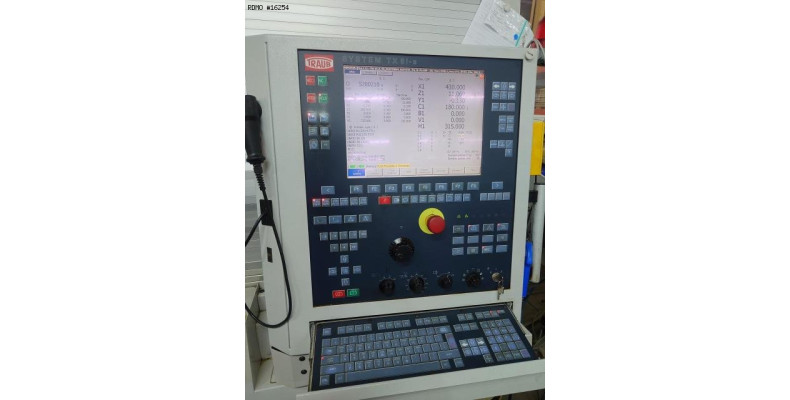

- CNC : Traub TX 8i-s
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Chips conveyor
- Coolant tank
* with high-pressure pump

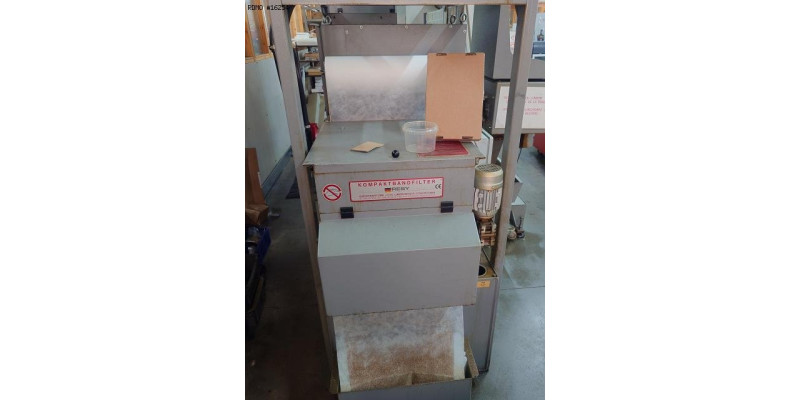

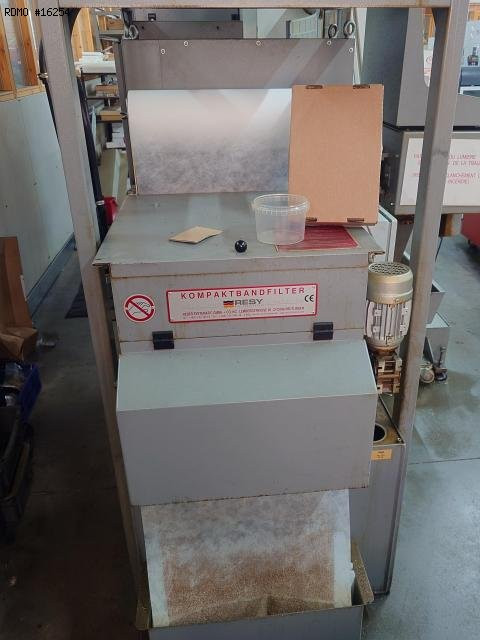

* with paper filtering unit

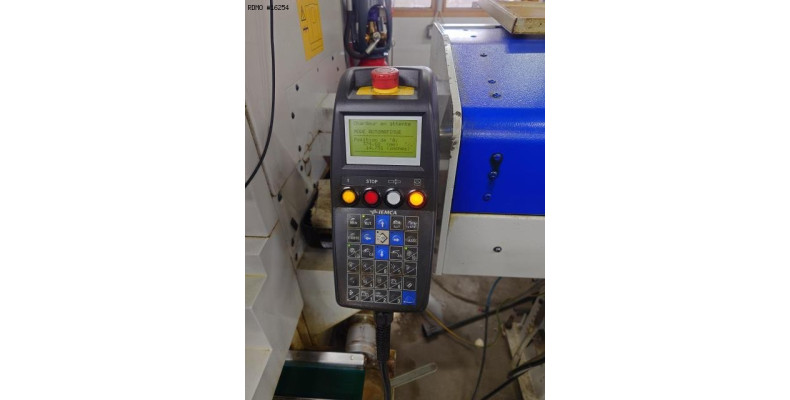

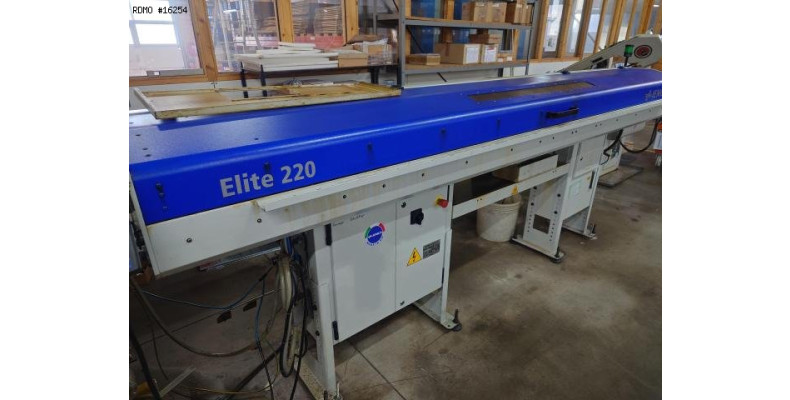

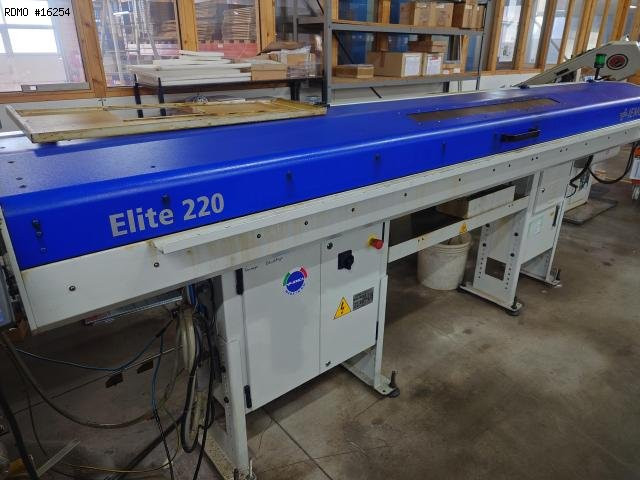

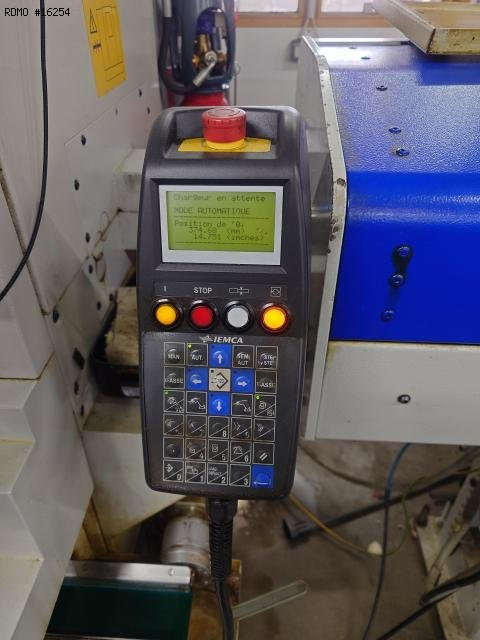

- Bar loader : IEMCA ELITE 220 / 32 XL

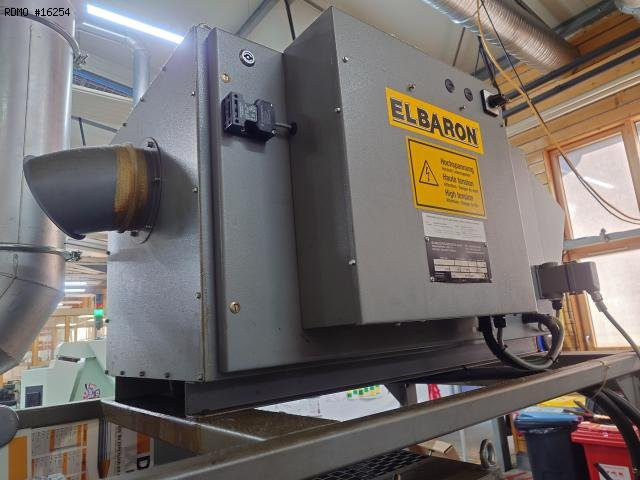

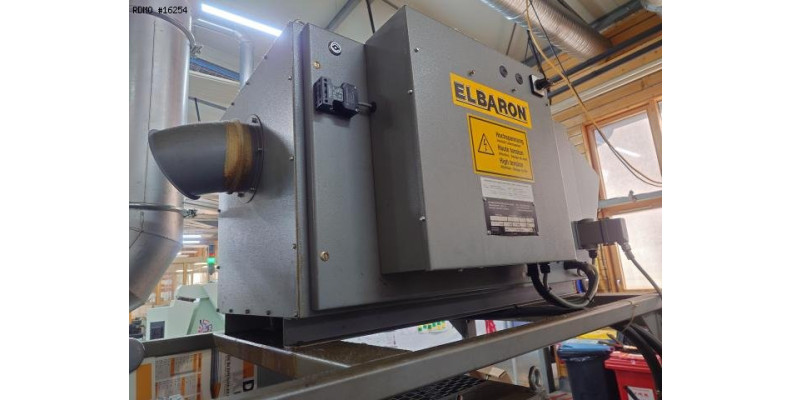

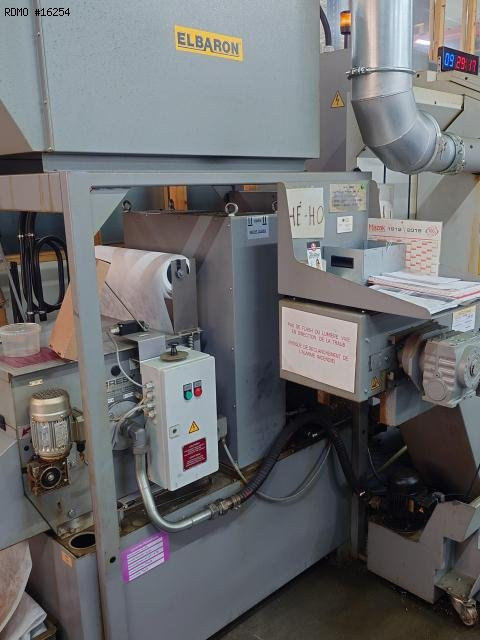

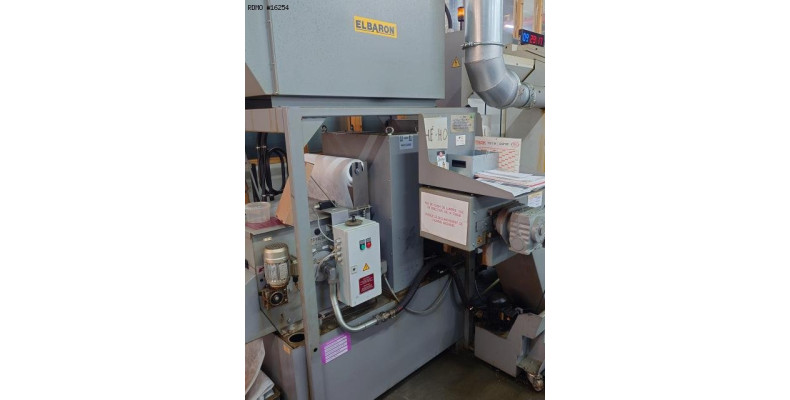

- Oil mist extractor : ELBARON RON/A 1500 DH

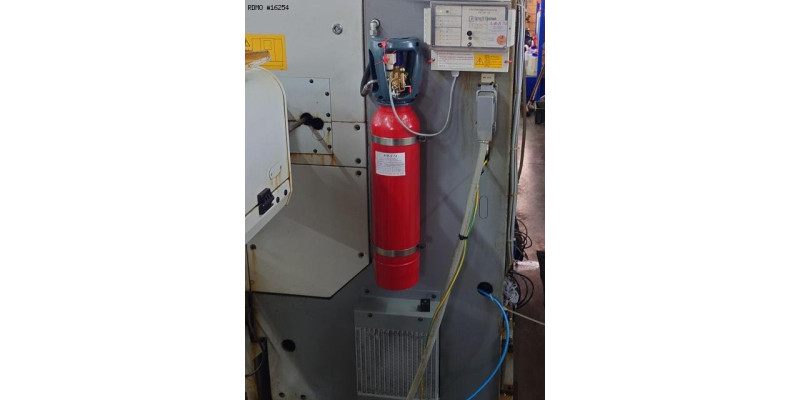

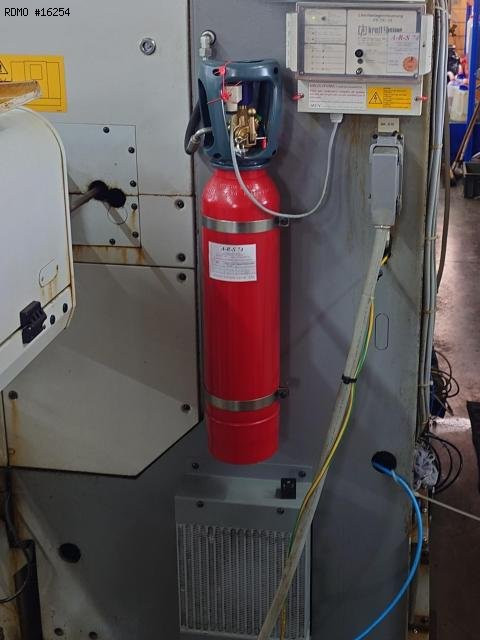

- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
