- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 2.2/3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 0.75/2.2 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 4
- Live tools speed : 9000 [rpm]
- Live tools power : 2.2 [kW]
END ATTACHMENT
- Number of positions : 6 + 3
- Number of motorized positions : 3
- Live tools speed : 7500 [rpm]
- Live tools power : 0.75 [kW]
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 4
- Live tools speed : 7500 [rpm]
- Live tools power : 0.75 [kW]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 7.3 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.120 x 1.220 [mm]
- Machine height : 1.835 [mm]
- Machine weight : 2.350 [kg]
MACHINE HOURS

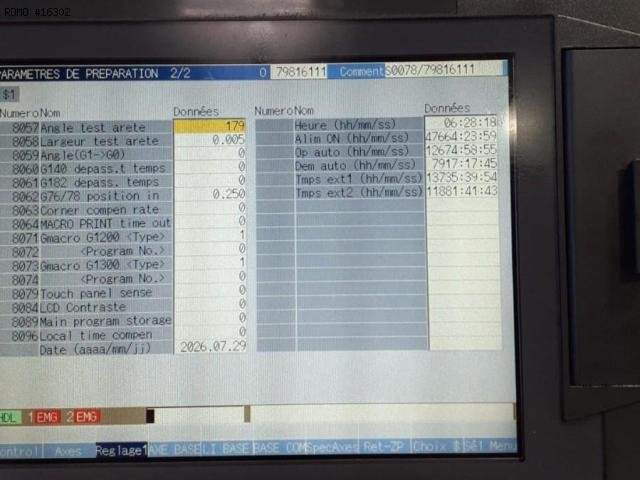

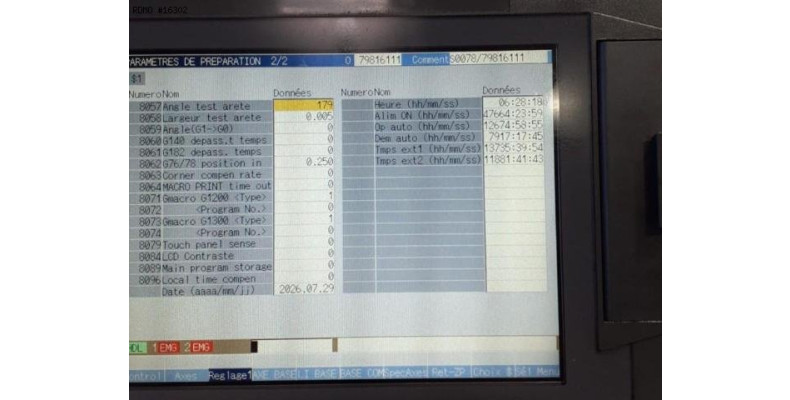

- Number of working hours : 12674 [h]
Equipment

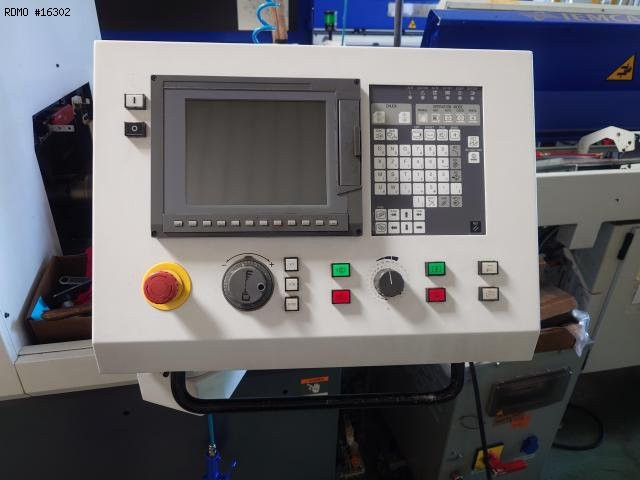

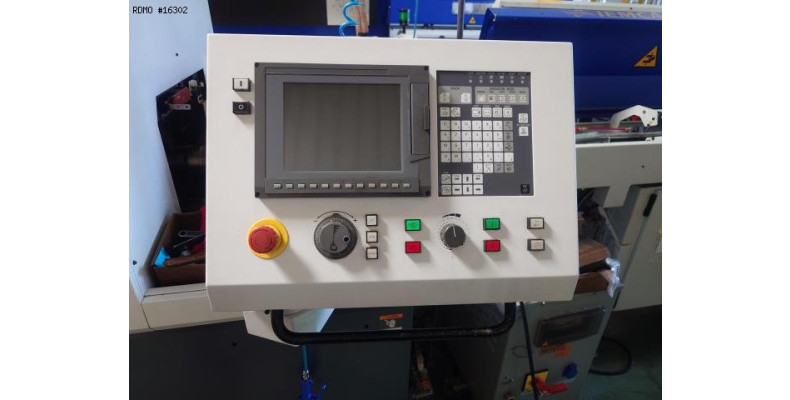

- CNC : Mitsubishi MELDAS M70LPC-VU
- 3 colors status lamp
- Rotating guide bush
- Ejection of workpiece
- Parts catcher
- Parts conveying strip
- Chips conveyor : LNS TURBO MF3

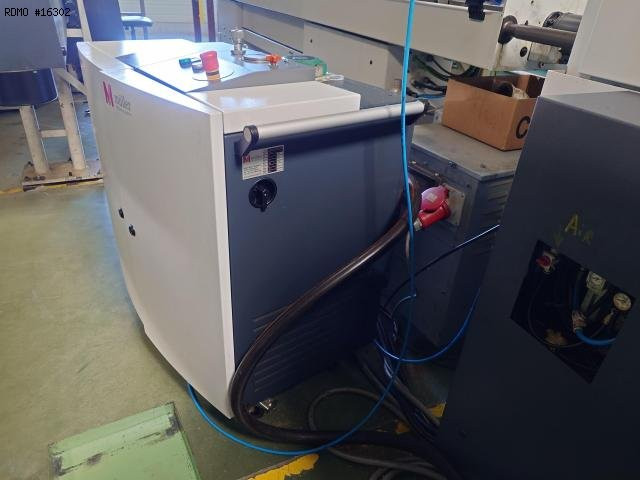

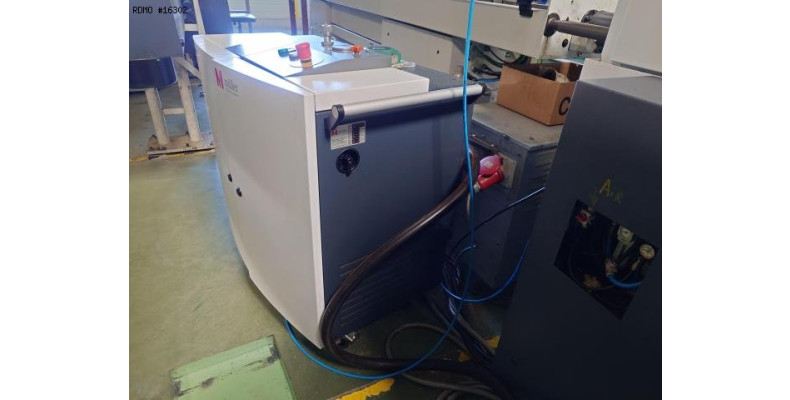

- Coolant tank : MÜLLER COMBILOOP
* with high-pressure pump : 100 [bars]

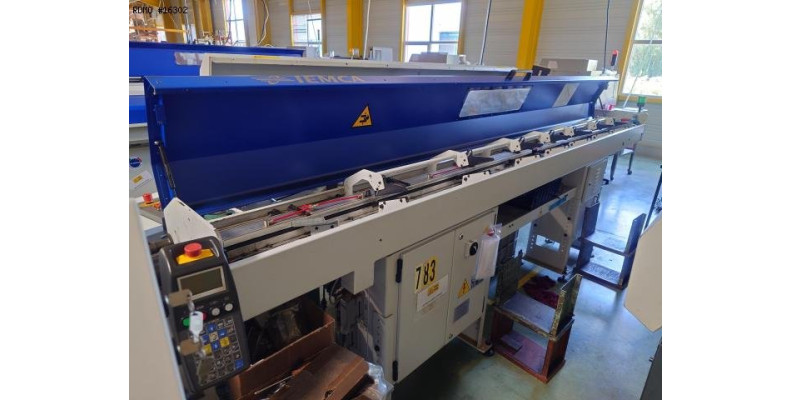

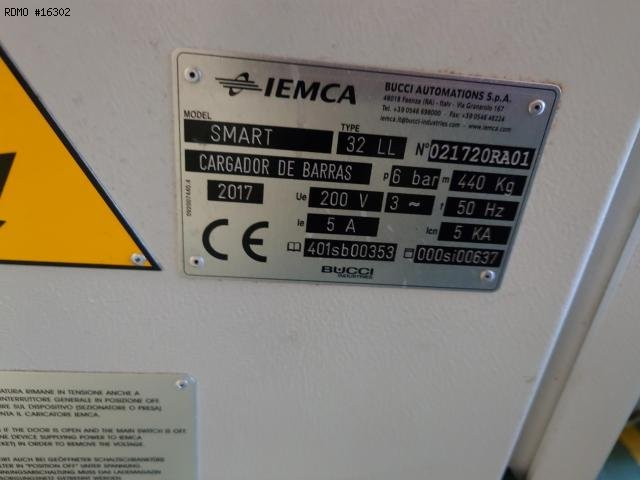

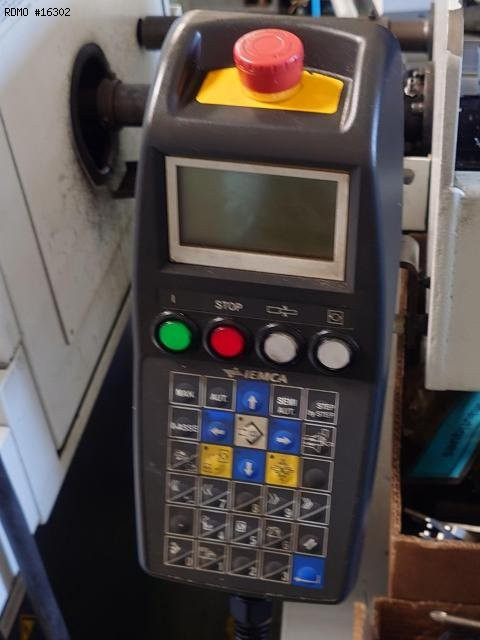

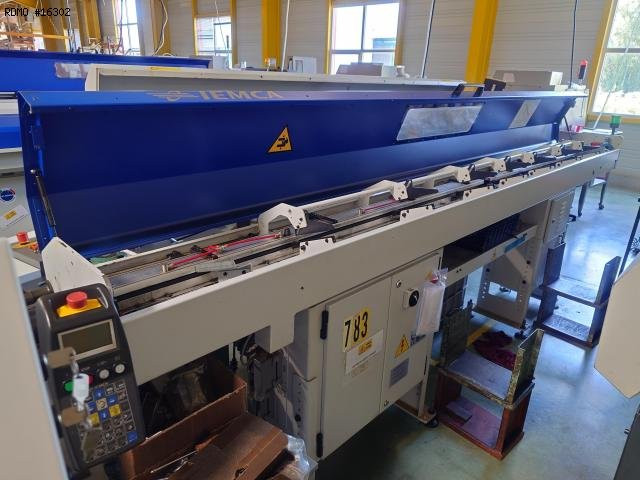

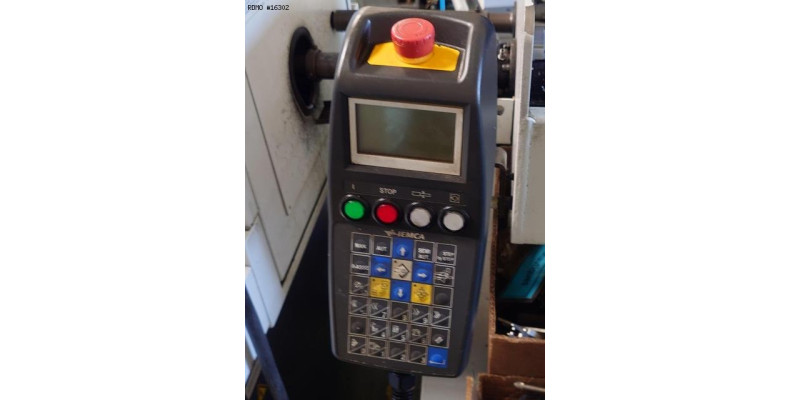

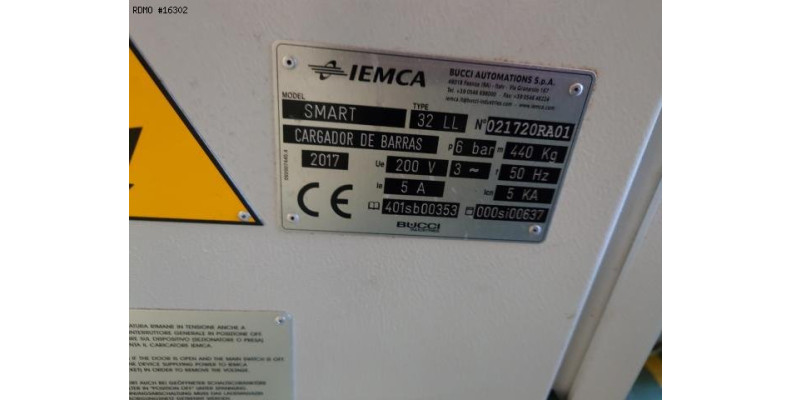

- Bar loader : IEMCA SMART 32 LL

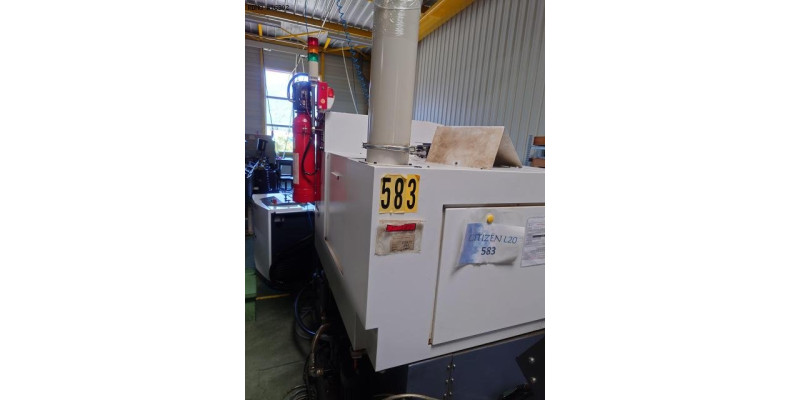

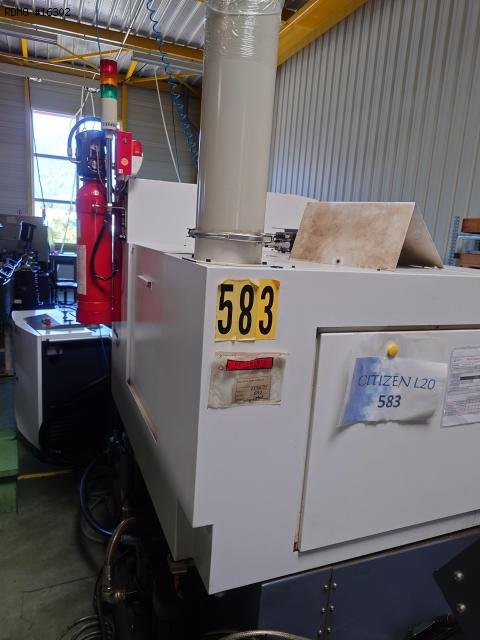

- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
