- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 310 [mm]
- Spindle speeds : 350-7000 [rpm]
- Spindle power : 7.5 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 350-7000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 5000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 6
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 20 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1700x2515 [mm]
- Machine height : 1700 [mm]
- Machine weight : 2900 [kg]
MACHINE HOURS
- Number of working hours : 59144 [h]
- Number of spindle hours : 42219 [h]
Equipment

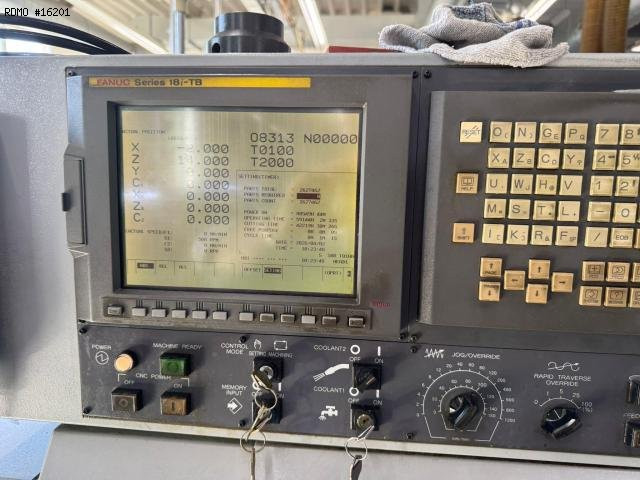

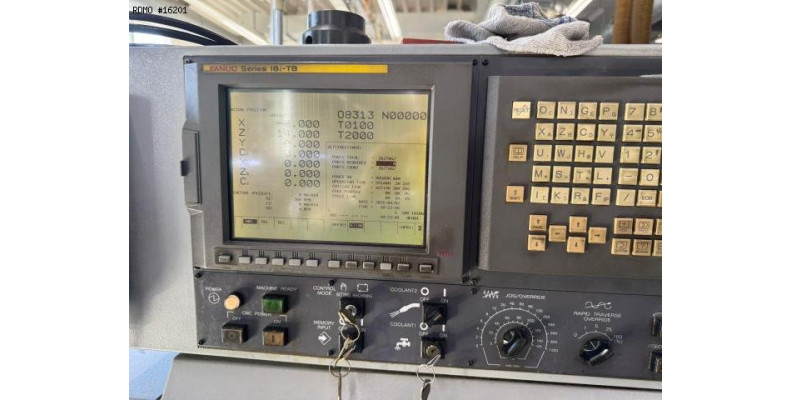

- CNC : Fanuc
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Coolant tank

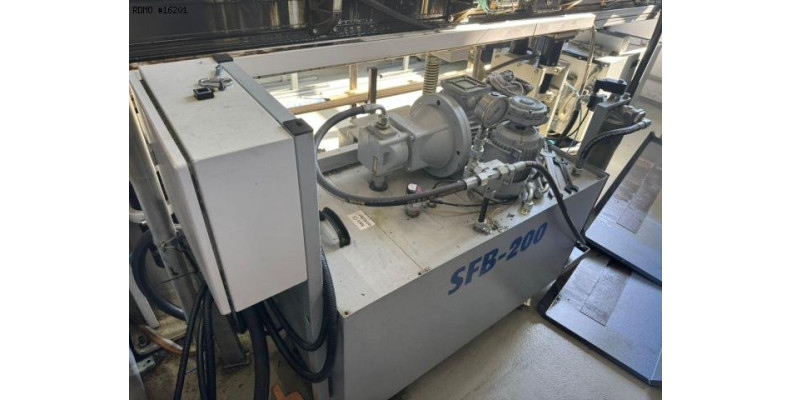

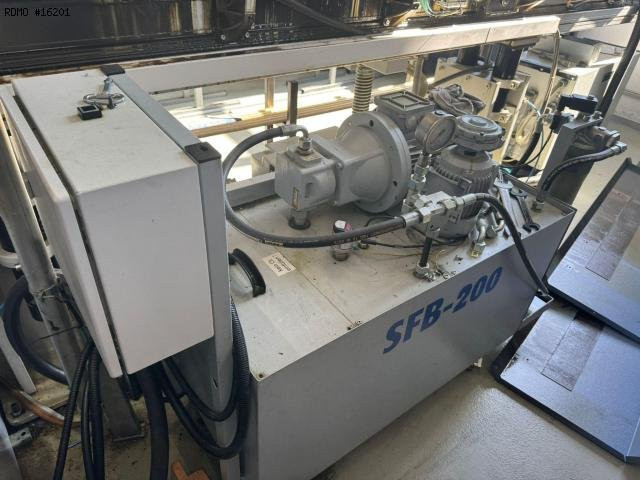

* with high-pressure pump : SFB-200 [bars]
- Bar loader : FMB 3-32/3200A
