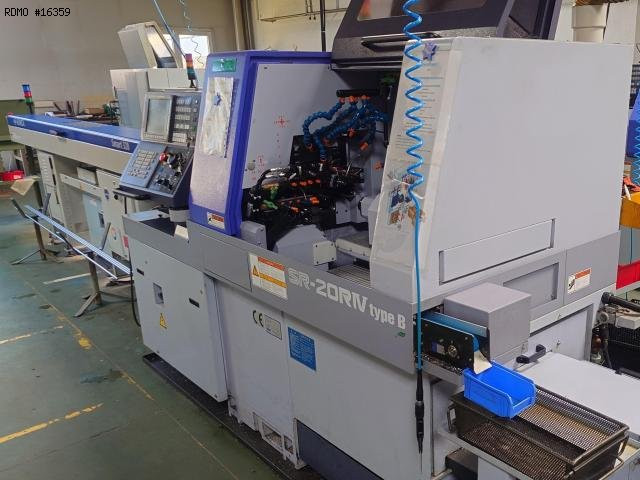

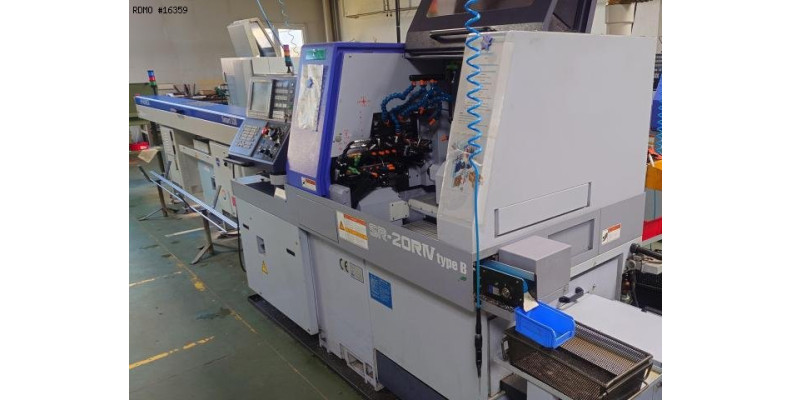

STAR SR-20RIV type B 9 axis

- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 205 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]

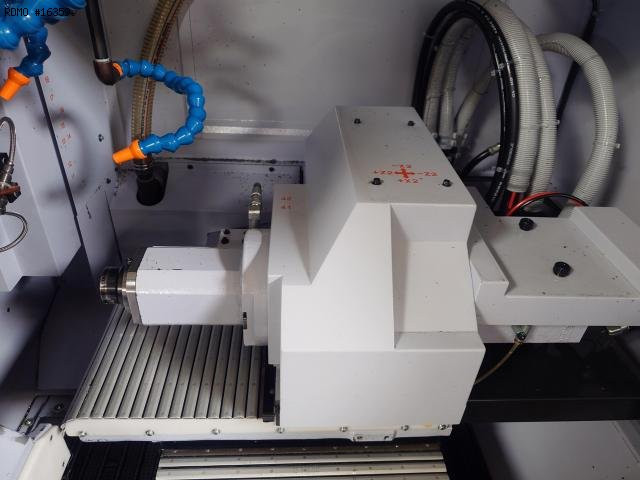

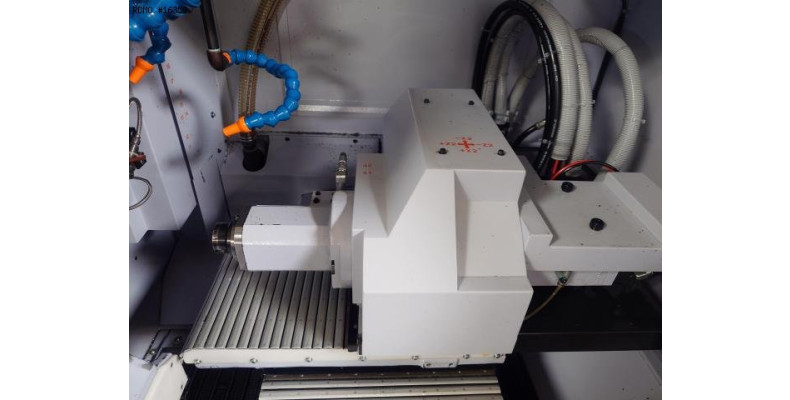

COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
- Number of guide bush holders : 1

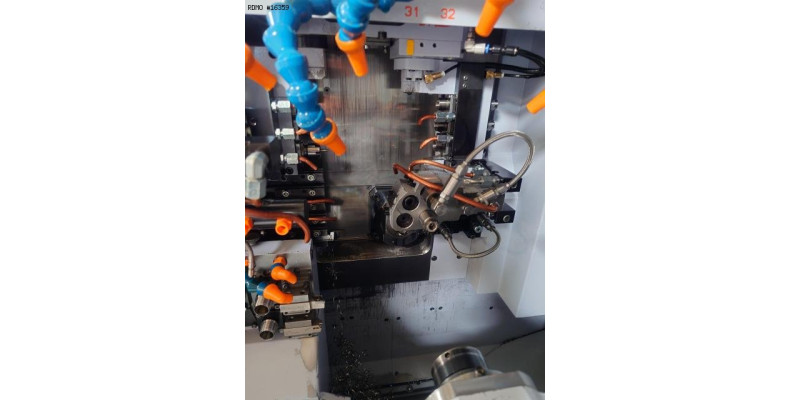

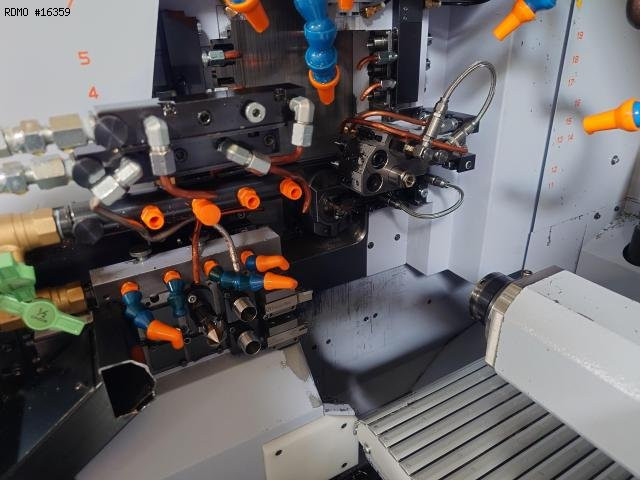

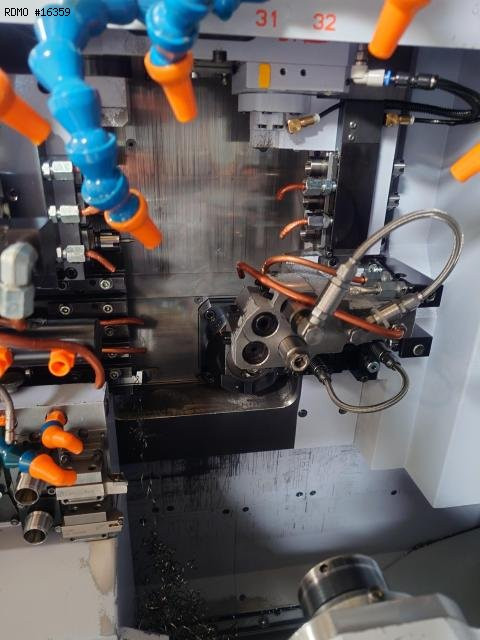

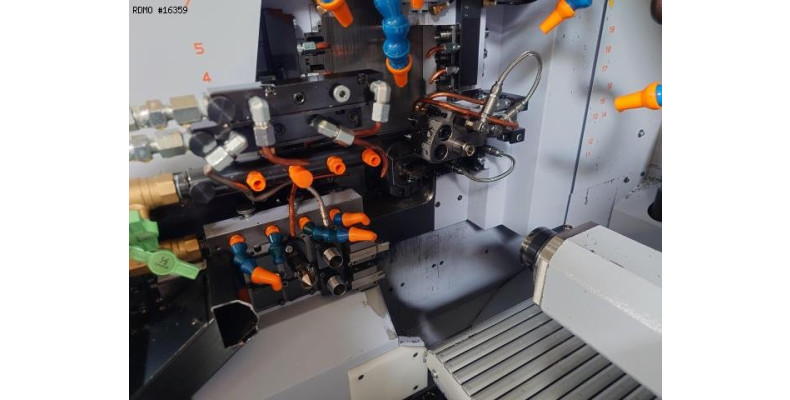

GUIDE BUSH HOLDER 1
- Number of positions : 14
- Number of motorized positions : 8
- Live tools speed : 8000 [rpm]
- Live tools power : 1 [kW]
END ATTACHMENT
- Number of positions : 4 + 2
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 8
- Live tools speed : 8000 [rpm]
- Live tools power : 1 [kW]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 4.7 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2334 x 1200 [mm]
- Machine height : 1700 [mm]
- Machine weight : 2600 [kg]

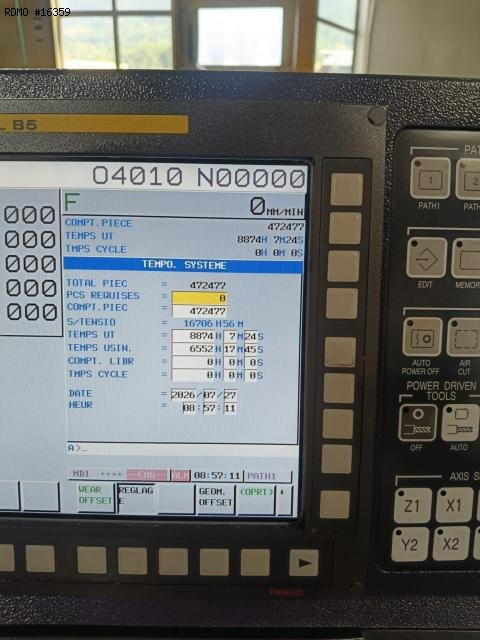

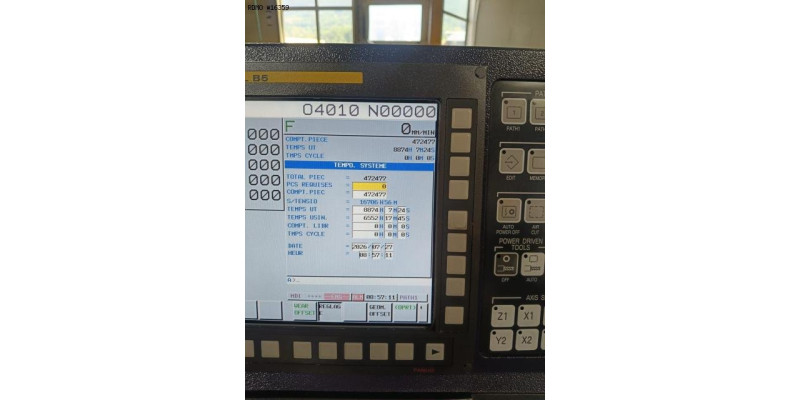

MACHINE HOURS
- Number of hours under power : 16706 [h]
- Number of working hours : 6552 [h]

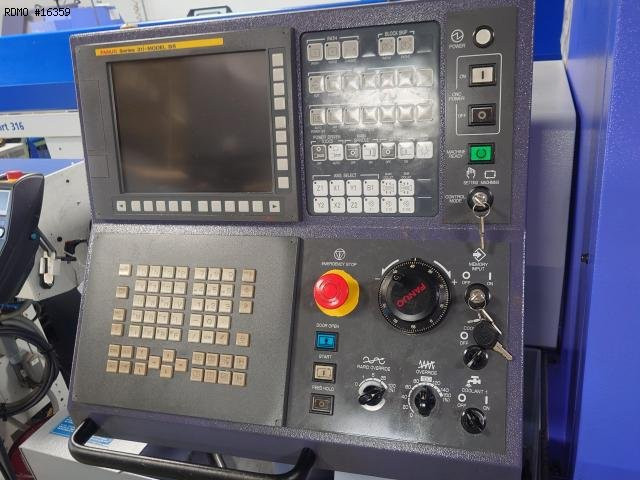

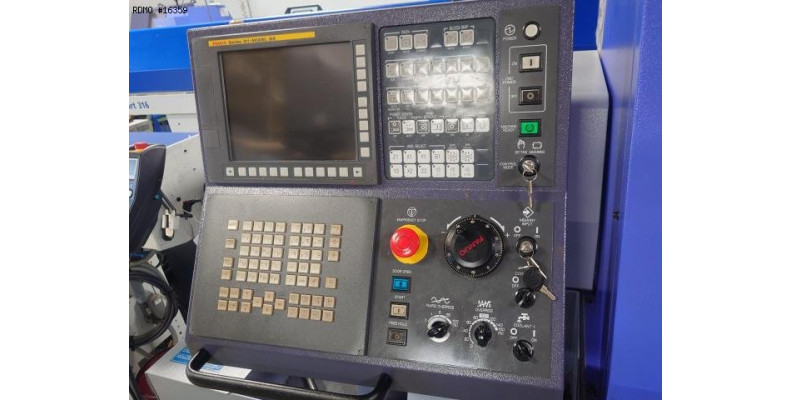

- CNC : Fanuc 31i-B5
- 3 colors status lamp
- Rotating guide bush
- B Rotary Axis : Numérique
- Ejection of workpiece

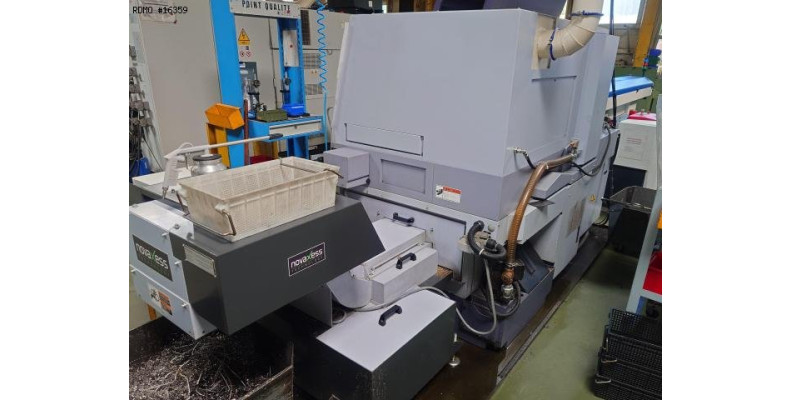

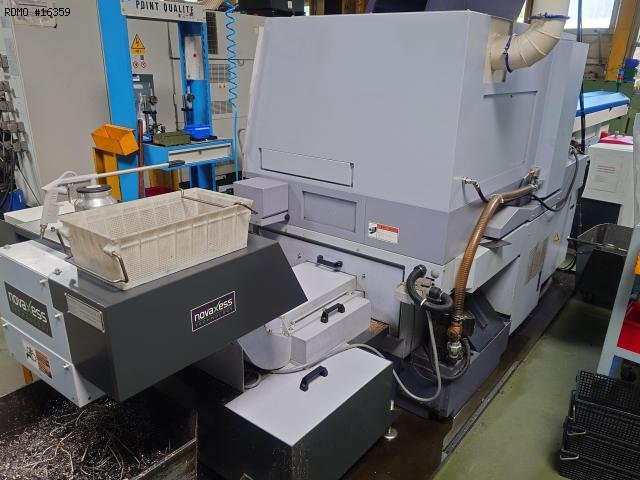

- Parts catcher
- Parts conveying strip
- Chips conveyor
- Coolant tank : MÜLLER COMBILOOP
* with high-pressure pump

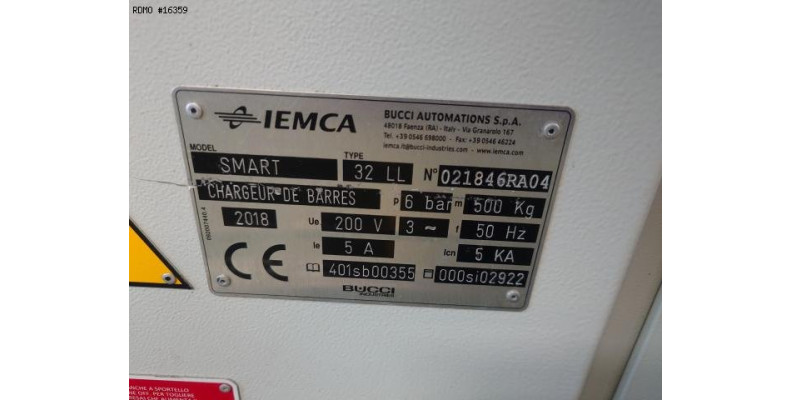

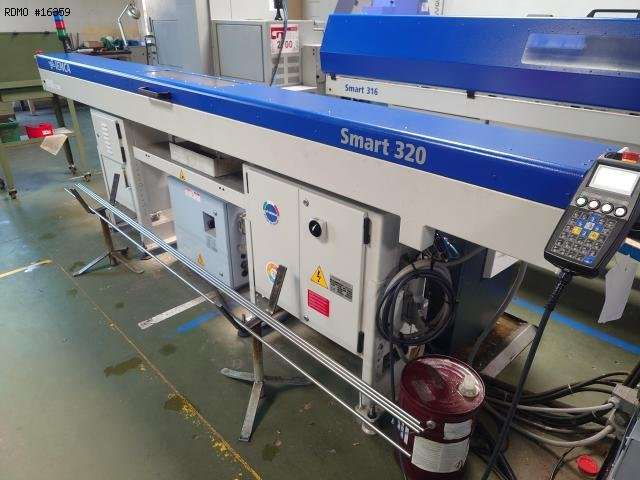

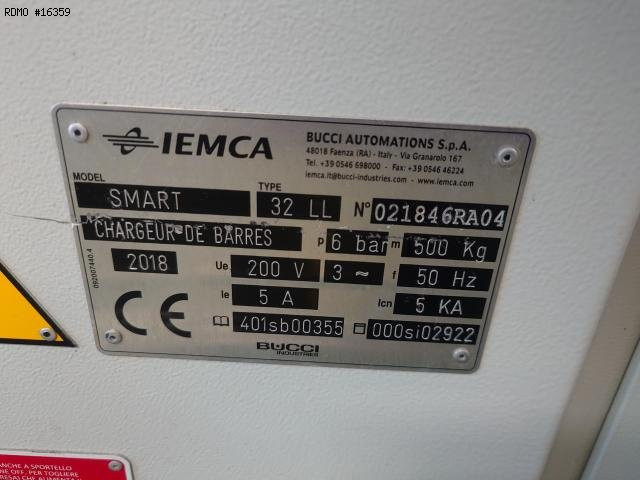

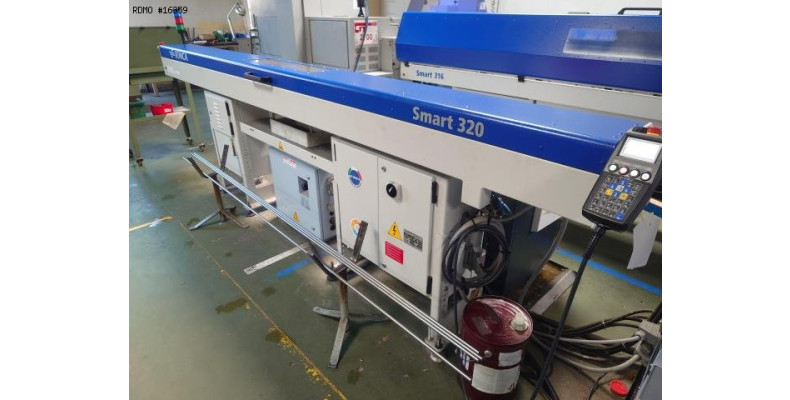

- Bar loader : IEMCA SMART 320 / 32 LL
