- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Travel : 205 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 2.2 / 3.7 [kW]
- C axis indexing precision : 0.001 [°]

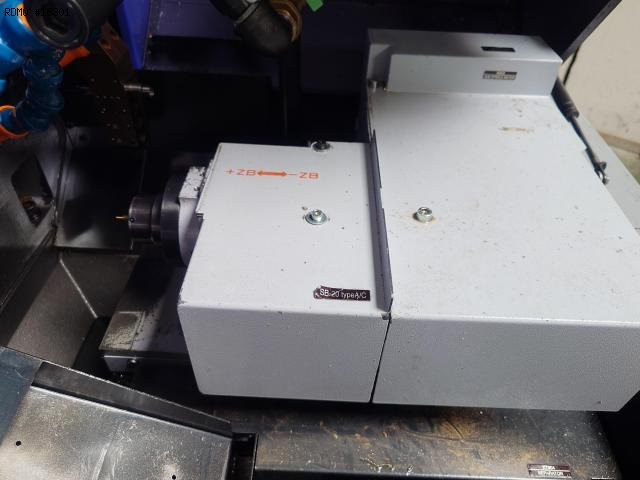

COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 1 [kW]

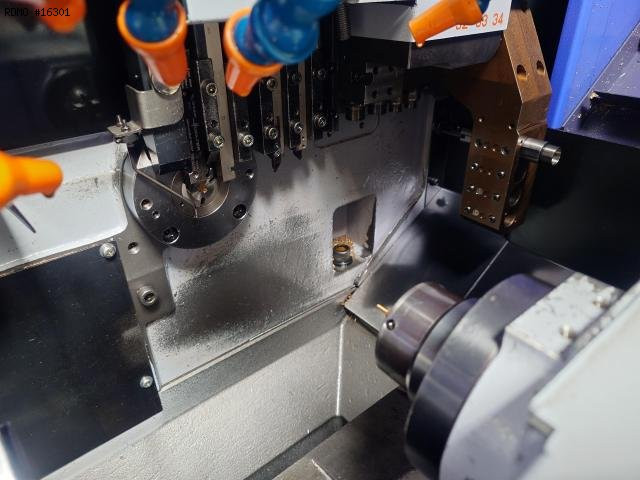

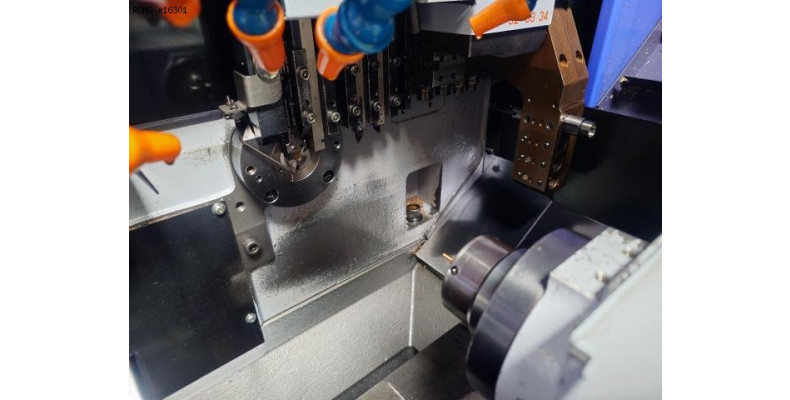

GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
- Live tools power : 1 [kW]

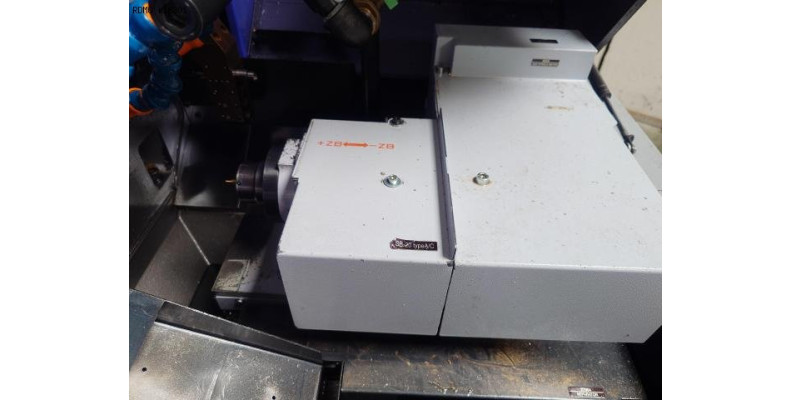

END ATTACHMENT
- Number of positions : 4
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 4.6 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.070 x 1.177 [mm]
- Machine height : 1.760 [mm]
- Machine weight : 1650 [kg]

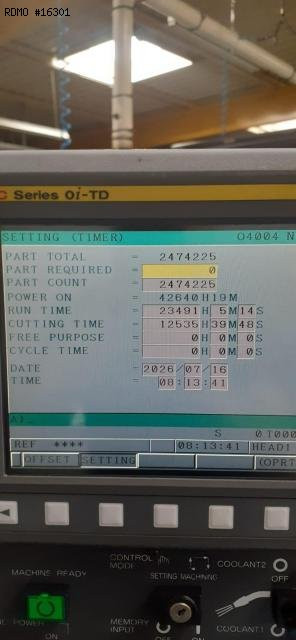

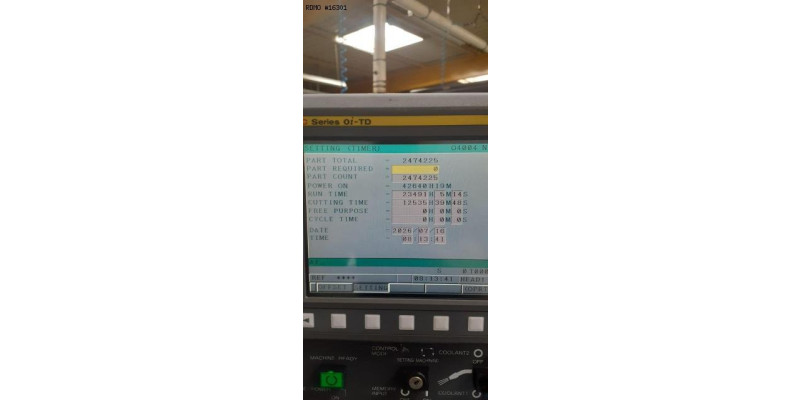

MACHINE HOURS
- Number of hours under power : 42640 [h]
- Number of working hours : 23491 [h]
- Number of spindle hours : 12535 [h]
Equipment

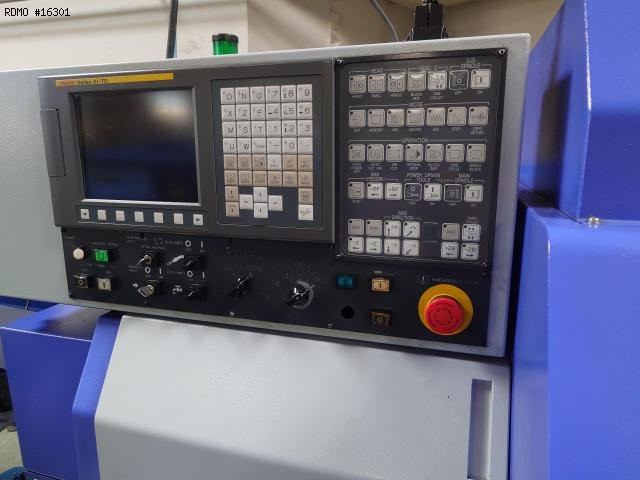

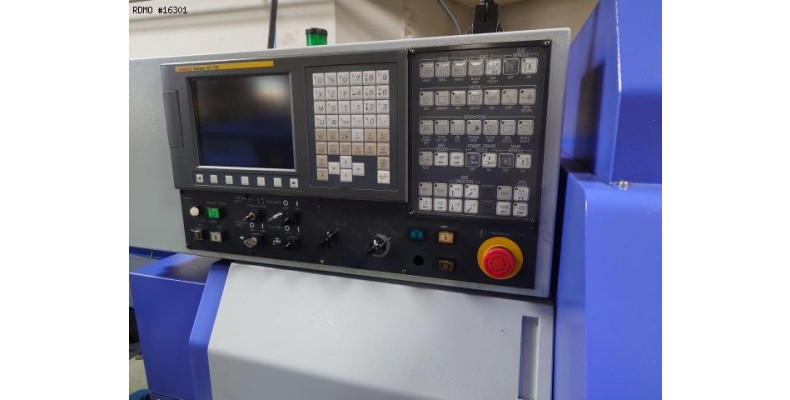

- CNC : Fanuc Oi-TD
- 3 colors status lamp
- Rotating guide bush
- Ejection of workpiece
- Parts catcher
- Parts conveying strip

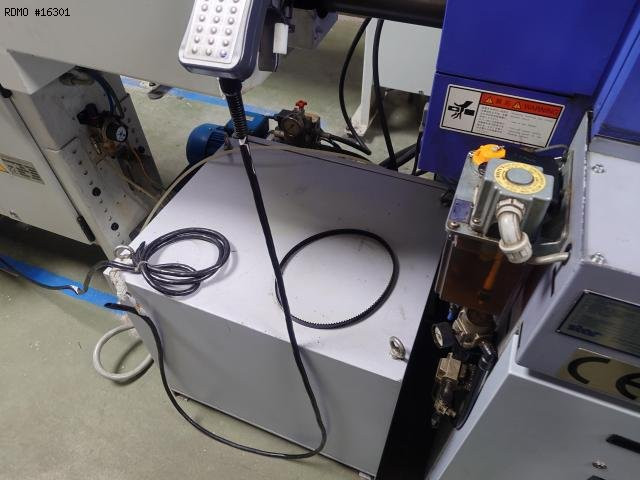

- Coolant tank

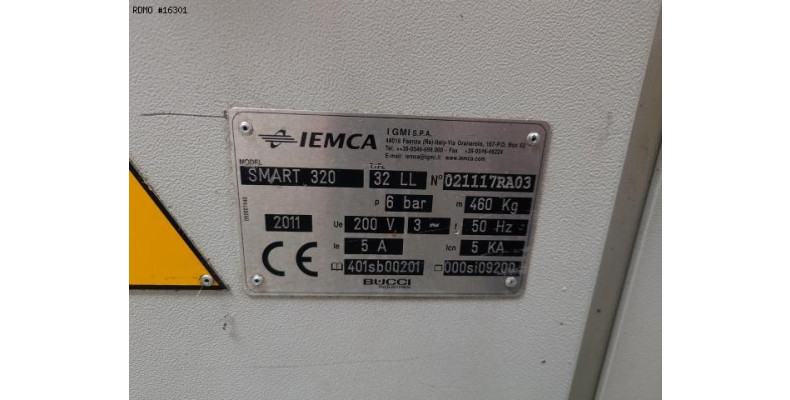

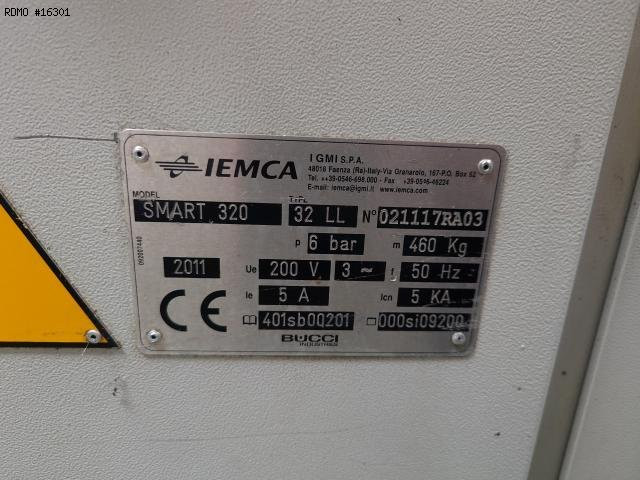

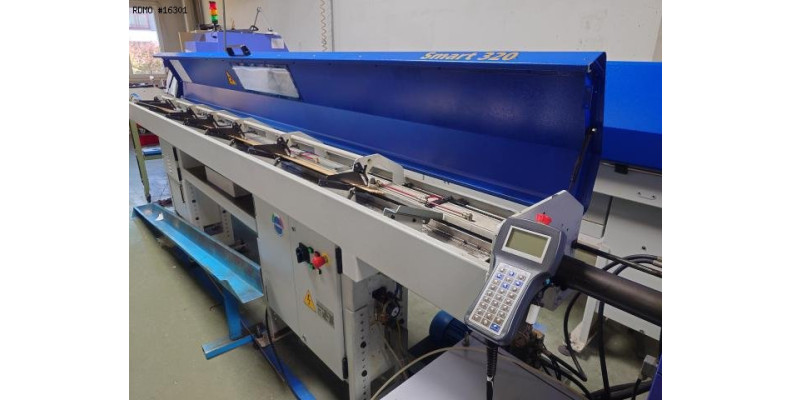

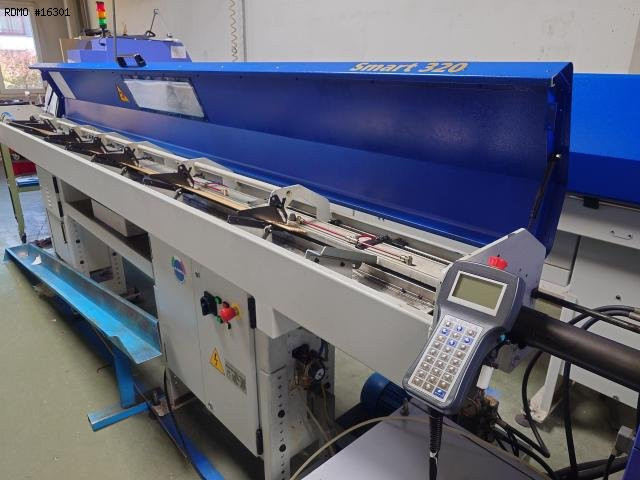

- Bar loader : IEMCA SMART 320 / 32 LL
- Electric transformer
