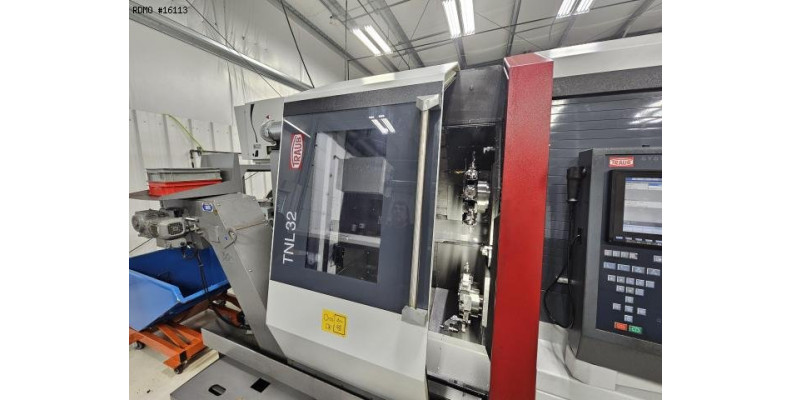

TRAUB TNL32-9P 9 axis

- Number of spindles : 2
- Number of axes : 9
- Number of turrets : 2
MAIN SPINDLE
- Spindle power : 6.7 / 10.7 [kW]
- Spindle speeds : 8000 [rpm]
- Max. bar diameter : 32 [mm]
- Z stroke : 305 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle power : 3.7 / 5.5 [kW]
- Spindle speeds : 6400 [rpm]
- Max. bar diameter : 30 [mm]
- C axis indexing precision : 0.001 [°]
- X stroke : 140 [mm]
- Z stroke : 300 [mm]

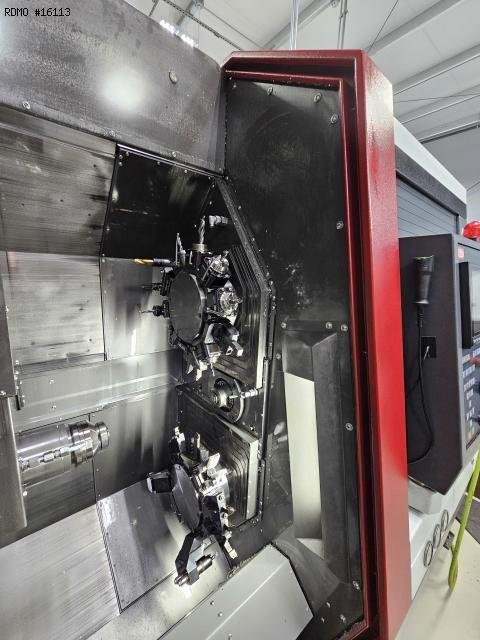

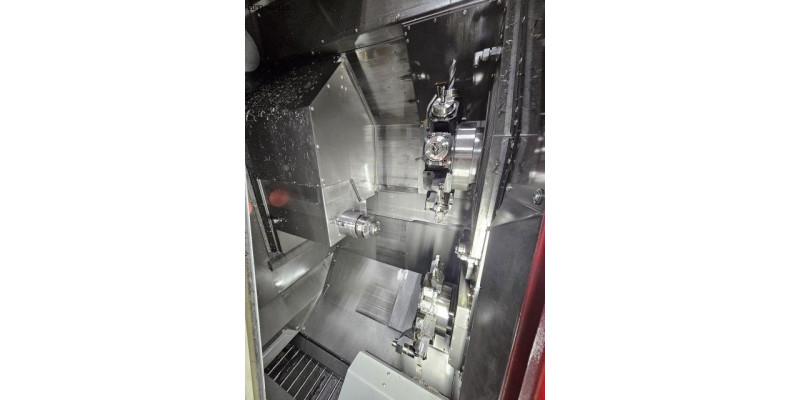

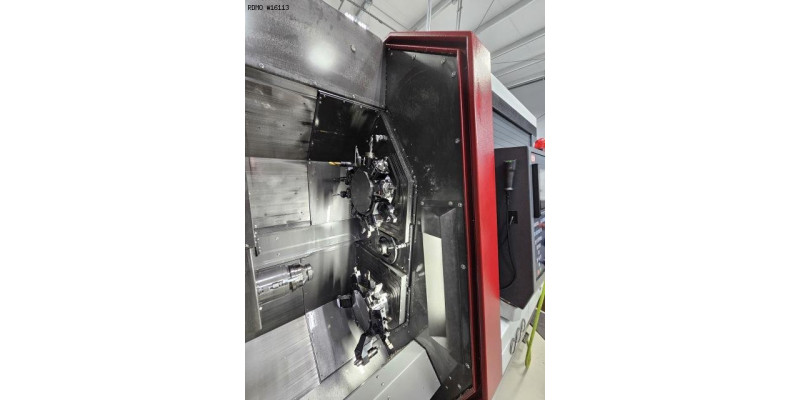

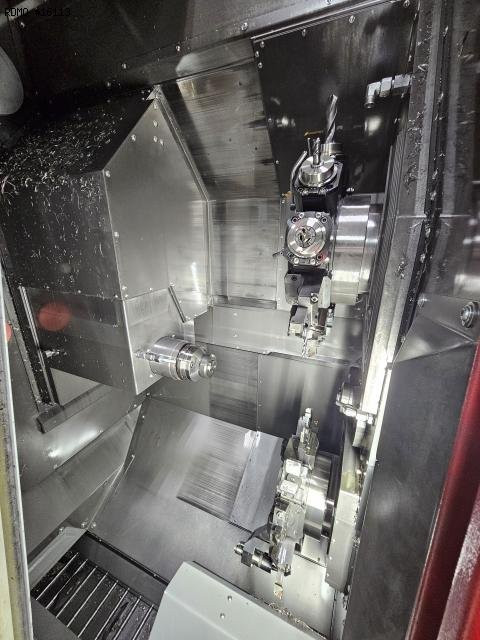

TURRET 1
- Number of positions : 10
- Number of motorized positions : 10
- Live tools speed : 12 000 [rpm]
- Live tools power : 3.4 [kW]
- X/Z stroke : 140/300 [mm]
- Y stroke : -40/+25 [mm]
TURRET 2
- Number of positions : 10
- Number of motorized positions : 10
- Live tools speed : 12 000 [rpm]
- Live tools power : 3.4 [kW]
- X/Z stroke : 140/320 [mm]
- Y stroke : -25/+40 [mm]
POWER SUPPLY
- Total installed power : 28 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3870 x 1670 [mm]
- Machine height : 2500 [mm]
- Machine weight : 6000 [kg]
MACHINE HOURS

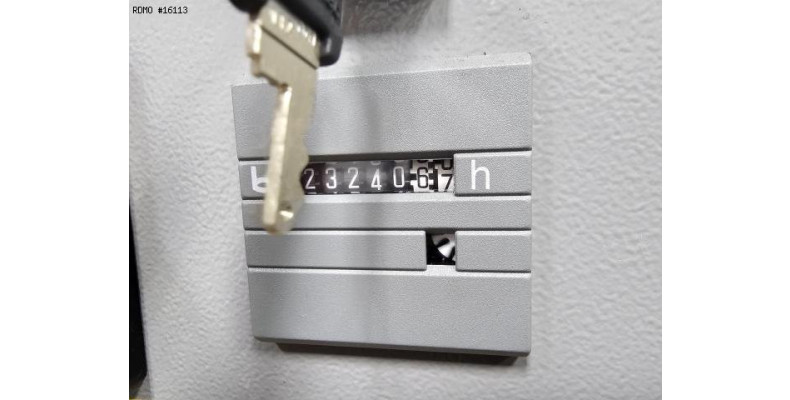

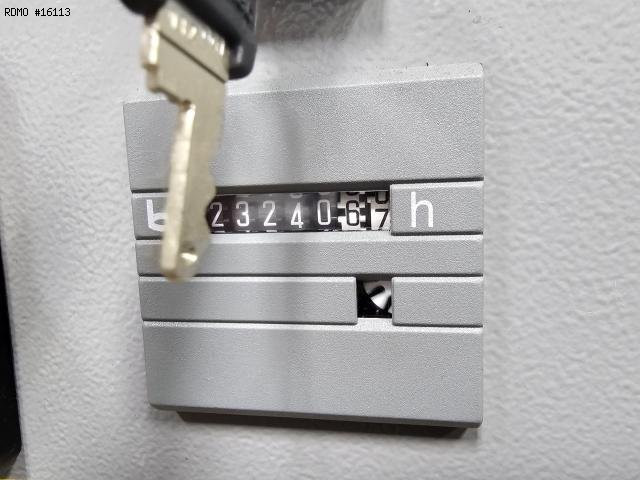

- Number of hours under power : 23240 [h]
- Number of working hours : 19500 [h]

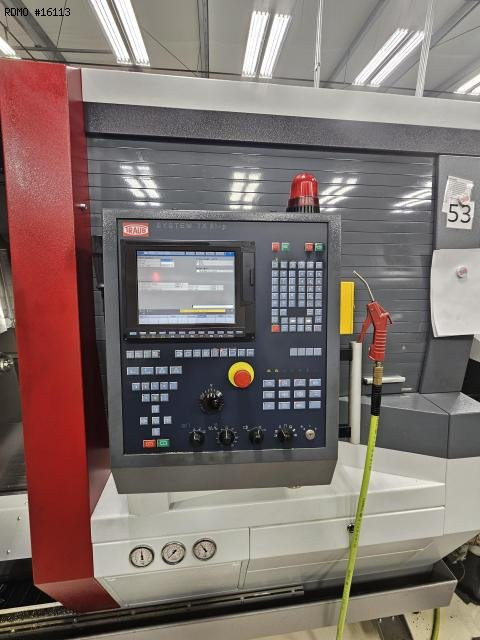

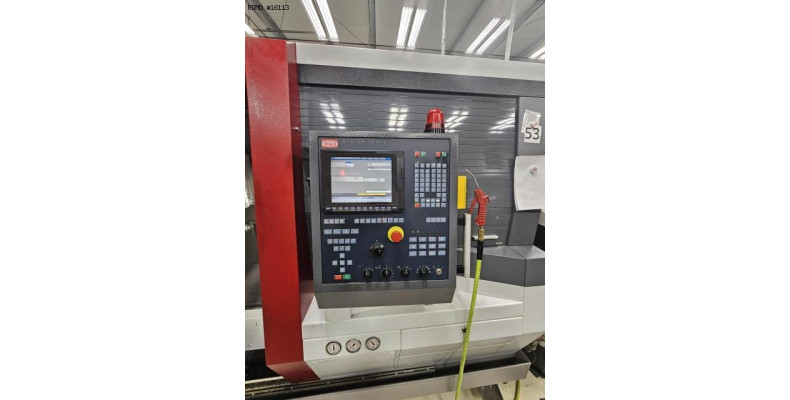

- CNC : Traub TX 8i-p
- 3 colors status lamp
- Coolant tank : 500 [l]
* with high-pressure pump : 3,8,20 [bars]

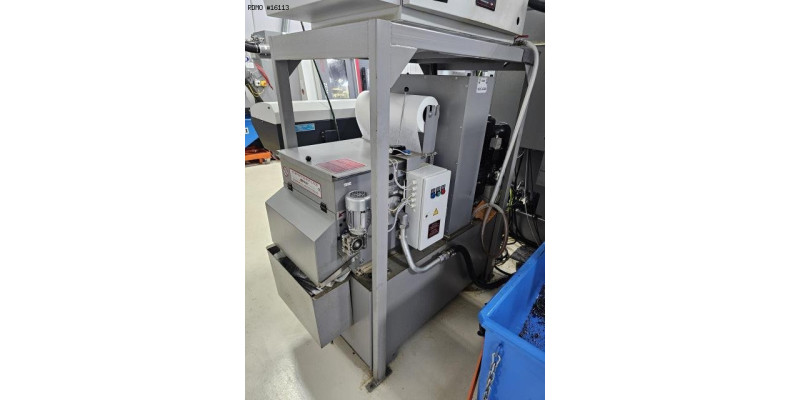

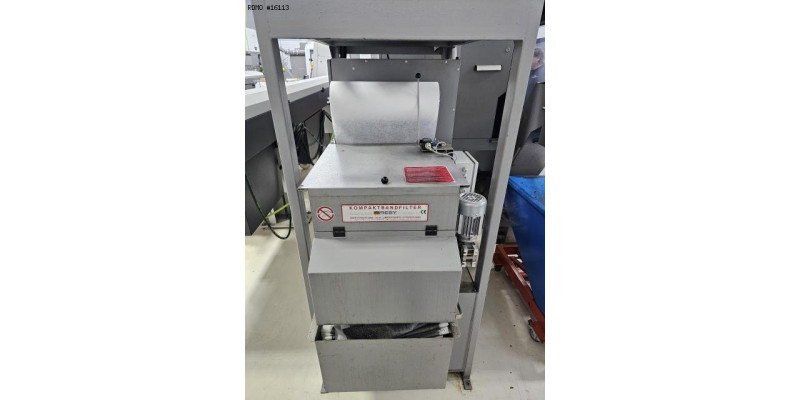

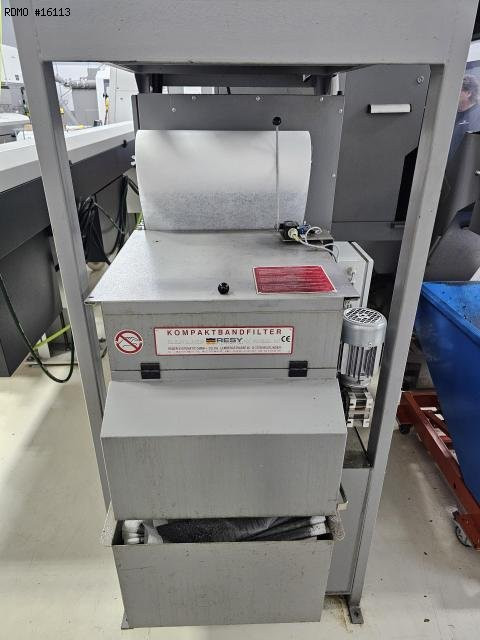

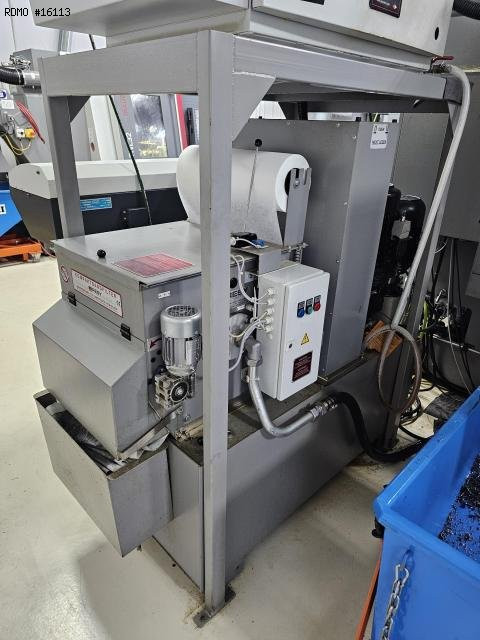

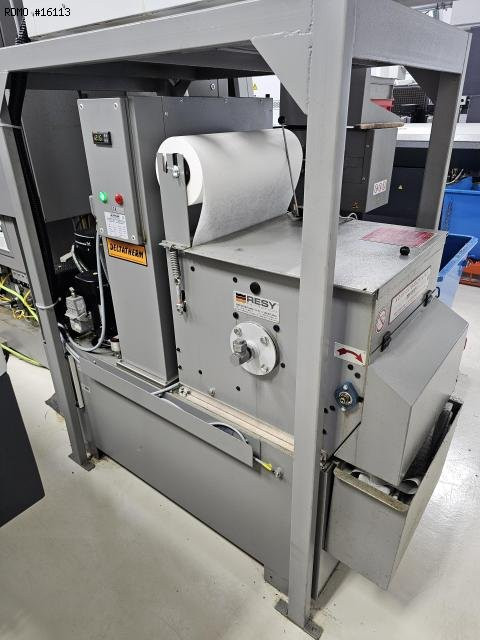

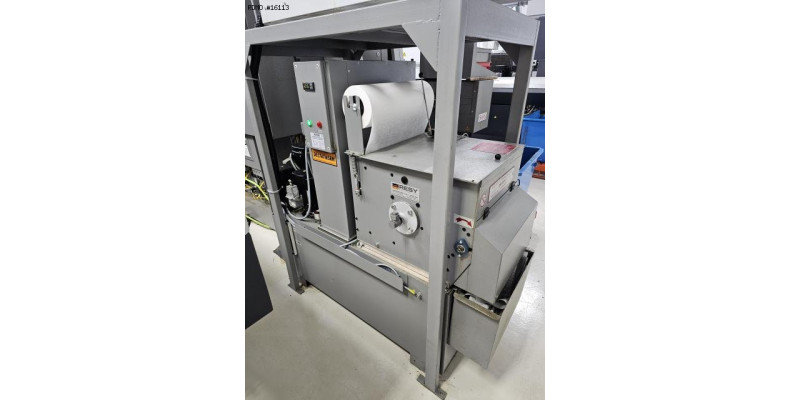

* with paper filtering unit
- Chips conveyor
- Parts catcher
- Parts conveying strip
- Predisposition for barfeeder
