- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 210 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
- Number of guide bush holders : 2
GUIDE BUSH HOLDER 1
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 2
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 5
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
POWER SUPPLY
- Supply voltage : 400 [V]
MACHINE HOURS
- Number of spindle hours : 18849 [h]
Equipment

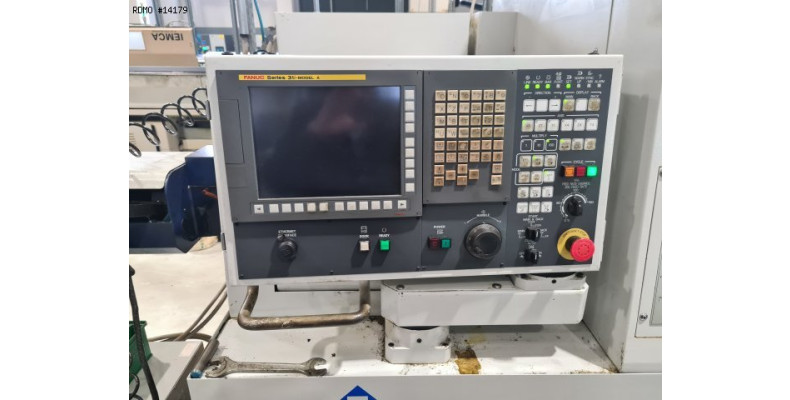

- CNC : Fanuc 31i-model A

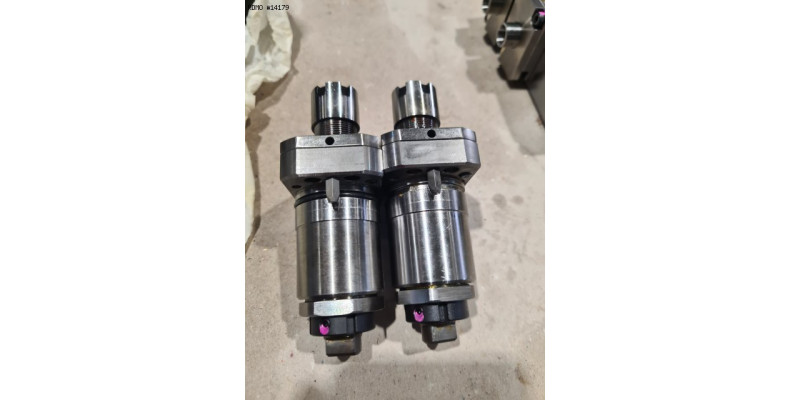

- Rotating tool motor on : S11,S21,S51
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece

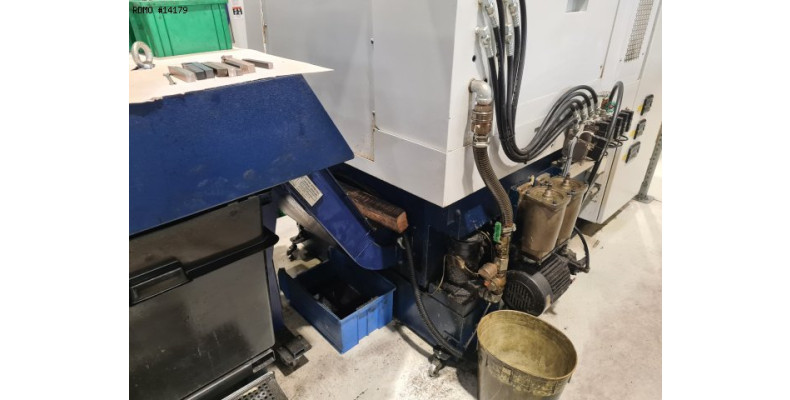

- Chips conveyor
- Coolant tank
* with high-pressure pump : 20 [bars]

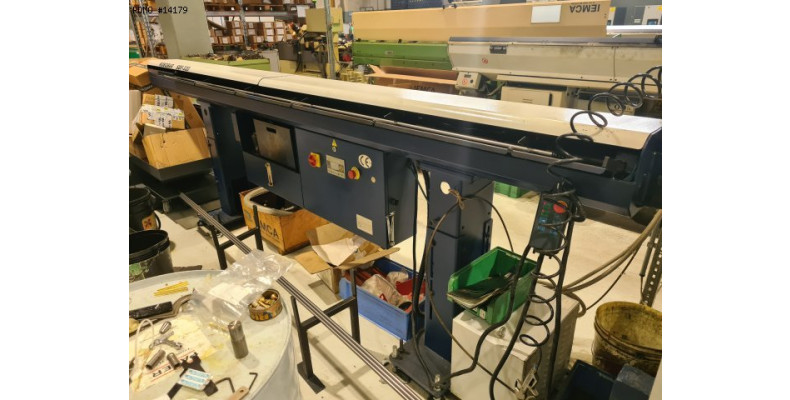

- Bar loader : TORNOS SBF320
- Electric transformer
- Number of turning tool holders : 5

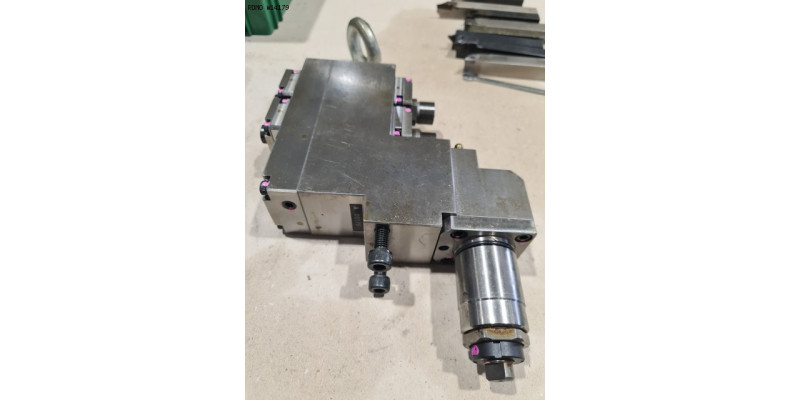

- Double turning/milling tool holder : 1
