Brand: TSUGAMI
Model: B0205E-III
Year: 2015
Serial: 21009A
Brand: TSUGAMI
Model: B0205E-III
Year: 2015
Serial: 21009A

Caracteristics & Equipment

Caracteristics
- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 210 [mm]
- Spindle speeds : 200 - 10000 [rpm]
- Spindle power : 2.2 / 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 200 - 12000 [rpm]
- Spindle power : 2.2 / 3.7 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 5
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 3
END ATTACHMENT
- Number of positions : 8
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 2
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Total installed power : 11 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1655 x 1125 [mm]
- Machine height : 1700 [mm]
- Machine weight : 2000 [kg]
MACHINE HOURS
- Number of working hours : 13.837 [h]
Equipment
- CNC : Fanuc Oi-TD
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor
- Coolant tank

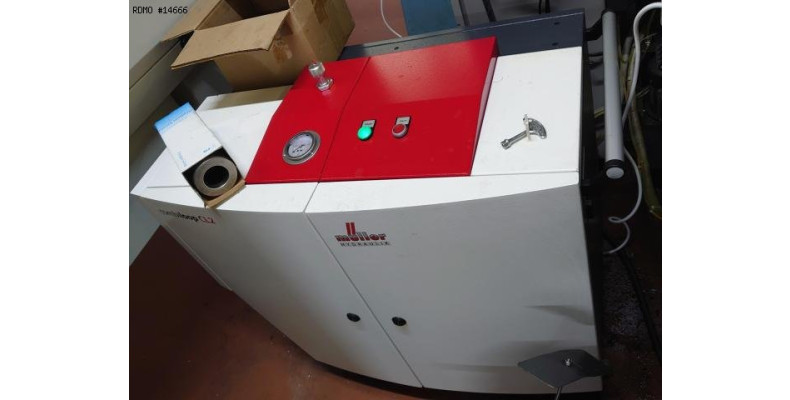

* with high-pressure pump : 70 [bars]

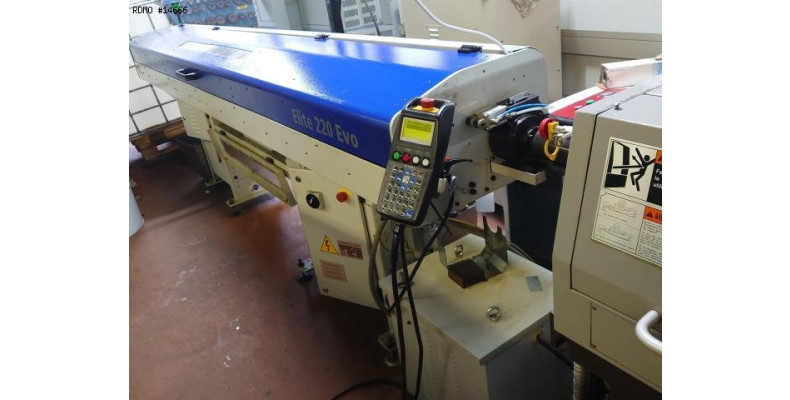

- Bar loader : IEMCA ELITE 220 E / 32 LL
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
PDF datasheet to download:

Description

Used Machine tools for sale

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote
TSUGAMI B0205E-III 5 axes
