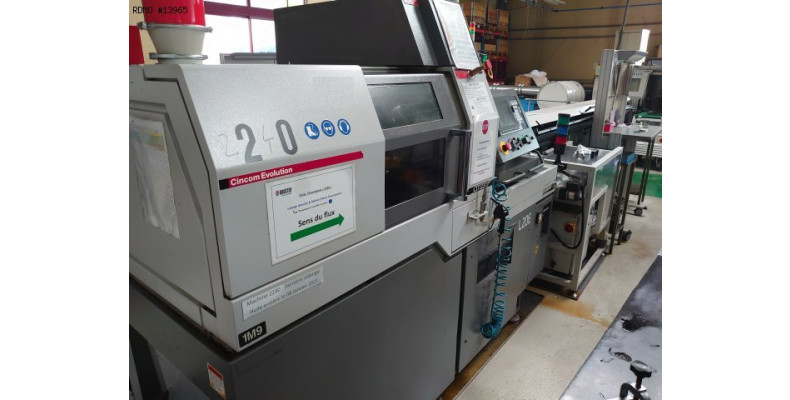

Citizen L20E IX 7 axis

Turning Swiss-type cnc lathe

PDF datasheet to download:

Brand: Citizen

Model: L20E IX

Year: 2012

Serial: QE5271

Ask Price

Caracteristics

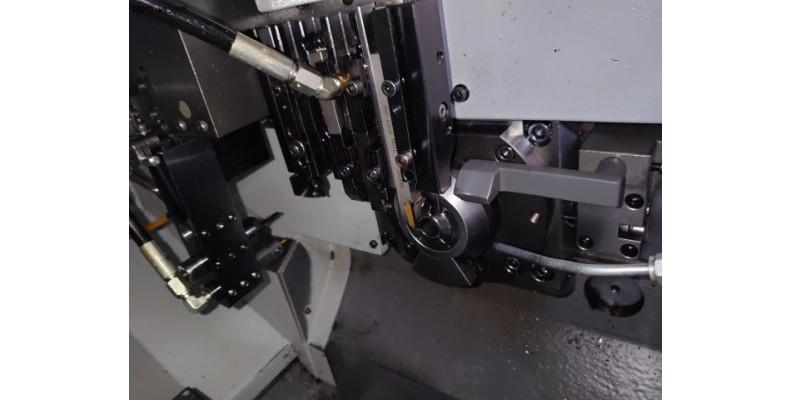

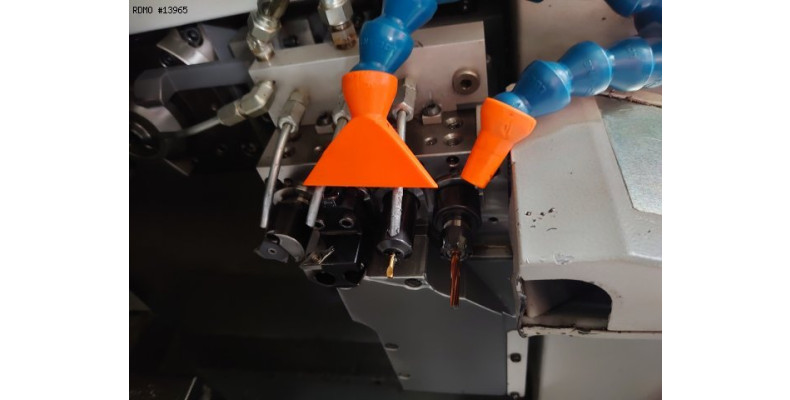

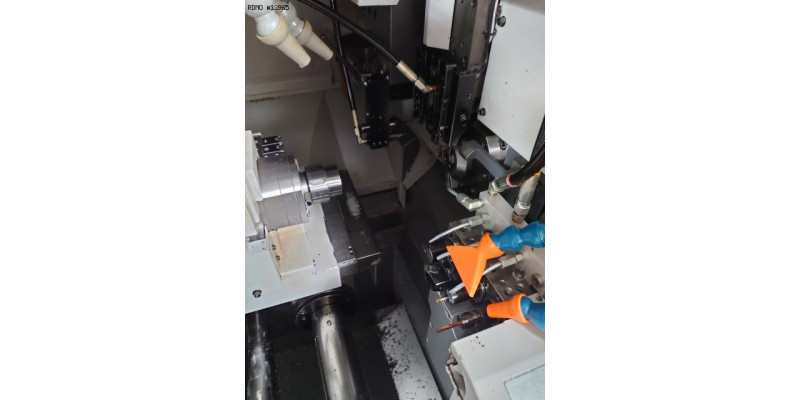

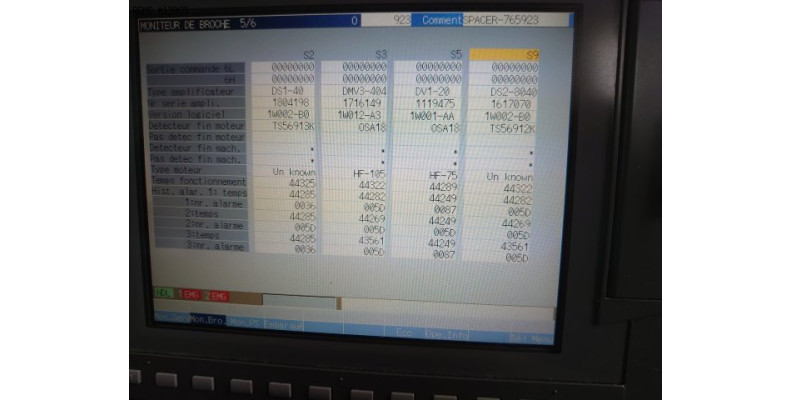

- Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3,7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 1.5 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 5000 [rpm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 3 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 2.110 x 1.085 [mm] - Machine height : 1.832 [mm] - Machine weight : 2.200 [kg] MACHINE HOURS - Number of working hours : 44.325 [h]

Equipment

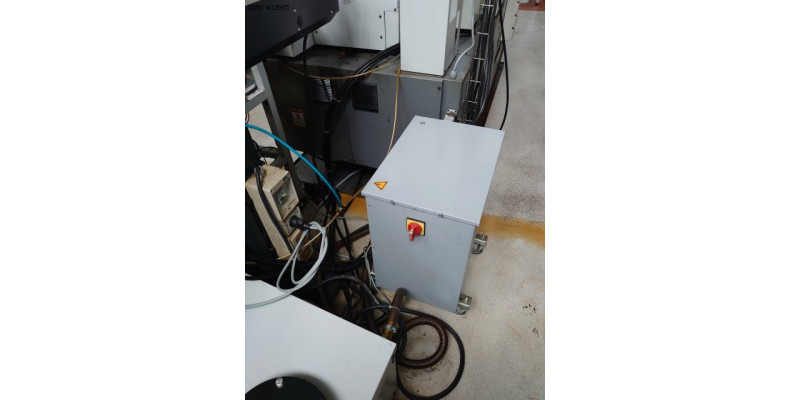

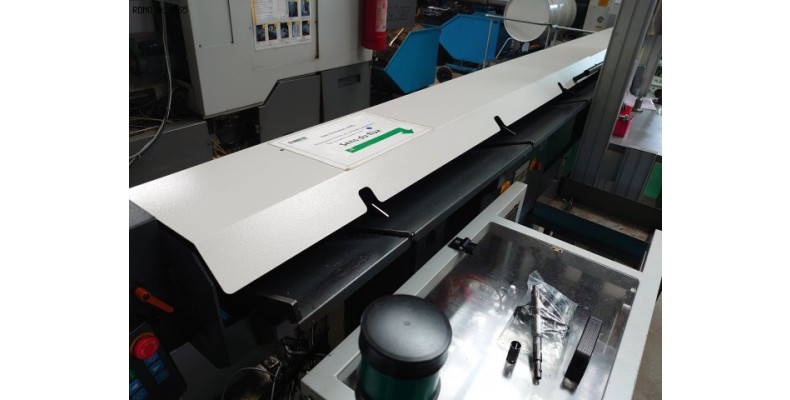

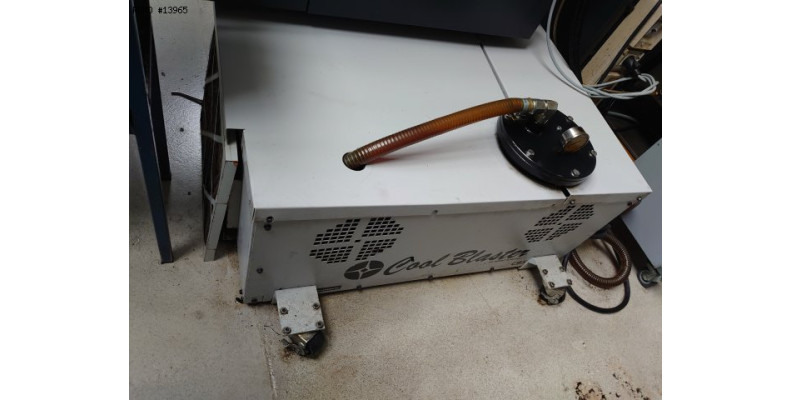

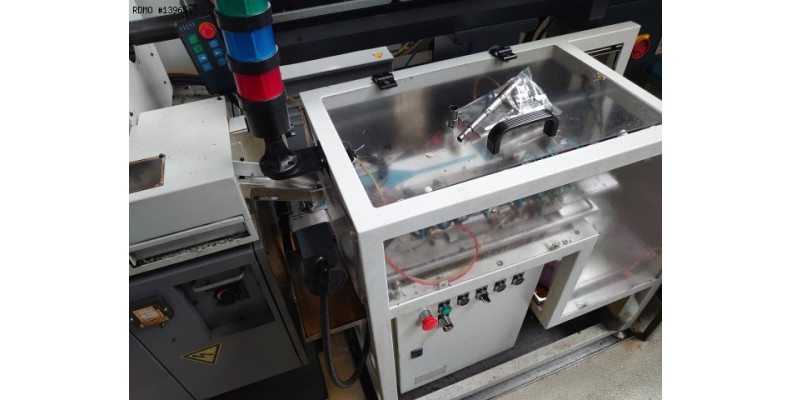

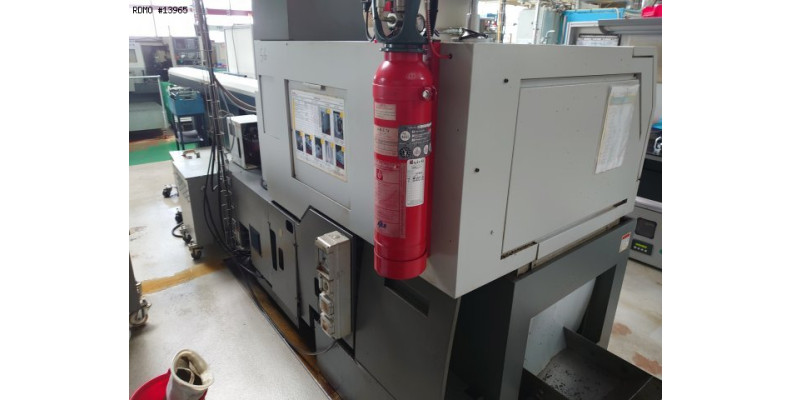

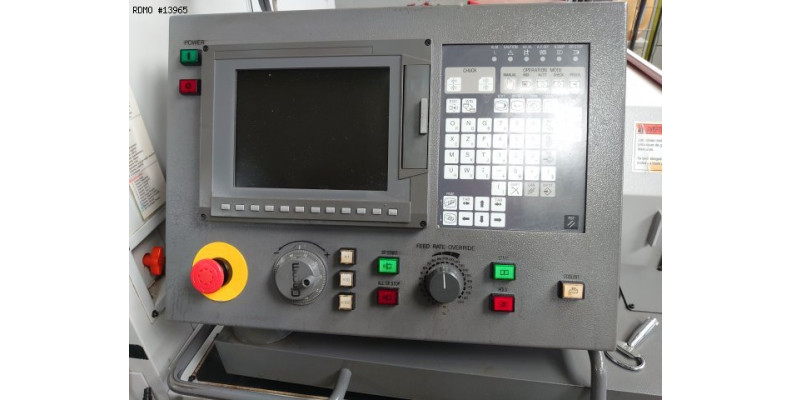

- CNC : Meldas - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank : CoolBlaster * with high-pressure pump : 138 [bars] - Bar loader : LNS Alpha ST320 - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer
