Caracteristics
- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 23 [mm]
- Max. machining length : 220 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 9.5 [kW]
- C axis indexing precision : 0.001 [°]

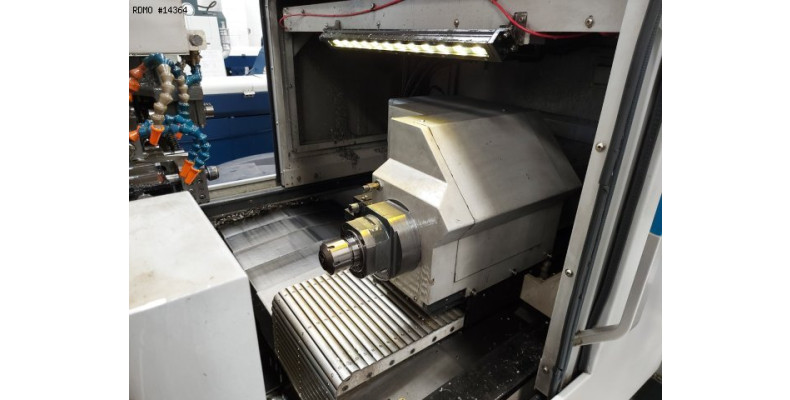

COUNTER-SPINDLE
- Max. bar diameter : 23 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 9.5 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 6
- Number of motorized positions : 6
- Live tools speed : 6000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 6
- Number of motorized positions : 6
- Live tools speed : 6000 [rpm]
END ATTACHMENT
- Number of positions : 6

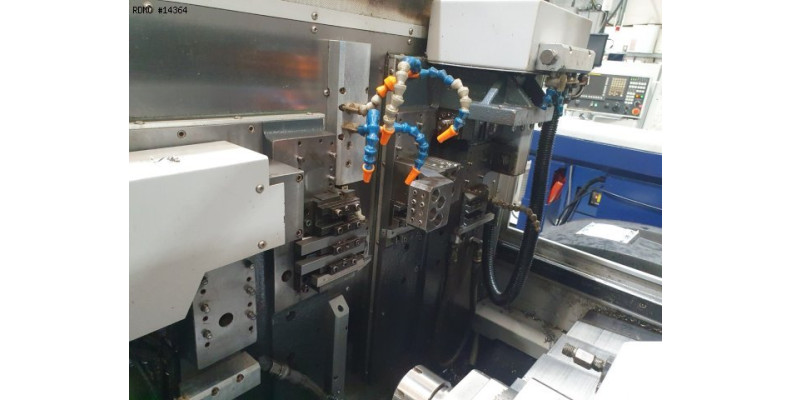

SECONDARY OPERATION
- Number of positions : 10
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 20 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2778 X1200 [mm]
- Machine height : 2304 [mm]
- Machine weight : 3720 [kg]

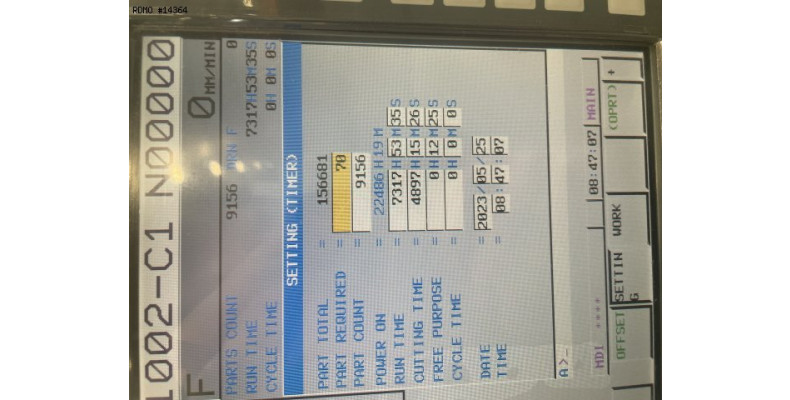

MACHINE HOURS
- Number of hours under power : 22486 [h]
- Number of working hours : 7317 [h]
- Number of spindle hours : 4897 [h]
Equipment

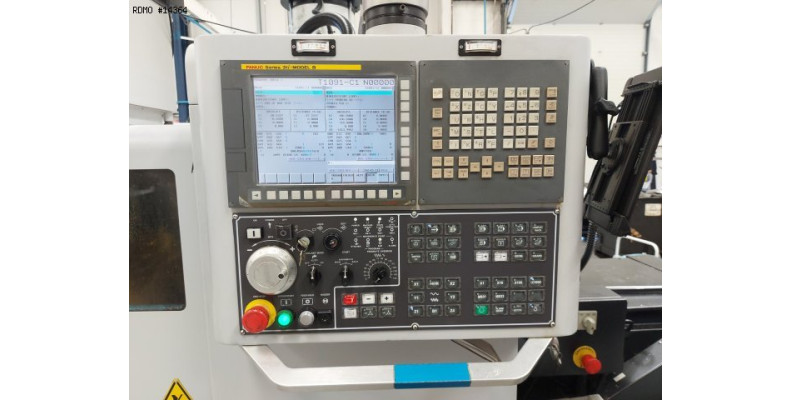

- CNC : Fanuc 31i-B
- 3 colors status lamp
- Rotating tool motor on : S11,S21
- Rotating guide bush
- Parts catcher
- Parts conveying strip

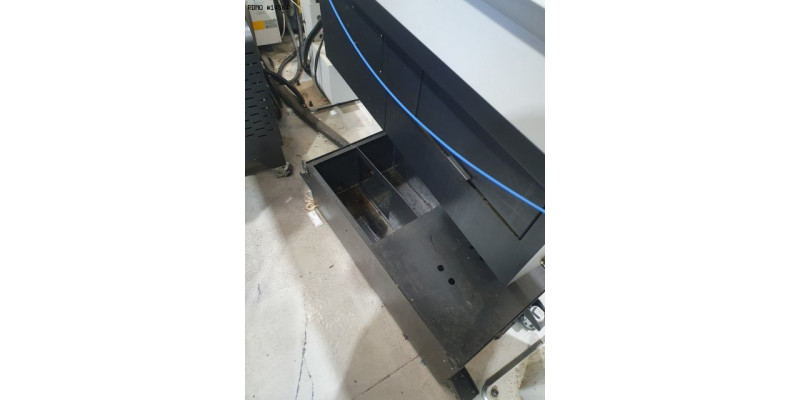

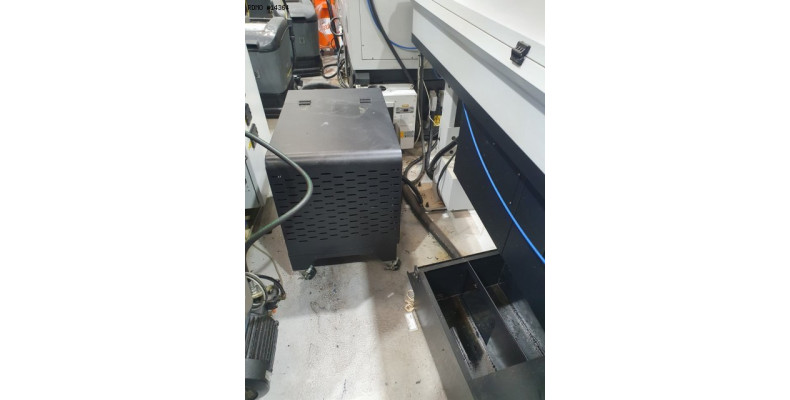

- Coolant tank
* with high-pressure pump : 20 [bars]
- Bar loader : TORNOS SBF 326e

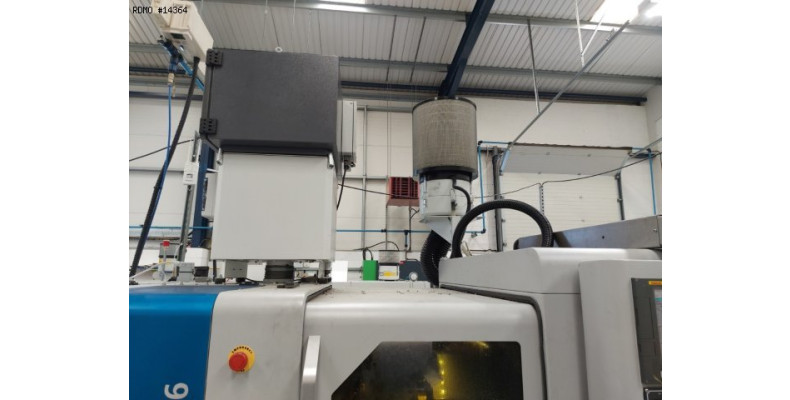

- Oil mist extractor : Filtermist
