- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Travel : 205 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 12 [mm]
- Spindle speeds : 12000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
- Number of turrets : 1

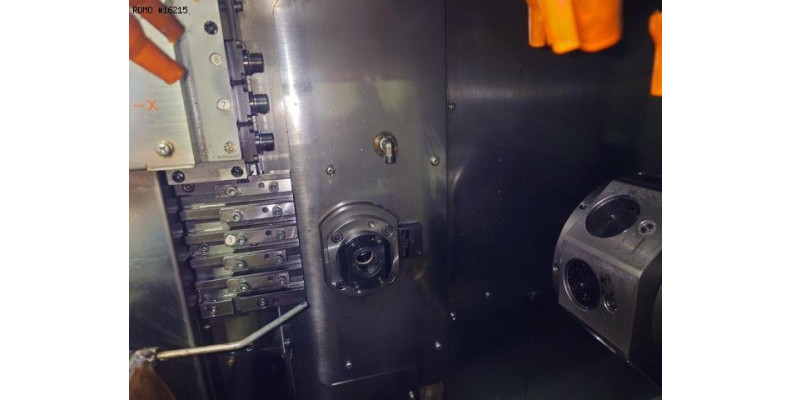

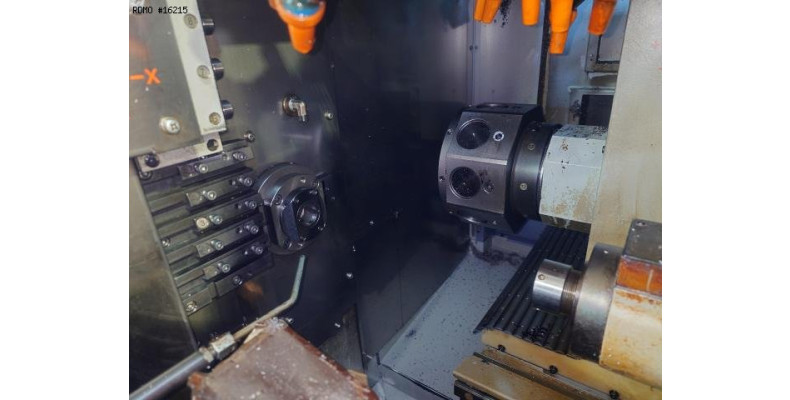

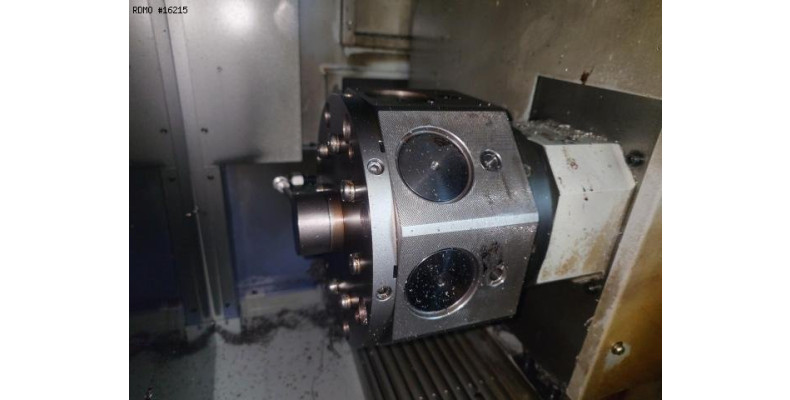

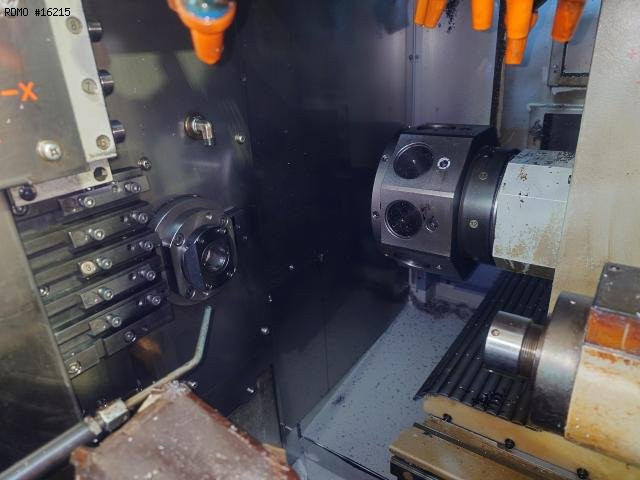

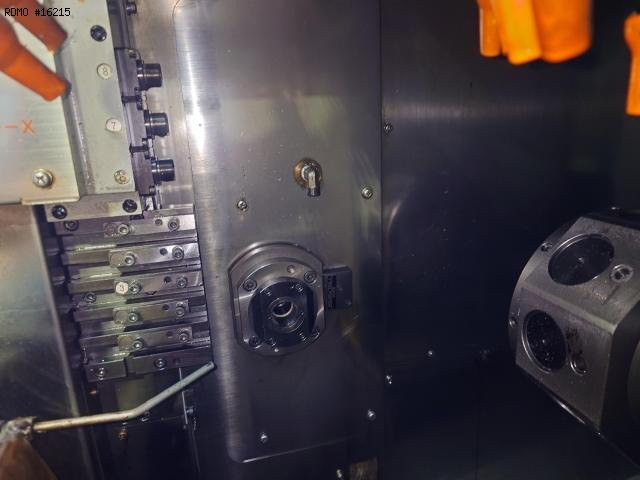

LOWER TURRET

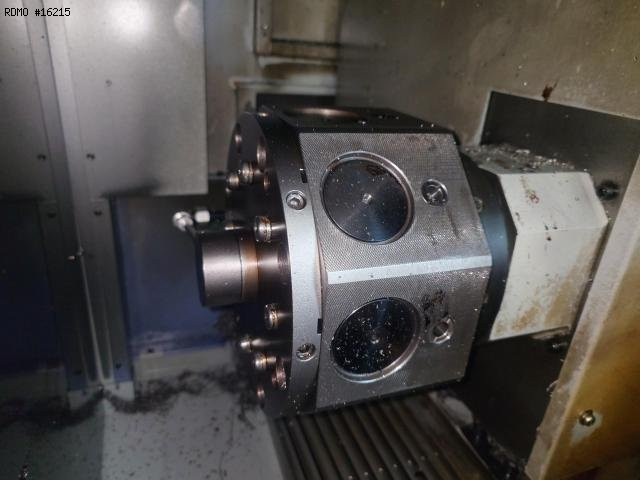

- Number of positions : 8
- Number of motorized positions : 8
- Live tools speed : 5750 [rpm]
- Live tools power : 2.8 [kW]
GUIDE BUSH HOLDER 1
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 6000 [rpm]
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 9 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2670 X 1375 [mm]
- Machine height : 1660 [mm]
- Machine weight : 3400 [kg]
Equipment

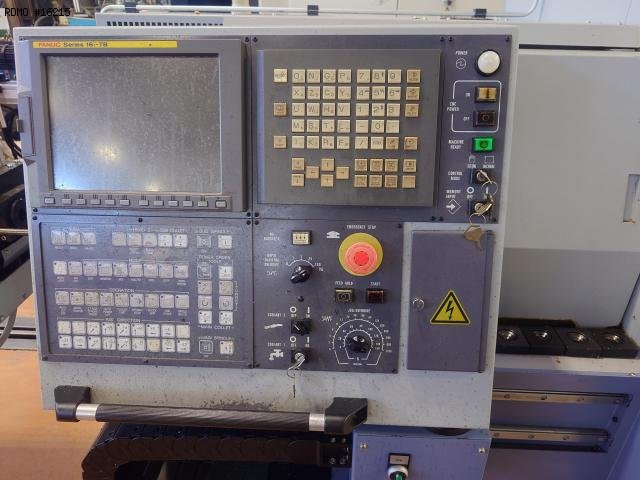

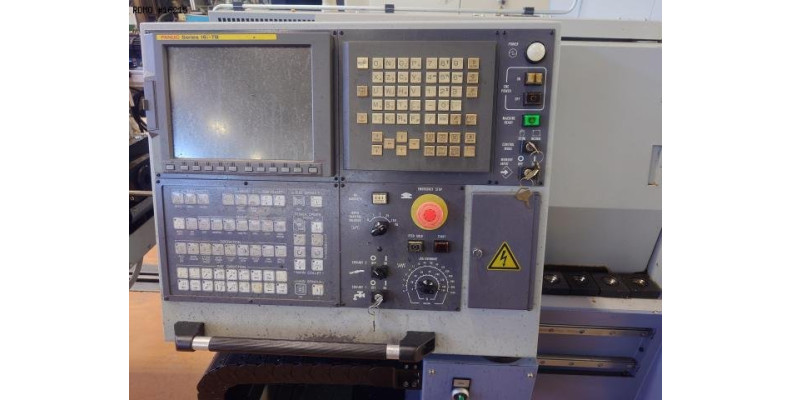

- CNC : Fanuc 16-T
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece

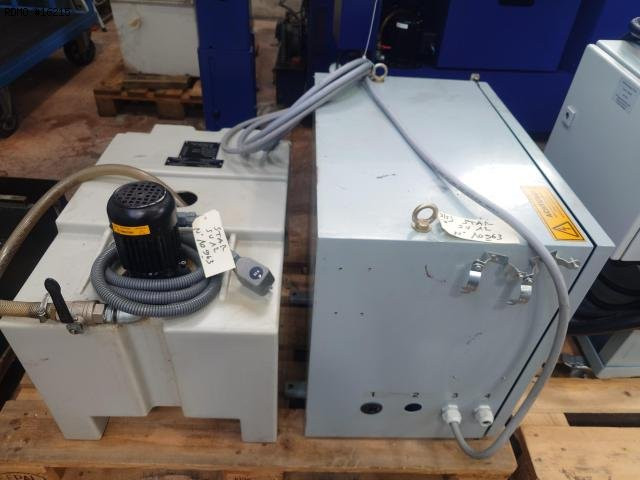

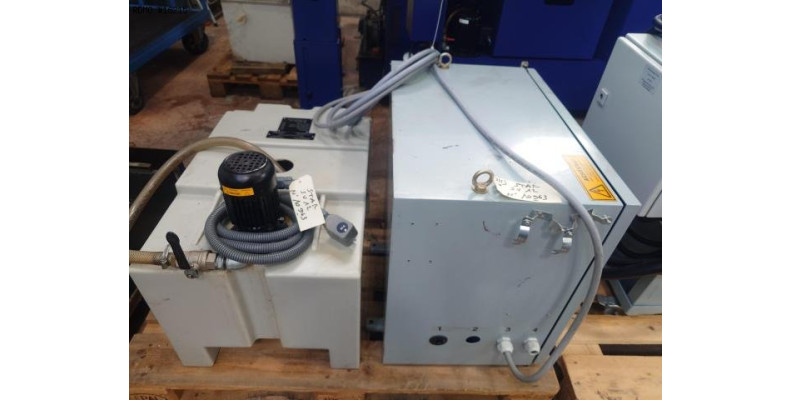

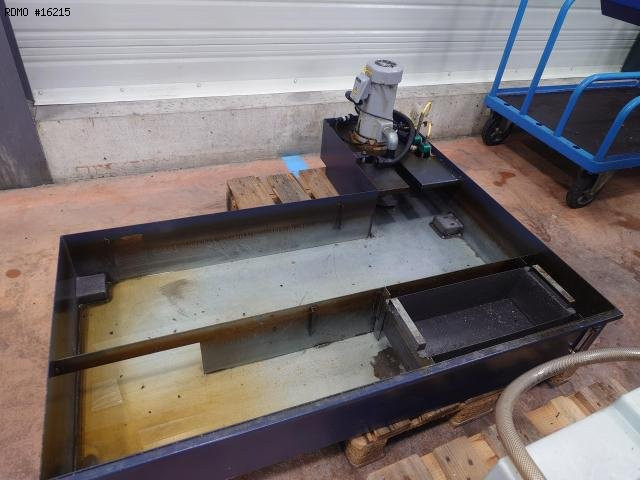

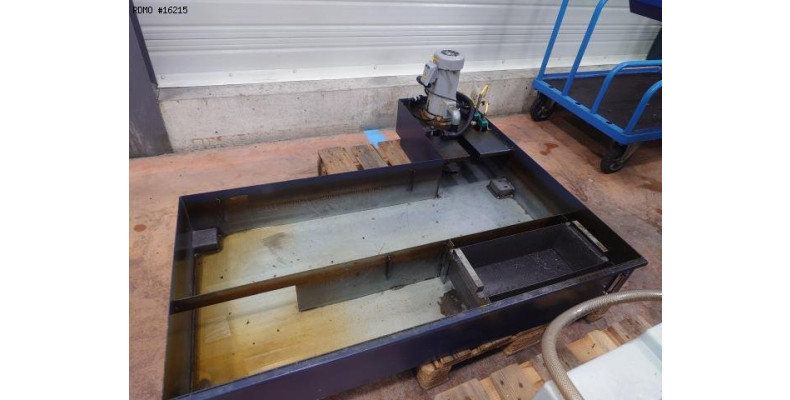

- Coolant tank

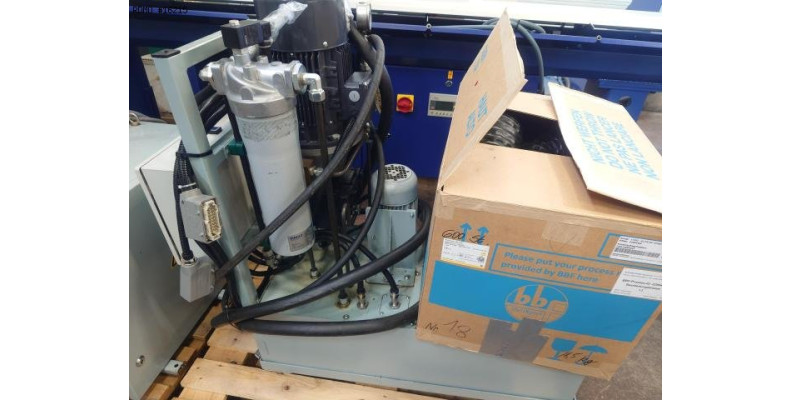

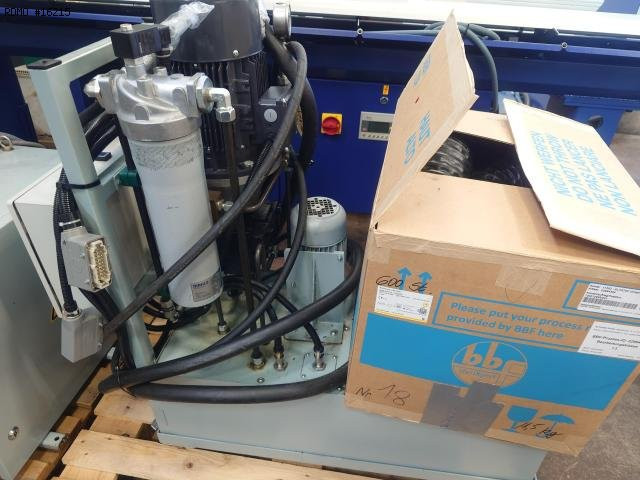

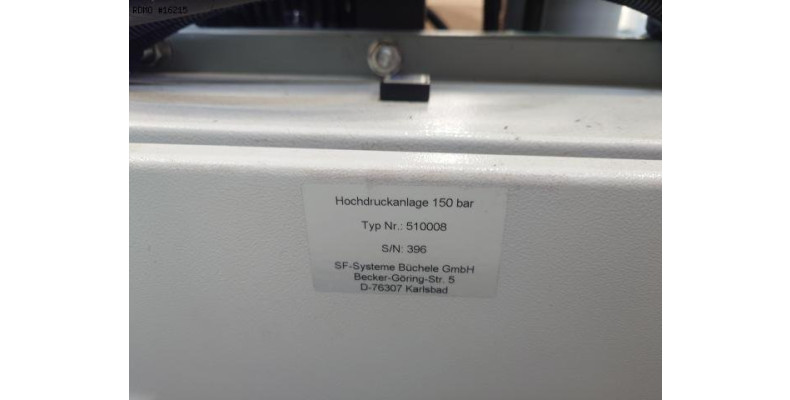

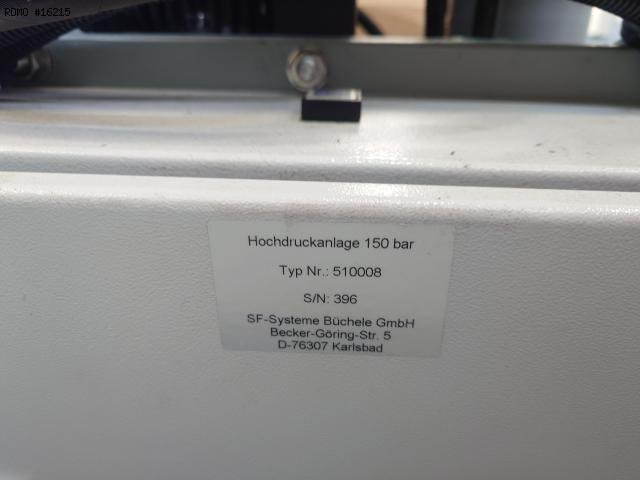

* with high-pressure pump : 150 [bars]

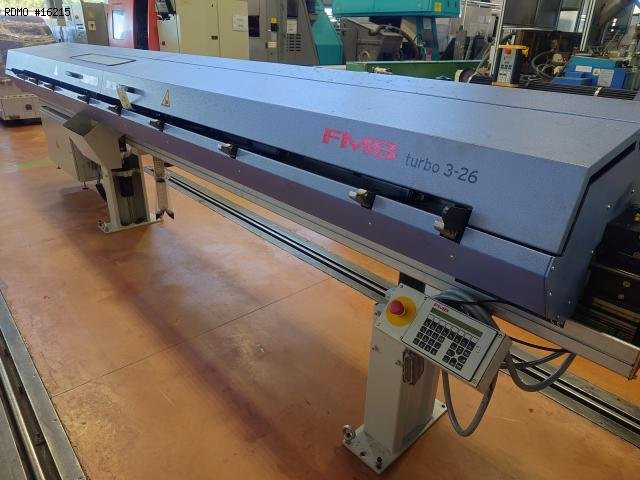

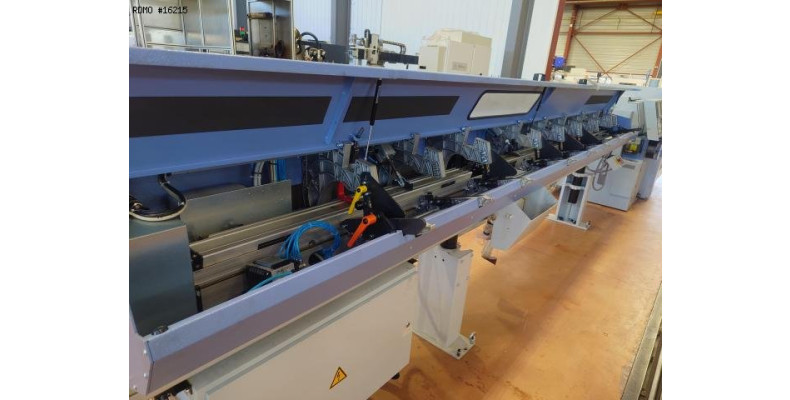

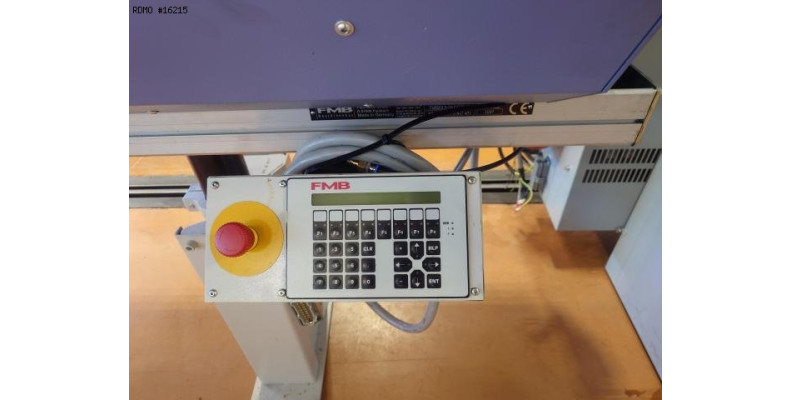

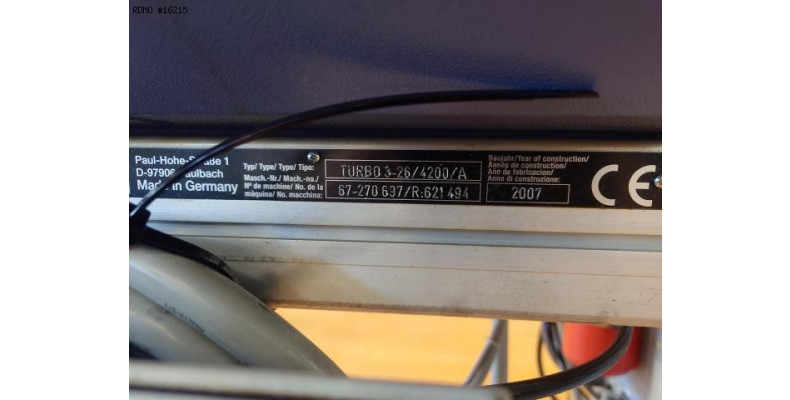

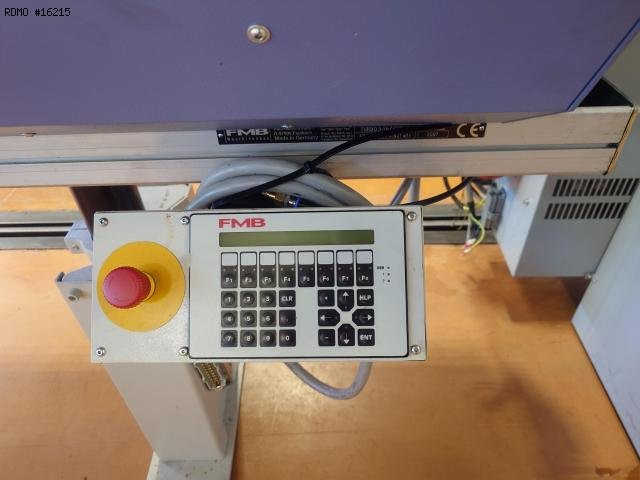

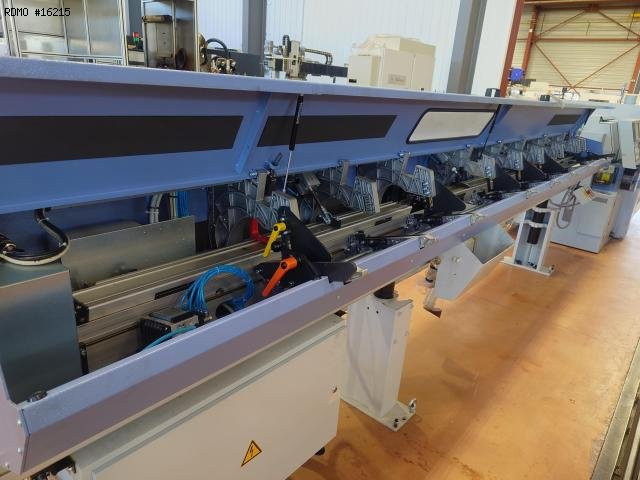

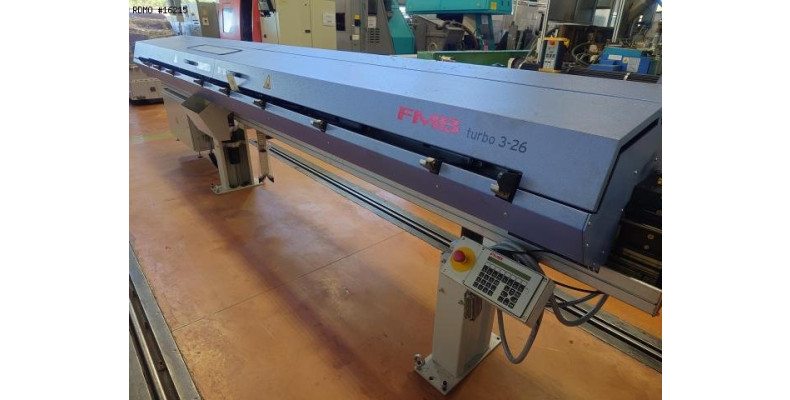

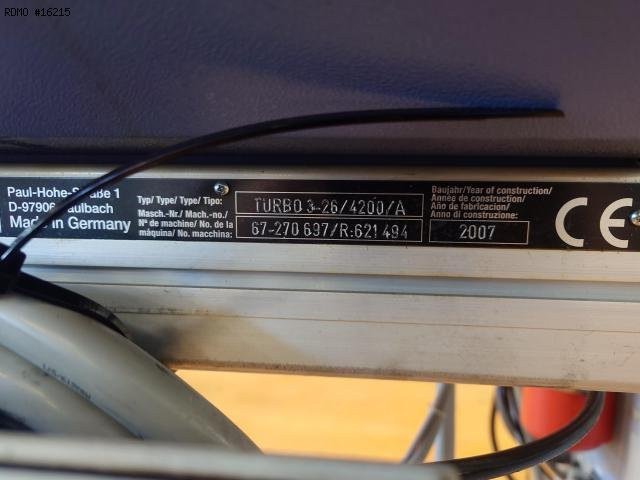

- Bar loader : FMB Turbo 3-26/4200"A"
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
