- Number of axes : 10
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 12 [mm]
- Max. machining length : 170 [mm]
- Spindle speeds : 200 - 12000 [rpm]
- Spindle power : 1.5 / 2.2 [kW]
- C axis indexing precision : 0.001 [°]

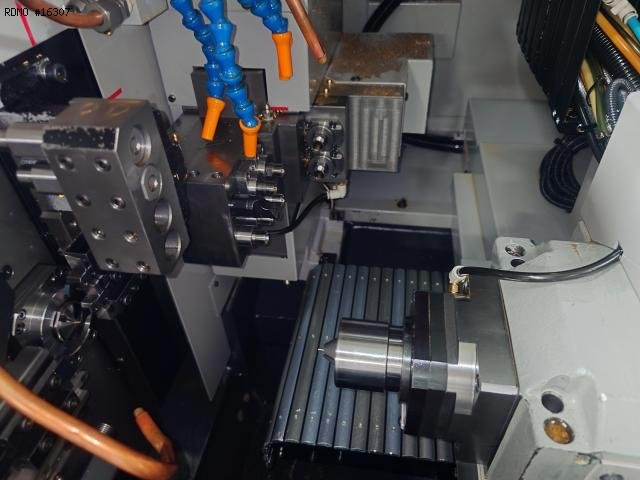

COUNTER-SPINDLE
- Max. bar diameter : 12 [mm]
- Z stroke : 200 [mm]
- X stroke : 220 [mm]
- Spindle speeds : 200 - 12000 [rpm]
- Spindle power : 1.5 / 2.2 [kW]
- C axis indexing precision : 0.001 [°]

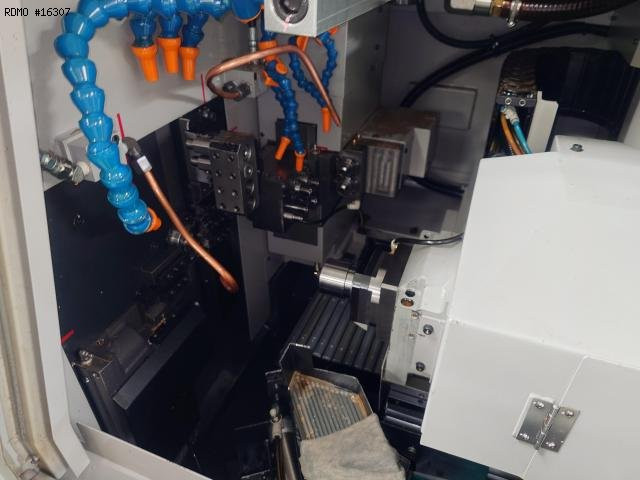

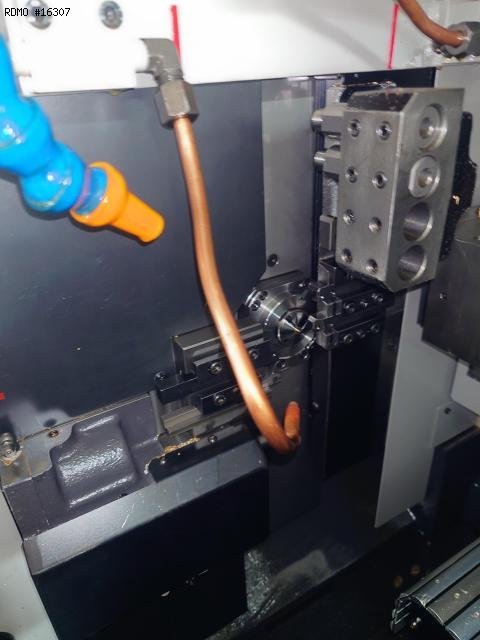

GUIDE BUSH HOLDER 1
- Number of positions : 5
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 3
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Total installed power : 14.1 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1.655 X 1.215 [mm]
- Machine height : 1.700 [mm]
- Machine weight : 2150 [kg]

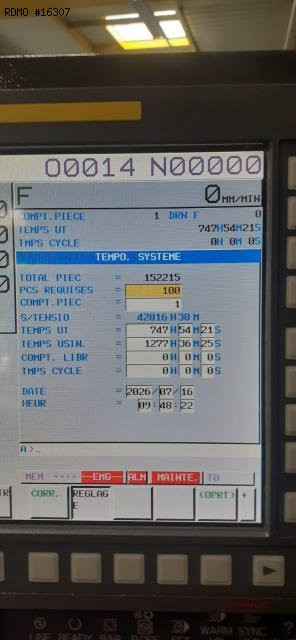

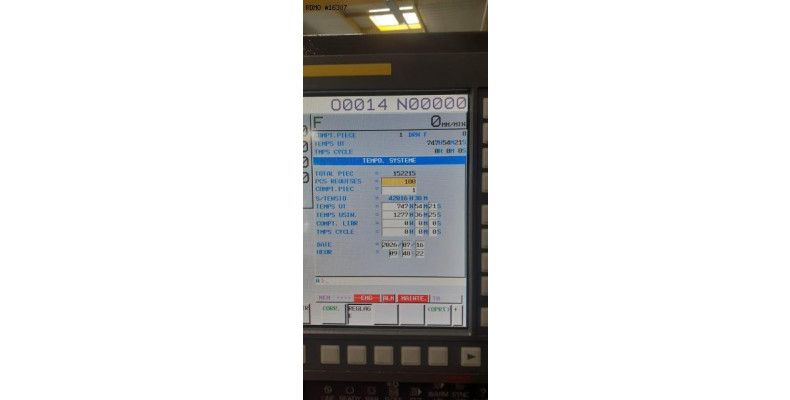

MACHINE HOURS
- Number of hours under power : 42816 [h]
- Number of working hours : 1277 [h]
Equipment

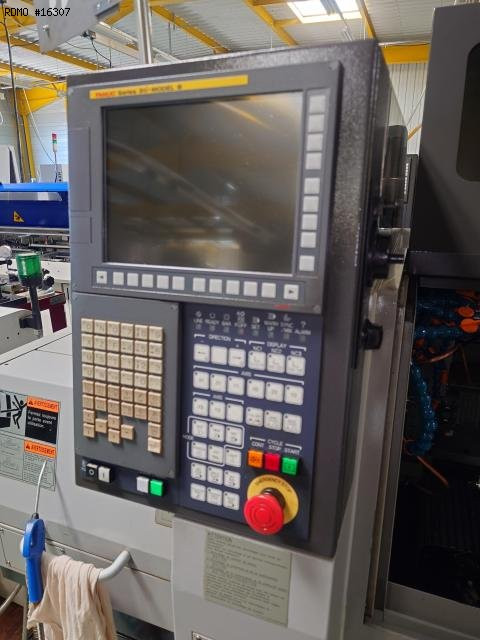

- CNC : Fanuc Series 31i-B
- Rotating guide bush
- Ejection of workpiece
- Parts catcher
- Parts conveying strip

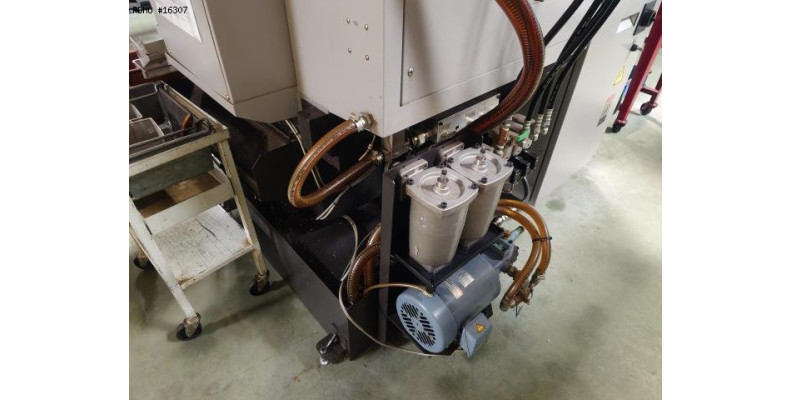

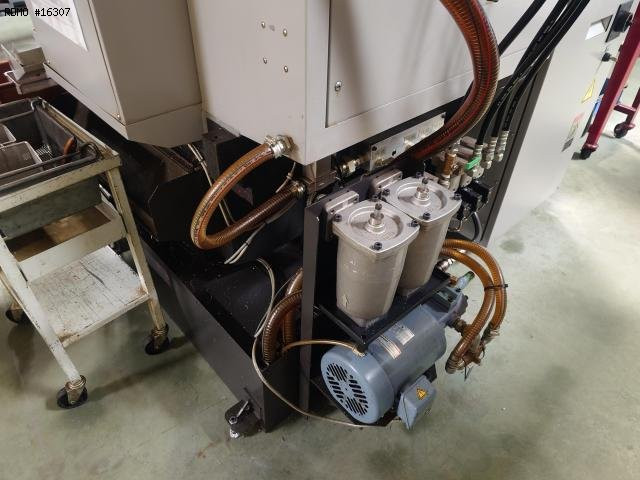

- Coolant tank

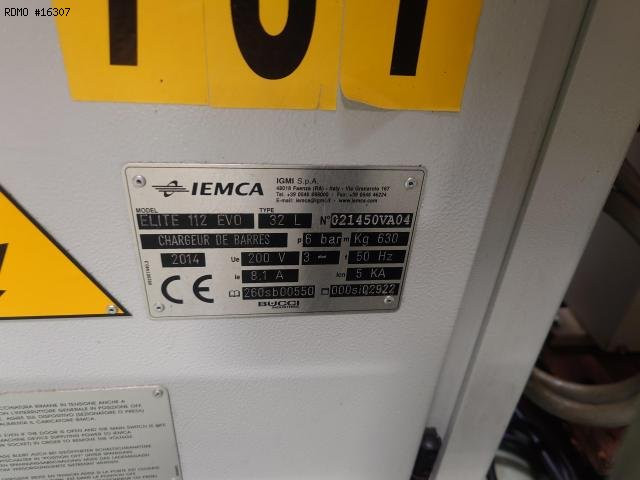

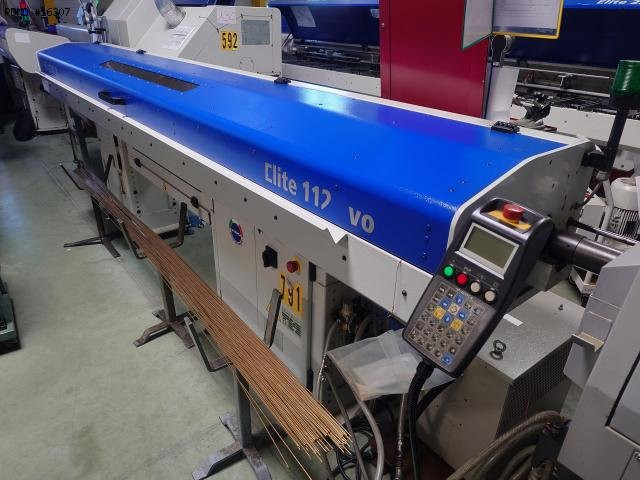

- Bar loader : IEMCA ELITE 112 EVO / 32 L

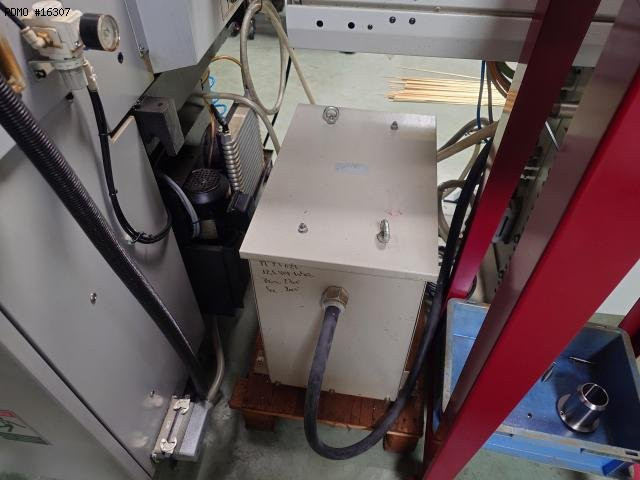

- Electric transformer
