- Number of axes : 6
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Travel : 205 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 4500 [rpm]
- Spindle power : 1.1 [kW]
- C axis indexing precision : 0.001 [°]
- Number of guide bush holders : 1

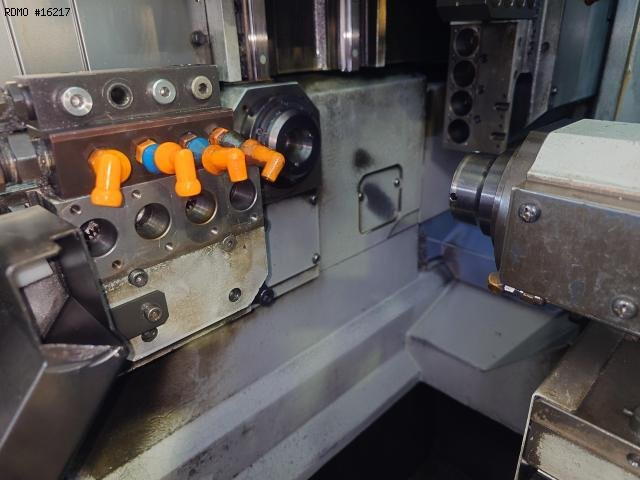

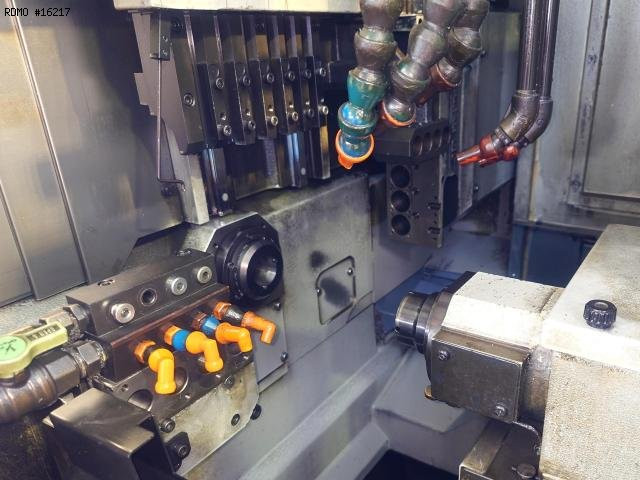

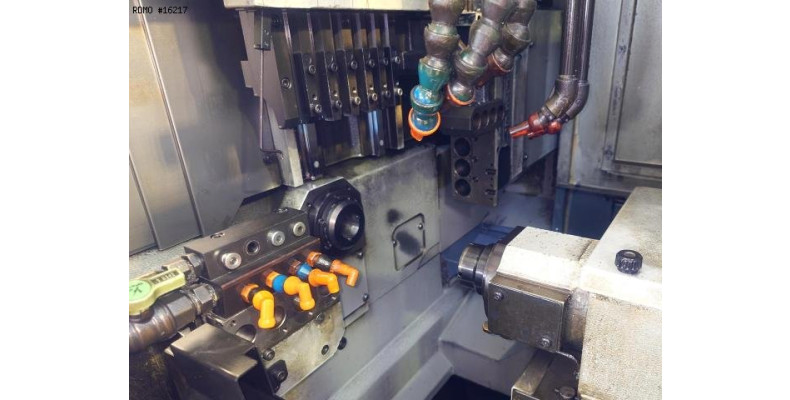

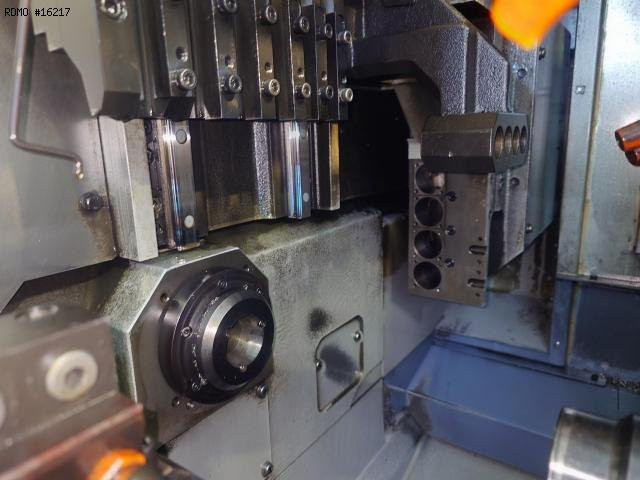

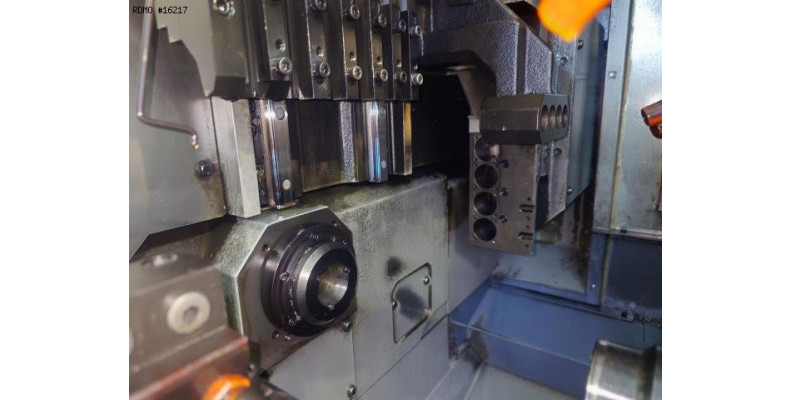

GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 4
- Live tools speed : 5000 [rpm]
END ATTACHMENT
- Number of positions : 4

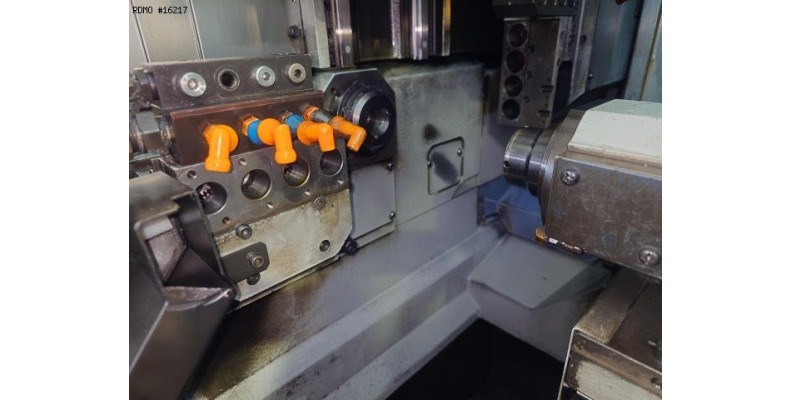

SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2200/1255 [mm]
- Machine height : 1735 [mm]
- Machine weight : 1700 [kg]
Equipment

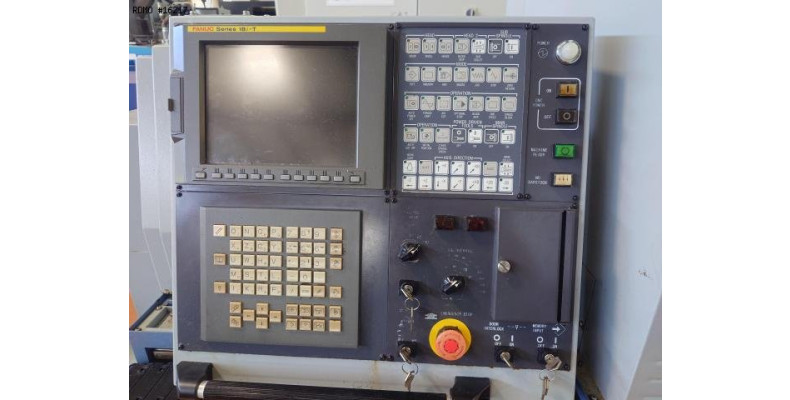

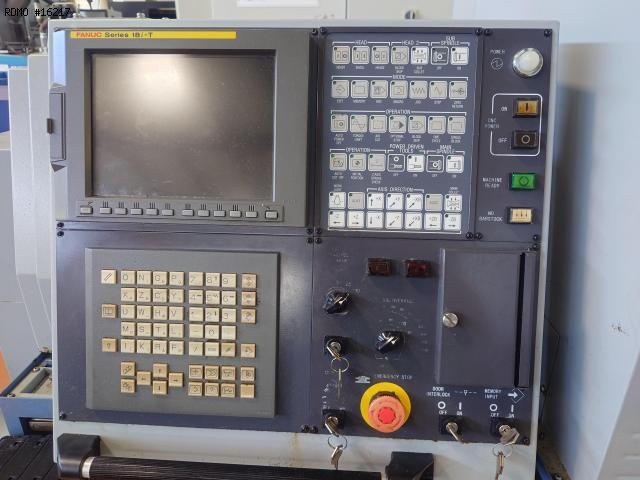

- CNC : Fanuc 16 iT
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece

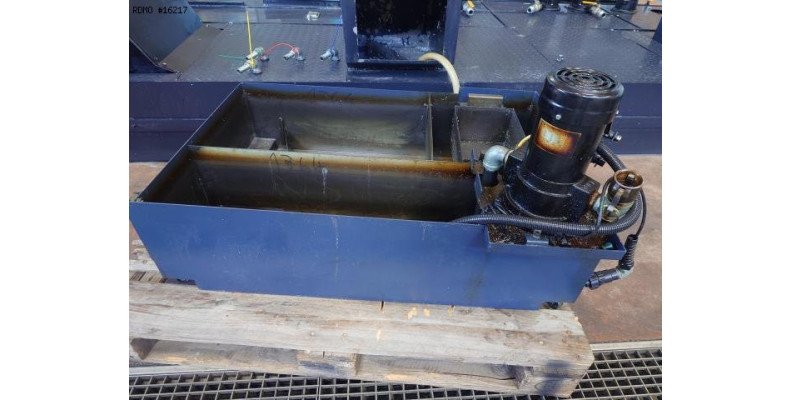

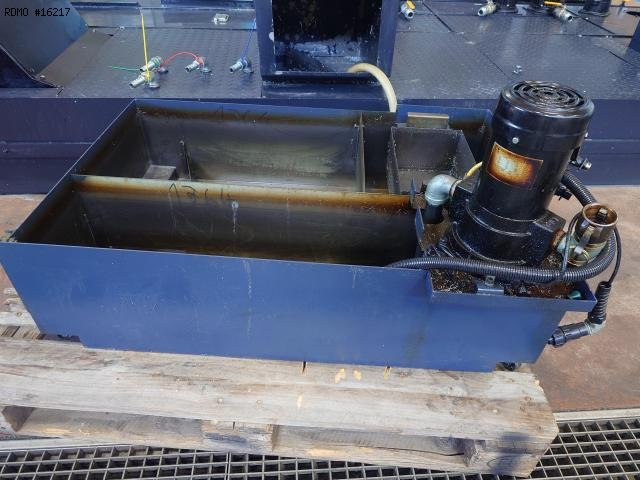

- Coolant tank

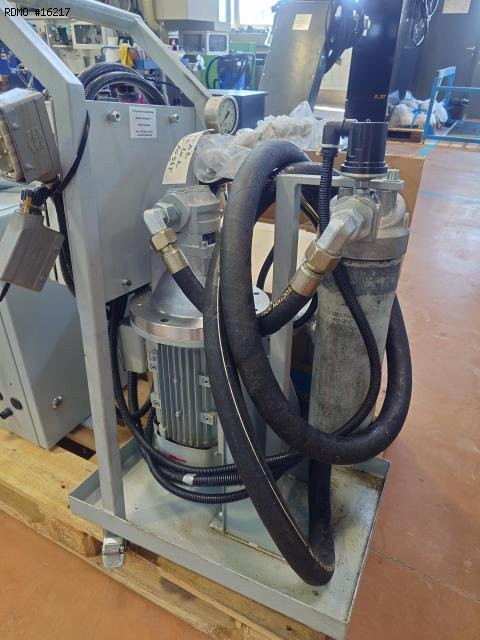

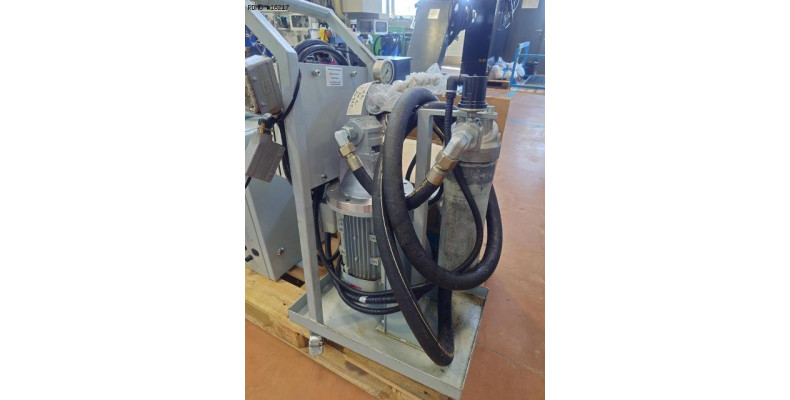

* with high-pressure pump : 65 [bars]

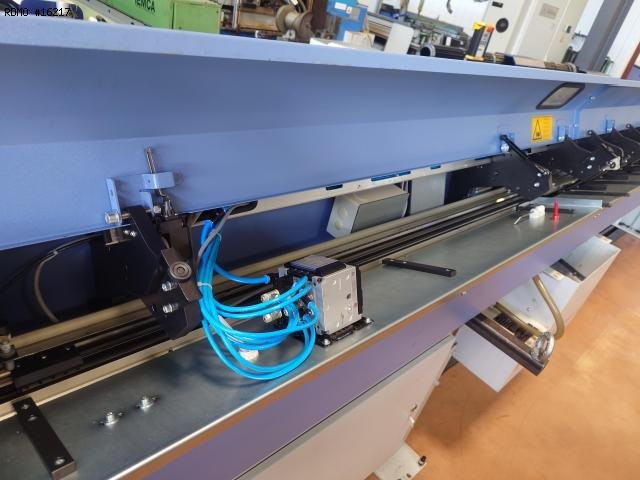

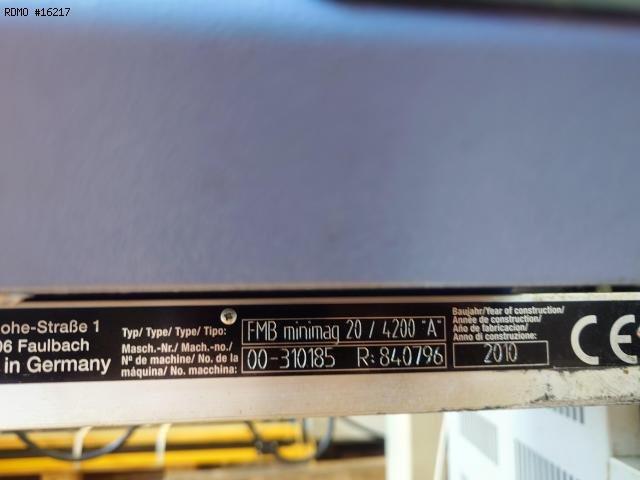

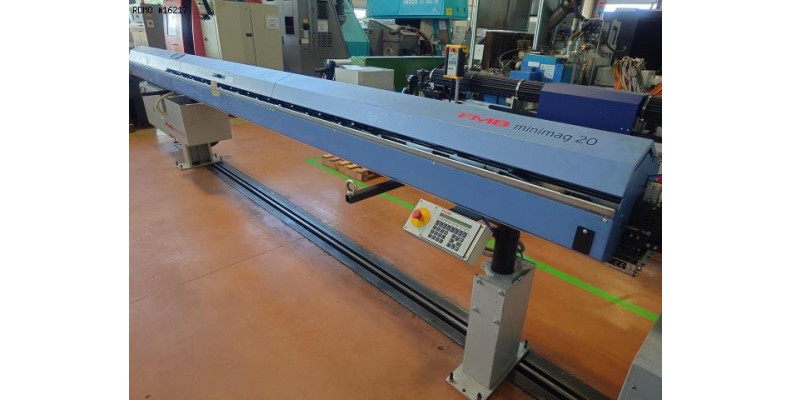

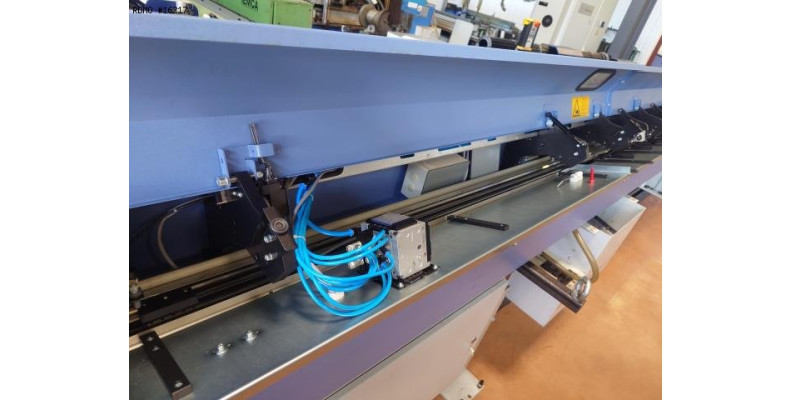

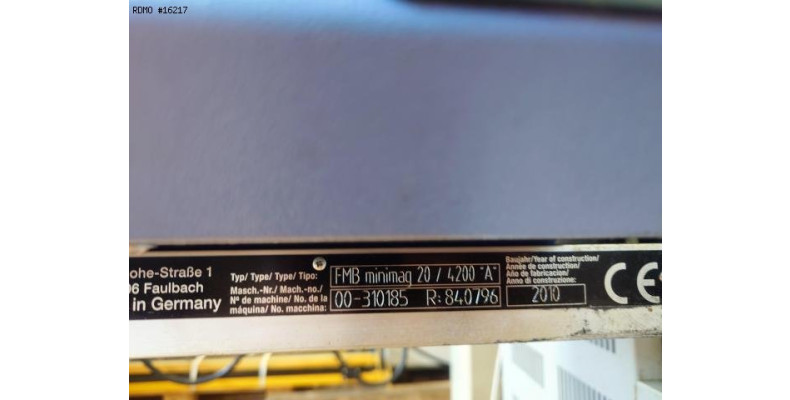

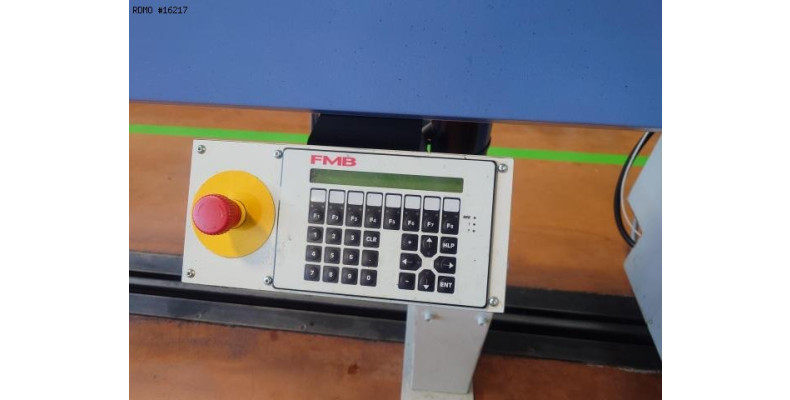

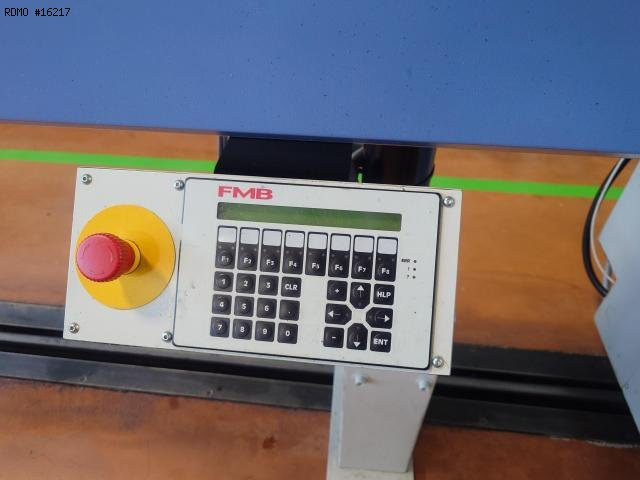

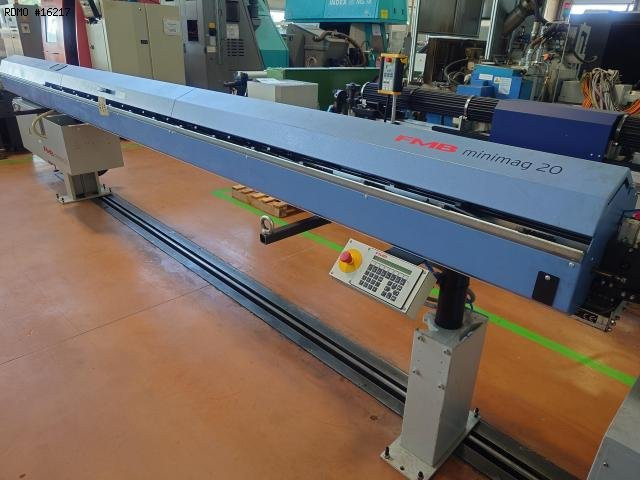

- Bar loader : FMB Minimag20/4200"A"

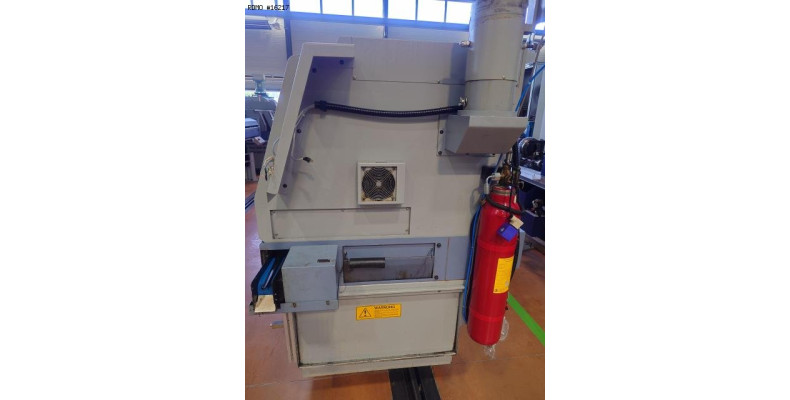

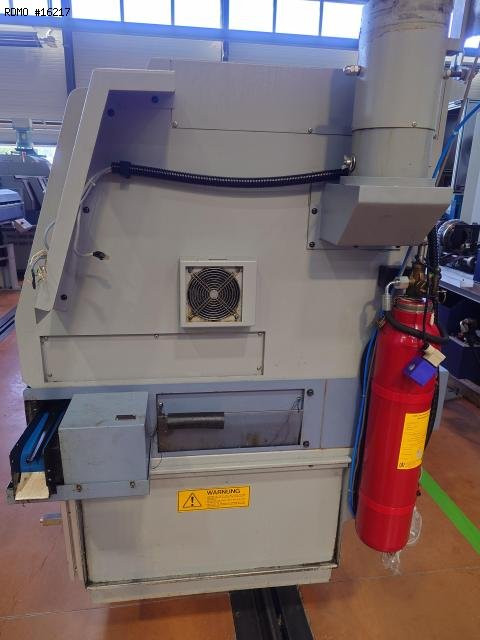

- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
