- Number of axes : 10
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 240 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 7,5 [kW]
- C axis indexing precision : 0,1 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 6000 [rpm]
GUIDE BUSH HOLDER 1
- Number of positions : 5
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 7
- Number of motorized positions : 3
- Live tools speed : 6000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 13 [kVA]

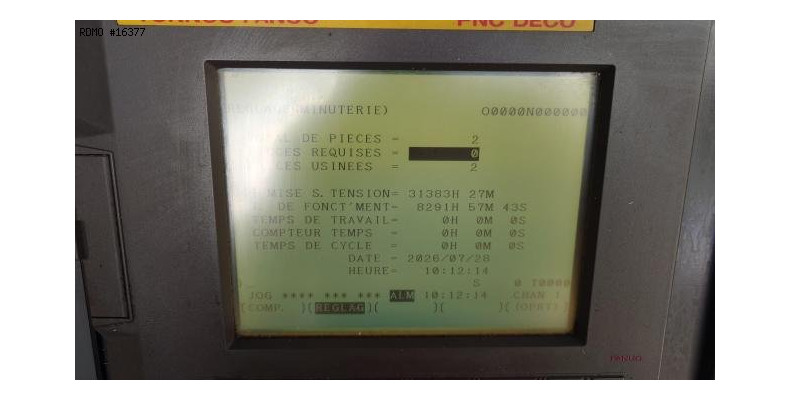

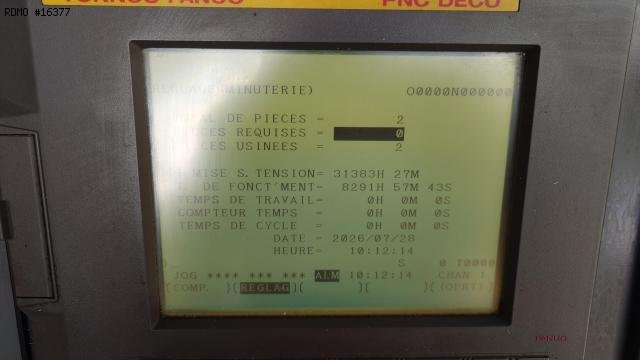

- Number of hours under power : 8291 [h]
Equipment

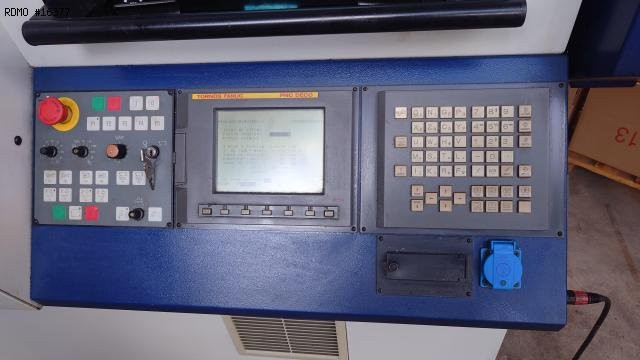

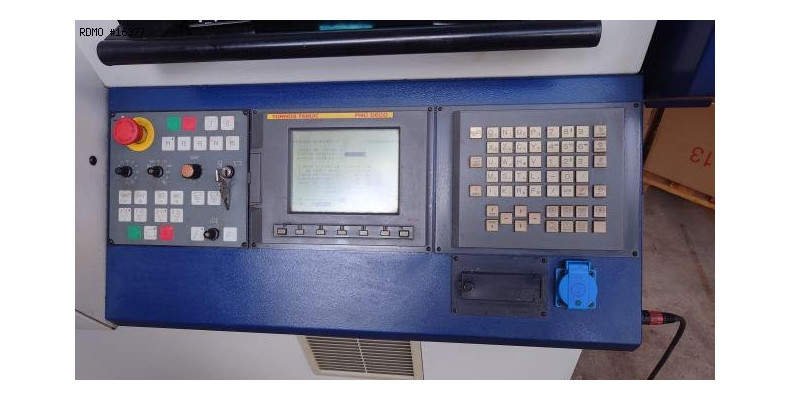

- CNC : Fanuc
- Rotating tool motor on : S2,S3,S5 vertical+horizontal,S6
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor : INDASS
- Coolant tank

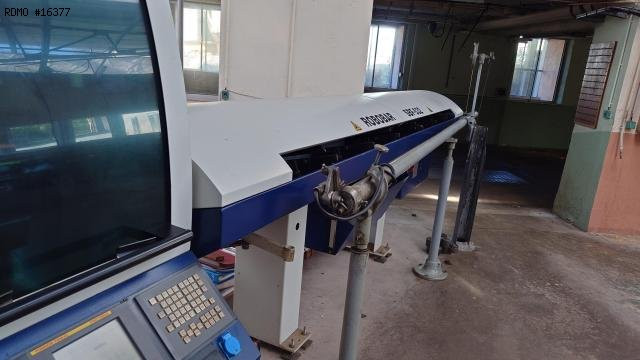

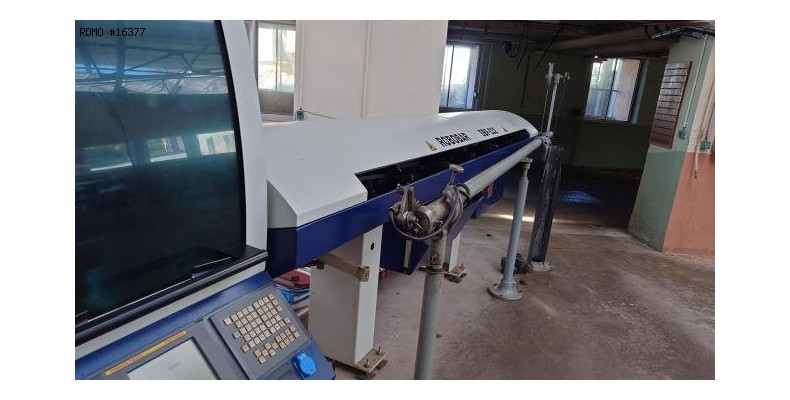

- Bar loader : Tornos SBF-532
