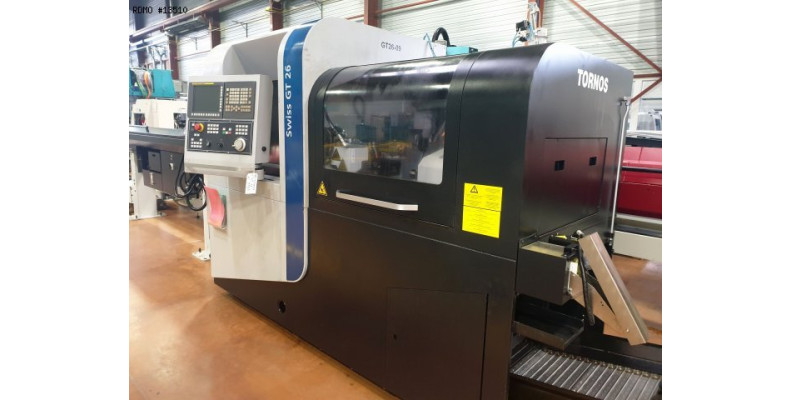

TORNOS GT 26 8 axis

13510
Brand: TORNOS
Model: GT 26
Year: 2017
Serial: 2480360177
13510
TORNOS GT 26 8 axis
Brand: TORNOS
Model: GT 26
Year: 2017
Serial: 2480360177

Caracteristics & Equipment

Caracteristics
- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 25.4 [mm]
- Max. machining length : 220 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 8.2 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 25.4 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 8.2 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 4
- Live tools speed : 5000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 5000 [rpm]
END ATTACHMENT
- Number of positions : 5
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 4
- Live tools speed : 5000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2710 X1270 [mm]
- Machine height : 1990 [mm]
- Machine weight : 3630 [kg]
MACHINE HOURS
- Number of working hours : 13926 [h]
Equipment

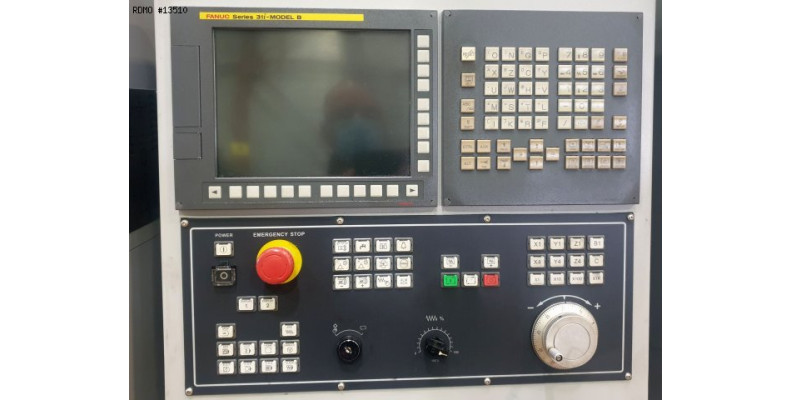

- CNC : Fanuc 31i-B
- 3 colors status lamp
- Rotating tool motor on : S11,S21,S51
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor
- Coolant tank
* with paper filtering unit

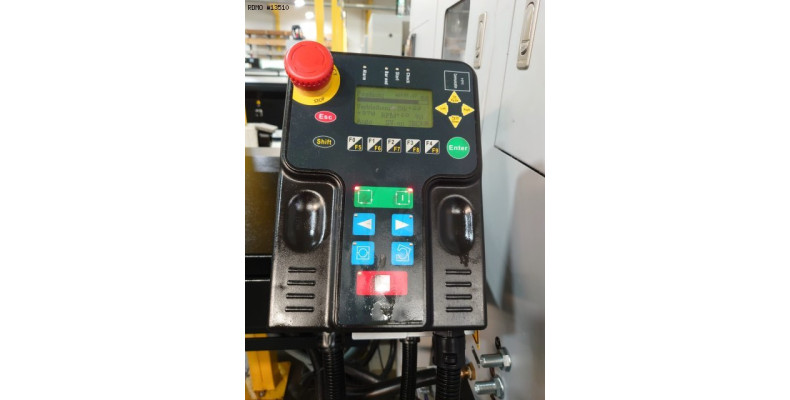

- Bar loader : TORNOS SBF 326-3.2M
