- Number of axes : 6
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 205 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]

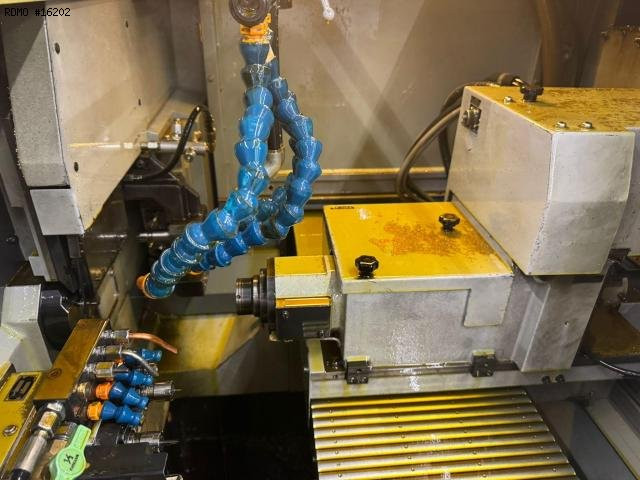

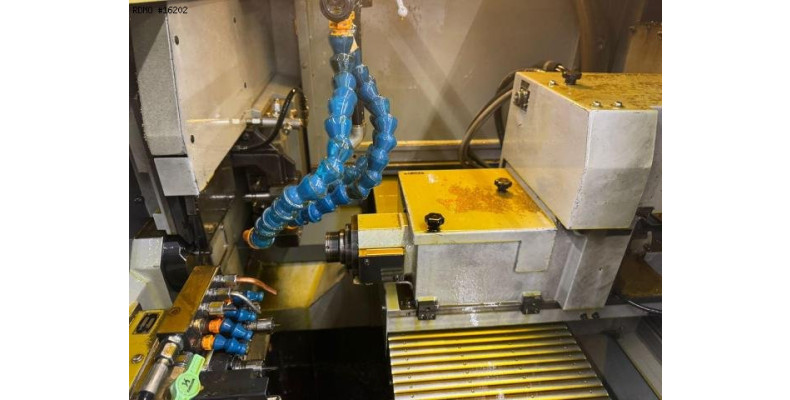

COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 2.2 [kW]
- C axis indexing precision : 1 [°]
- Number of guide bush holders : 1
GUIDE BUSH HOLDER 1
- Number of positions : 6
END ATTACHMENT
- Number of positions : 8
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 7 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2200 x 1102 [mm]
- Machine height : 1700 [mm]
- Machine weight : 2200 [kg]
MACHINE HOURS
- Number of hours under power : 94549 [h]
- Number of working hours : 76096 [h]
- Number of spindle hours : 57727 [h]
Equipment

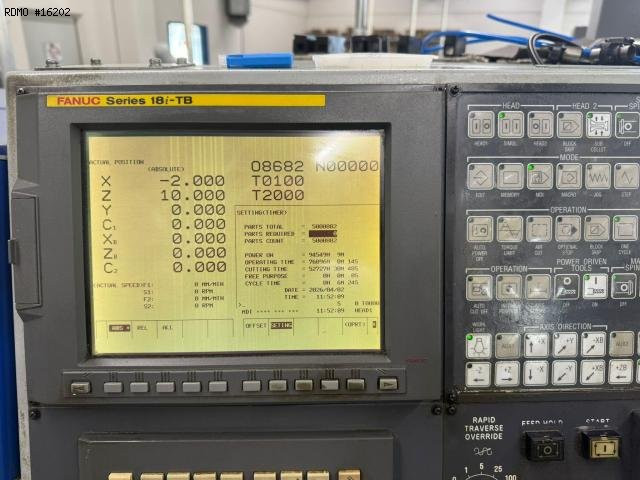

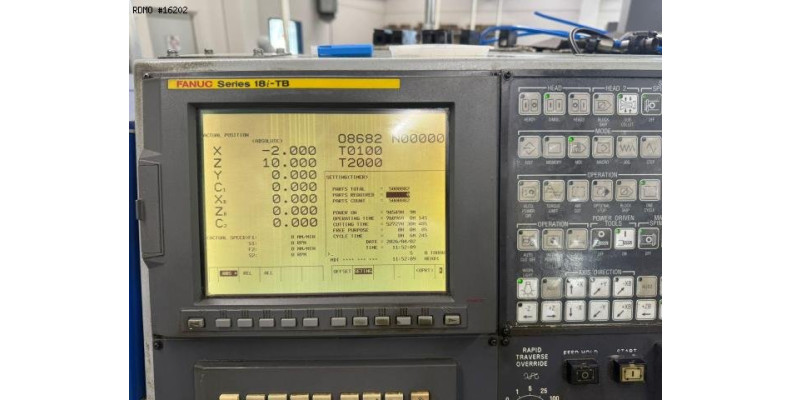

- CNC : Fanuc 18i- TB
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Coolant tank

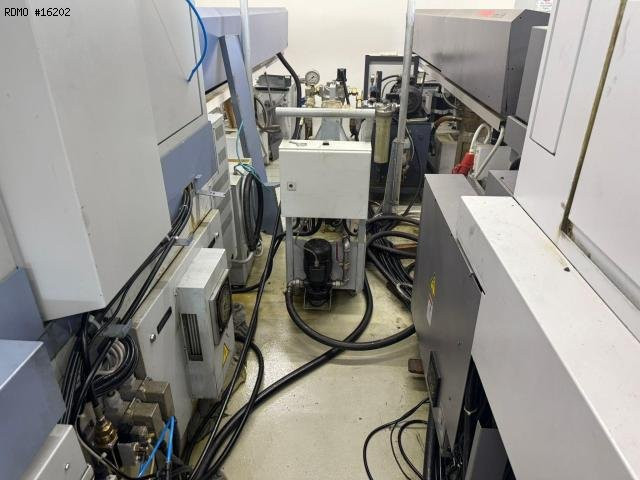

* with high-pressure pump
- Bar loader : FMB TURBO2-20/3200A
- Electric transformer
