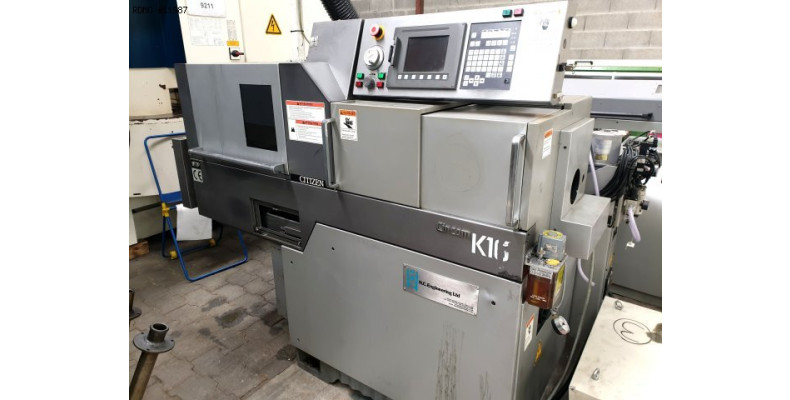

Brand: Citizen
Model: K 16 VII
Year: 2006
Serial: E7040
Brand: Citizen
Model: K 16 VII
Year: 2006
Serial: E7040

Caracteristics & Equipment

Caracteristics

- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 16 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 15000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]

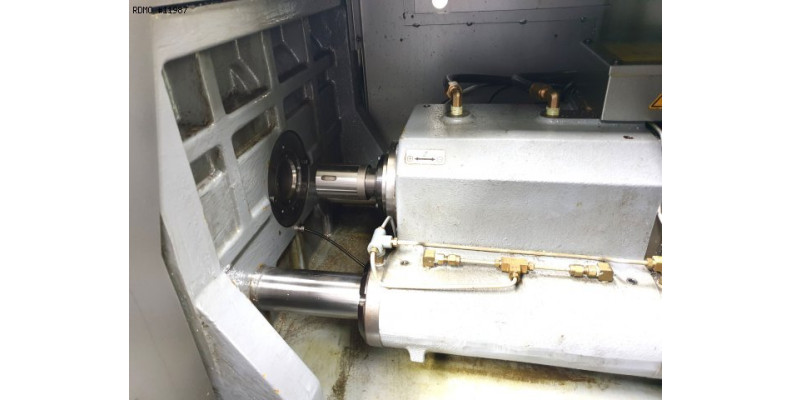

COUNTER-SPINDLE
- Max. bar diameter : 16 [mm]
- Z stroke : 80 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 1.1 [kW]
- C axis indexing precision : 0.001 [°]

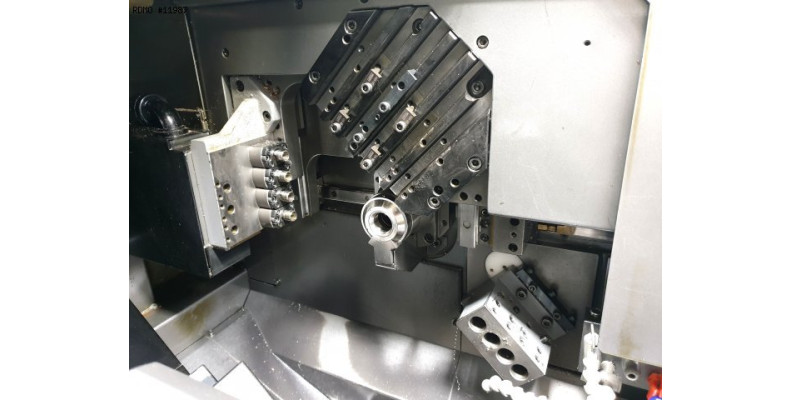

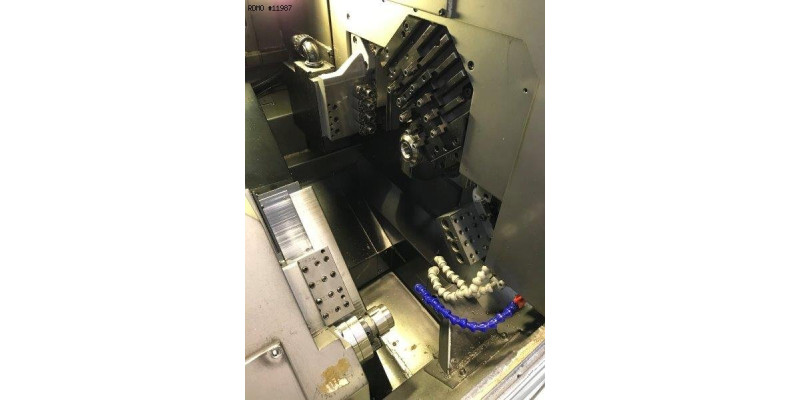

GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 8 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1850 X 1610 [mm]
- Machine height : 1050 [mm]
- Machine weight : 2050 [kg]
Equipment

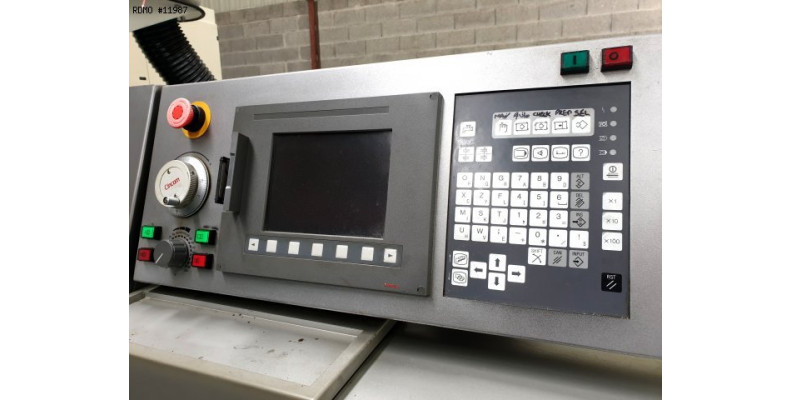

- CNC : Fanuc 31i
- Rotating guide bush
- Parts catcher

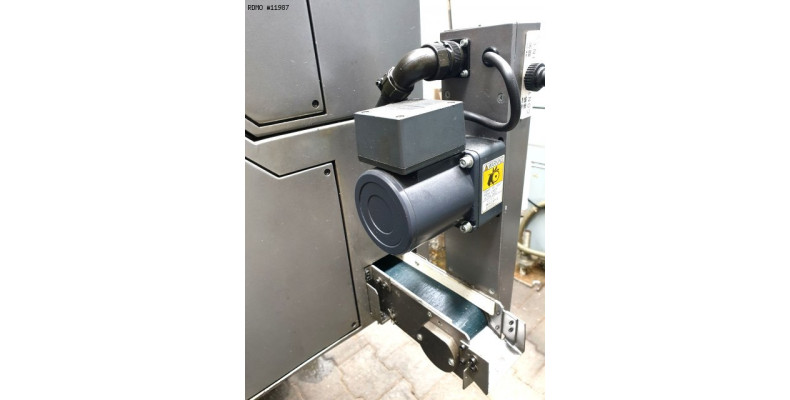

- Parts conveying strip
- Ejection of workpiece
- Chips conveyor
- Coolant tank

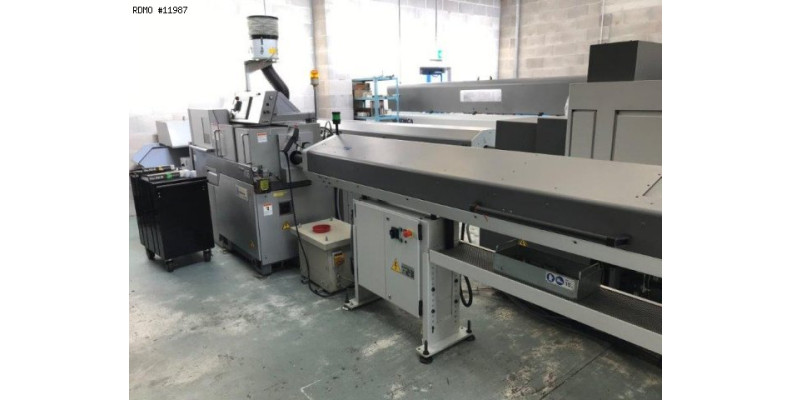

- Bar loader : IEMCA GENIUS 118
- Electric transformer
