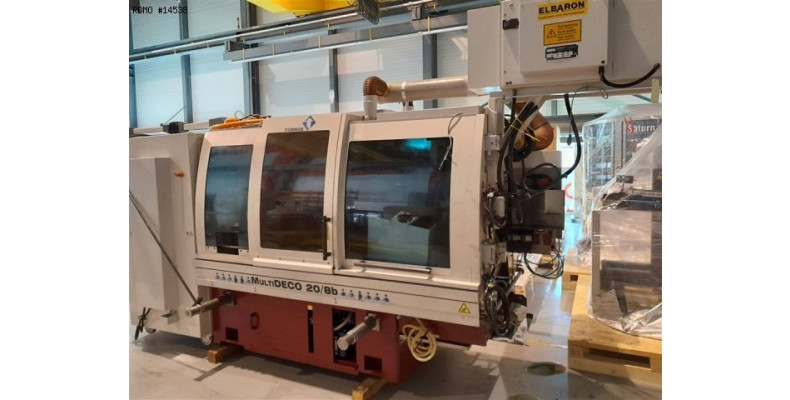

Tornos MULTIDECO 20/8b

Turning Cnc multispindle lathe

14538

PDF datasheet to download:

Brand: Tornos

Model: MULTIDECO 20/8b

Year: 2006

Serial: 7054

14538

Tornos MULTIDECO 20/8b

Turning Cnc multispindle lathe

PDF datasheet to download:

Brand: Tornos

Model: MULTIDECO 20/8b

Year: 2006

Serial: 7054

Ask Price

Caracteristics

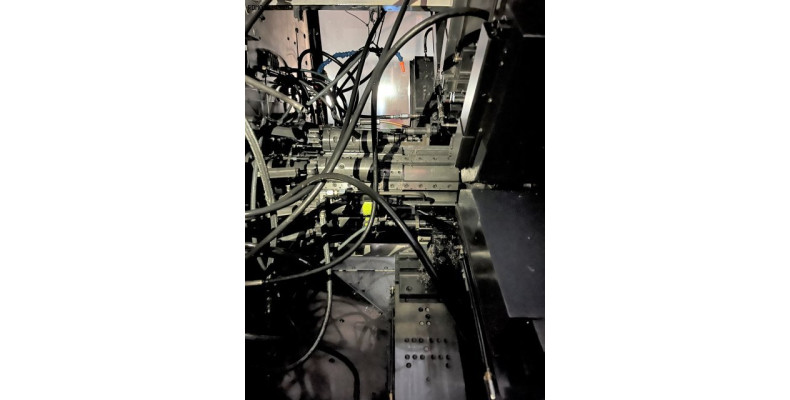

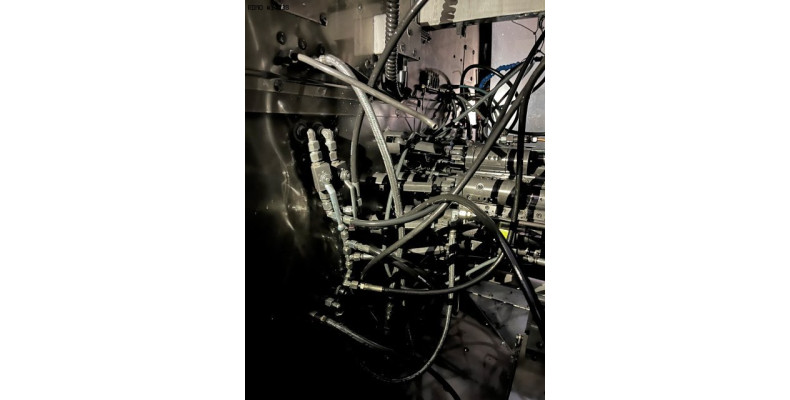

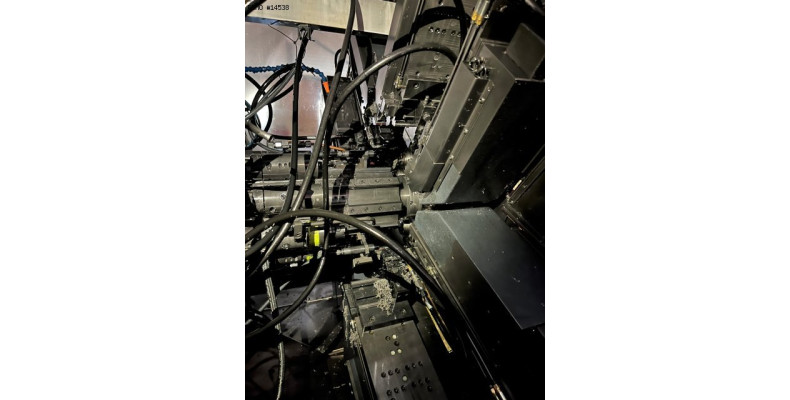

- number of spindles : 8 - max. bar diameter : 20 [mm] - turning slides : 8 - number of transversal slides : 3 * position : 1,8,9 * stroke X in position 1 : 50 [mm] * stroke X in position 8,9 : 65 [mm] - number of crossed slides : 6 * position : 2,3,4,5,6,7 * strokes X x Z1 : 50 x 80 [mm] - longitudinal slides : 8 * strokes Z2 : 160 [mm] - counter spindle * max. diameter in counter spindle : 20 [mm] * max. part length in counter operation : 75 [mm] * stroke : 160 [mm] * position : 8 - 8 spindles with controlled stop spindle in position 5 et 6 * power : 15 / 18,5 [kW] * speed : 3500 [Rpm] - hours under power : 55000

Equipment

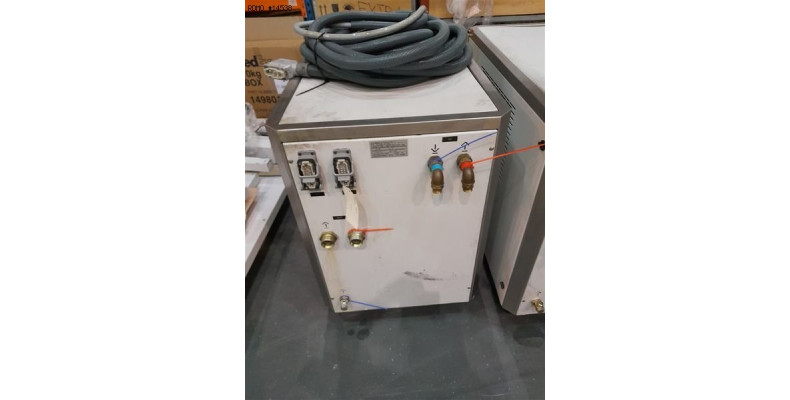

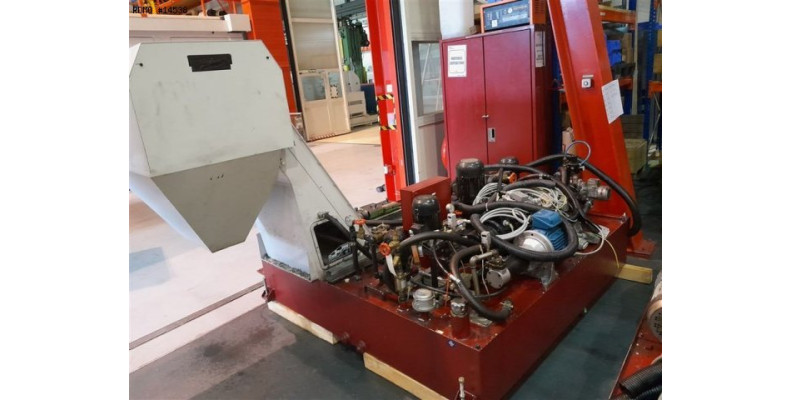

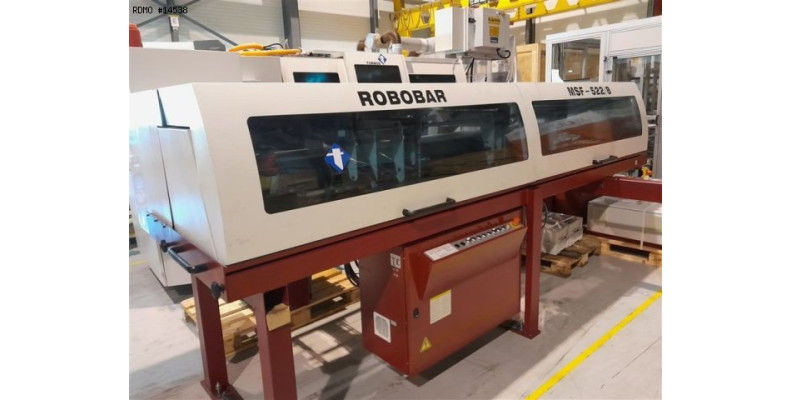

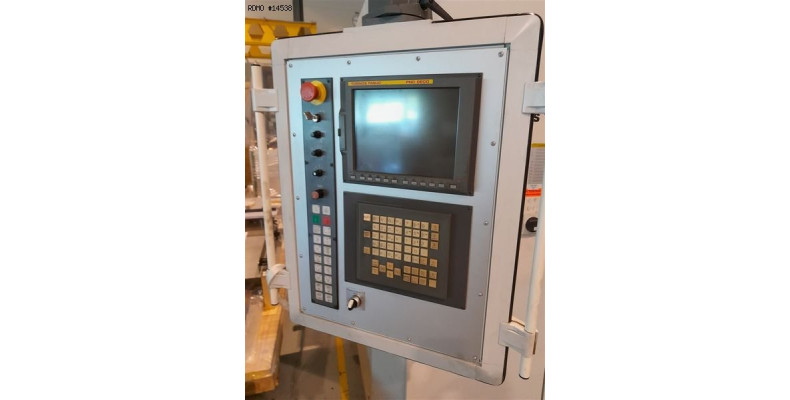

- control CNC FANUC DNC DECO - chip conveyor Mayfran - additional tank with HP pump 30 and 80 bars - counter spindle with brake - presett. tool holder GOLTENBODT - synchronized stamping attachment - oil mist aspiration ELBARON - bar feeder Tornos ROBOBAR MSF 522/8
