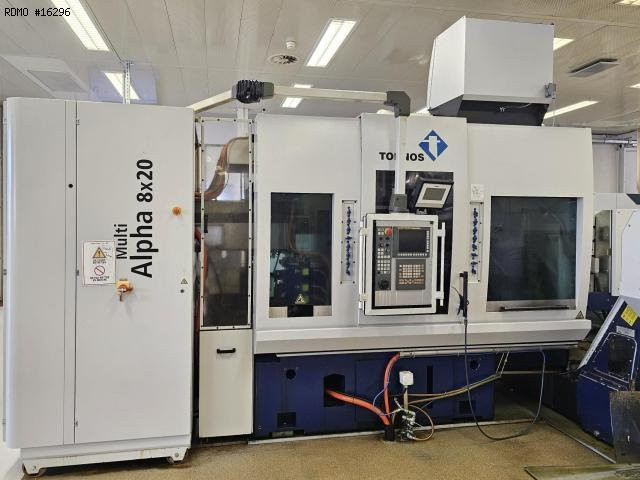

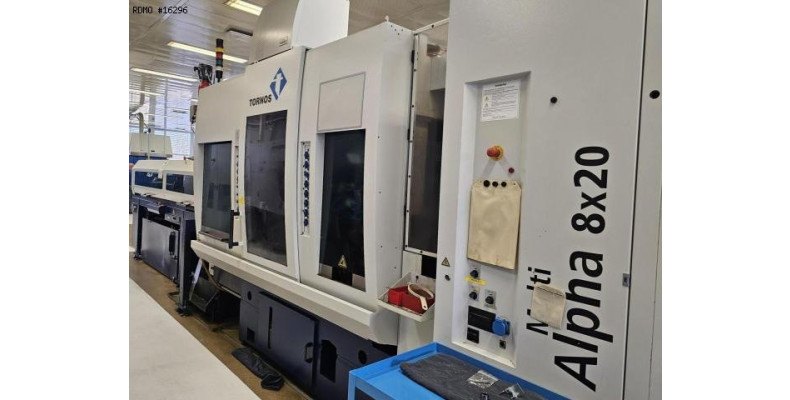

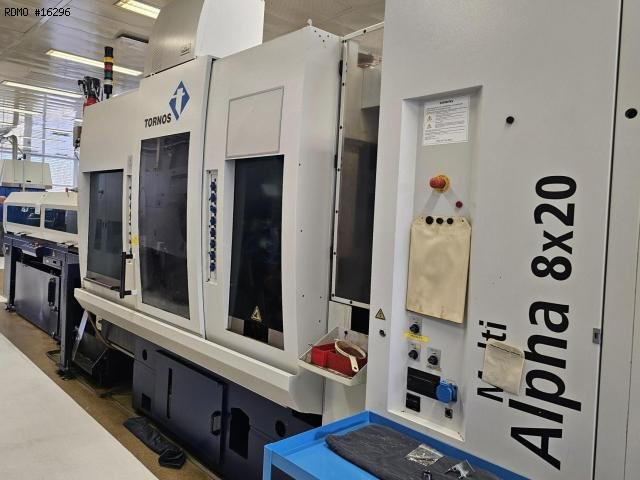

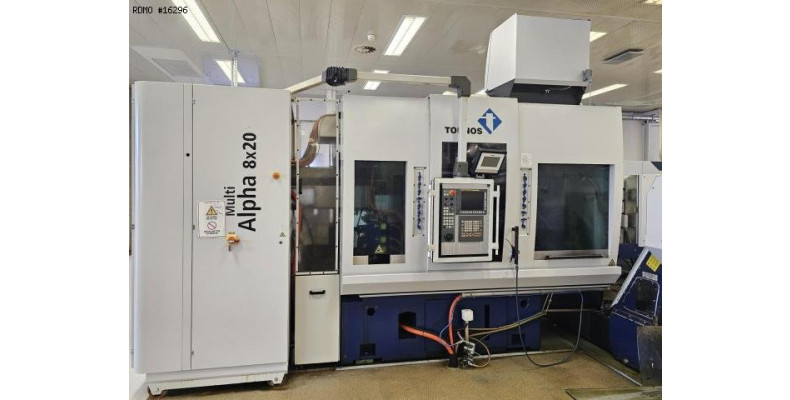

Caracteristics
- Number of axes : 23
- Number of spindles : 8
- Number of counter-spindles : 1
- Max. part length : 100 [mm]
SPINDLES
- Max. bar diameter : 22 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 11.2 [kW]
COUNTER-SPINDLE
- Y stroke : 280 [mm]
- Z stroke : 450 [mm]

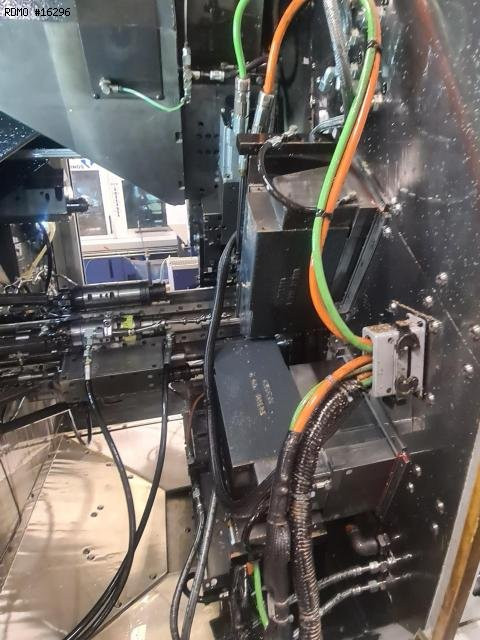

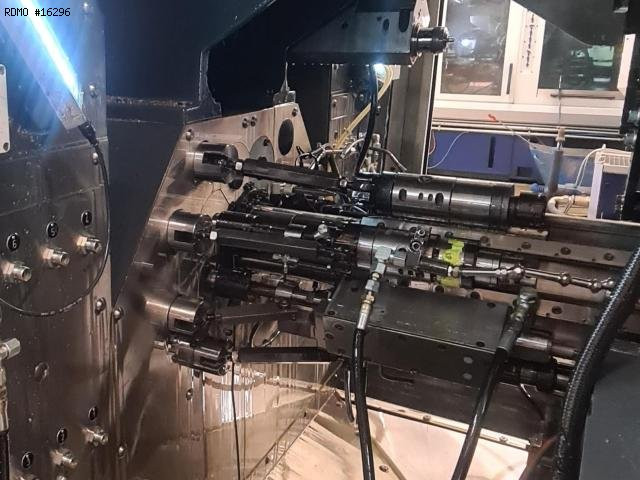

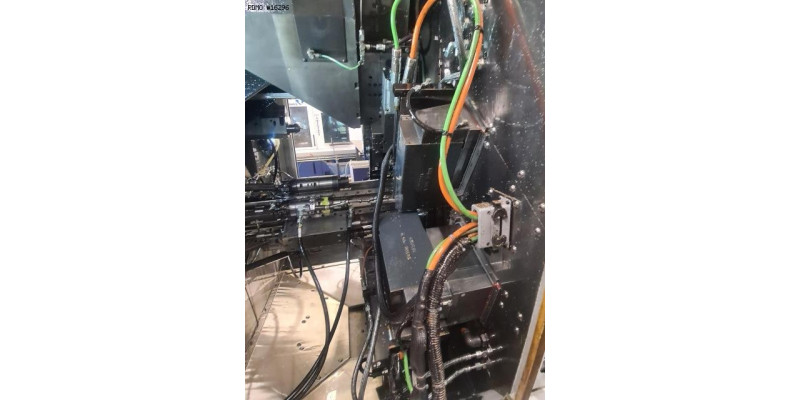

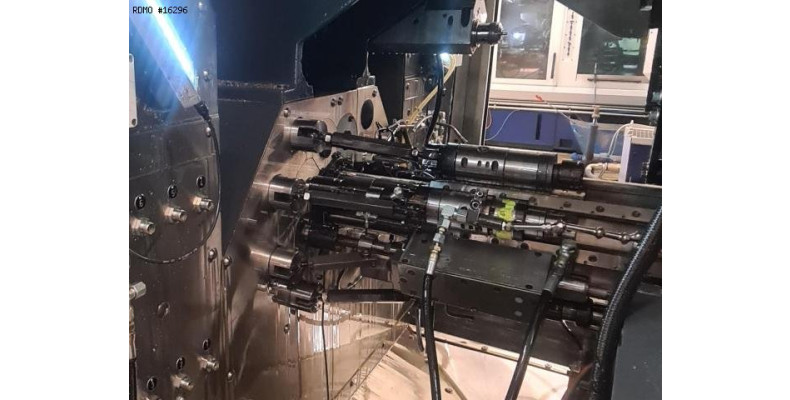

NUMERICAL AXES
- 1 cross slide, position 1: x=50 [mm], Z1=80 [mm]
- 1 cross slide, position 2: x=50 [mm], Z1=80 [mm]
- 1 cross slide, position 3: x=50 [mm], Z1=80 [mm]
- 1 cross slide, position 4: x=50 [mm], Z1=80 [mm]
- 1 cross slide, position 5: x=50 [mm], Z1=80 [mm]
- 1 cross slide, position 6: x=50 [mm], Z1=80 [mm]
- 1 cross slide, position 7: x=50 [mm], Z1=80 [mm]
- 1 cutting carriage 8: x=65 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 80 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 5.300 x 2.200 [mm]
- Machine height : 2.600 [mm]
- Machine weight : 12.000 [kg]
MACHINE HOURS
- Number of hours under power : 73500 [h]
Equipment

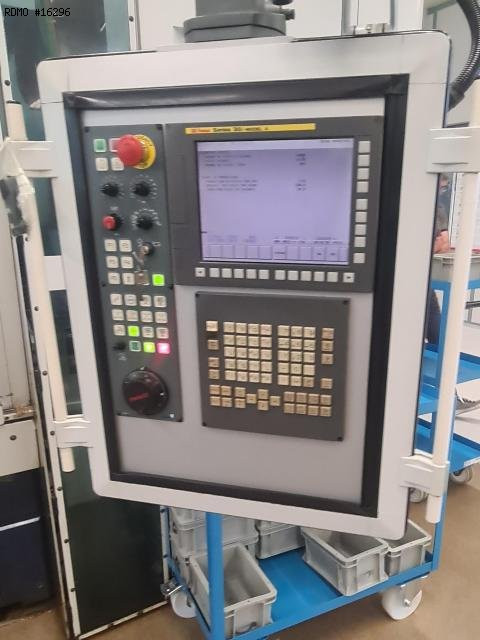

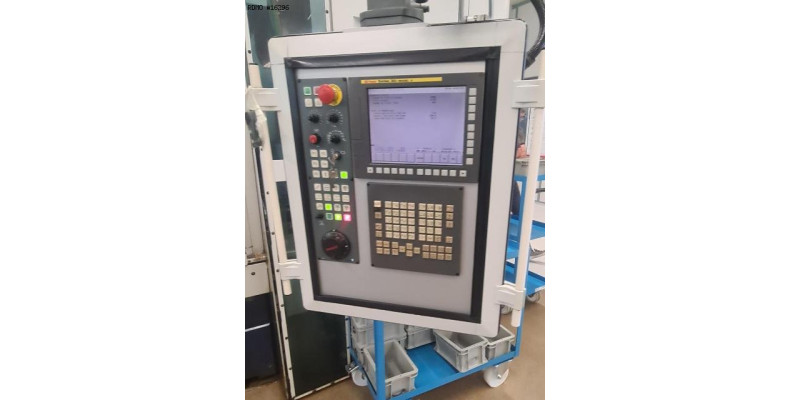

- CNC : Fanuc 30i-TB
- Hirth teeth
- 1 counter-spindle in position 7
- Counter-spindle with counter-operation device
- 2 x 4 counter-operation tools
- 8 spindles with independent spindle speeds
- C-axis on all 8 spindles and the counter-spindle : 0.001 [°]
- Chips conveyor : MAYFRAN
- Coolant tank
* with high-pressure pump : 35 + 80 [bars]
* with cooling unit for coolant
- Bar loader : ROBOBAR MSF-522/8
- Oil mist extractor
