Brand: Index
Model: MS32C
Year: 2004
Serial: 150327
Brand: Index
Model: MS32C
Year: 2004
Serial: 150327

Caracteristics & Equipment

Caracteristics
- number of spindles : 6 independent - bar clearance : 32 [mm] - maxi spindle speed : 6 300 [rpm] - machine equipped with 32 numerical axes - slide unity 1.1 : X and Z axes controlled by CNC - slide unity 1.2 : fixed X axis, Z axis controlled by CNC - slide unity 2.1 : fixed X axis, Z axis controlled by CNC - slide unity 2.2 : X and Z axes controlled by CNC - slide unity 3.1 : X and Z axes controlled by CNC - slide unity 3.2 : fixed X axis, Z axis controlled by CNC - slide unity 4.1 : X and Z axes controlled by CNC - slide unity 4.2 : fixed X axis, Z axis controlled by CNC - slide unity 5.1 : fixed X axis, Z axis controlled by CNC - slide unity 5.2 : X and Z axes controlled by CNC - slide unity 6.1 : X and Z axes controlled by CNC - slide unity 6.2 : X and Z axes controlled by CNC - synchronous unit, spindle position 6.1
Equipment

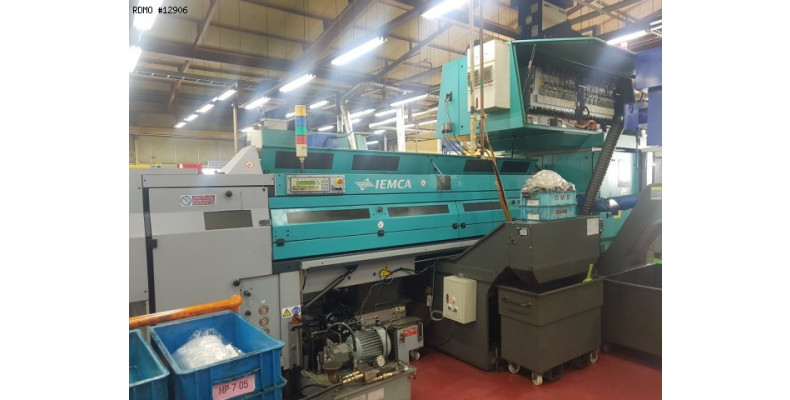

- INDEX C200-4 control (Siemens SINUMERIK 840D) - Simple NCU - IEMCA SIR MS32/33/P bar loader - Coolant tank with HP pump - KNOLL chips conveyor - RIEDEL cooling unit - Parts catcher with conveyor in position 6 - Cross drilling device in position 3.1 et 4.1
PDF datasheet to download:

Description
