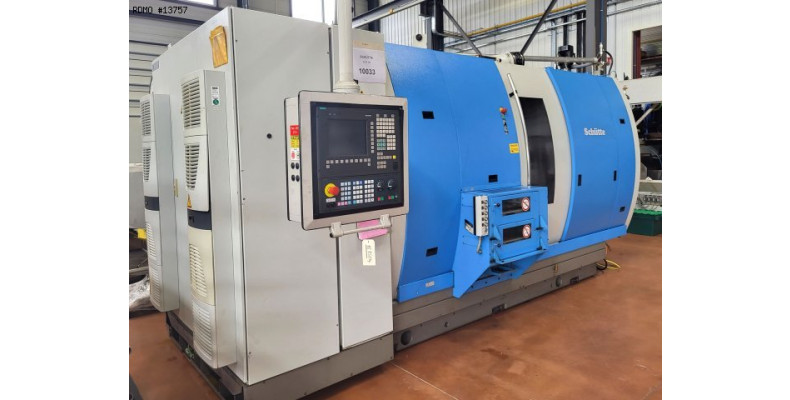

SCHÜTTE SC9-26

Name: Cnc multispindle lathe SCHÜTTE SC9-26
Brand: SCHÜTTE
Availability: InStock

Turning Cnc multispindle lathe

13757

PDF datasheet to download:

Brand: SCHÜTTE

Model: SC9-26

Year: 2009

Serial: Serie:04 Nr.:08

13757

SCHÜTTE SC9-26

Turning Cnc multispindle lathe

PDF datasheet to download:

Brand: SCHÜTTE

Model: SC9-26

Year: 2009

Serial: Serie:04 Nr.:08

Ask Price

Caracteristics

- Number of spindles : 9
- Bar capacity : 26 [mm]

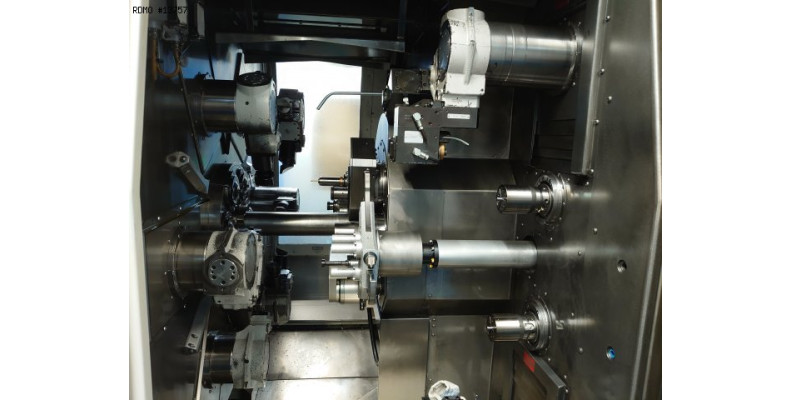

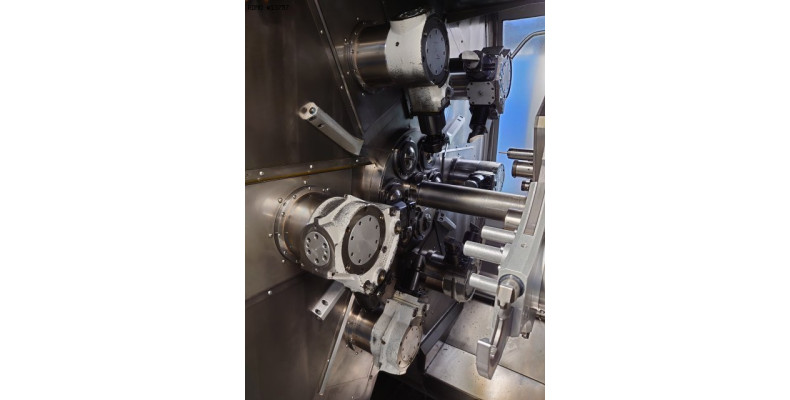

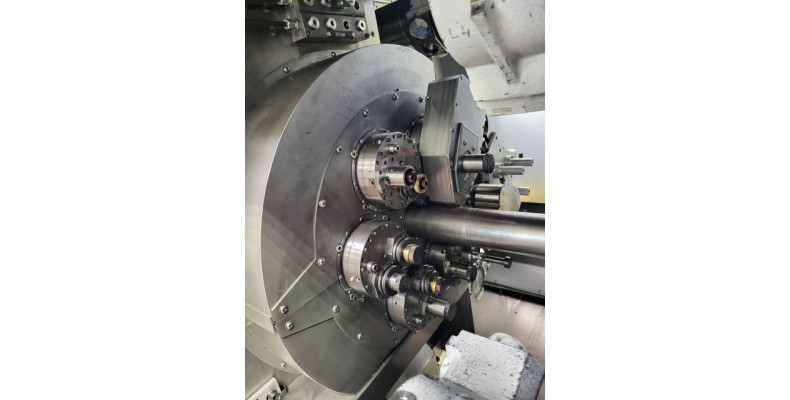

MAIN SPINDLES 1 TO 6
- Nominal torque : 18.5 [Nm]
- Max. spindle speed : 7000 [rpm]
- Stroke X : 70 [mm]
- Stroke Z : 125 [mm]
MAIN SPINDLES 8 AND 9
- Nominal torque : 15 [Nm]
- Max. spindle speed : 10000 [rpm]
- Stroke X : 110 [mm]
- Travel Z : 125 [mm]
COUNTER SPINDLE 7
- Nominal torque : 15 [Nm]
- Max. spindle speed : 10000 [rpm]
- Stroke Z : 300 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Installed power : 109 [A]
DIMENSIONS
- Floor dimensions : 9.100 x 1.805 [mm]
- Machine height : 2,800 [mm]
- Machine weight : 18.500 [kg]
MACHINE HOURS
- operating hours : 82000 [h]

Equipment

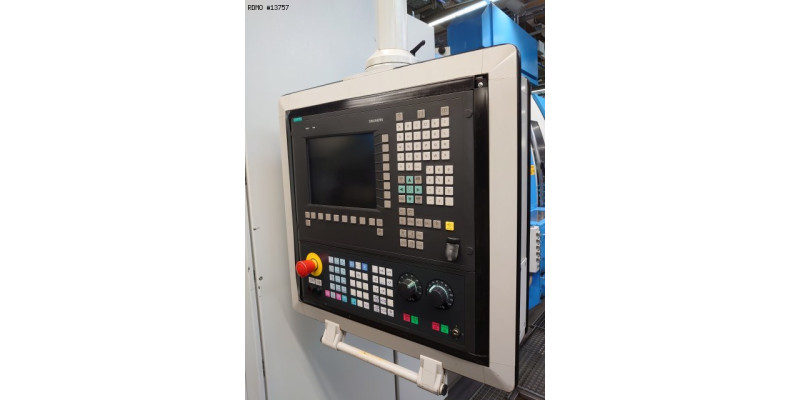

- CNC Siemens Sinumerik 840D
- Chips conveyor

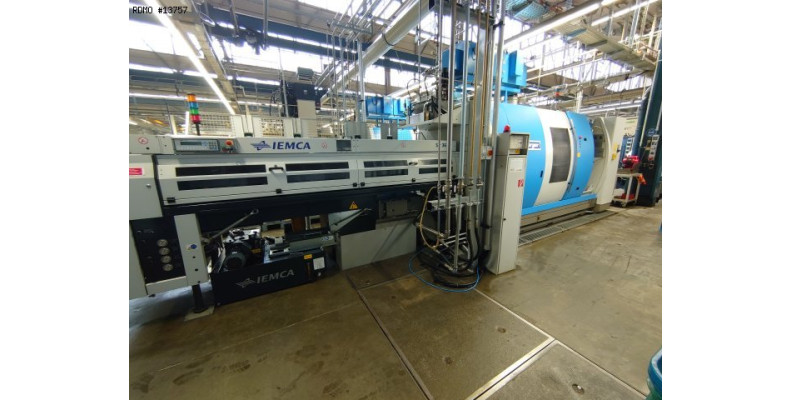

- Bar loader : SIR 36/33 F

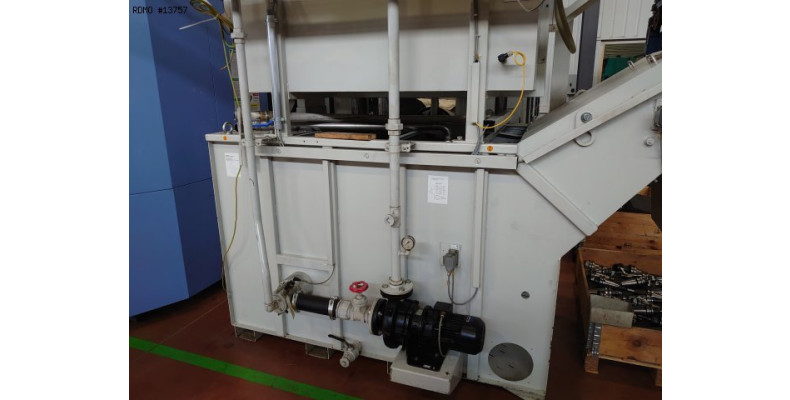

- Coolant tank : KNOLL VRF 450/2600
* with high pressure pump
* with paper filtration
* capacity : 2600 [l]
