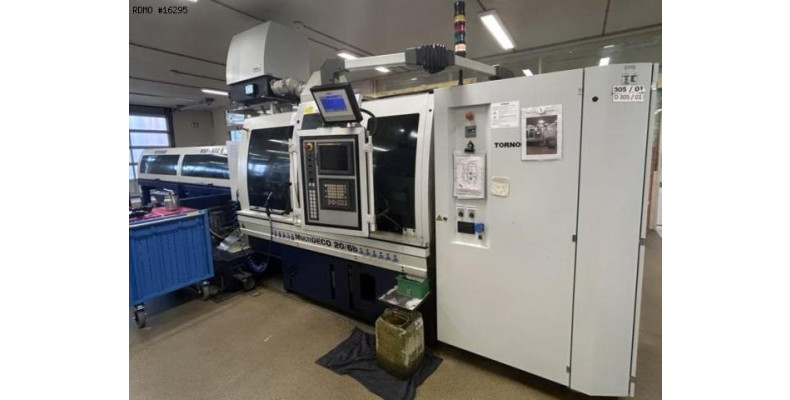

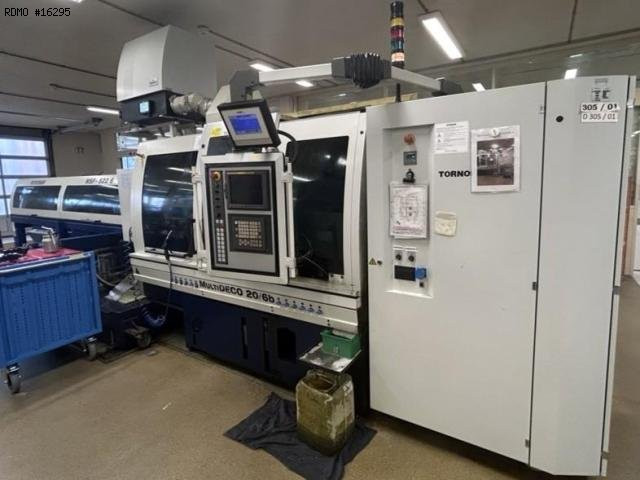

TORNOS MULTIDECO 20/6b 18 axis

Name: Cnc multispindle lathe TORNOS MULTIDECO 20/6b 18 axes
Brand: TORNOS
Availability: InStock

Turning Cnc multispindle lathe

16295

PDF datasheet to download:

Brand: TORNOS

Model: MULTIDECO 20/6b

Year: 2008

Serial: 8381

16295

TORNOS MULTIDECO 20/6b 18 axis

Turning Cnc multispindle lathe

PDF datasheet to download:

Brand: TORNOS

Model: MULTIDECO 20/6b

Year: 2008

Serial: 8381

Ask Price

Caracteristics

- Number of axes : 18
- Number of spindles : 6
- Max. part length : 120 [mm]
SPINDLES
- Max. bar diameter : 8 - 25.4 [mm]
- Spindle speeds : 6000 [rpm]
- Spindle power : 18 [kW]
NUMERICAL AXES

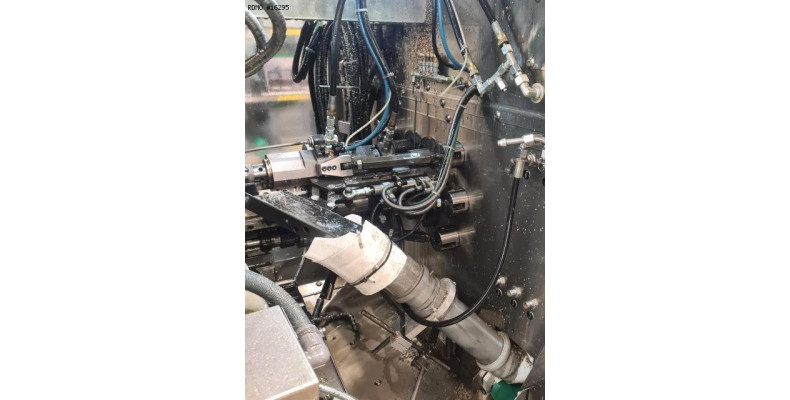

- 1 chariot croisé position 1 : x=50 [mm], Z1=80 [mm]
- 1 chariot croisé position 2 : x=50 [mm], Z1=80 [mm]
- 1 chariot croisé position 3 : x=50 [mm], Z1=80 [mm]
- 1 chariot croisé position 4 : x=50 [mm], Z1=80 [mm]
- 1 chariot croisé position 5 : x=50 [mm], Z1=80 [mm]
- 1 chariot de coupe 6 : x=65 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 71 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.500 x 1.600 [mm]
- Machine height : 1.950 [mm]
- Machine weight : 8500 [kg]
MACHINE HOURS
- Number of hours under power : 72000 [h]

Equipment

- CNC : Fanuc 16i-TB
- Hirth teeth
- Contre broche avec dispositif de contre-opération
- Porte-outils de tournage Goltenbolt à toutes les positions
- 5 perceurs fixes
- 1 porte-outils de tronçonnage
- Chips conveyor
- Coolant tank
* with high-pressure pump
* with cooling unit for coolant

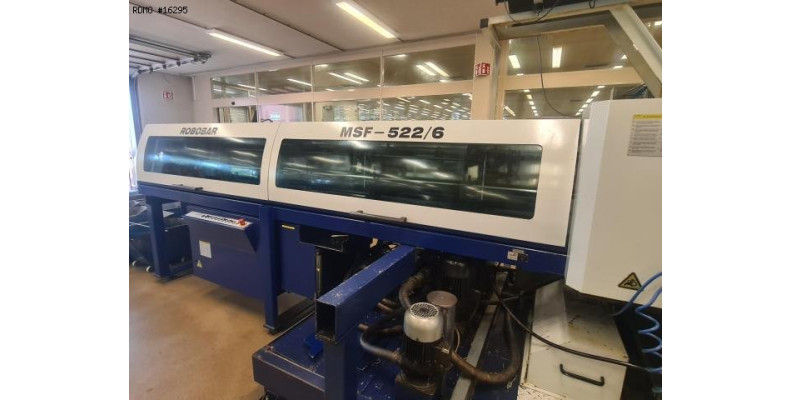

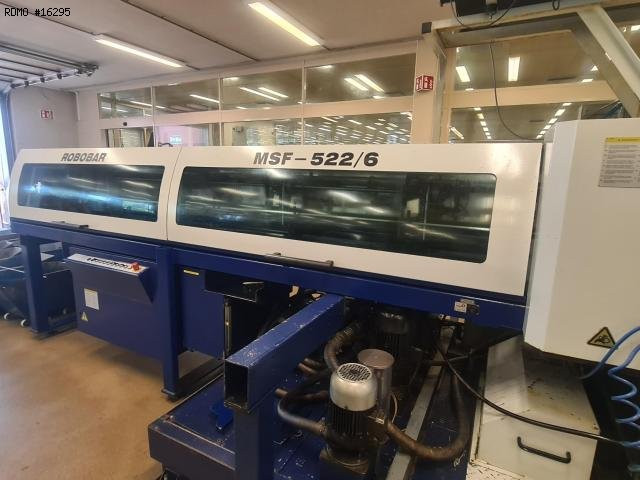

- Bar loader : ROBOBAR MSF-522/6
- Oil mist extractor
