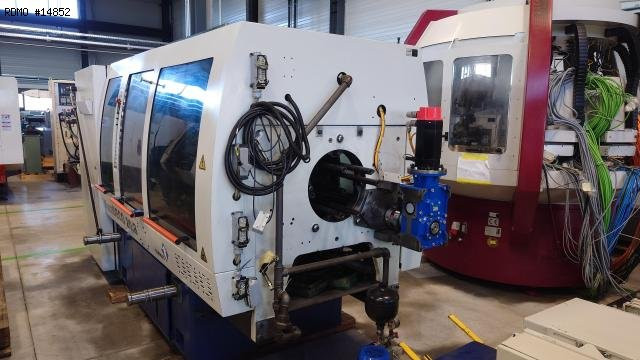

TORNOS MULTIDECO 20/8

Name: Cnc multispindle lathe TORNOS MULTIDECO 20/8
Brand: TORNOS
Availability: InStock

Turning Cnc multispindle lathe

14852

PDF datasheet to download:

Brand: TORNOS

Model: MULTIDECO 20/8

Year: 2005

Serial: 6499

14852

TORNOS MULTIDECO 20/8

Turning Cnc multispindle lathe

PDF datasheet to download:

Brand: TORNOS

Model: MULTIDECO 20/8

Year: 2005

Serial: 6499

Ask Price

Caracteristics

- Number of axes : 23
- Max. bar diameter : 20 [mm]
- Spindle speeds : 3500 [rpm]
- Spindle power : 15 / 18.5 [kW]
COUNTER-SPINDLE
- Counter-spindle position : 8
- Max. bar diameter : 20 [mm]
- Travel : 160 [mm]
- Max. part length : 75 [mm]
- SLIDES
- Number of transversal slides : 3
* Position : 1 / 8 / 9
* Stroke x, position 1 : 50 [mm]
* Stroke X, position 8/9 : 65 [mm]
- Number of crossed slides : 6
* Position : 2 / 3 / 4 / 5 / 6 / 7
* Stroke X x Z1 : 50 x 80 [mm]
- Number of longitudinal slides : 1
* Position : 8
* Stroke Z2 : 160 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 80 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 9600 x 2500 [mm]
- Machine height : 2200 [mm]

Equipment

- CNC : FANUC PNC DECO
- Chips conveyor
- Coolant tank

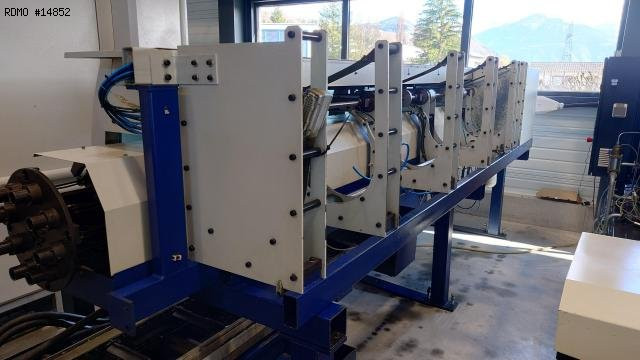

- Bar loader : Tornos
