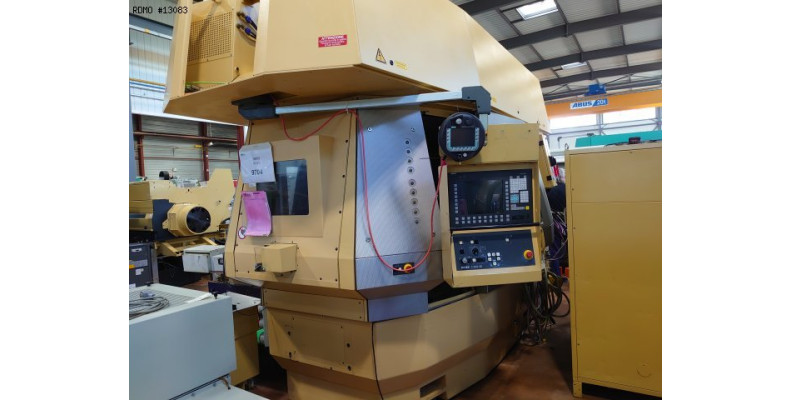

Brand: Index
Model: MS 52 C
Year: 2006
Serial: 160109
Brand: Index
Model: MS 52 C
Year: 2006
Serial: 160109

Caracteristics & Equipment

Caracteristics

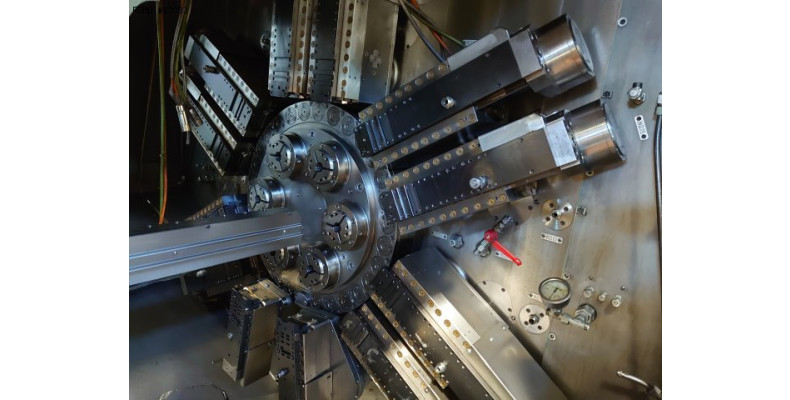

- Number of spindles : 6 independent
- Bar clearance : 52 [mm]
- Max. spindle speed : 5000 [Rpm]
- Spindle power : 29 [kW]
- Slide unit 1.1 : axes X and Z controlled by CN
- Slide unit 1.2 : axes X and Z controlled by CN
- Slide unit 2.1 : axes X and Z controlled by CN
- Slide unit 2.2 : axes X and Z controlled by CN
- Slide unit 3.1 : axes X and Z controlled by CN
- Slide unit 3.2 : axis Z controlled by CN
- Slide unit 4.1 : axes X and Z controlled by CN
- Slide unit 4.2 : axes X and Z controlled by CN
- Slide unit 5.1 : axes X, Y and Z controlled by CN
- Slide unit 5.2 : axes X and Z controlled by CN
- Slide unit 6.1 : axis Z controlled by CN
- Slide unit 6.2 : axes X and Z controlled by CN
- Supply : TN 50 Hz, 400 [V]
- Weight : 6000 [kg]
Equipment

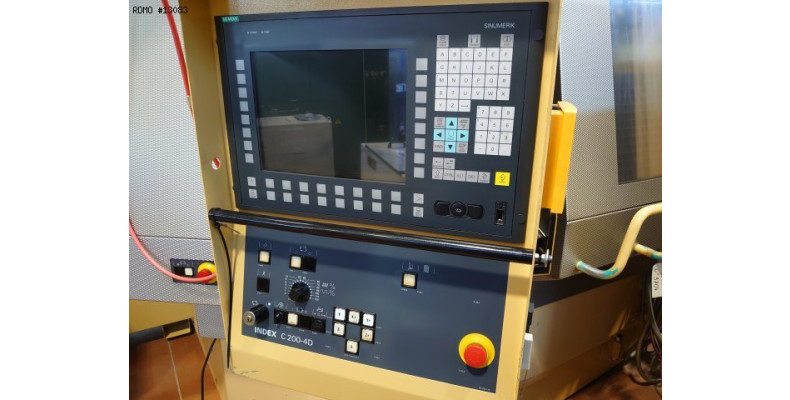

- Control INDEX C200-4D PL
- Double NCU

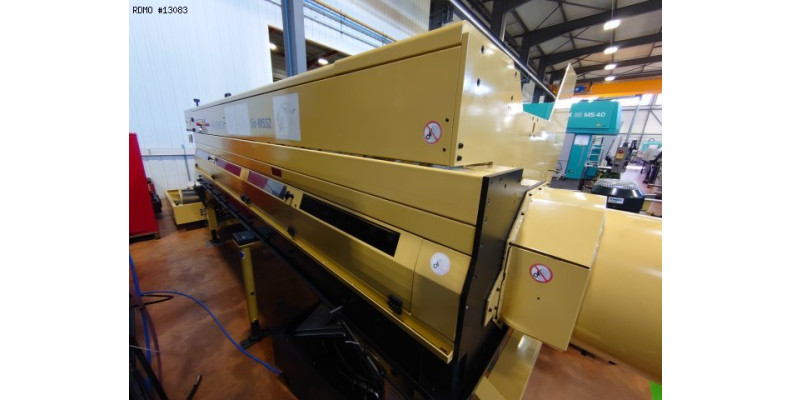

- Bar feeder IEMCA SIR MS52/38F
- CN option synchronous spindle / polygonal milling
- Coolant through tools

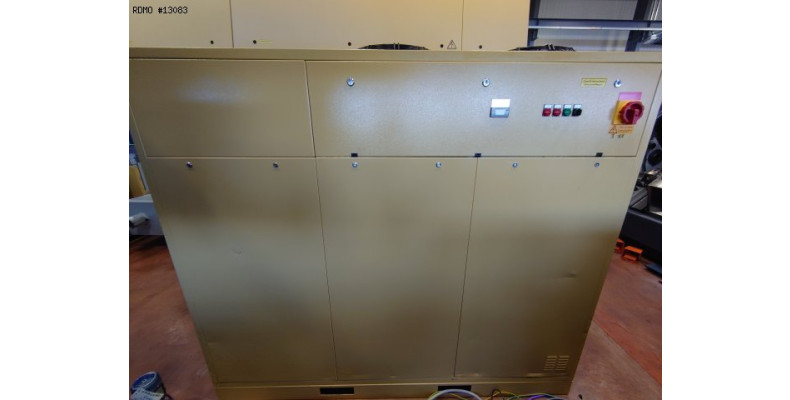

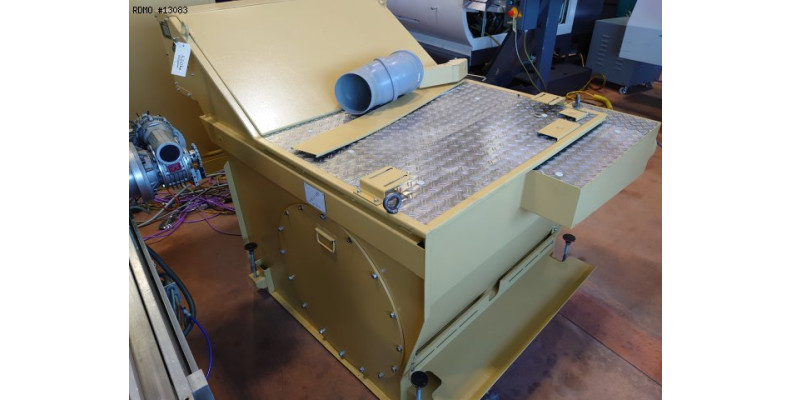

- Coolant tank KNOLL with HP pump
- Chip conveyor

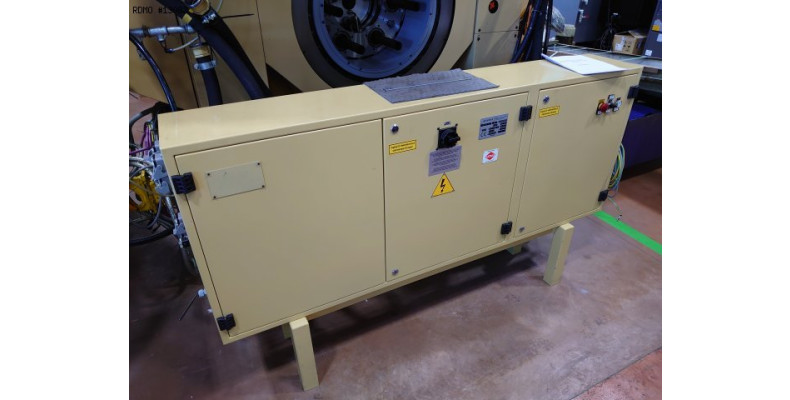

- Isolation transformer

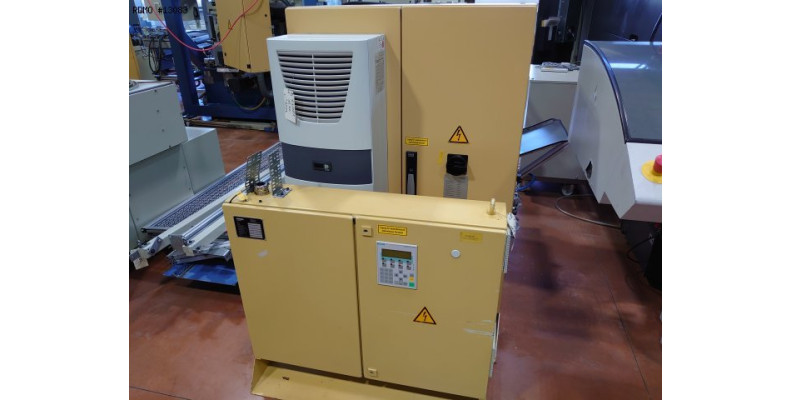

- Cooling unit
- Status lamp 3 colors
- Predisposition for production surveillance ARTIS
- CNC option TRANSMIT / TRACYL
- Predisposition for additional numerical axes : 1, 2, 3, 4, 5 and 6
