14429
Brand: Index

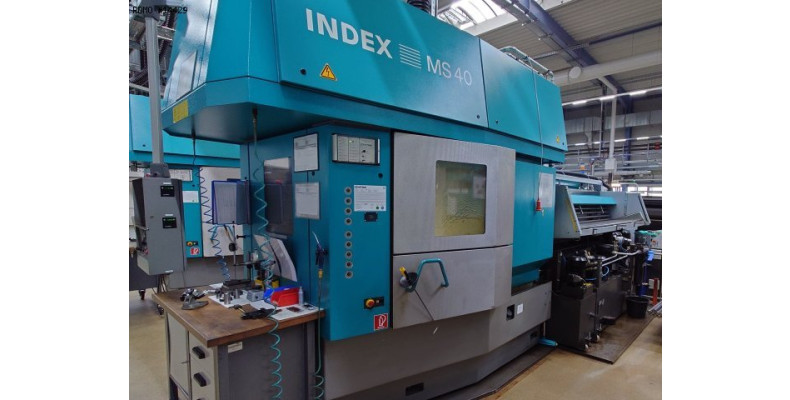

Model: MS 40 C
Year: 2012
Serial: 200086
14429
Brand: Index
Model: MS 40 C
Year: 2012
Serial: 200086

Caracteristics & Equipment

Caracteristics

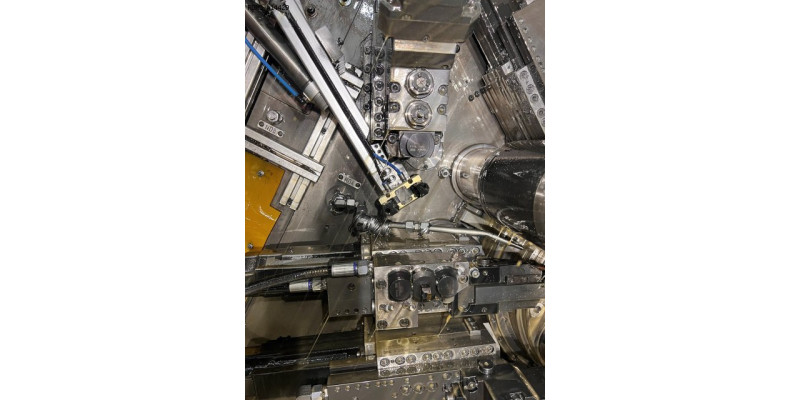

SPINDLES - Number of independent spindles : 6 - Bar clearance : 40 [mm] - Max. spindle speed : 7.000 [Rpm] - Spindle power : 24 [kW] TOOL HOLDER SLIDES - Travels X/Y/Z : 73 / 42 / 120 [mm] - Slides unit 1.1 : axes X and Z controlled by CN - Slides unit 1.2 : axes X and Z controlled by CN - Slides unit 2.1 : axes X and Z controlled by CN - Slides unit 2.2 : axes X and Z controlled by CN - Slides unit 3.1 : axes X and Z controlled by CN - Slides unit 3.2 : axes X and Z controlled by CN - Slides unit 4.1 : axes X, Y and Z controlled by CN - Slides unit 4.2 : axes X and Z controlled by CN - Slides unit 5.1 : axes X and Z controlled by CN - Slides unit 5.2 : axes X and Z controlled by CN - Slides unit 6.1 : rotary axes controlled by CN - Slides unit 6.2 : axes X and Z controlled by CN - Slides unit 6.3 : axes X controlled by CN SWIVELING COUNTER SPINDLE - Bar clearance : 40 [mm] - Max. spindle speed : 8.000 [Rpm] - Spindle speed : 14 [kW] - Travel : 144 [°] COUNTER OPERATION UNIT - Number of tools : 3 - Number of rotary tools : predisposition for 1 - Travels X : 82 [mm] ELECTRICAL SUPPLY - Voltage : 400 [V] - Installed power : 76 [kVA] DIMENSIONS - Floor space : 3.329 x 2.032 [mm] - Height : 2.954 [mm] - Weight : 7.100 [kg] MACHINE HOURS -Working Hours : 34460
Equipment

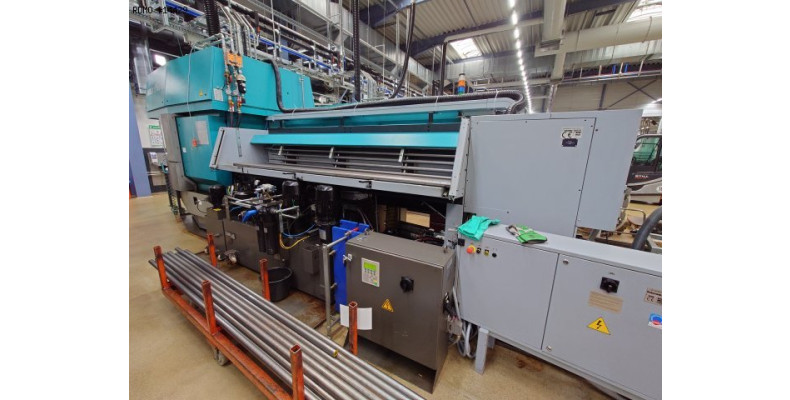

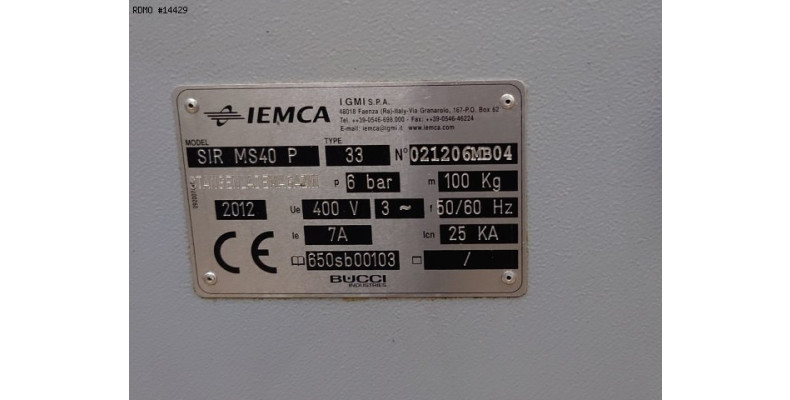

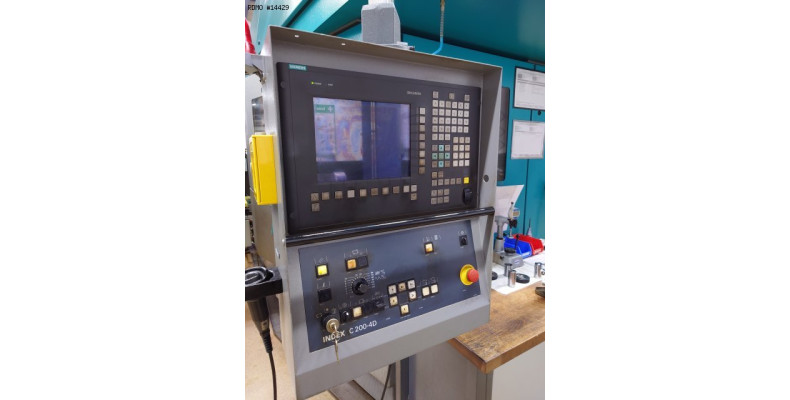

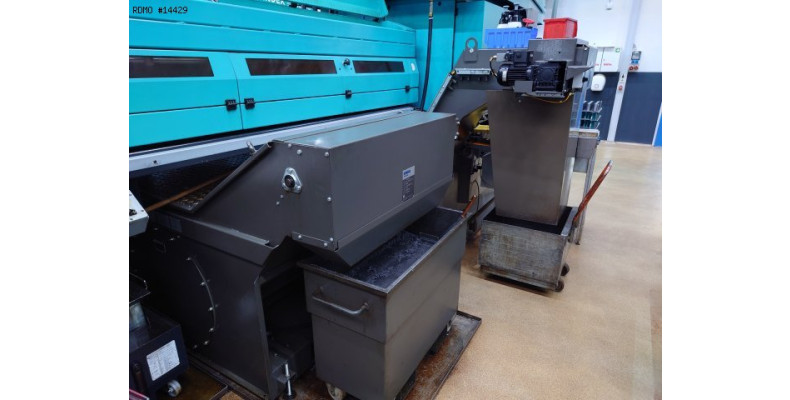

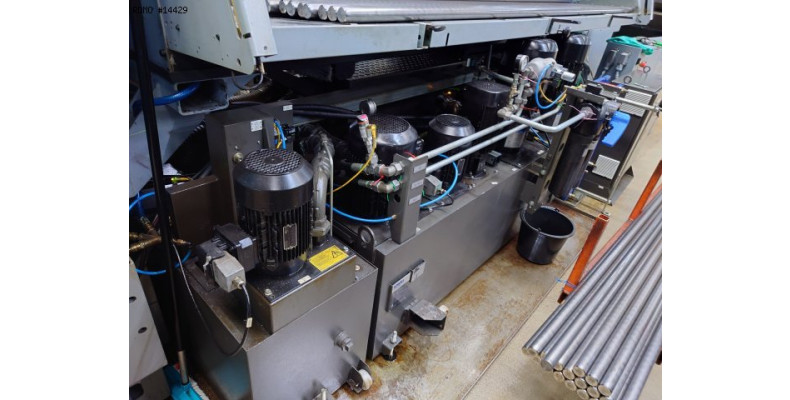

- Control INDEX C200-4D, double NCU - Network connection : through VPN tunnel - Status lamp 3 colors - Tool surveillance : ARTIS 8 - Lubrication unit : KNOLL KFA 800 (2011) * with drum and cartridges filtration * with HP pump : 40 [bars] - Integrated bar feeder : IEMCA SIR MS40/33P - Chip conveyor : KNOLL VRF500 (2011) - Anti-fire system * : Kraft & Bauer FB704 * NB : without working warranty. To be controlled by a qualified - Chuck 3 jaws : RÖHM KFD-HS - 6 spindle reductions diameter : 23 [mm]
