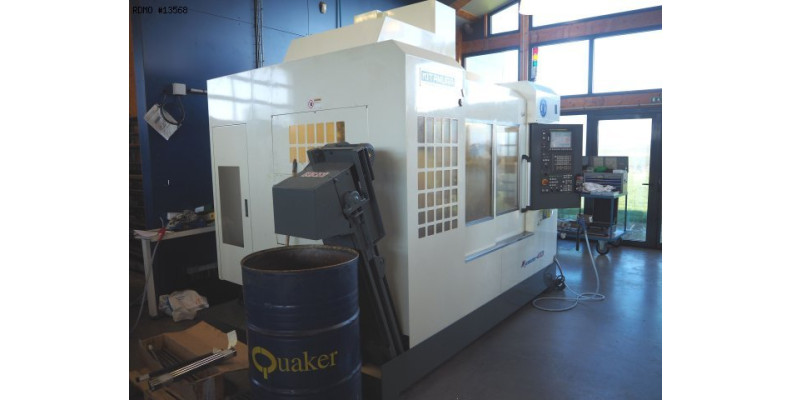

Kitamura Mycenter 4XD 4 axis

13568
Brand: Kitamura
Model: Mycenter 4XD
Year: 2013
Serial: 31095
13568
Kitamura Mycenter 4XD 4 axis
Brand: Kitamura
Model: Mycenter 4XD
Year: 2013
Serial: 31095

Caracteristics & Equipment

Caracteristics
- Number of axes : 4

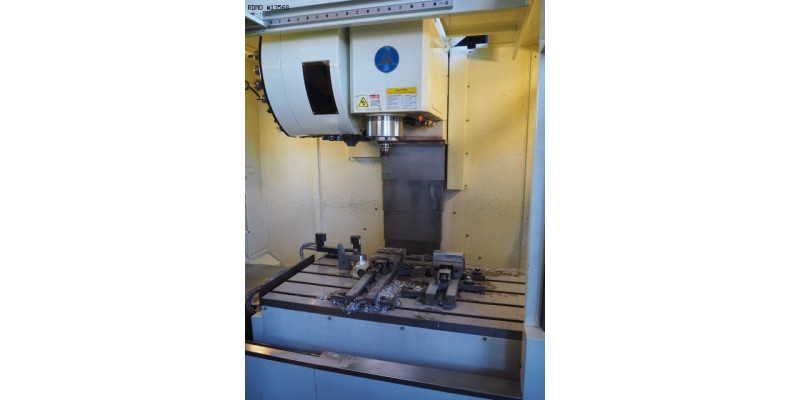

MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 26 [kW]
- Spindle speeds : 20-15.000 [rpm]
- Number of spindle hours : 1.048 [h]
LINEAR AXES
- Travels on X/Y/Z axes : 1.100 x 610 x 610 [mm]
- Rapid traverses rates (X/Y/Z) : 36 / 36 / 30 [m/min]
- Distance table / spindle nose (min./max.) : 100 - 710 [mm]
TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 30
- Tool exchange time : 2 [sec]
TABLE
- Table dimensions : 1270 x 640 [mm]
- Maximum weight upon table : 1.200 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 55 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.040 x 2.234 [mm]
- Machine height : 2.923 [mm]
- Machine weight : 7.300 [kg]
MACHINE HOURS
- Number of hours under power : 5817 [h]
Equipment

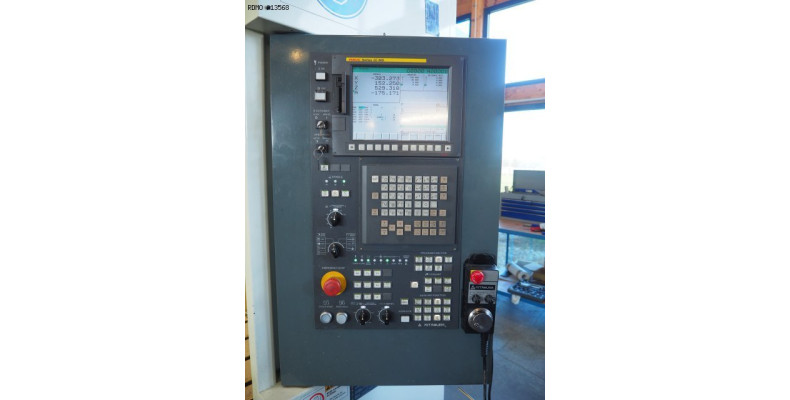

- CNC : FANUC Oi-MD
- Interactive programming : Manual guide
- Electronic handwheel
- Rigid tapping
- 3 colors status lamp
- Type of divisor : full 4th axis
* Manufacturer : NIKKEN
* Model : CNC 260 F1
* Travel 4th axis : 360 [°]
* Indexing precision 4th axis : 0,001 [°]
* Clamping diameter : 260 [mm]
* Center height : 170 [mm]
* Tightening type : Pneumatic
* Tailstock : manual
- COOLANT TANK
* with high-pressure pump : 20 [bars]
* With washing gun
- Coolant through spindle
- Spindle cooling unit : and ball screws
- Chips conveyor
- Tool probe : BLUM laser
- Workpiece probe : BLUM
- Electric transformer : 400 / 220 [V]
