FANUC ROBODRILL α-D21MiB5 PLUS 3 axis

Name: Vertical machining center FANUC ROBODRILL α-D21MiB5 PLUS 3 axes
Brand: FANUC
Availability: InStock

Milling Vertical machining center

15851

PDF datasheet to download:

Brand: FANUC

Model: ROBODRILL α-D21MiB5 PLUS

Year: 2022

Serial: P221AG206

15851

FANUC ROBODRILL α-D21MiB5 PLUS 3 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: FANUC

Model: ROBODRILL α-D21MiB5 PLUS

Year: 2022

Serial: P221AG206

Ask Price

Caracteristics

- Number of axes : 3
MILLING SPINDLE
- Tool holder type : BBT 30 (Big-Plus)
- Spindle power : 12 [kW]
- Spindle speeds : 10000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 500/400/330 [mm]
- Rapid traverses rates (X/Y/Z) : 54 [m/min]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 21
TABLE
- Table dimensions : 650 x 400 [mm]
- Maximum weight upon table : 300 [kg]
- Distance table / spindle nose (min./max.) : 250-580 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1565 X 2027 [mm]
- Machine height : 2346 [mm]
- Machine weight : 2000 [kg]

Equipment

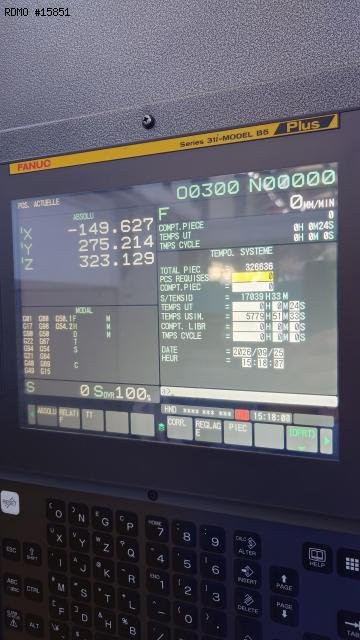

- CNC : Fanuc 31i model B5
- Rigid tapping
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 15 [bars]
- Coolant through spindle
- Chips conveyor : Gauche
- Tool probe : BLUM Z NANO
