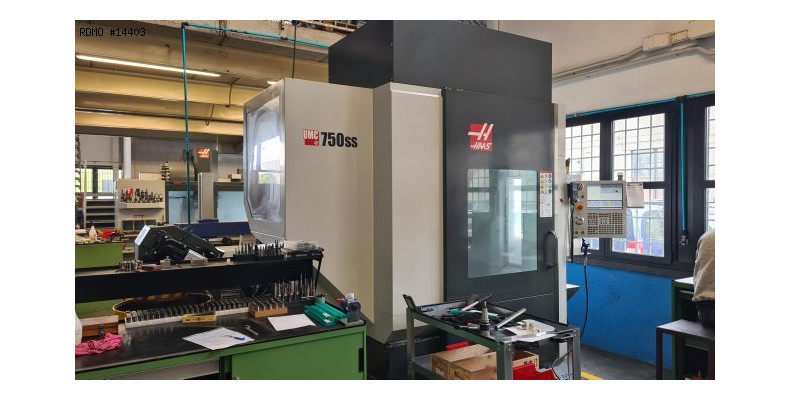

Haas UMC-750SS 5 axis

14403
Brand: Haas
Model: UMC-750SS
Year: 2018
Serial: 1153619
14403
Haas UMC-750SS 5 axis
Brand: Haas
Model: UMC-750SS
Year: 2018
Serial: 1153619

Caracteristics & Equipment

Caracteristics
- Number of axes : 5
MILLING SPINDLE
- Tool holder type : ISO40
- Spindle power : 22.4 [kW]
- Spindle speeds : 15.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 762 x 508 x 508 [mm]
- Rapid traverses rates (X/Y/Z) : 30.5 [m/min]

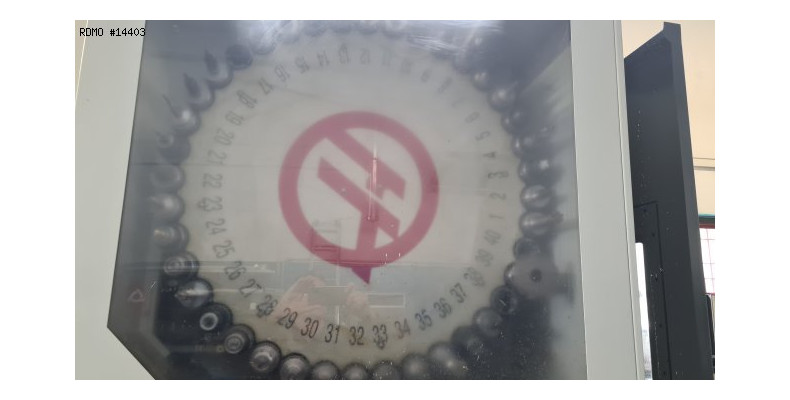

TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 40

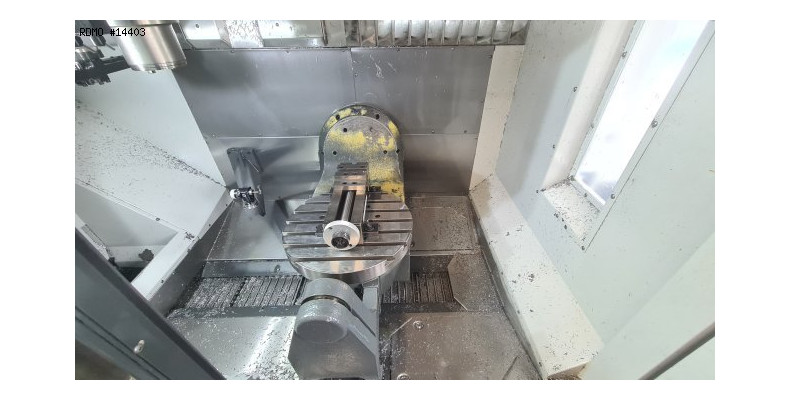

TABLE
- Table dimensions : 500 [mm]
- Maximum weight upon table : 300 [kg]
- Distance table / spindle nose (min./max.) : 102 - 610 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 4270 x2350 [mm]
- Machine height : 2800 [mm]
- Machine weight : 6464 [kg]
MACHINE HOURS
- Number of hours under power : 11900 [h]
Equipment

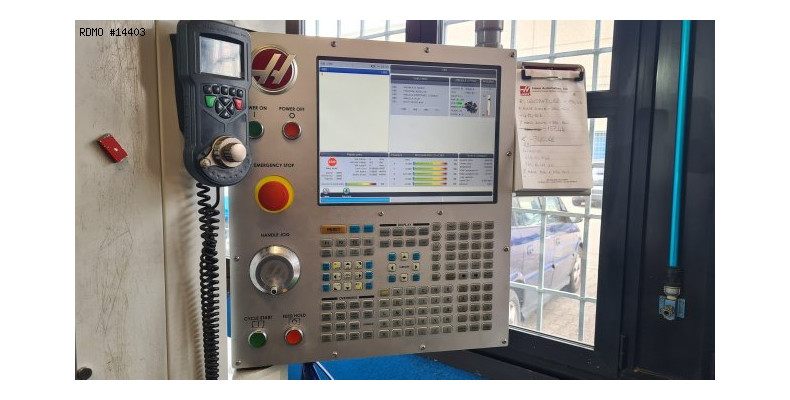

- CNC : Haas
- Interface : Ethernet/RS232 / USB
- Interactive programming
- Electronic handwheel
- Linear scales : axes B et C
- Rigid tapping

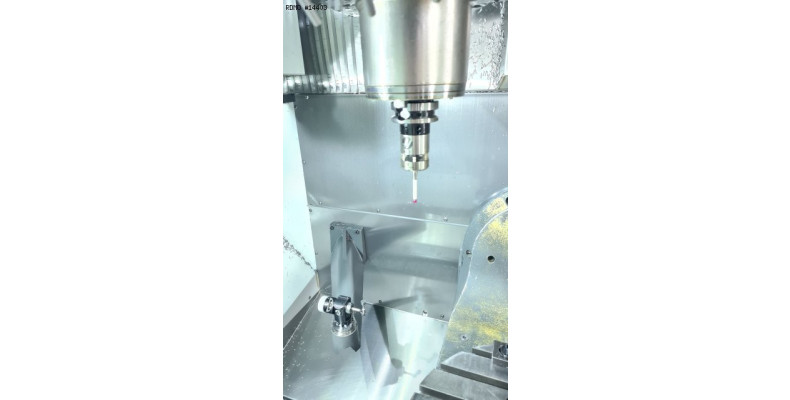

- Tool probe : Renishaw laser
- Workpiece probe : Renishaw

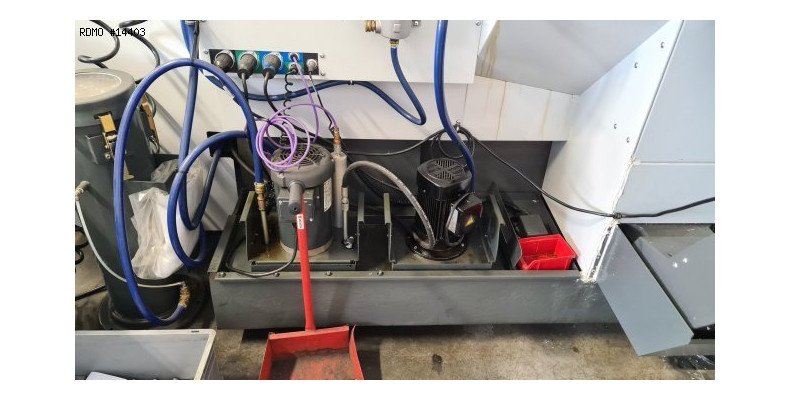

- Coolant tank
* with cabin washing
* with high-pressure pump : 20 [bars]
* with bag filtering unit
- Coolant through spindle

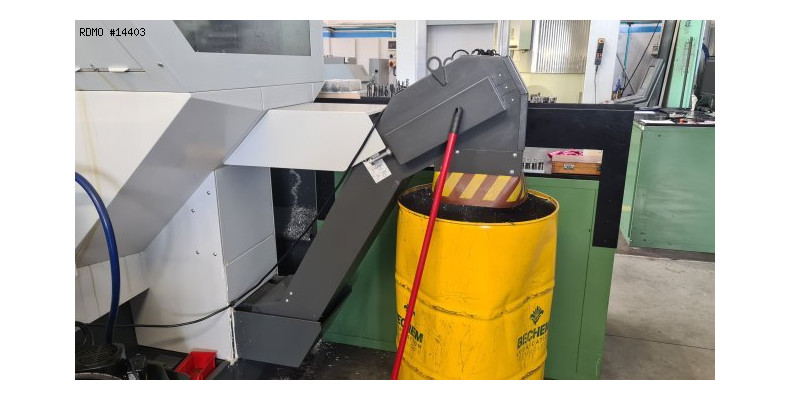

- Chips conveyor : pig-tail type
