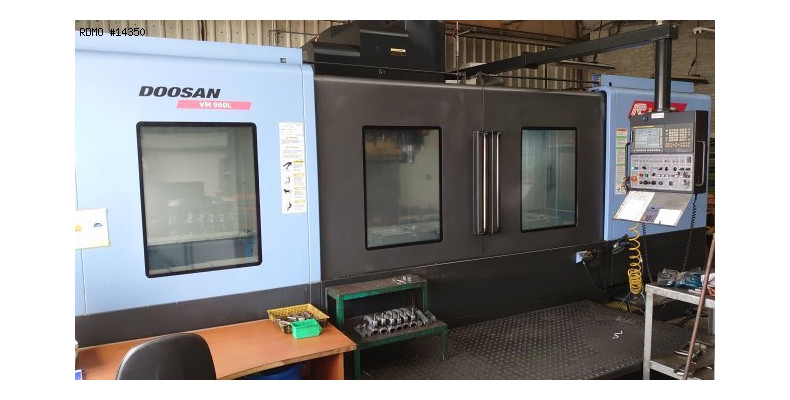

Doosan VM 960L 3 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: Doosan

Model: VM 960L

Year: 2010

Serial: VM96L0176

Ask Price

Caracteristics

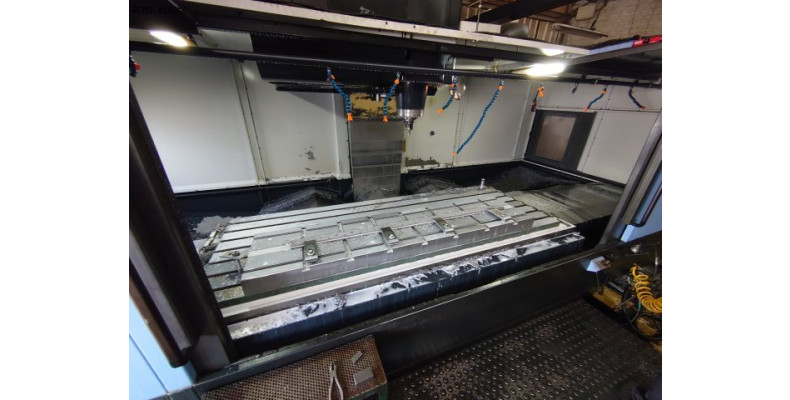

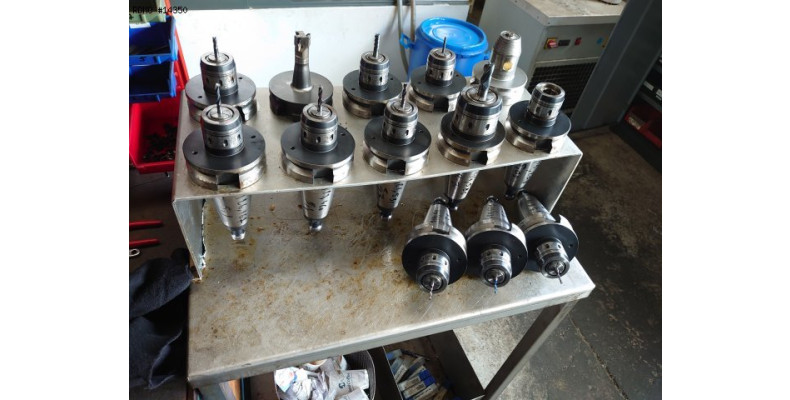

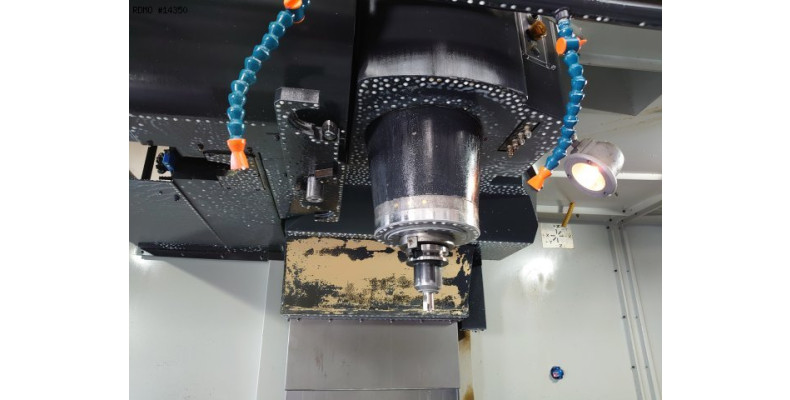

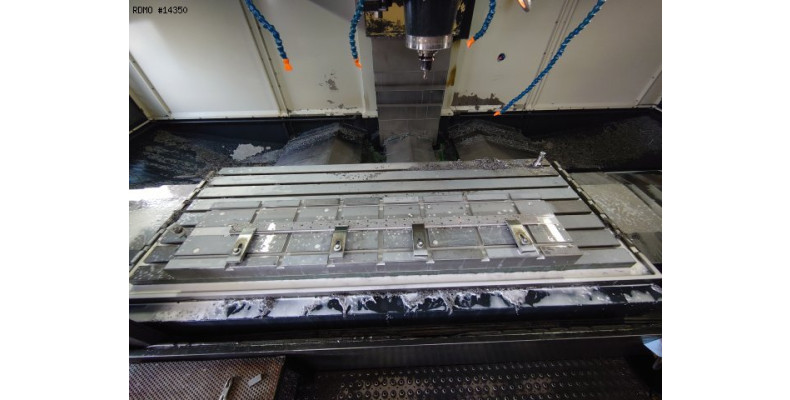

- Number of axes : 3 MILLING SPINDLE - Tool holder type : BT50 - Spindle power : 25 [kW] - Spindle speeds : 12.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 2400 x 960 x 800 [mm] - Rapid traverses rates (X/Y/Z) : 16 / 16 / 16 [m/min] - Cutting feed rates (X/Y/Z) : 8.000 [mm/min] TOOL CHANGER - Auto. Tool Changer type : Arm type - Tool magazine capacity : 40 - Tool exchange time : 3 [sec] TABLE - Table dimensions : 2600 x 950 [mm] - Maximum weight upon table : 4500 [kg] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 72.2 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 6.300 x 4.865 [mm] - Machine height : 3.545 [mm] - Machine weight : 21.000 [kg] MACHINE HOURS - Number of working hours : 14.485 [h]

Equipment

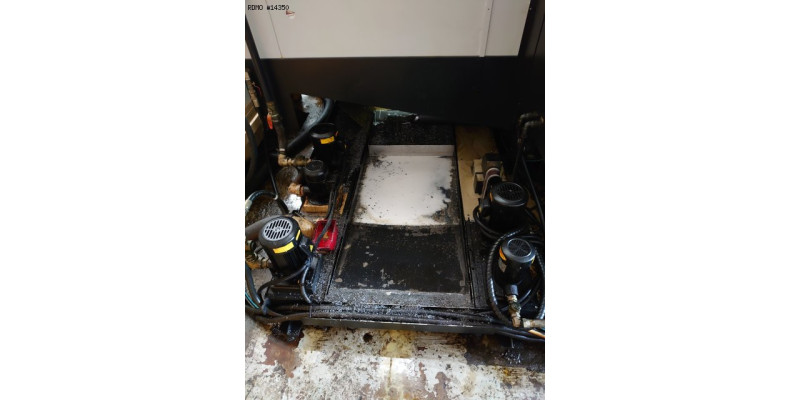

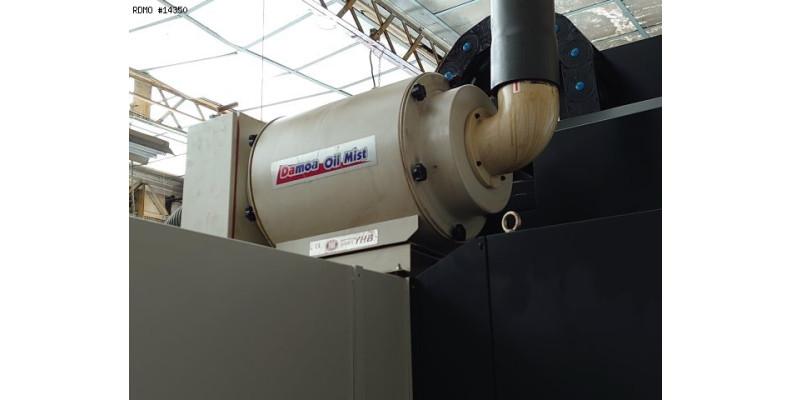

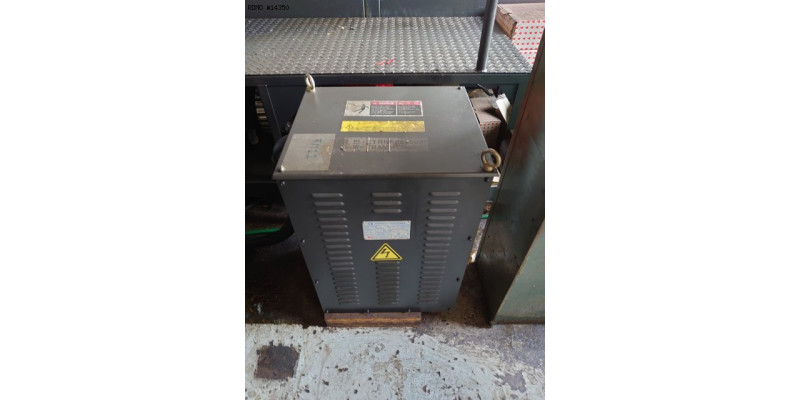

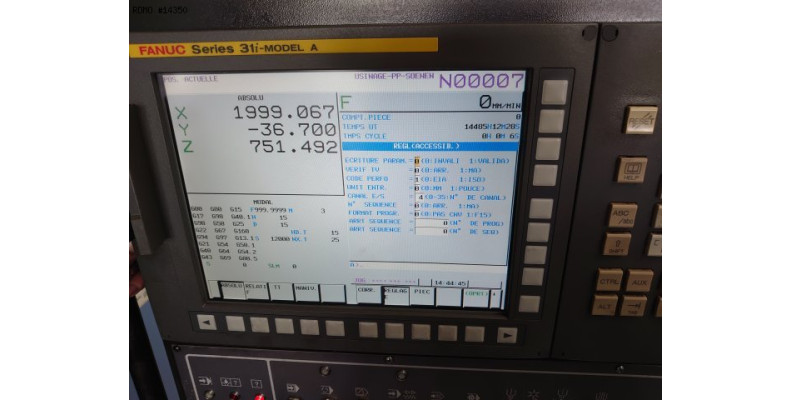

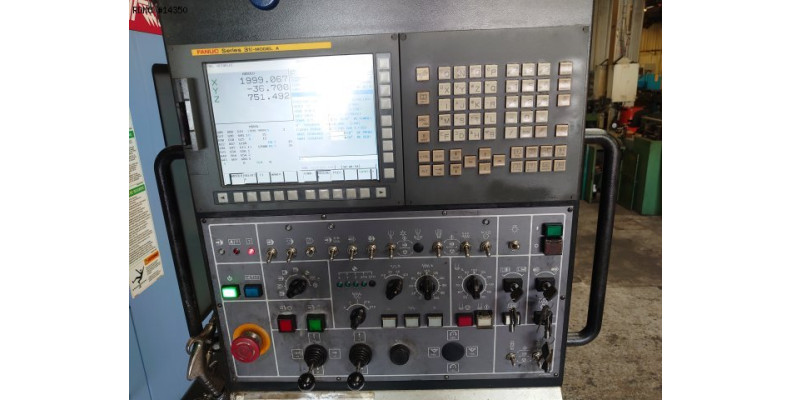

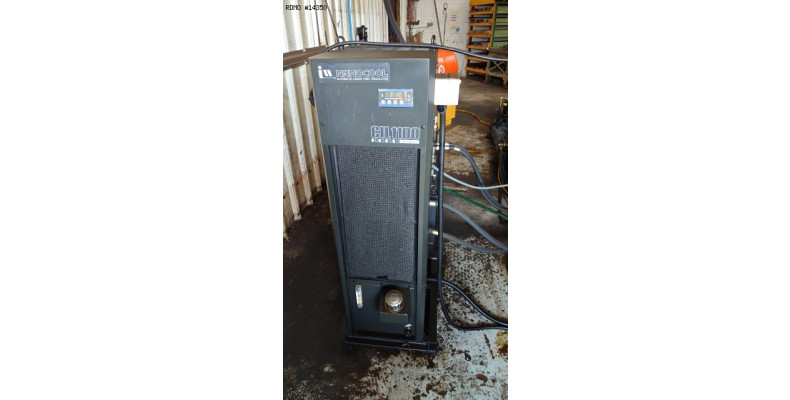

- CNC : Fanuc 31i Model A - Electronic handwheel - 3 colors status lamp - COOLANT TANK * With cooling unit for coolant - Coolant through spindle - Spindle cooling unit - Tool probe - Workpiece probe : predisposed - Oil mist extractor - Electric transformer : 400 / 200 [V]
