Brand: DOOSAN
Model: VC630 5AX
Year: 2011
Serial: MV0043-000064
Brand: DOOSAN
Model: VC630 5AX
Year: 2011
Serial: MV0043-000064

Caracteristics & Equipment

Caracteristics
- Number of axes : 5
MILLING SPINDLE
- Tool holder type : BT40
- Spindle power : 24/32 [kW]
- Spindle speeds : 12000 [rpm]
- Number of spindle hours : 9122 [h]
LINEAR AXES
- Travels on X/Y/Z axes : 650/765/520 [mm]
- Rapid traverses rates (X/Y/Z) : 40/40/36 [m/min]
- Cutting feed rates (X/Y/Z) : 18/18/18 [m/min]
A ROTARY AXIS
- Travel : 150 (+30 -120) [°] (+/-)
- Rapid traverse rate : 20 [rpm]
- Cutting feed rate : 7200 [mm/min]
B ROTARY AXIS
- Travel : 360 [°] (+/-)
- Indexing precision : 0.001 [°]
- Rapid traverse rate : 30 [rpm]
- Cutting feed rate : 7200 [mm/min]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 120
- Tool exchange time : 1 [sec]

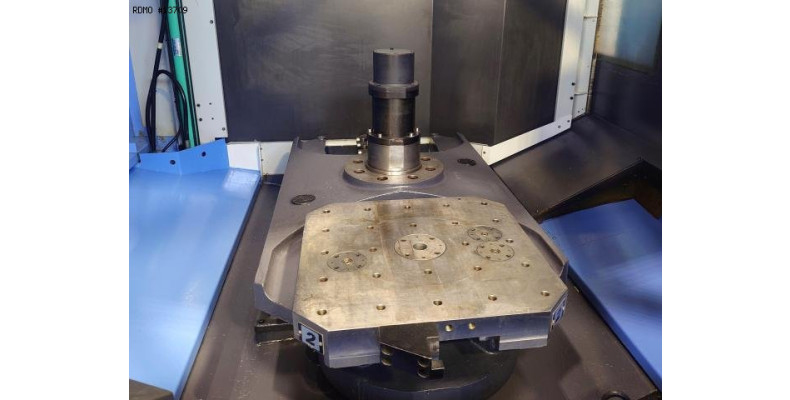

TABLE
- Table dimensions : 500 X 500 [mm]
- Maximum weight upon table : 500 [kg]
- Distance table / spindle nose (min./max.) : 160/680 [mm]
PALLET CHANGER
- Pallet size : 500 x 500 [mm]
- Pallets number : 2
- Pallet exchange time : 30 [sec]
POWER SUPPLY
- Total installed power : 54 [kW]
MACHINE HOURS
- Number of hours under power : 24226 [h]
- Number of working hours : 9122 [h]
Equipment
- CNC : Heidenhain TNC530
- Interface : RS232 / USB / PCMCIA
- Electronic handwheel
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 20 [bars]
- Coolant through spindle
- Chips conveyor
- Spindle cooling unit
- Tool probe : Renishaw

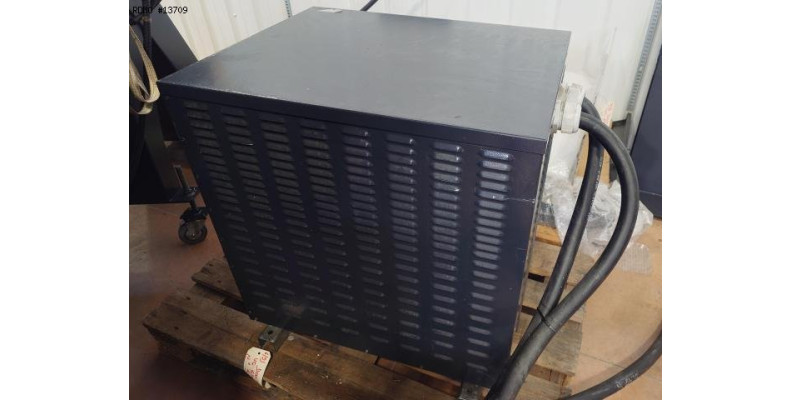

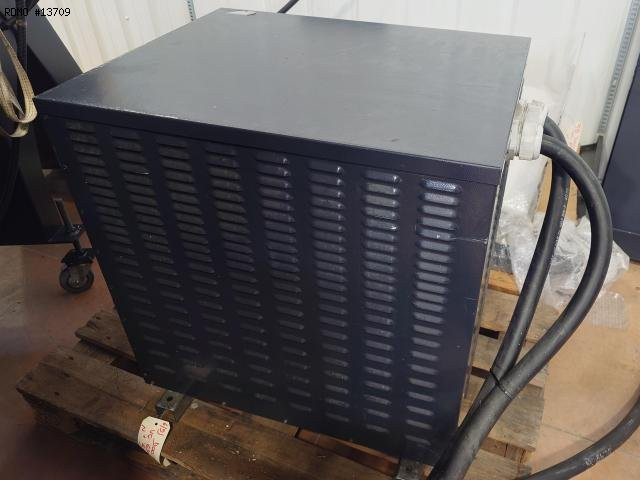

- Electric transformer
