Caracteristics

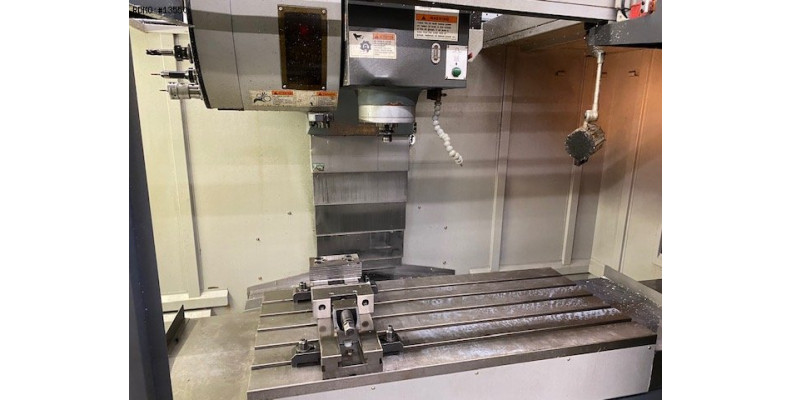

Number of axes : 3 Gearbox : 2 gammes - Tool holder type : BT40 - Spindle power : 7.5/11 [kW] - Spindle speeds : 8000 [rpm] - Number of spindle hours : 14500 [h] LINEAR AXES : Prismatiques - Travels on X/Y/Z axes : 1200/600/600 [mm] - Rapid traverses rates (X/Y/Z) : 24/24/20 [m/min] TOOL CHANGER : Oui - Auto. Tool Changer type : Loading arm - Tool magazine capacity : 24 - Table dimensions : 1300 x 600 [mm] - Maximum weight upon table : 1200 [kg] - Distance table / spindle nose (min./max.) : 125 / 725 [mm] - Machine weight : 7300 [kg]
Equipment

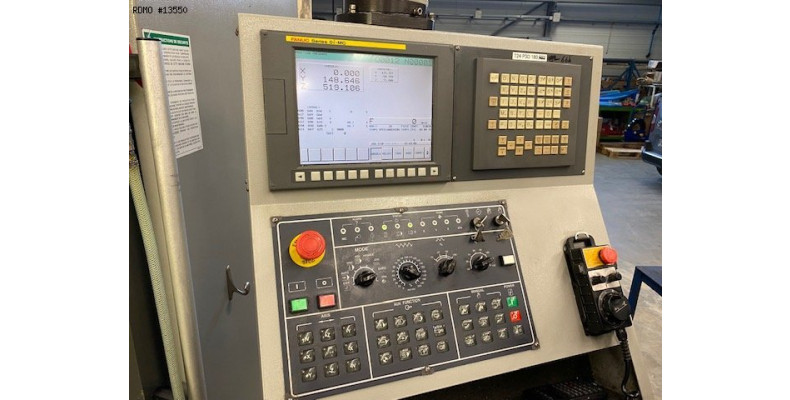

- CNC : Fanuc - Interface : Ethernet / RS232 / USB / PCMCIA - Electronic handwheel : oui - Rigid tapping : oui - 3 colors status lamp : oui - COOLANT TANK : 315 [l] * With cooling unit for coolant : oui * With washing gun : oui - Chips conveyor : Left - Spindle cooling unit : oui - Electric transformer : oui
