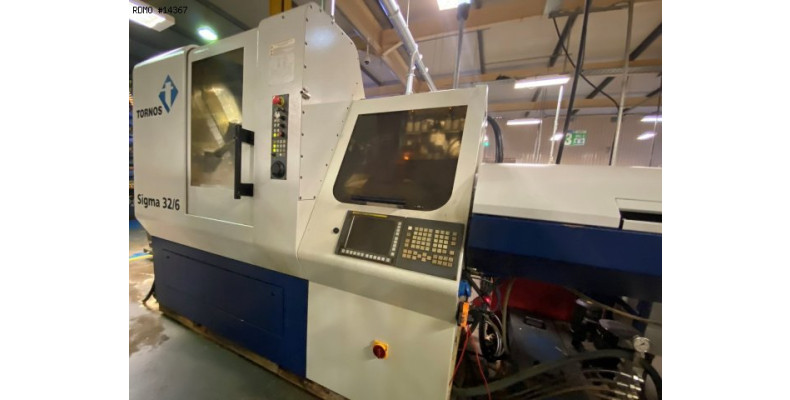

Brand: TORNOS
Model: Sigma 32/6
Year: 2014
Serial: 12582
Brand: TORNOS
Model: Sigma 32/6
Year: 2014
Serial: 12582

Caracteristics & Equipment

Caracteristics
- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 230 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 7.5 [kW]
- C axis indexing precision : 0.001 [°]

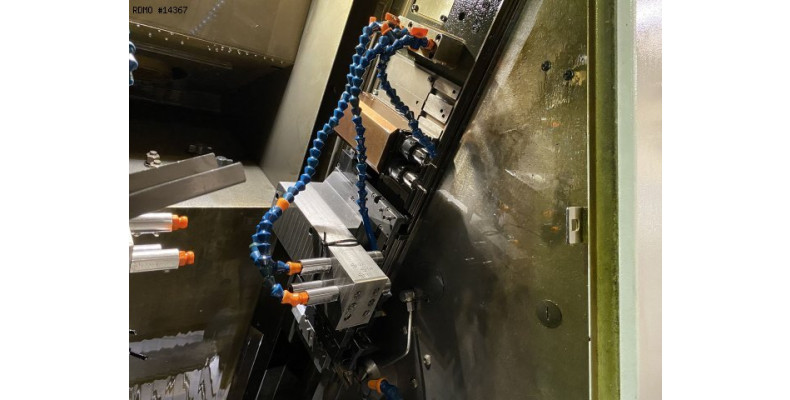

GUIDE BUSH HOLDER 1
- Number of positions : 14
- Number of motorized positions : 8
- Live tools speed : 6000 [rpm]

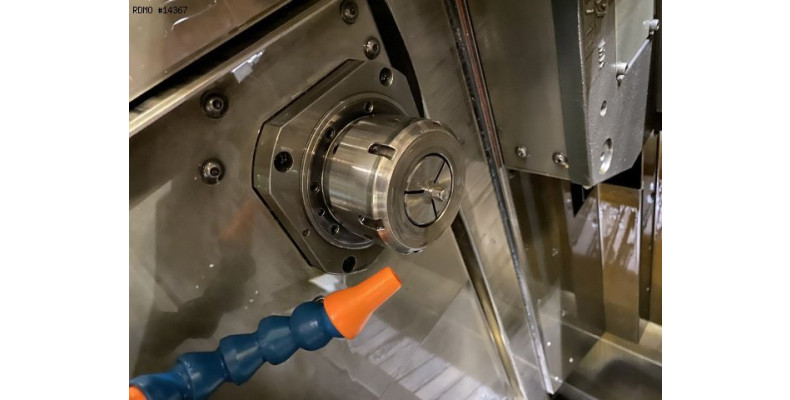

COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 7.5 [kW]
- C axis indexing precision : 0.001 [°]

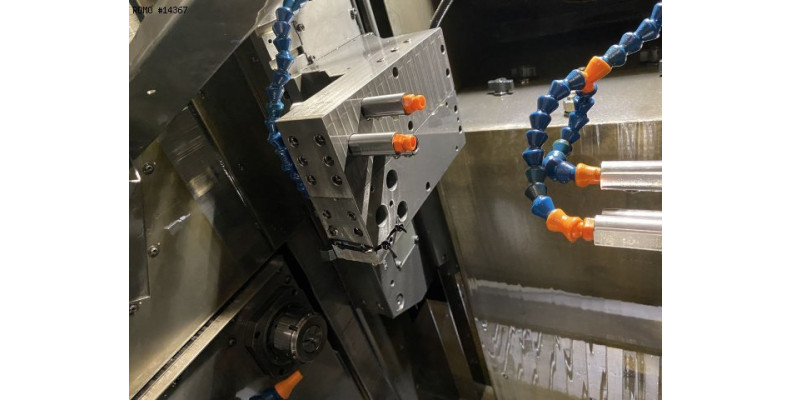

GUIDE BUSH HOLDER 2
- Number of positions : 8
- Number of motorized positions : 8
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 14 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2400 x 1380 [mm]
- Machine height : 2050 [mm]
- Machine weight : 3000 [kg]
MACHINE HOURS
- Number of working hours : 39554 [h]
Equipment
- CNC : Fanuc 31i Model B

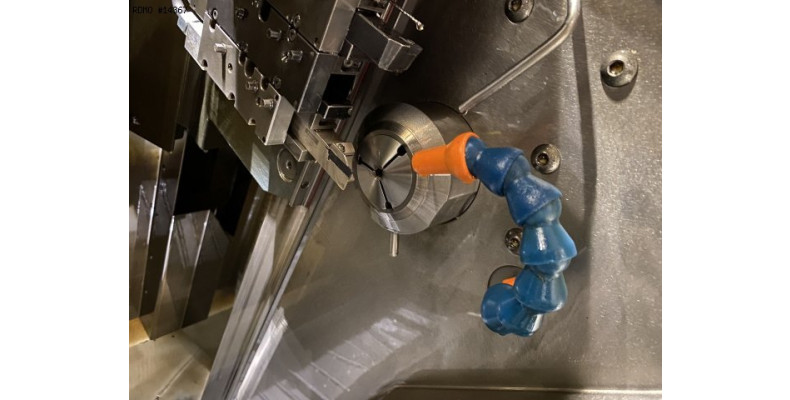

- Rotating guide bush

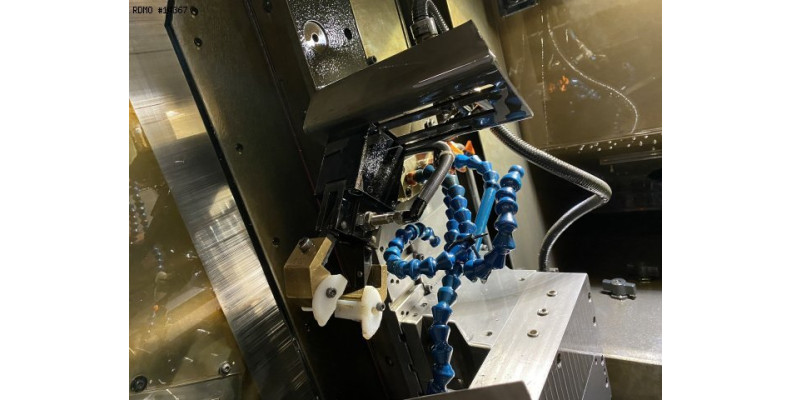

- Parts catcher

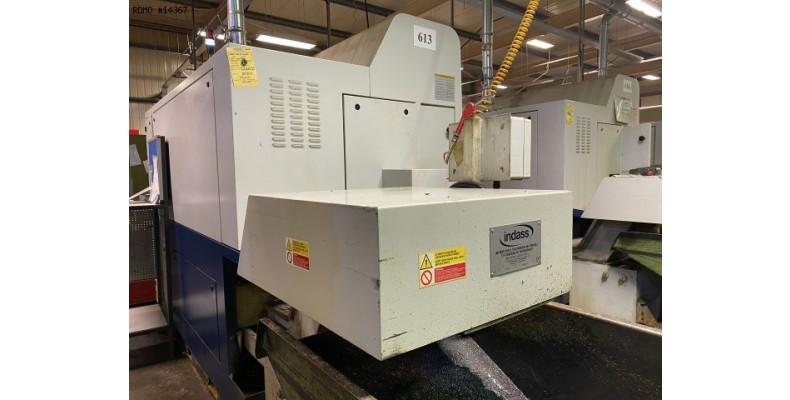

- Chips conveyor : INDASS

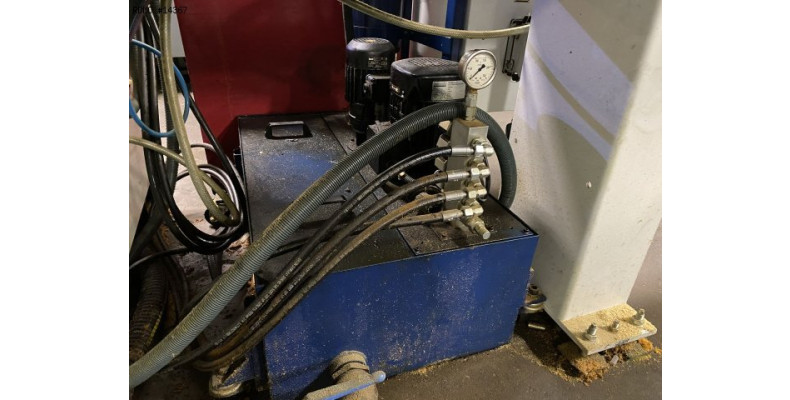

- Coolant tank

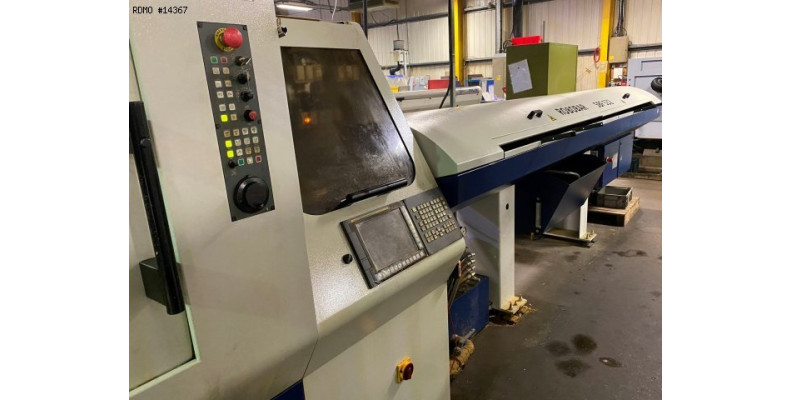

- Bar loader : TORNOS SBF 532
- Number of turning tool holders : divers
- Number of fixed tool holders : divers
