- Number of axes : 5
- Number of spindles : 2

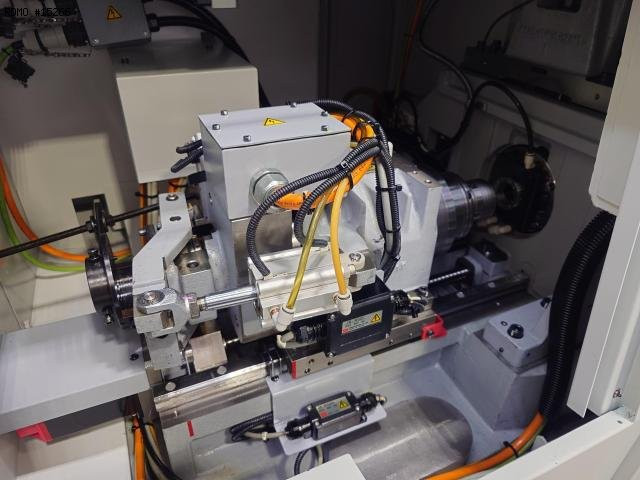

MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 170 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 2.2 [kW]
- C axis indexing precision : 1 [°]
- Number of guide bush holders : 1

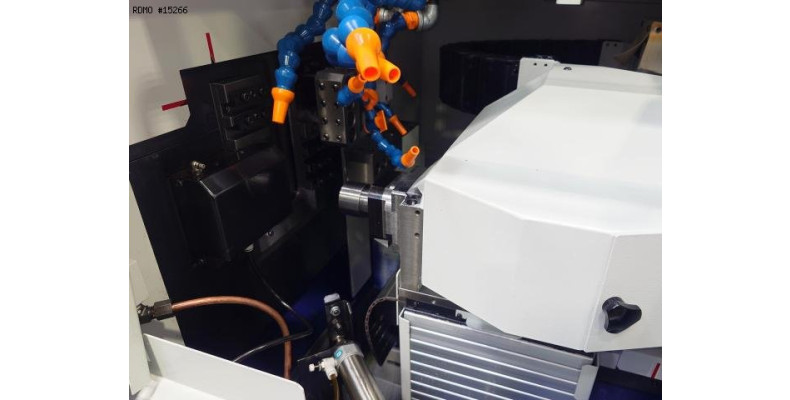

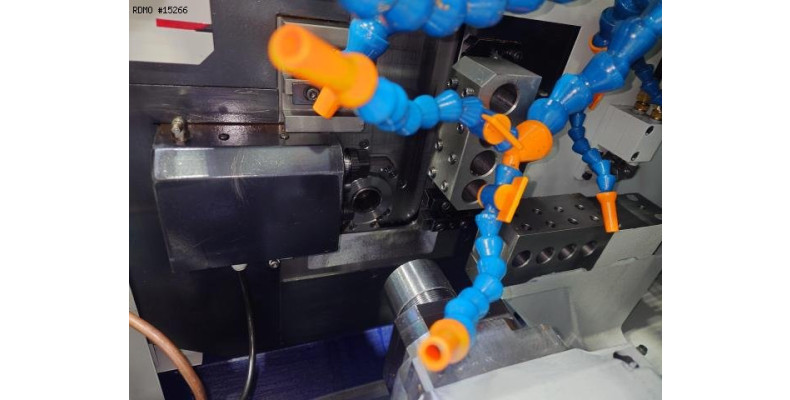

GUIDE BUSH HOLDER 1
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 5000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 7

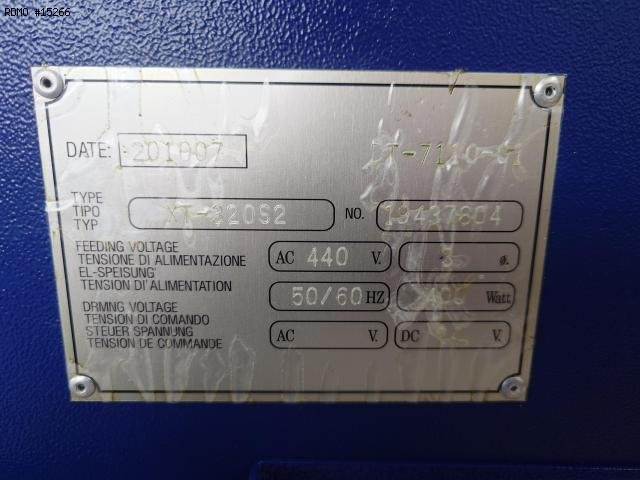

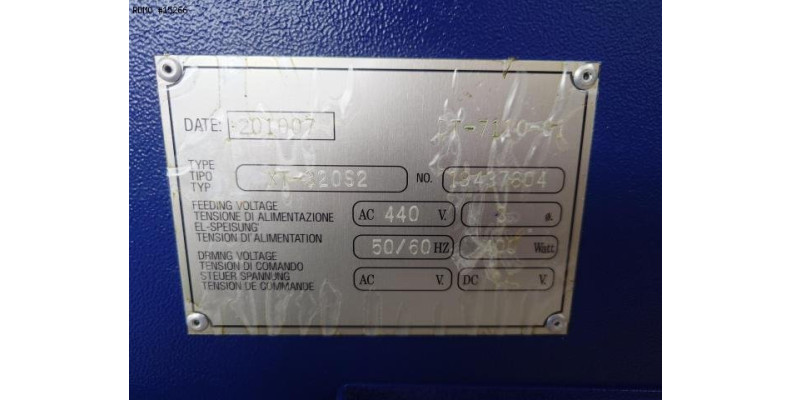

POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 11 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1640 x 1200 [mm]
- Machine height : 1725 [mm]
- Machine weight : 1950 [kg]
- Number of working hours : 10800 [h]
Equipment

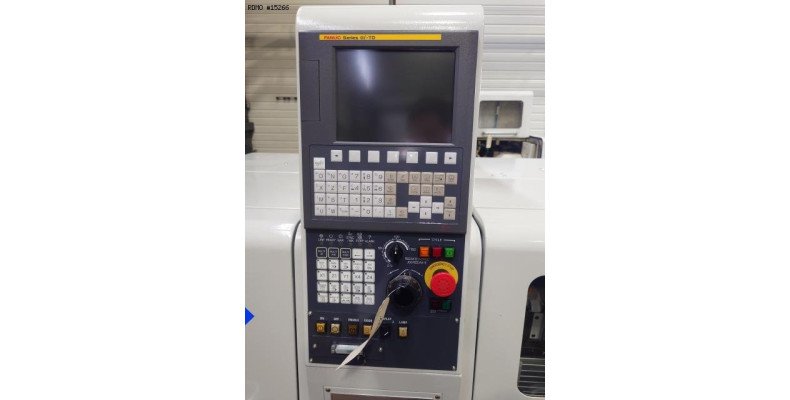

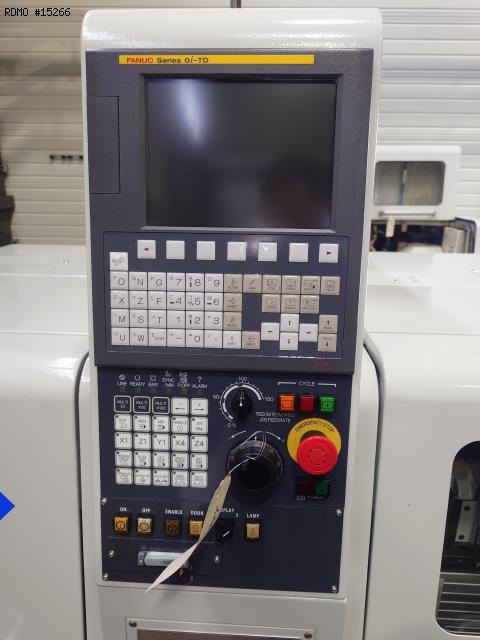

- CNC : Fanuc Oi TD
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor
- Coolant tank

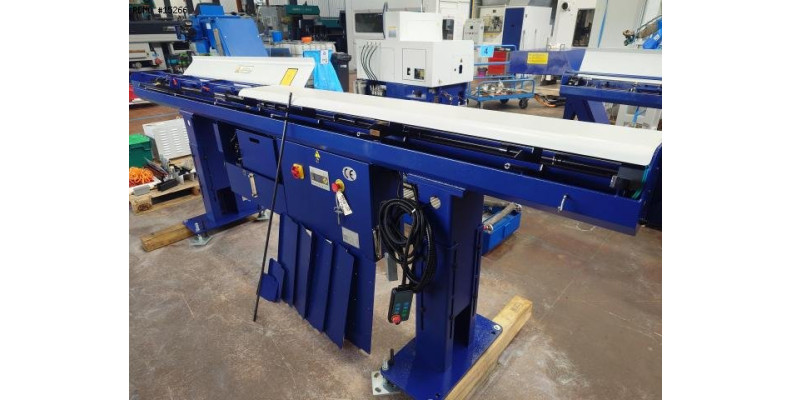

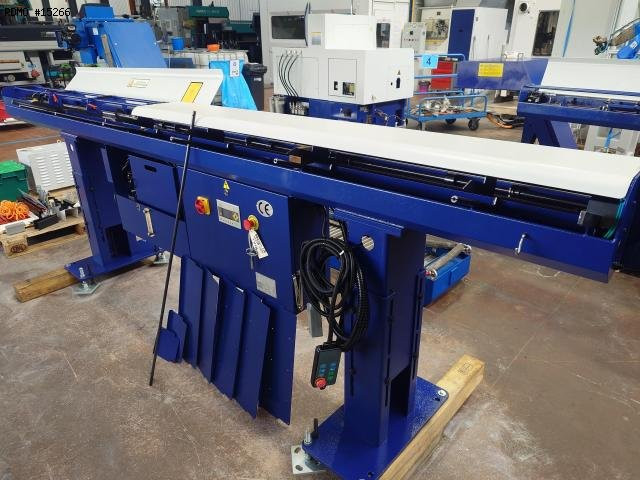

- Bar loader : Tornos SBF 320

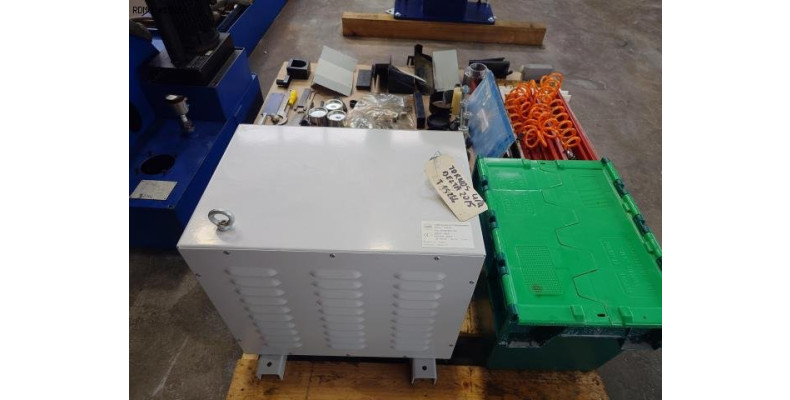

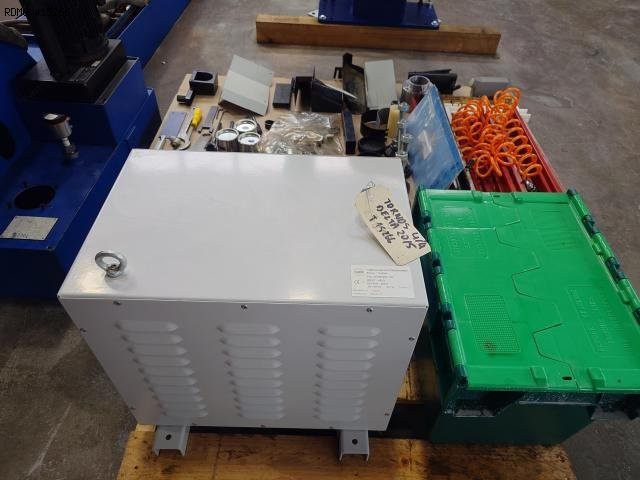

- Electric transformer
