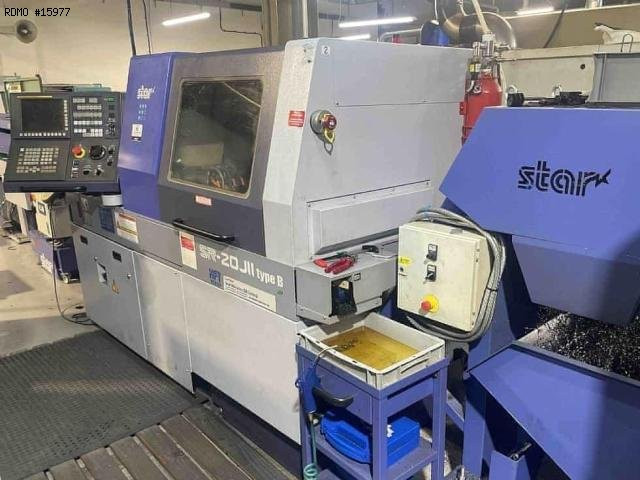

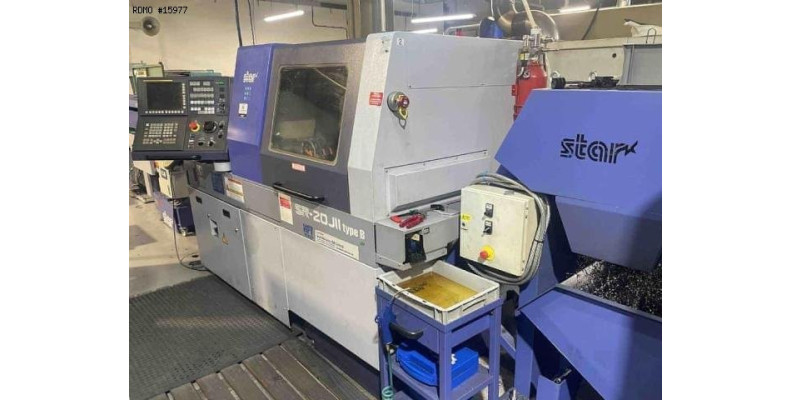

STAR SR-20JII Type B 8 axis

- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 205 [mm]
- Spindle speeds : 10.000 [rpm]
- Spindle power : 3,7 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10.000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
- Number of positions : 2
GUIDE BUSH HOLDER 1
- Number of positions : 11
- Number of motorized positions : 5
- Live tools speed : 8000 [rpm]
- Live tools power : 2.2 [kW]
END ATTACHMENT
- Number of positions : 5
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 8
- Live tools speed : 8000 [rpm]
- Live tools power : 1 [kW]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 4.8 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.250 x 1.200 [mm]
- Machine height : 1.700 [mm]
- Machine weight : 2.750 [kg]

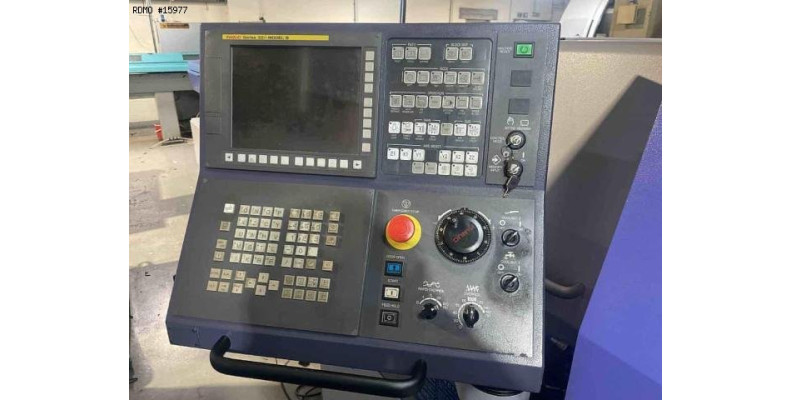

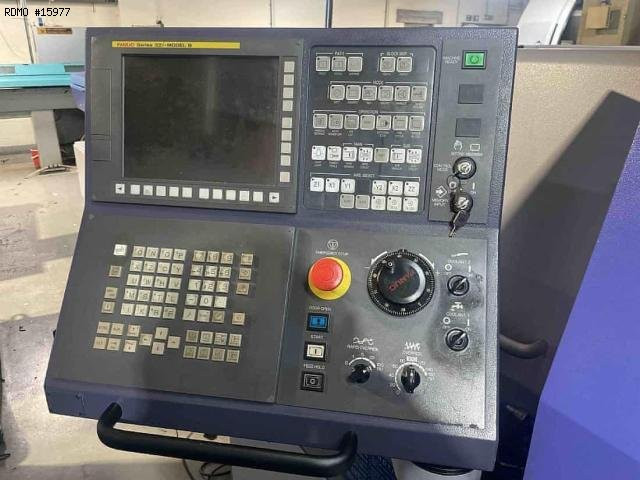

- CNC : Fanuc 32i-B
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor
- Coolant tank
* with high-pressure pump

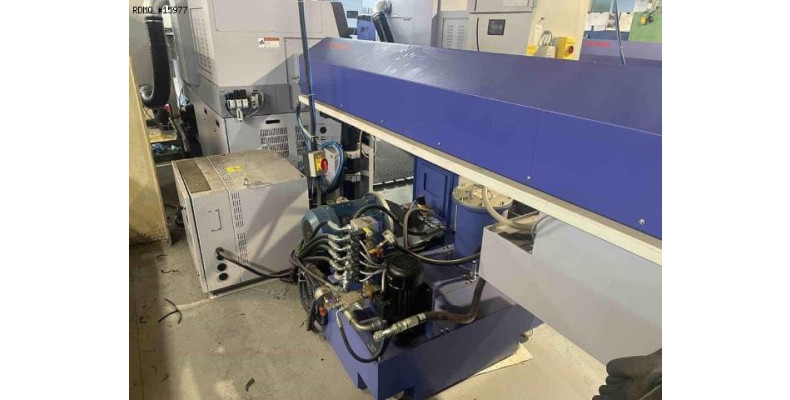

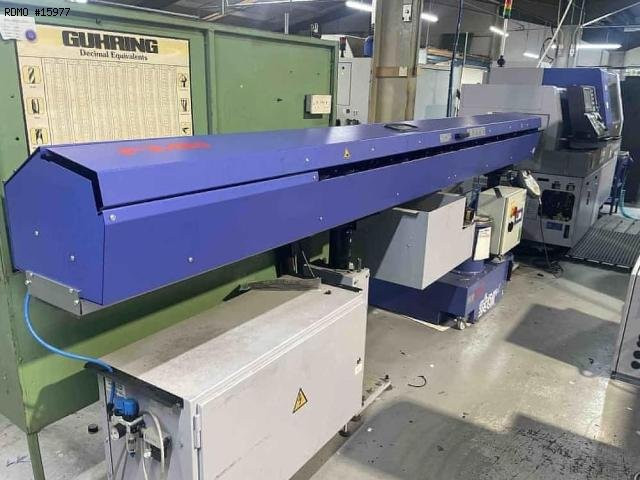

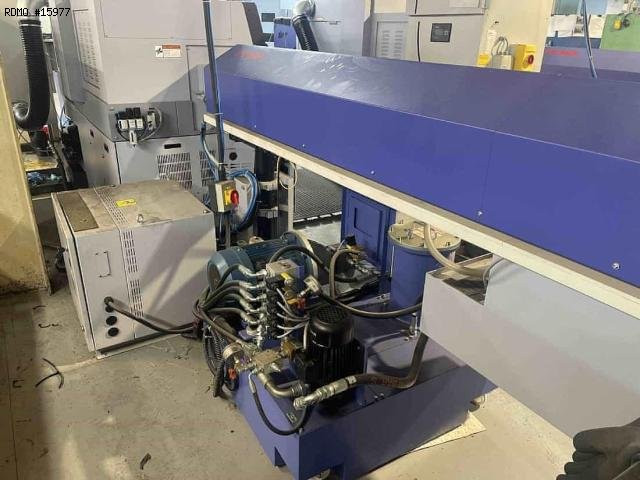

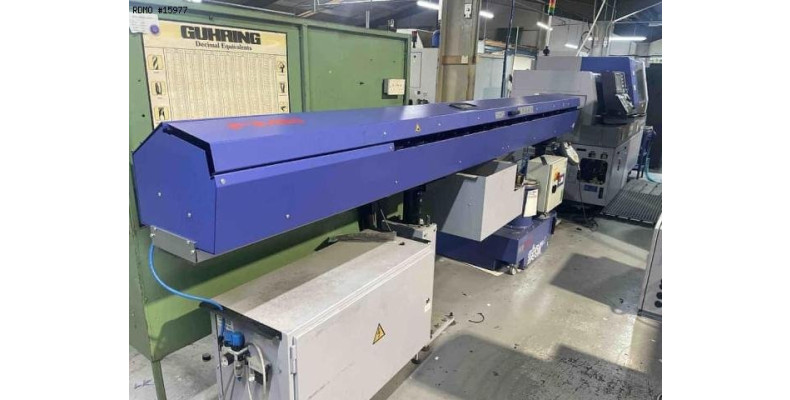

- Bar loader : FMB turbo 2-20 / 3200A

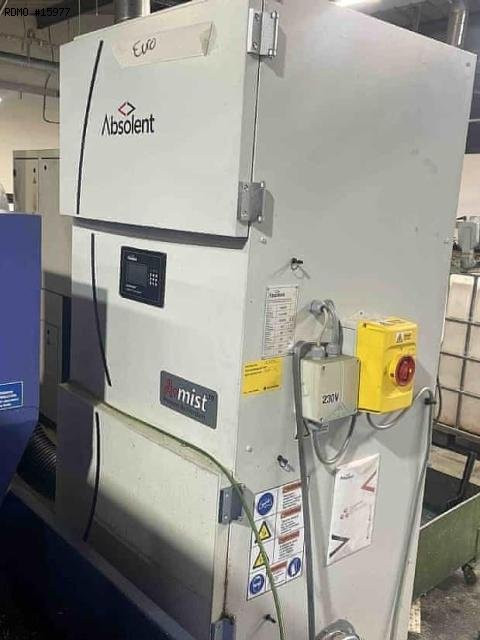

- Oil mist extractor : Absolent A.mist10S
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
