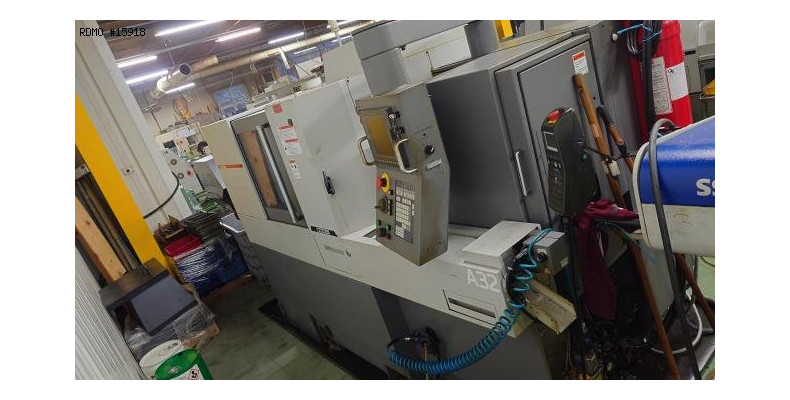

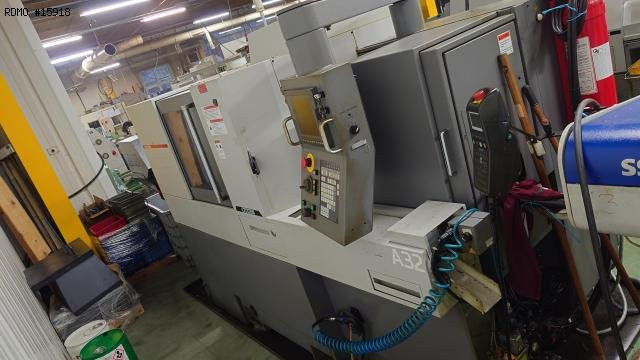

CITIZEN A32 VII PL 7 axis

- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Max. machining length : 320 [mm]
- Travel : 325 [mm]
- Spindle speeds : 200 - 8.000 [rpm]
- Spindle power : 5,5 / 7,5 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Z stroke : 290 [mm]
- X stroke : 370 [mm]
- Spindle speeds : 200 - 8.000 [rpm]
- Spindle power : 2,7 / 3,7 [kW]
- C axis indexing precision : 0,001 [°]

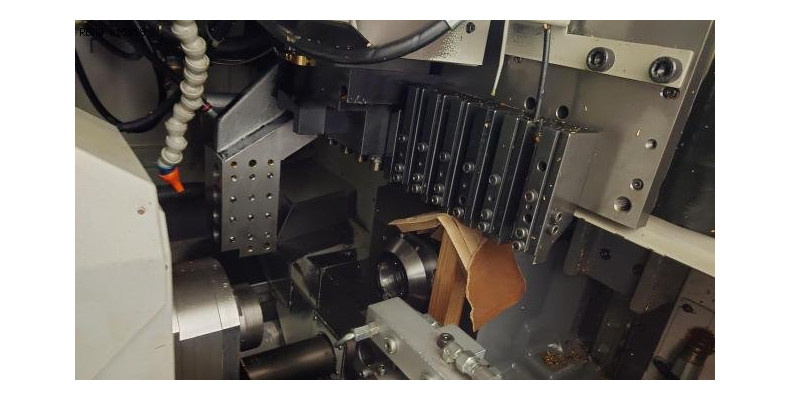

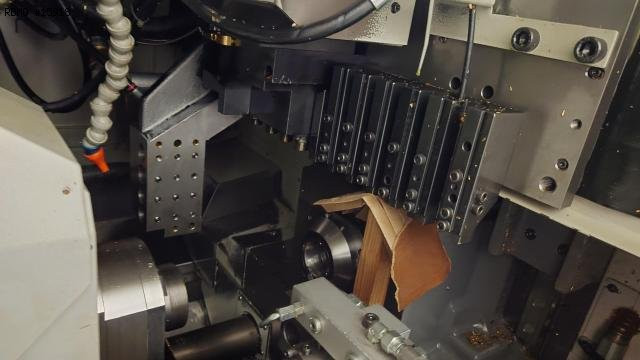

GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 4
- Live tools speed : 200 - 5.000 [rpm]
- X/Y stroke : 110 / 400 [mm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION

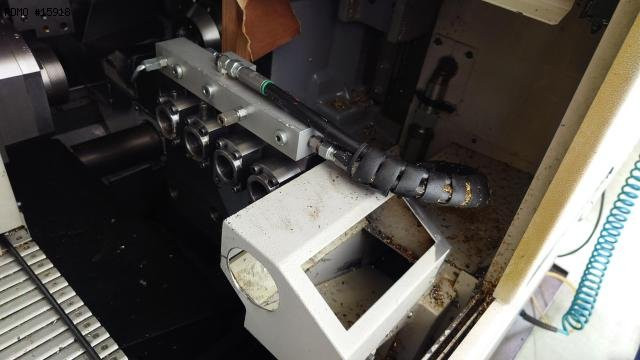

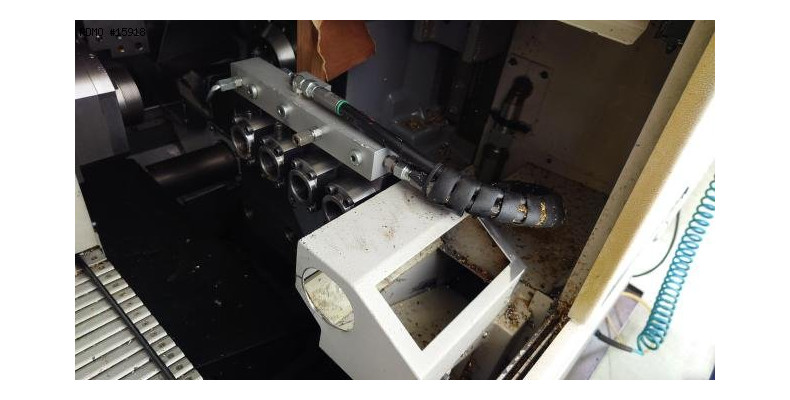

- Number of positions : 5
- Number of motorized positions : 4
- Live tools speed : 200 - 5.000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 15 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.520 x 1.300 [mm]
- Machine height : 2.229 [mm]
- Machine weight : 3.500 [kg]

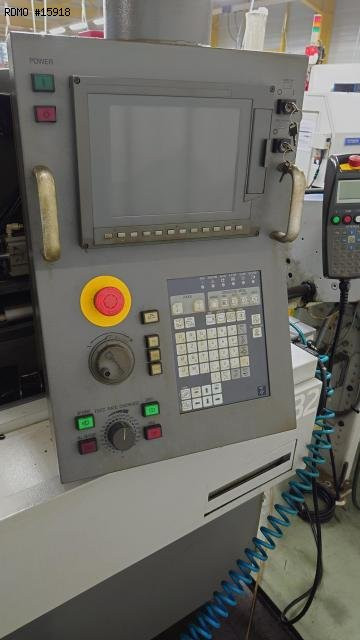

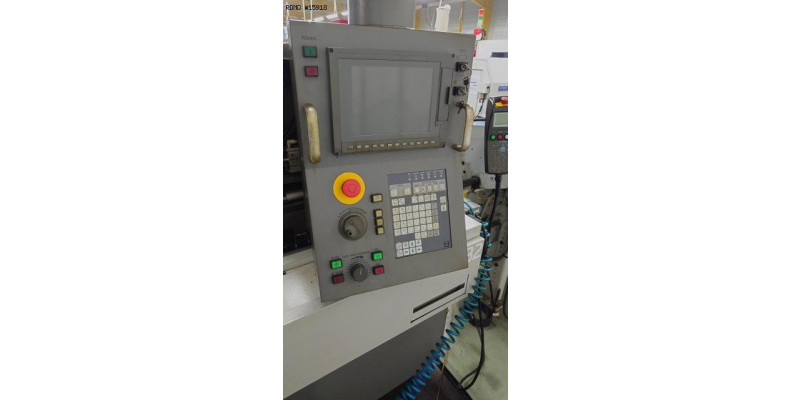

- CNC : Mitsubishi Meldas M70
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Chips conveyor : LNS
- Coolant tank
* with high-pressure pump : Coolblaster [bars]

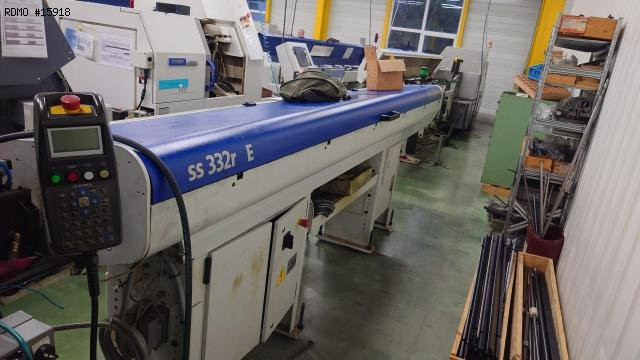

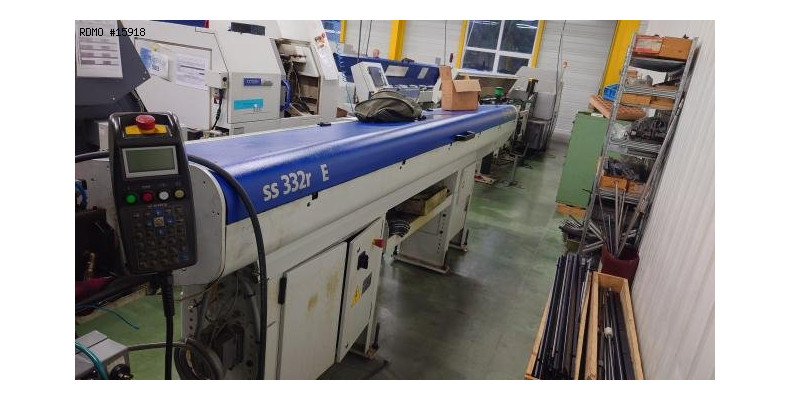

- Bar loader : IEMCA BOSS 332R
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
- Ejection of workpiece
