- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 13 [mm]
- Max. machining length : 180 [mm]
- Spindle speeds : 15000 [rpm]
- Spindle power : 4 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 13 [mm]
- Spindle speeds : 15000 [rpm]
- Spindle power : 4 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 6
- Number of motorized positions : 3
- Live tools speed : 6660 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 4
- Live tools speed : 10000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2.122 x 870 [mm]
- Machine height : 1.720 [mm]
- Machine weight : 2.300 [kg]
MACHINE HOURS
Equipment

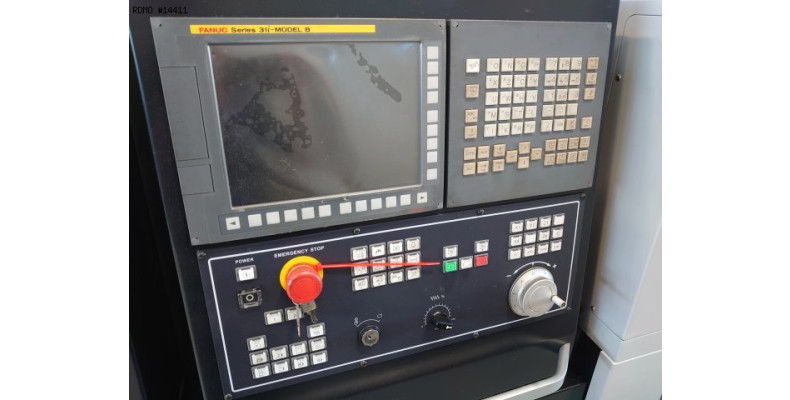

- CNC : Fanuc 31i-B
- 3 colors status lamp
- Rotating tool motor on : S11
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Coolant tank

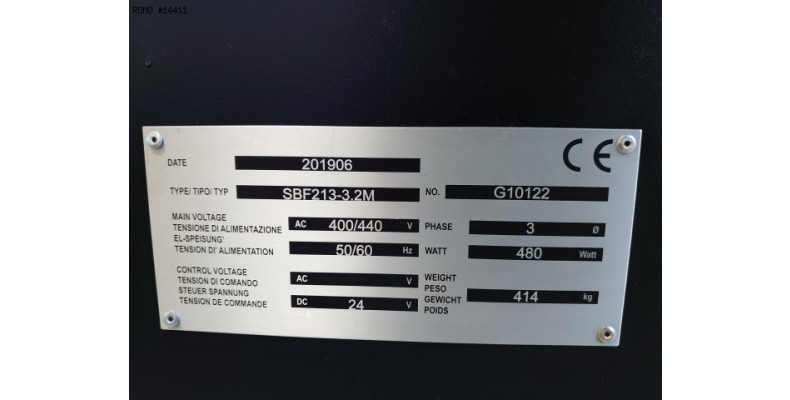

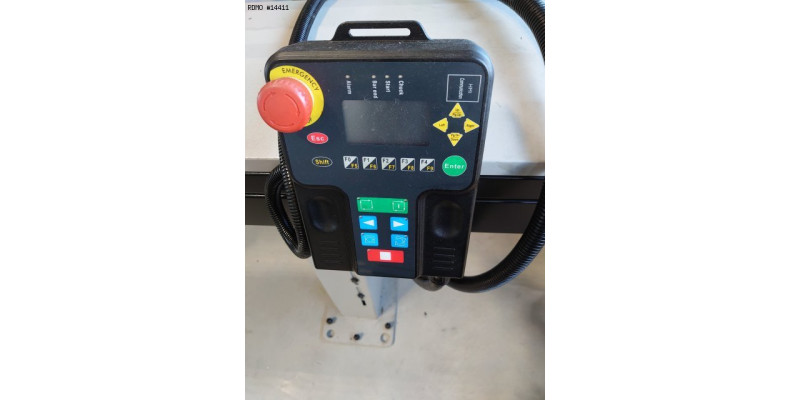

- Bar loader : SBF213-3.2M

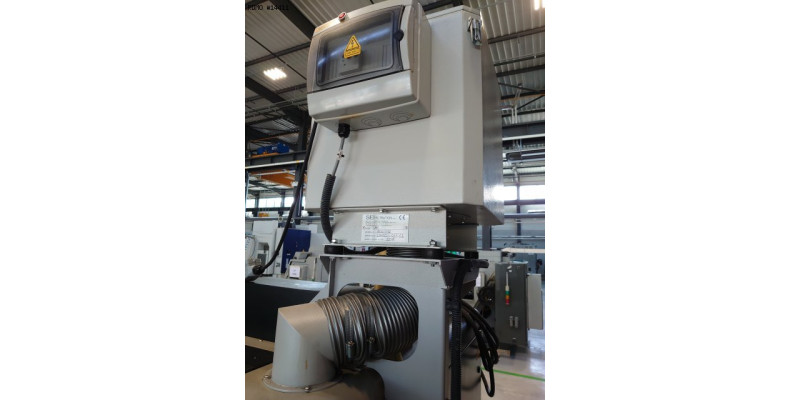

- Oil mist extractor
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
This machine tool is sold. We offer equivalent models at the bottom of page.
