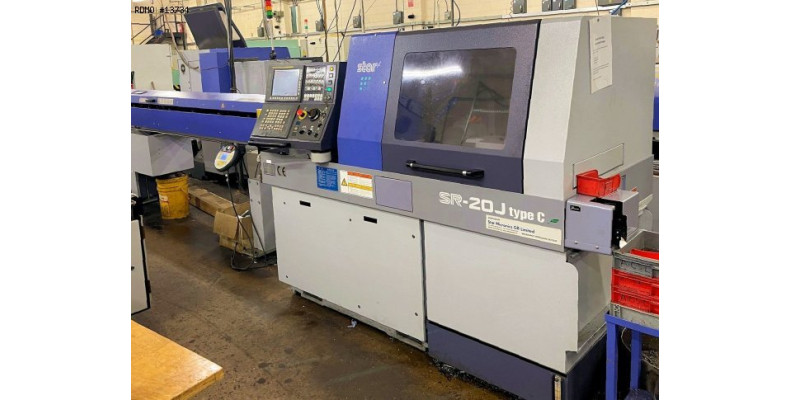

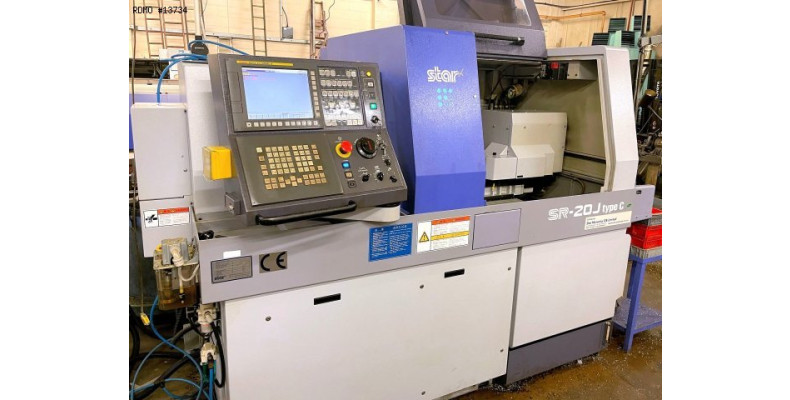

Star SR-20J typeC 7 axis
Brand: Star
Model: SR-20J typeC
Year: 2015
Serial: 3967 (200)

Caracteristics & Equipment

Caracteristics
- Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10.000 [rpm] - Spindle power : 3,7 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8.000 [rpm] - Spindle power : 1,2 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 6 END ATTACHMENT - Number of positions : 8 - Number of motorized positions : 5 - Live tools speed : 8.000 [rpm] SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 5,2 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.250 x 1.200 [mm] - Machine height : 1.700 [mm] - Machine weight : 2.200 [kg] MACHINE HOURS - Number of working hours : 8.254 [h]
Equipment

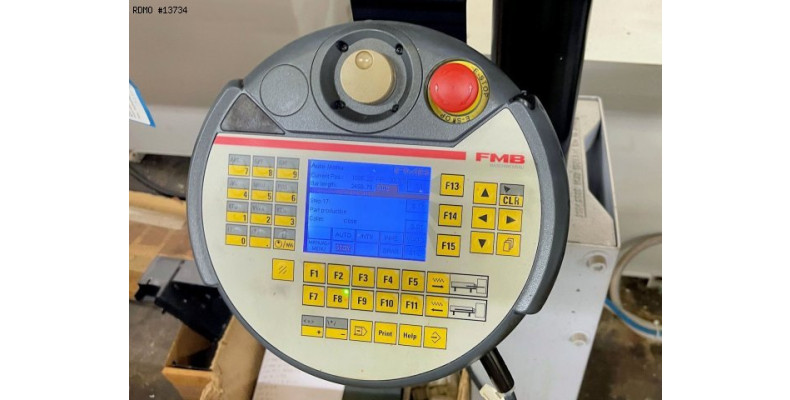

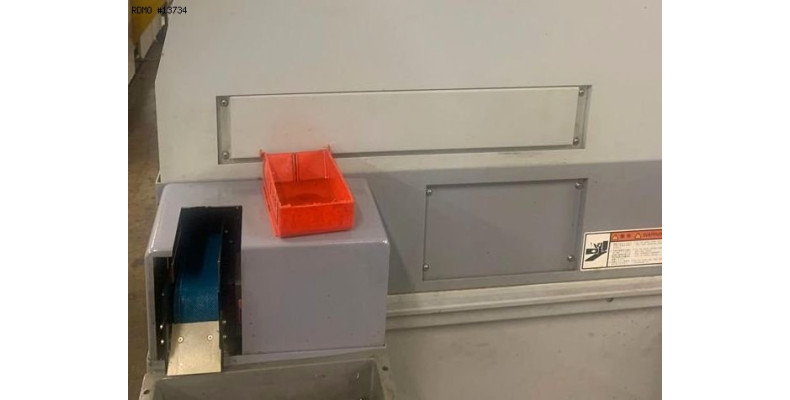

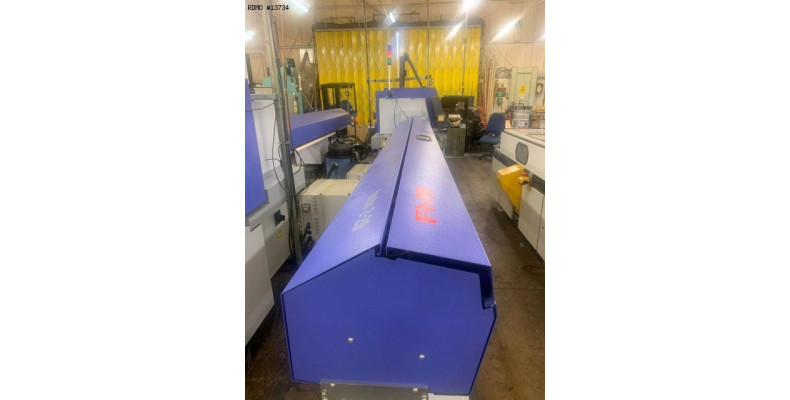

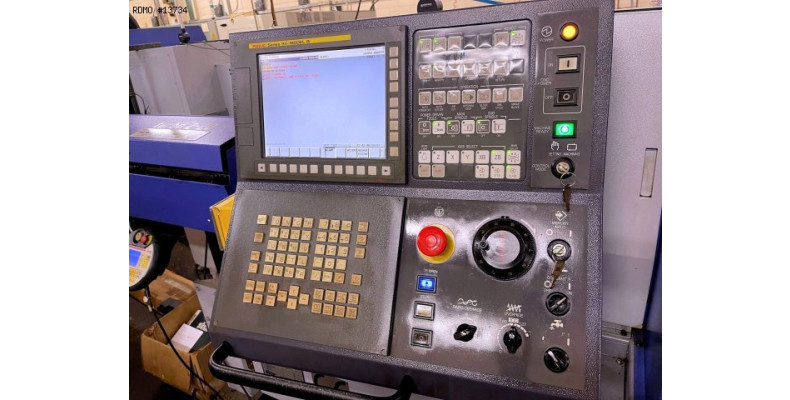

- CNC : Fanuc 31i-B - 3 colors status lamp - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank - Bar loader : FMB turbo 2-20 / 3200A (2016) - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer : 400 / 200 [V]
