GILDEMEISTER GLD 25 6 axis

- Number of axes : 6
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 25 [mm]
- Travel : 160 [mm]
- Spindle speeds : 8000 [rpm]
- C axis indexing precision : 0.0001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 25 [mm]
- Number of turrets : 1

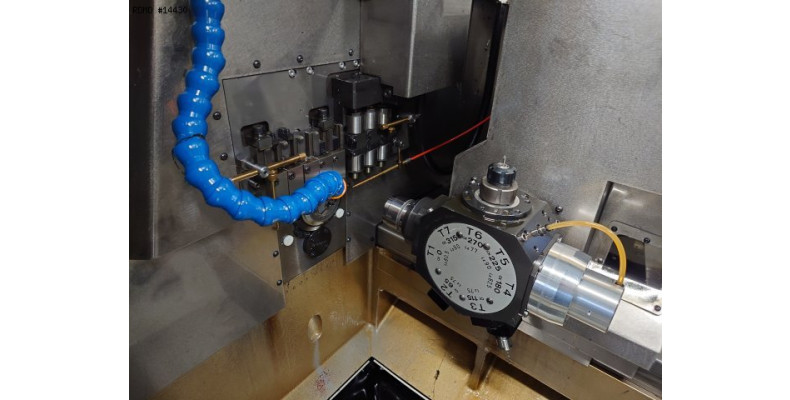

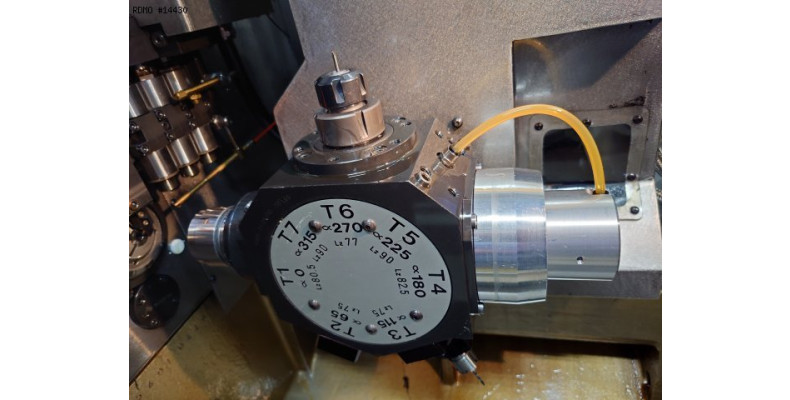

UPPER TURRET
- Number of positions : 7
- Number of motorized positions : 7
- X stroke : 100 [mm]
- Z stroke : 270 [mm]
- Live tools speed : 6000 [rpm]
GUIDE BUSH HOLDER 1
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 6000 [rpm]
- X/Y stroke : 220/30 [mm]
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 400 [V]
MACHINE HOURS
- Number of hours under power : 42595 [h]
- Number of working hours : 13446 [h]
- Number of spindle hours : 6412 [h]

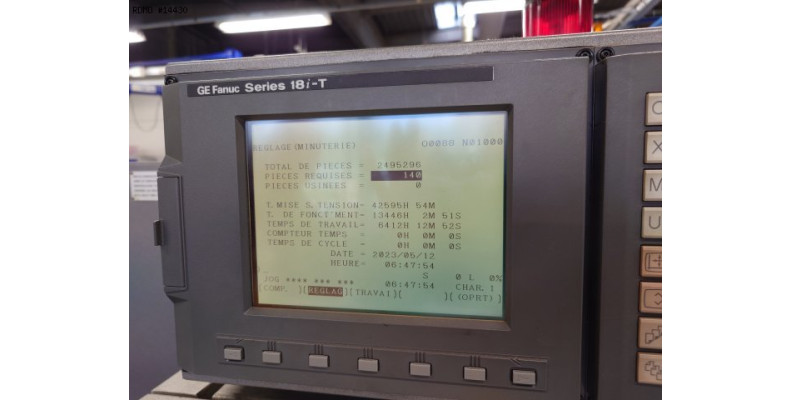

- CNC : Fanuc 18 iT
- Interface : RS232 / PCMCIA
- Rotating guide bush
- Parts catcher
- Coolant tank

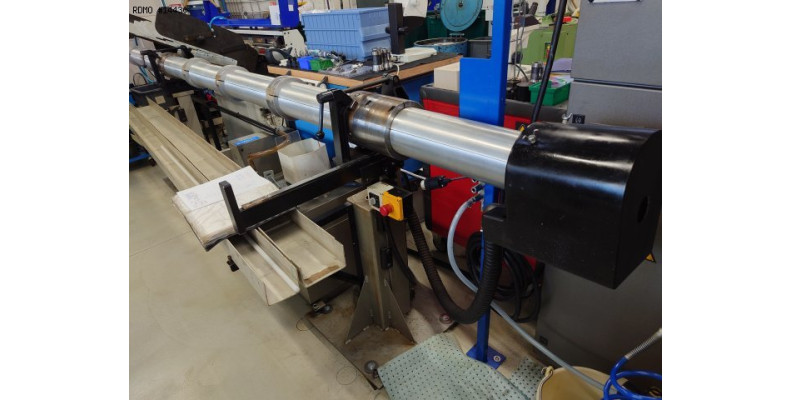

- Hydraulic bar-push brand/type : LNS 6.26 HS4.4
- Number of turning tool holders : 5
- Collets collection for chuck
- Collets collection for guide bush
