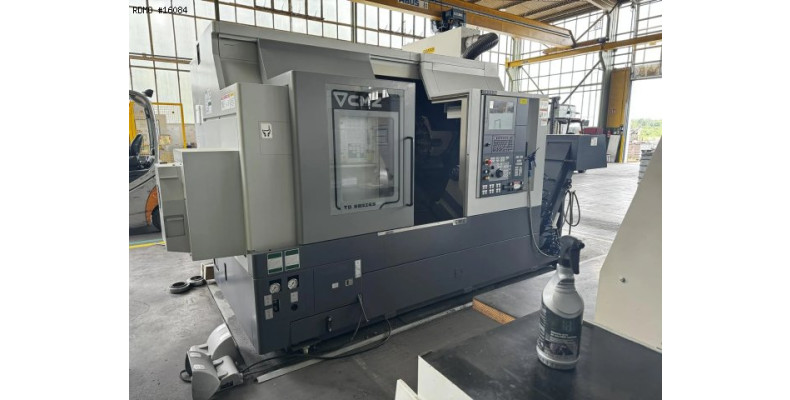

CMZ TD35Y 4 axis

Turning CNC lathe

16084

PDF datasheet to download:

Brand: CMZ

Model: TD35Y

Year: 2019

Serial: 267

16084

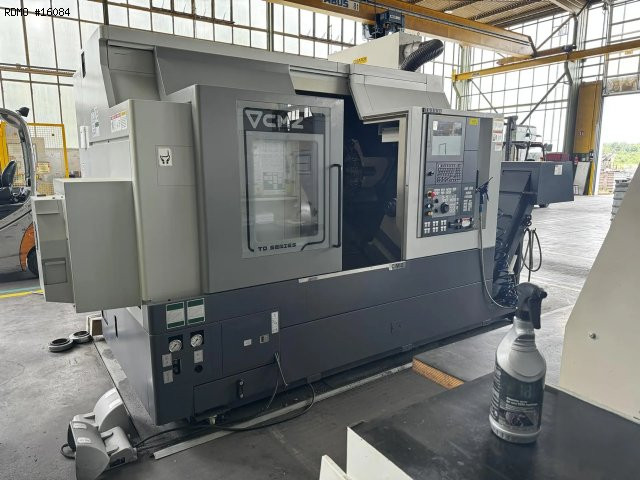

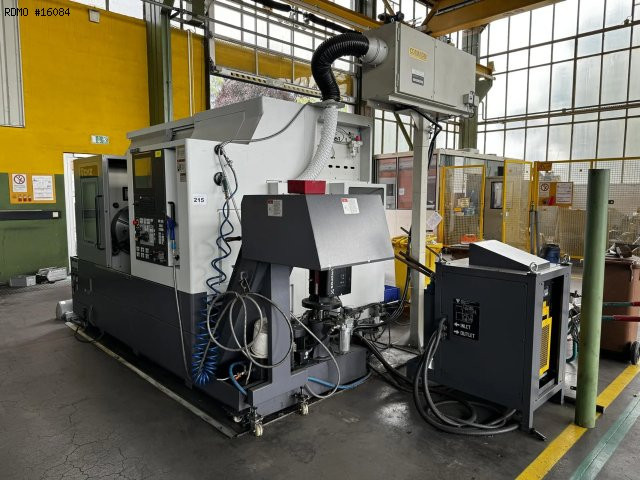

CMZ TD35Y 4 axis

Turning CNC lathe

PDF datasheet to download:

Brand: CMZ

Model: TD35Y

Year: 2019

Serial: 267

Ask Price

Caracteristics

- Number of axes : 4
MAIN SPINDLE
- Spindle nose : A2-11"
- Spindle power : 48 [kW]
- Spindle speeds : 3000 [rpm]
- Max. bar diameter : 95 [mm]
- Max. turning diameter : 550 [mm]
- Max. diameter on bench : 950 [mm]
- C axis indexing precision : 0.001 [°]

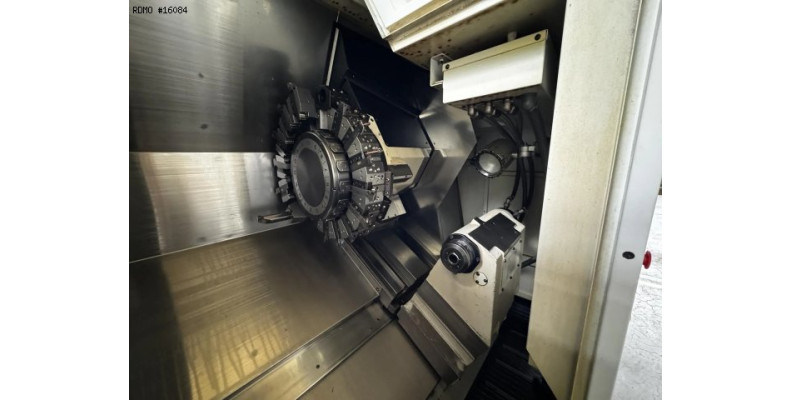

TURRET
- Number of positions : 16
- Number of motorized positions : 16
- X/Z stroke : 380/800 [mm]
- Y stroke : +80/-60 [mm]
- Live tools speed : 12000 [rpm]
- Live tools power : 13.7 [kW]

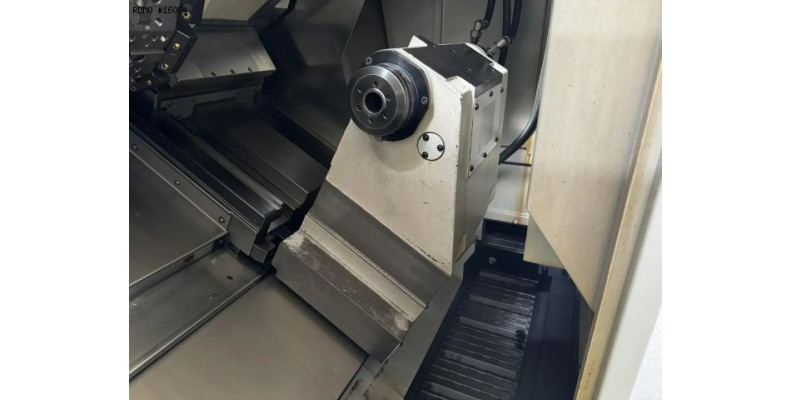

TAILSTOCK
- Tailstock type : Automatique
- Type of cone : CM4
- Tailstock stroke : 800 [mm]
- Distance between centers : 850 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 65 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2803/1989 [mm]
- Machine height : 1941 [mm]
- Machine weight : 8200 [kg]
MACHINE HOURS
- Number of working hours : 7691 [h]

Equipment

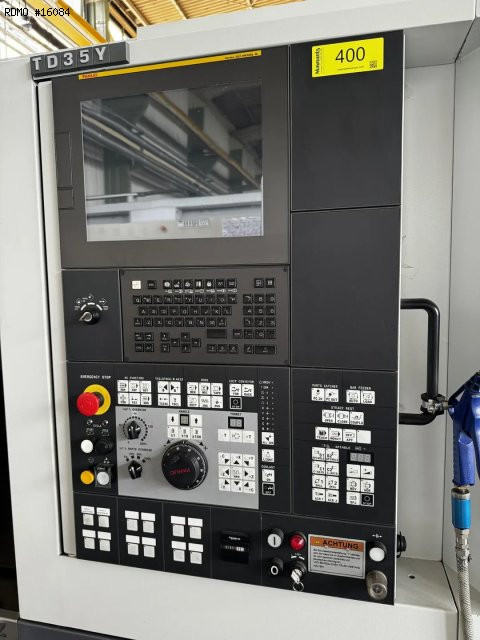

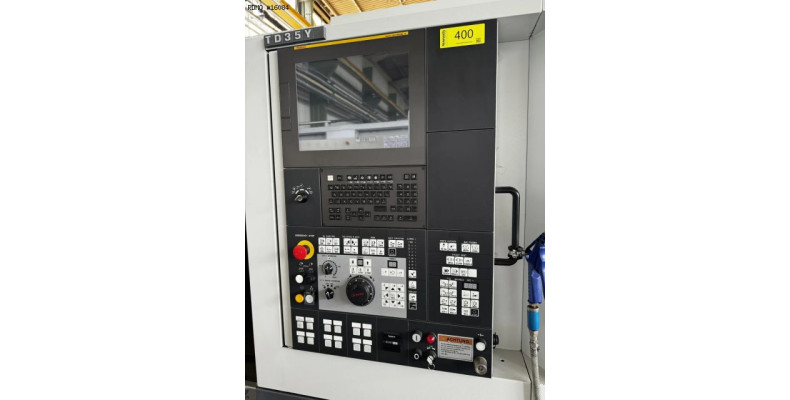

- CNC : Fanuc 32i-MODEL B
- Interface : Ethernet / RS232 / USB / PCMCIA
- Interactive programming

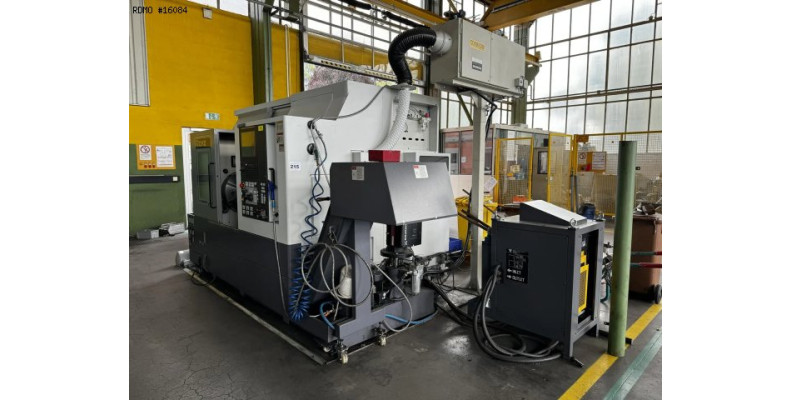

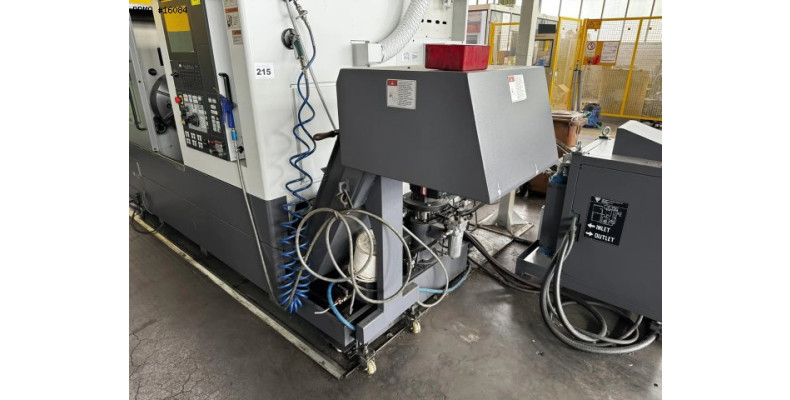

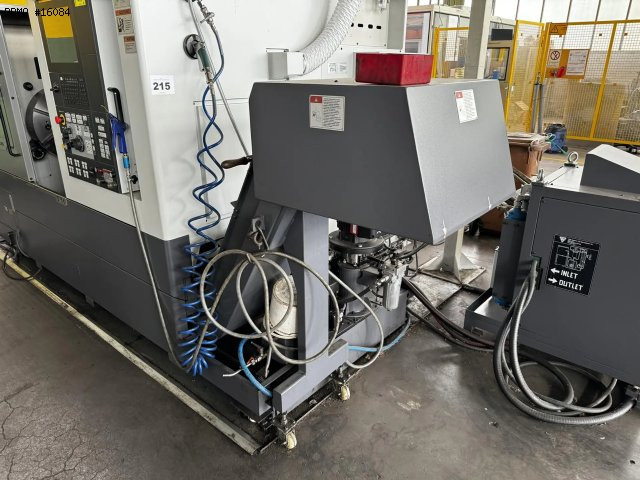

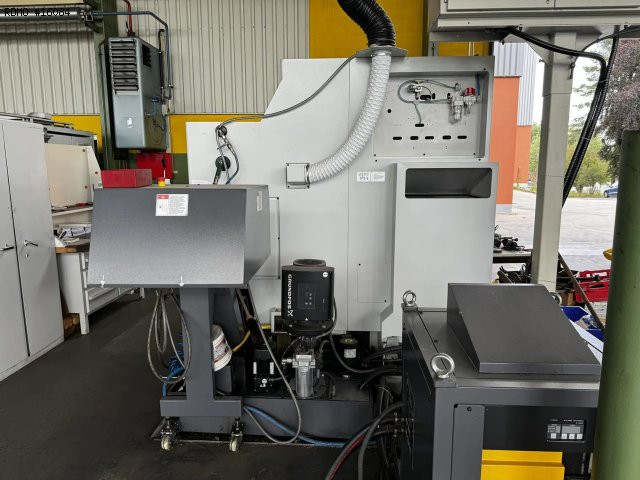

- Coolant tank

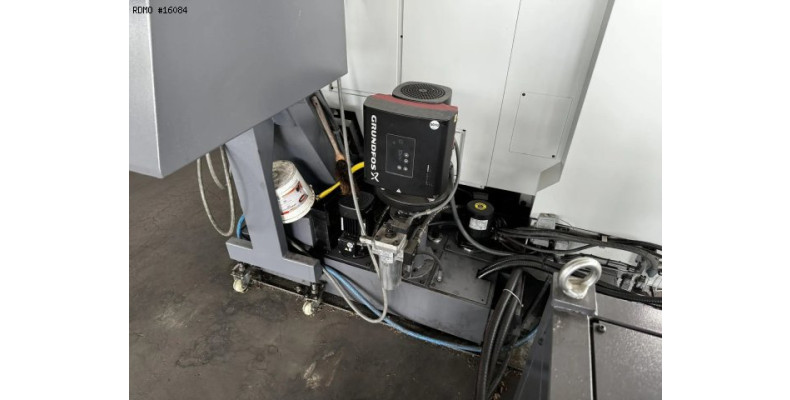

* with high-pressure pump
* with cooling unit for coolant

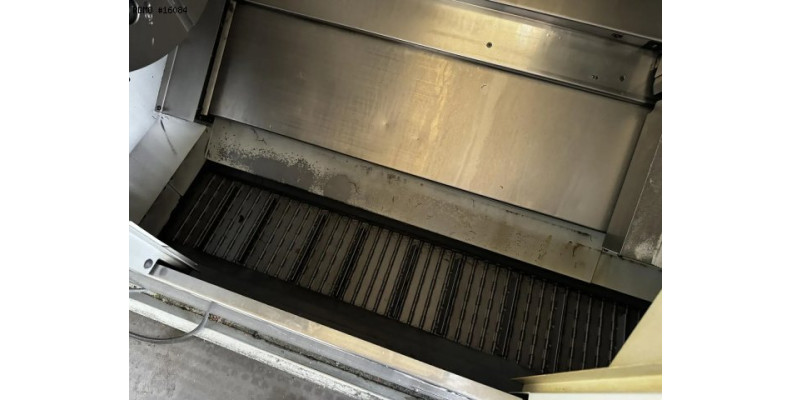

- Chips conveyor
- Oil mist extractor : ISI typ COB-13EC
- Tool probe

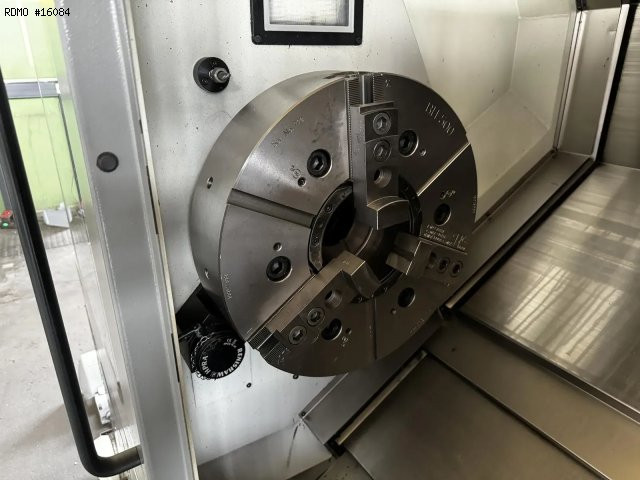

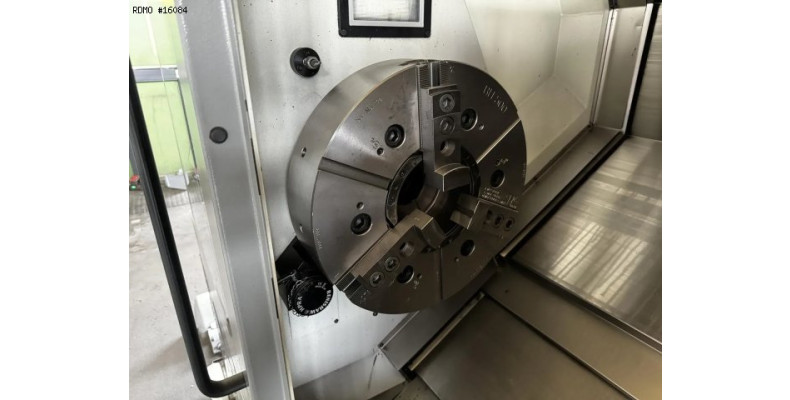

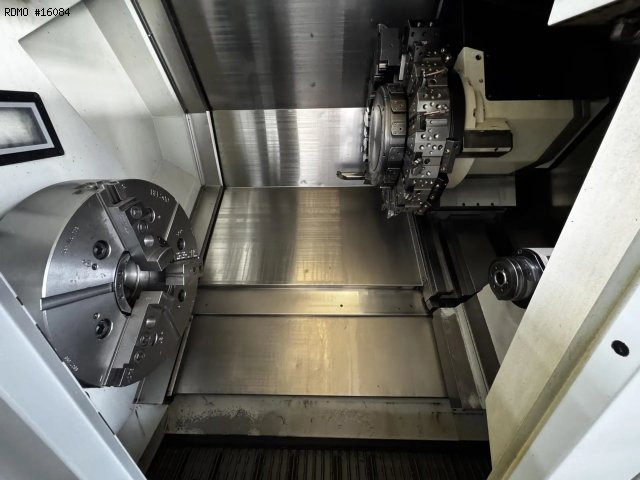

- Chuck 3 jaws : 500 [mm]
