Caracteristics

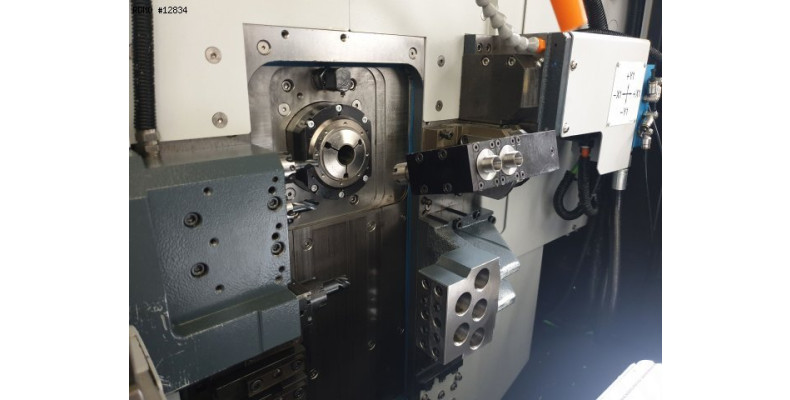

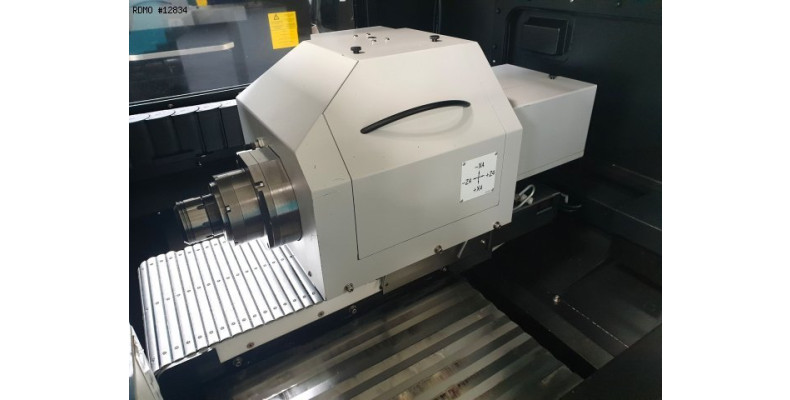

- Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 32 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 8.2 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 32 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 8.2 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 9 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] GUIDE BUSH HOLDER 2 - Number of positions : 8 - Number of motorized positions : 3 - Live tools speed : 6000 [rpm] END ATTACHMENT - Number of positions : 5 SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 2710 X1270 [mm] - Machine height : 1990 [mm] - Machine weight : 3550 [kg] MACHINE HOURS - Number of working hours : 6515 [h]
Equipment

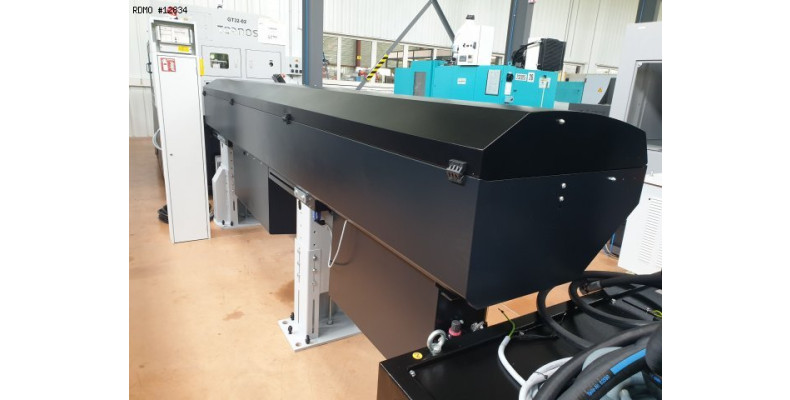

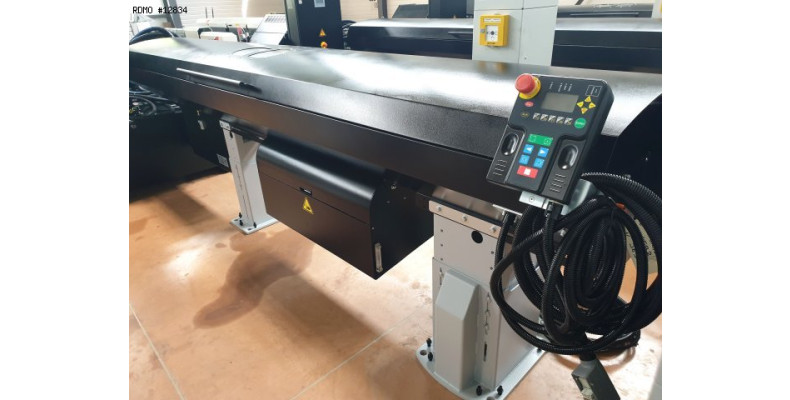

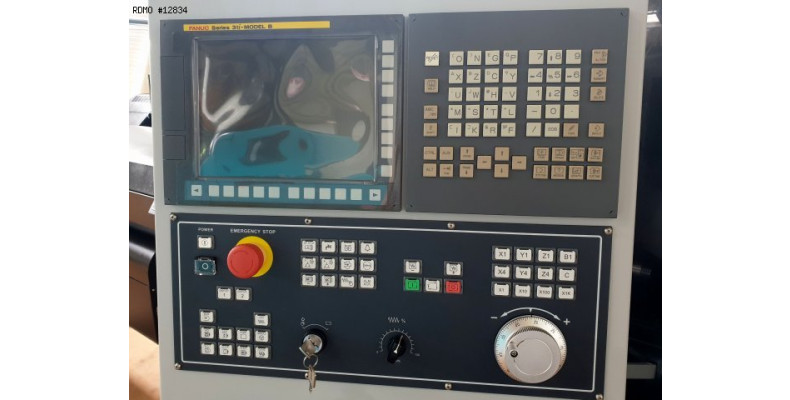

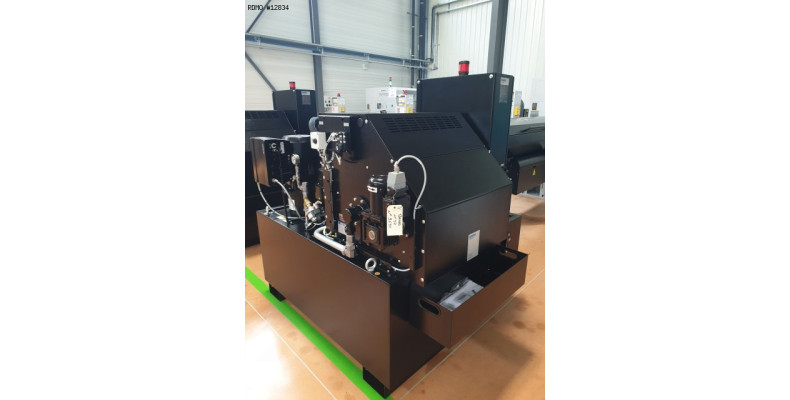

- CNC : Fanuc 31i-B - 3 colors status lamp - Rotating tool motor on : S11,S21,S51 - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank : KNOLL * with high-pressure pump : 70 [bars] * with paper filtering unit - Bar loader : TORNOS SBF538-3.0M - Fire extinguisher * : KRAFT&BAUER - Number of turning tool holders : 7
