- Number of spindles : 6
- Max. bar diameter : 22 [mm]
- Spindle speed : 10,000 [rpm]
- Spindle power : 8.7/15 [kW]
- Torque : 10/18 [Nm]

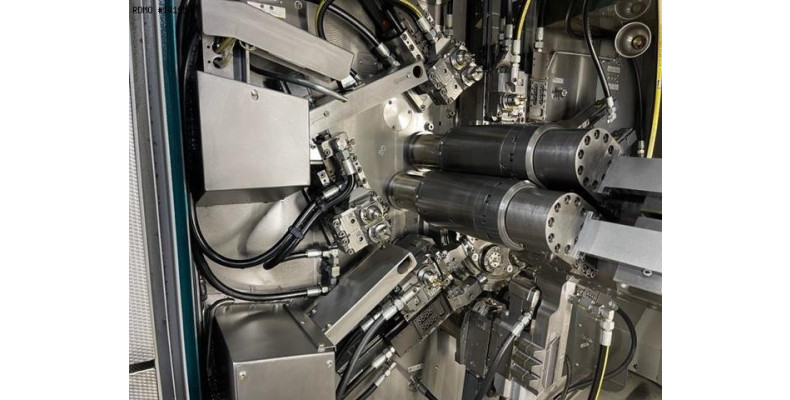

- Number of counter-spindles : 2
- Spindle speed : 10,000 [rpm]

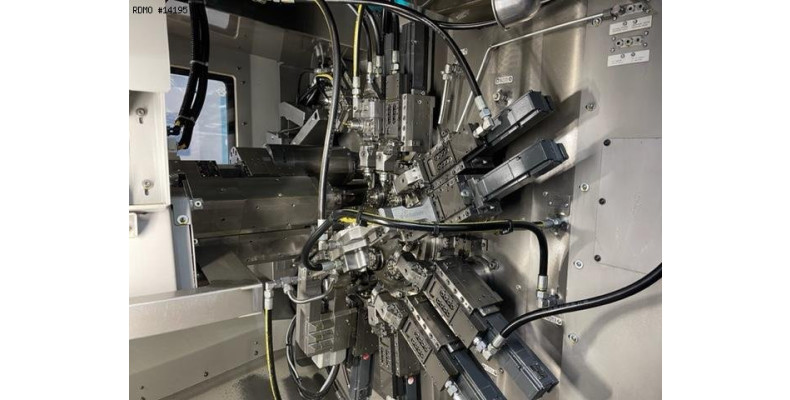

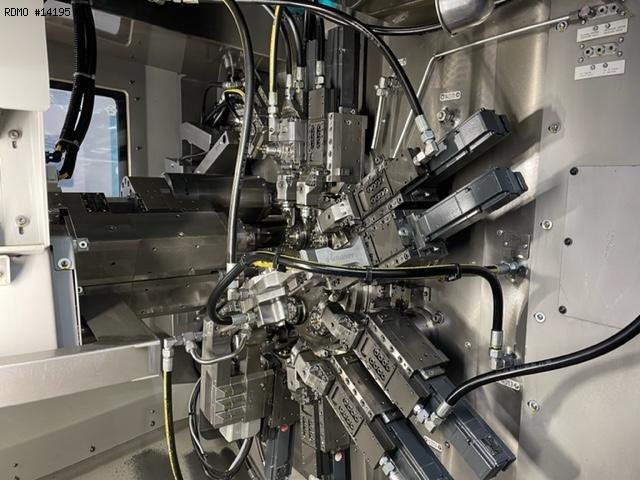

- Number of slides : 10
- Travels : X x Z = 62 x 85 [mm]
- Number of counter-operation slides : 2
- Travel : X = 62 [mm]
- Dimensions : 3330 x 1830 x 2860 [mm]
- Weight : 5700 [kg]
- Connected power : 75 [kVA]
- Production hours : 20,000 [h]
Equipment

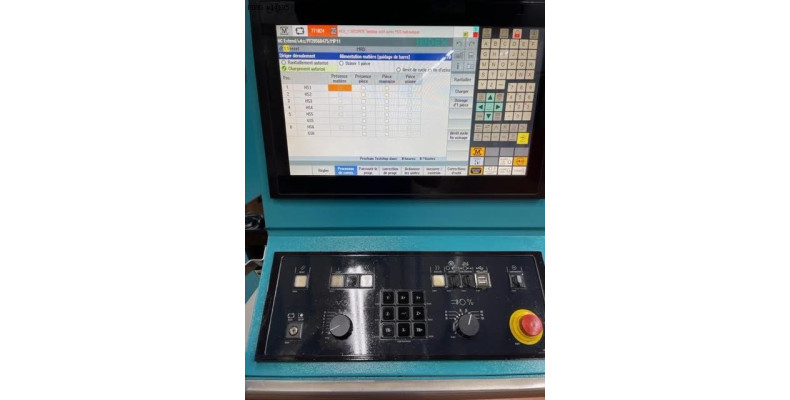

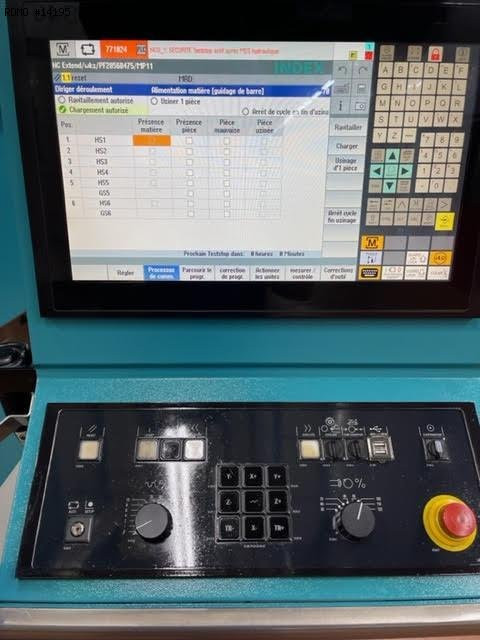

- CN Siemens 840D SL
- 2 NCU
- TRANSMIT / TRACYL function
- ARTIS
- 2 additional electronic shaft preparations
- 2 SCARA counter-spindles
- 2 parts catchers with conveyor belt
- Bar scrap recuperator
- Index bar guide

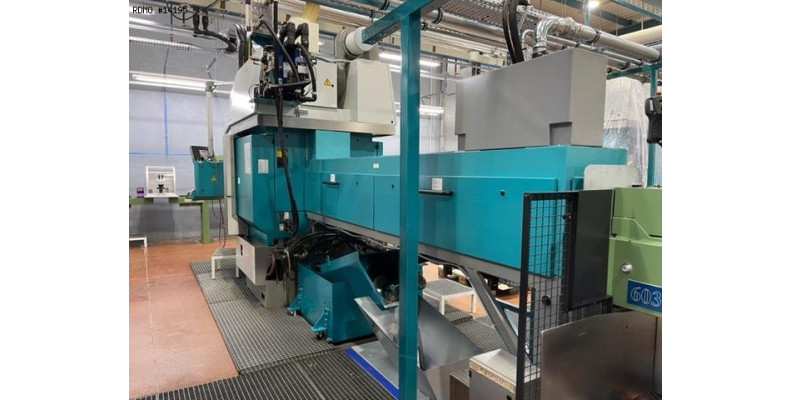

- Bar feeder predisposition
- Fire protection system
