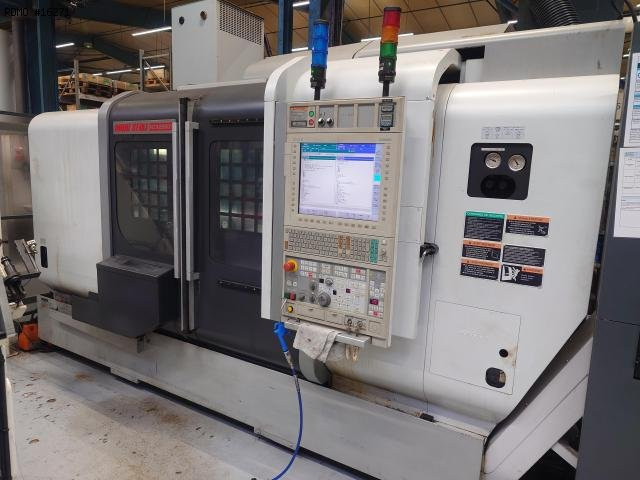

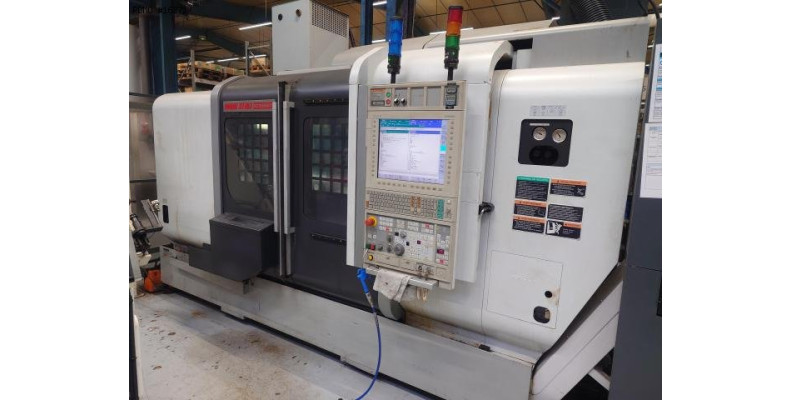

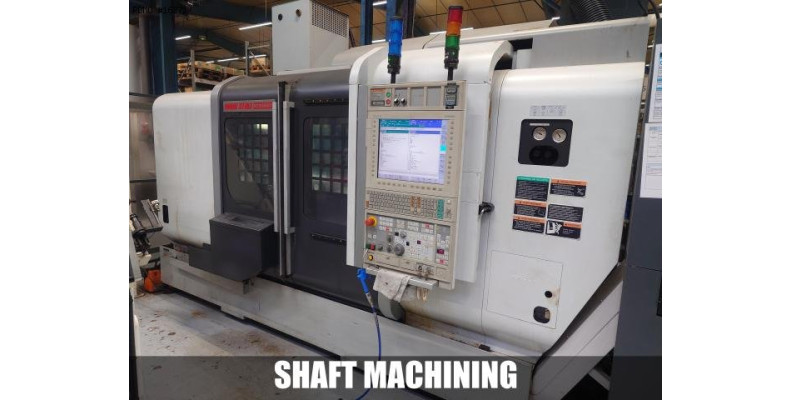

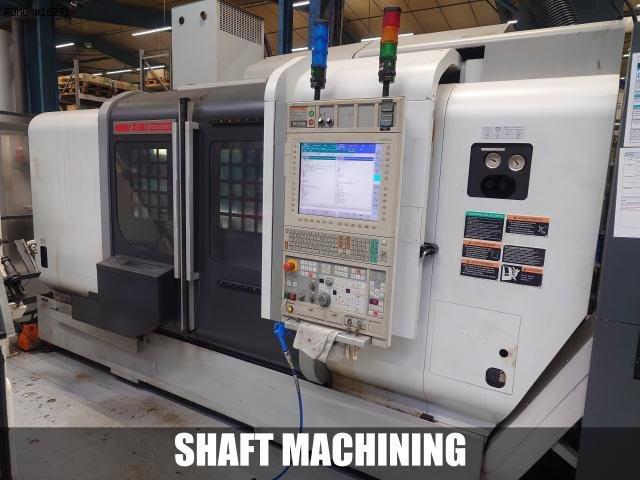

MORI SEIKI NZL2500Y /1000 6 axis

- Number of axes : 6
- Number of turrets : 2

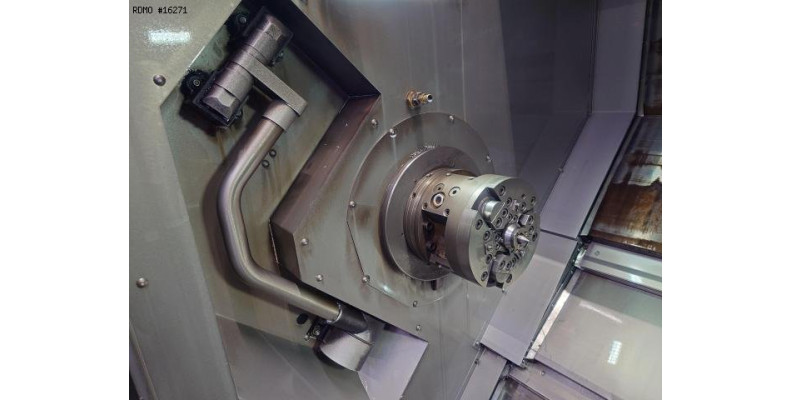

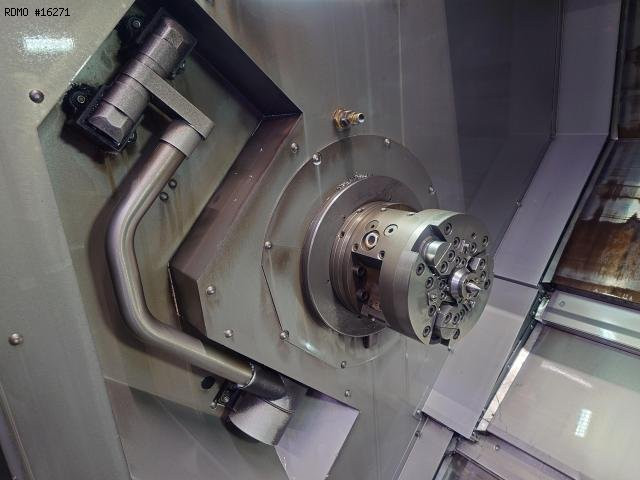

MAIN SPINDLE
- Spindle nose : A2-8"
- Spindle speeds : 4.000 [rpm]
- Spindle power : 22 [kW]
- Max. bar diameter : 80 [mm]
- Max. diameter on bench : 780 [mm]
- Max. turning diameter, turret 1 : 370 [mm]
- Max. turning diameter, turret 2 : 260 [mm]
- C axis indexing precision : 0,001 [°]

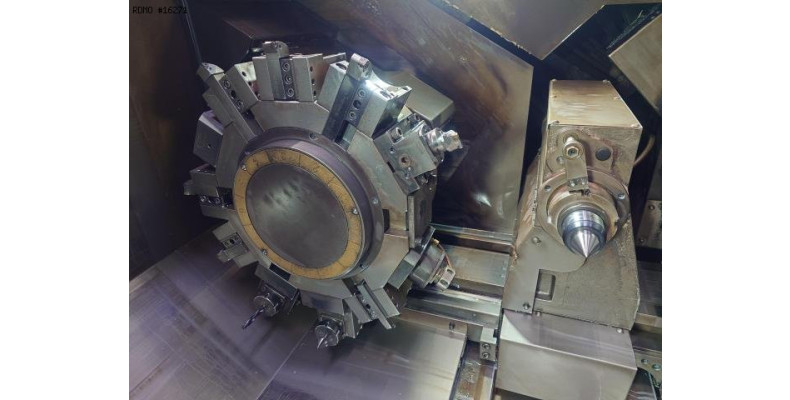

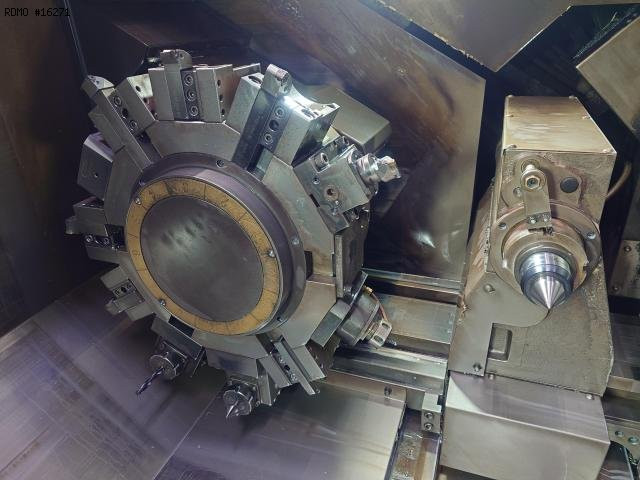

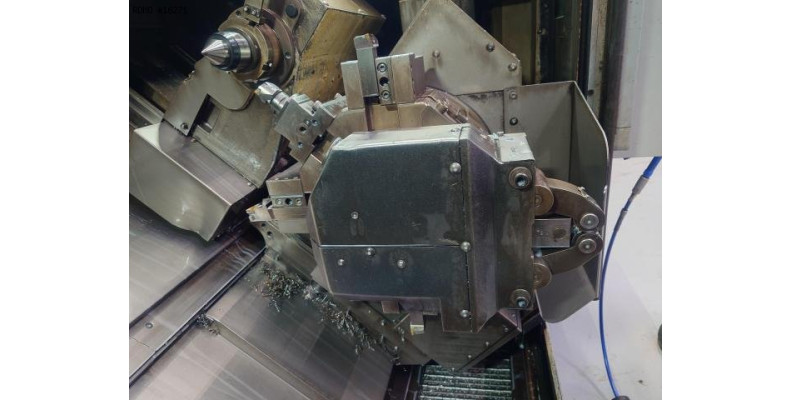

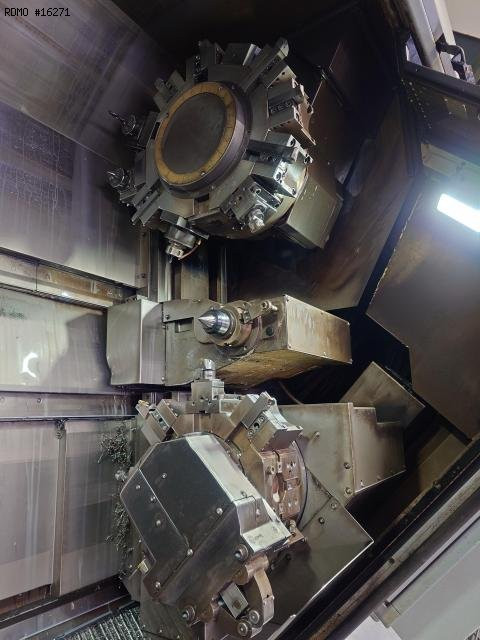

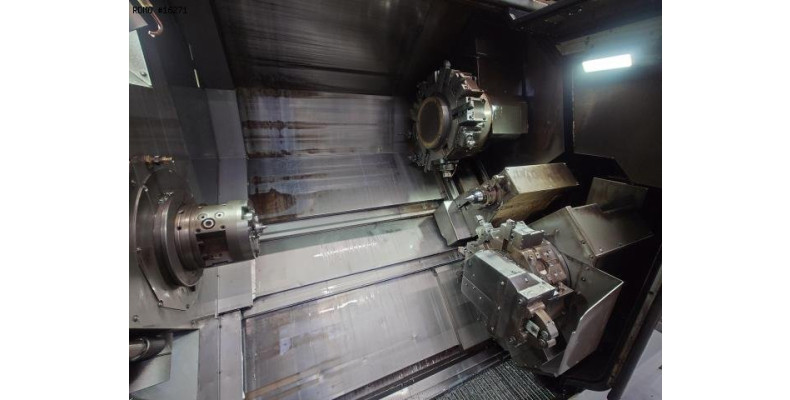

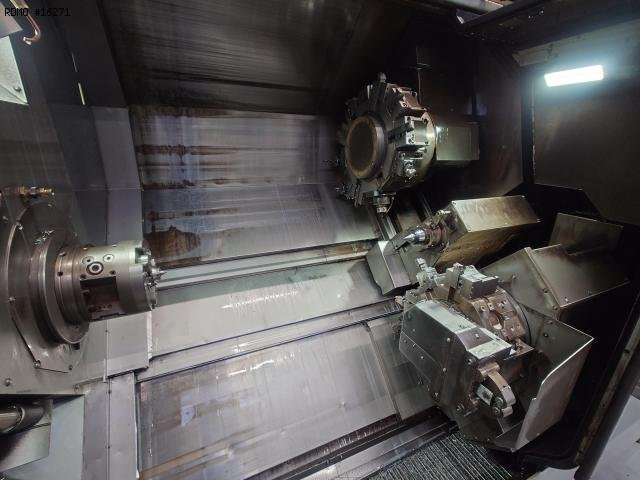

TURRET 1
- Number of positions : 12
- Number of motorized positions : 12
- Live tools speed : 6.000 [rpm]
- Live tools power : 3.7 [kW]
- X/Z stroke : 225 / 1050 [mm]
- Y stroke : +70 / -50 [mm]
- Rapid traverses rates (X/Y/Z) : 25 / 15 / 30 [mm/min]

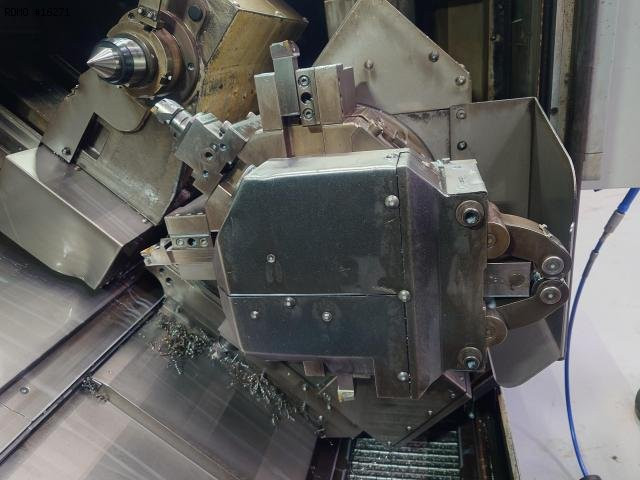

TURRET 2
- Number of positions : 8
- X/Z stroke : 170 / 1050 [mm]
- Rapid traverses rates (X/Z) : 25 / 30 [mm/min]
TAILSTOCK
- Tailstock type : Numérique
- Distance between centers : 1030 [mm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 54 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 4.400 x 2.800 [mm]
- Machine height : 2.570 [mm]
- Machine weight : 9.100 [kg]
MACHINE HOURS
- Number of working hours : 22.857 [h]

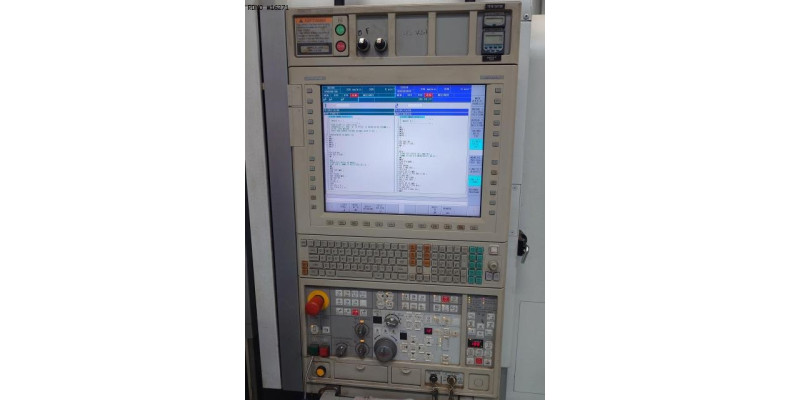

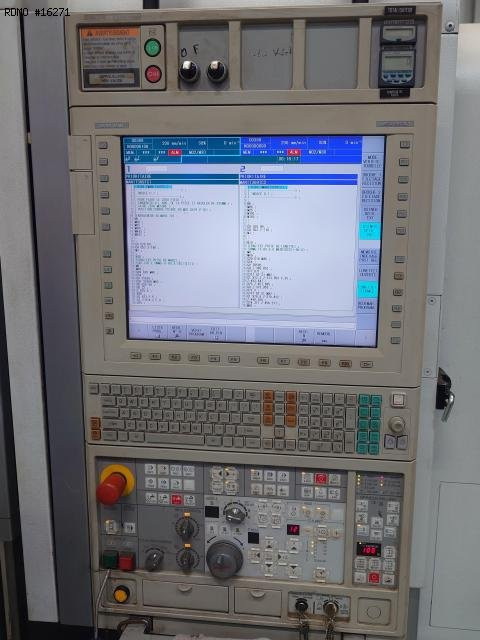

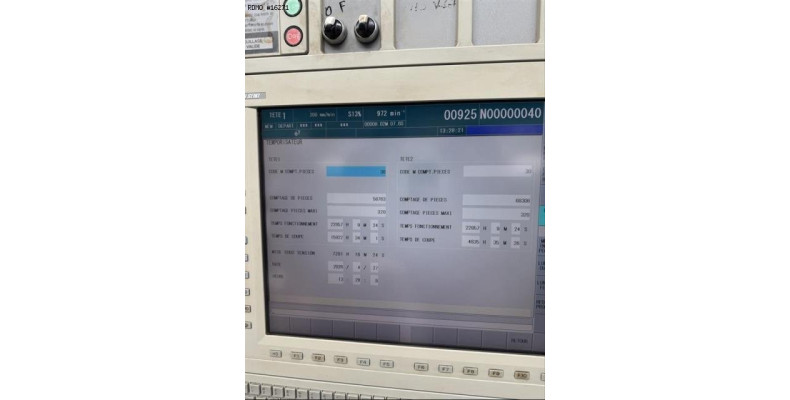

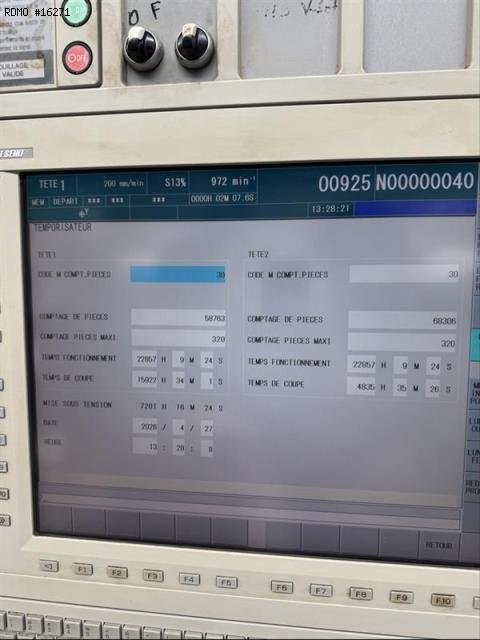

- CNC : Mori MSX-853IV
- 3 colors status lamp

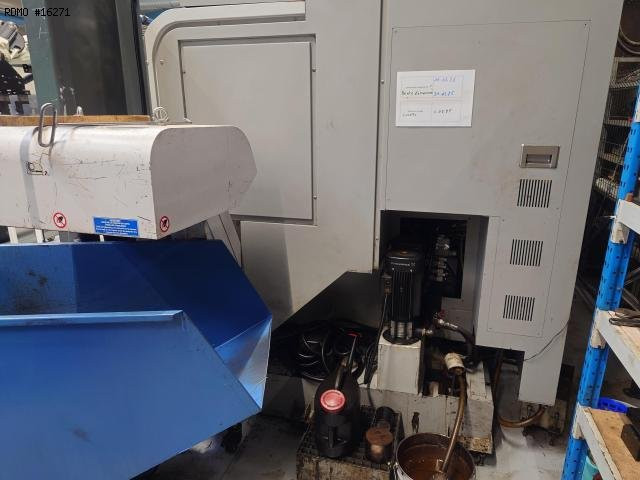

- Coolant tank

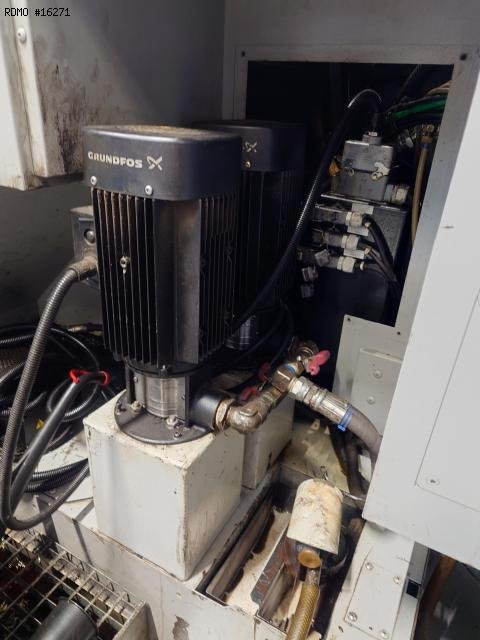

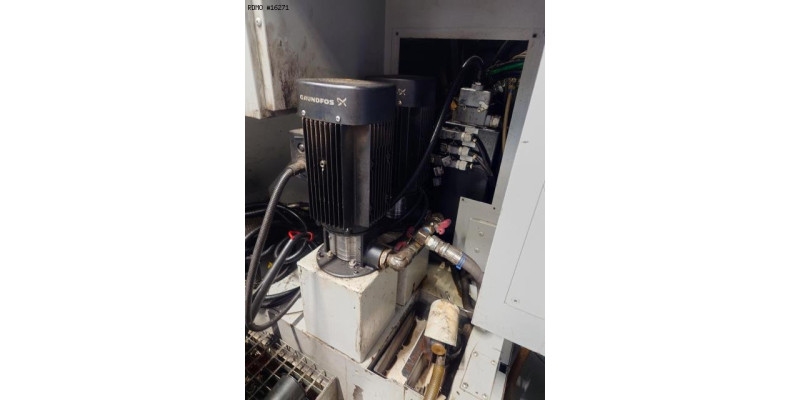

* with high-pressure pump
- Rest : SMW AUTOBLOK

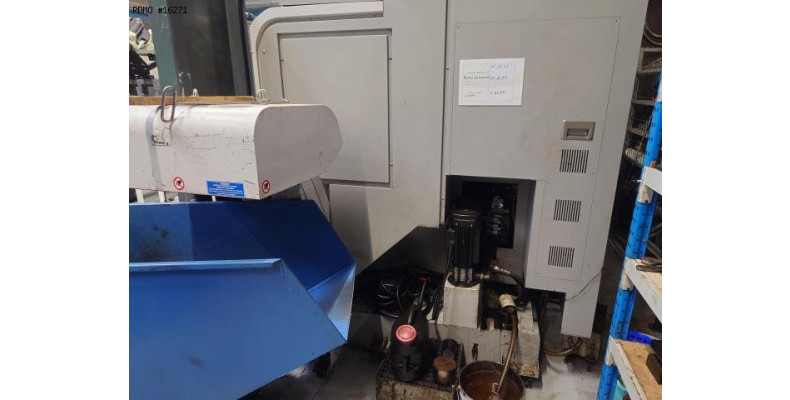

- Chips conveyor : DROITE
- Tool probe
- Electric transformer
