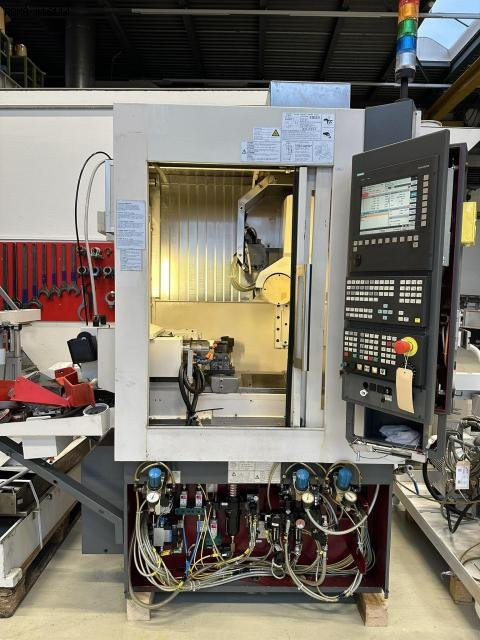

CHIRON FZ 08 KS MAG

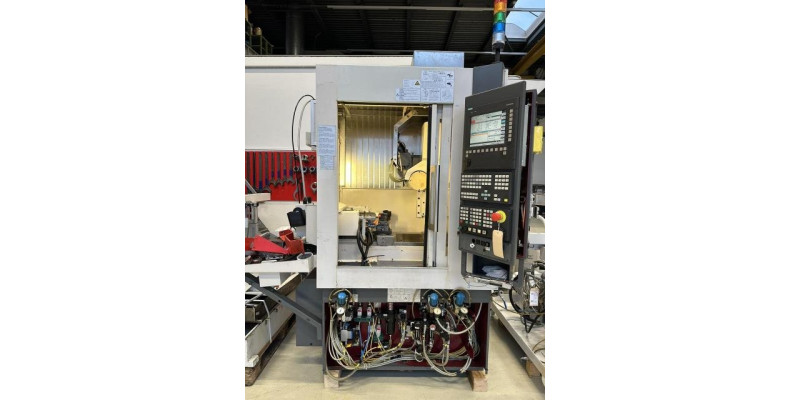

Name: Vertical machining center CHIRON FZ 08 KS MAG
Brand: CHIRON
Availability: InStock

Milling Vertical machining center

16114

PDF datasheet to download:

Brand: CHIRON

Model: FZ 08 KS MAG

Year: 2006

Serial: 414-71

16114

CHIRON FZ 08 KS MAG

Milling Vertical machining center

PDF datasheet to download:

Brand: CHIRON

Model: FZ 08 KS MAG

Year: 2006

Serial: 414-71

Ask Price

Caracteristics

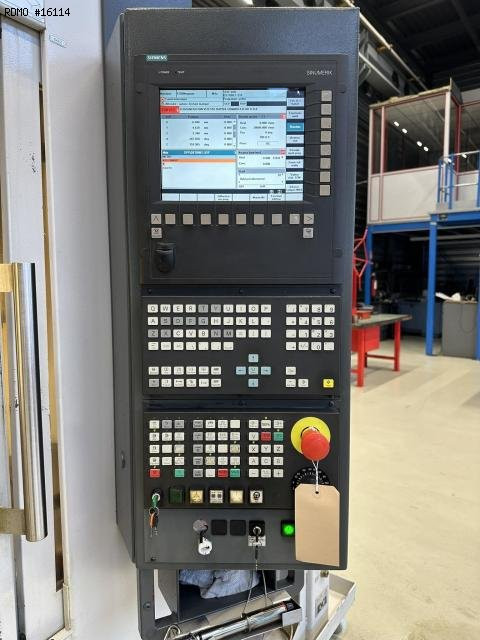

- CNC control : Siemens
- Number of axes : 7

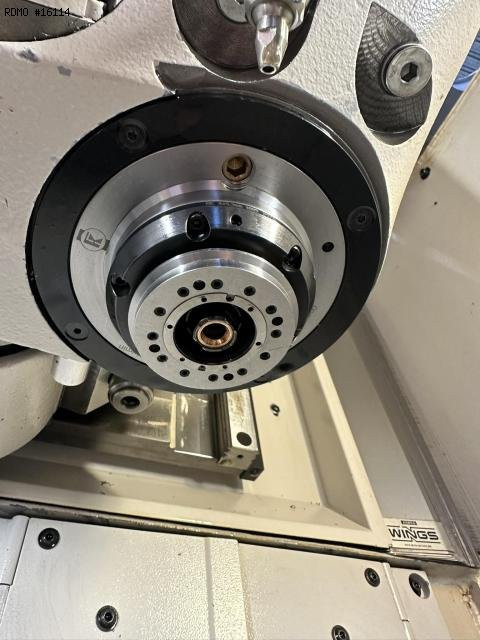

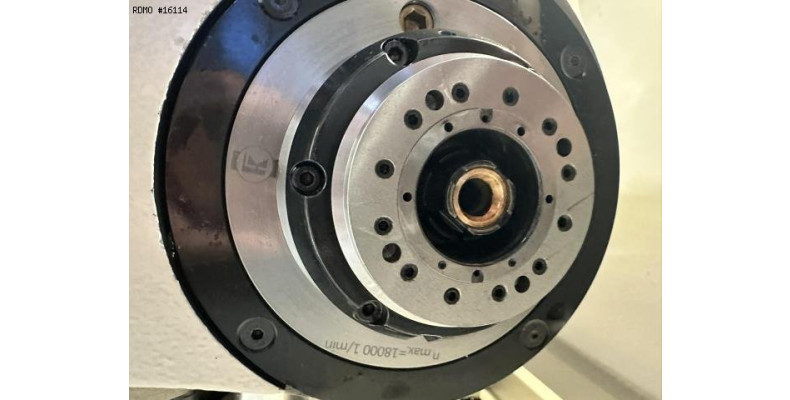

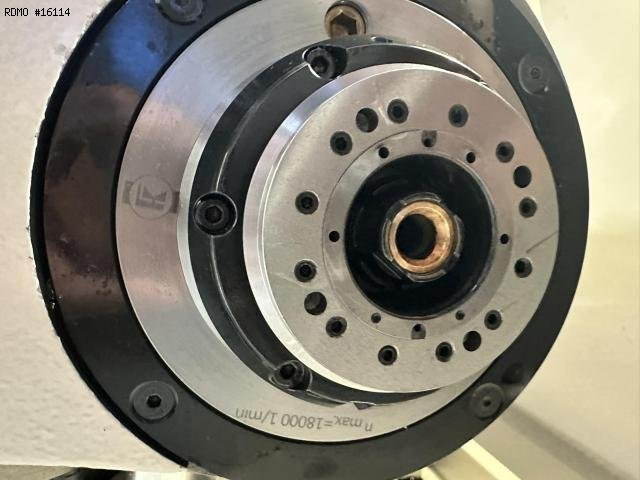

MILLING SPINDLE
- Tool holder type : HSK40
- Spindle speeds : 18000 [rpm]
- Number of tools : 24
- Tool diameter : 40 [mm]
LINEAR AXES
- Travels on X/Y/Z axes : 450/270/310 [mm]
- Rapid traverses rates (X/Y/Z) : 4000 [mm/min]
B ROTARY AXIS
- Travel : -20/+90 [°]
- Indexing precision : 0.001 [°]
- Maximum table load : 150 [kg]

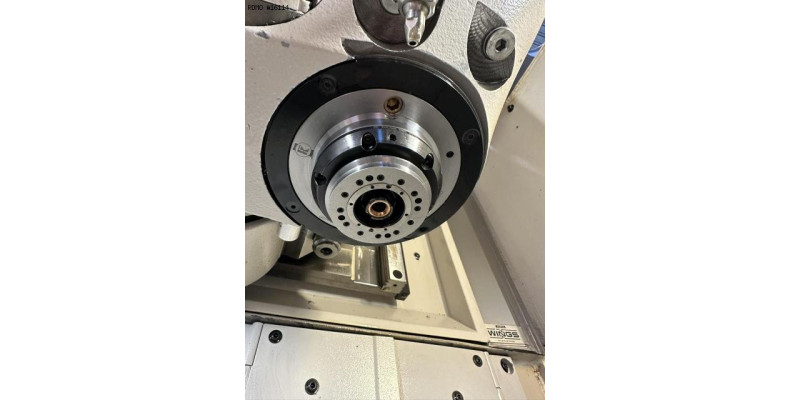

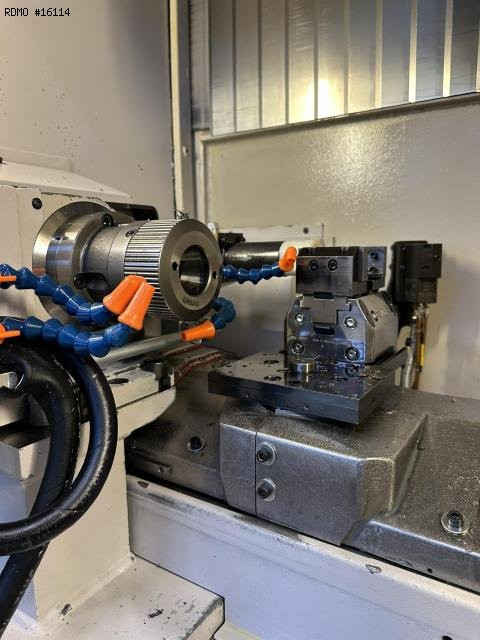

TURNING SPINDLE
- Spindle speeds : 8000 [rpm]
- Max. bar diameter : 32 [mm]
- C axis indexing precision : 0.001 [°]
- Travel : 360 [°]

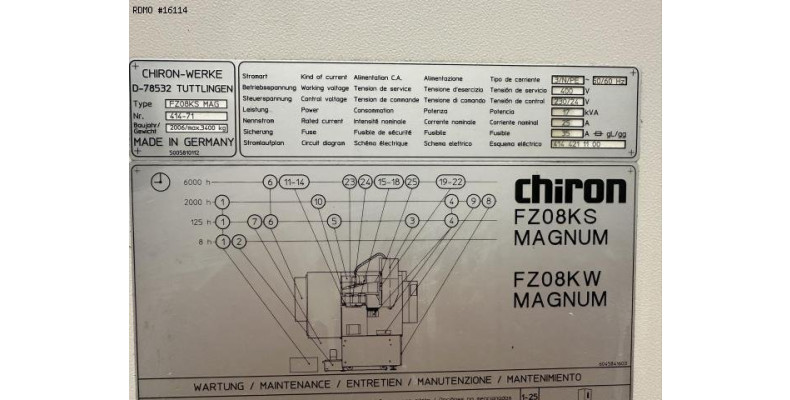

POWER SUPPLY
- Supply voltage : 400 [V]

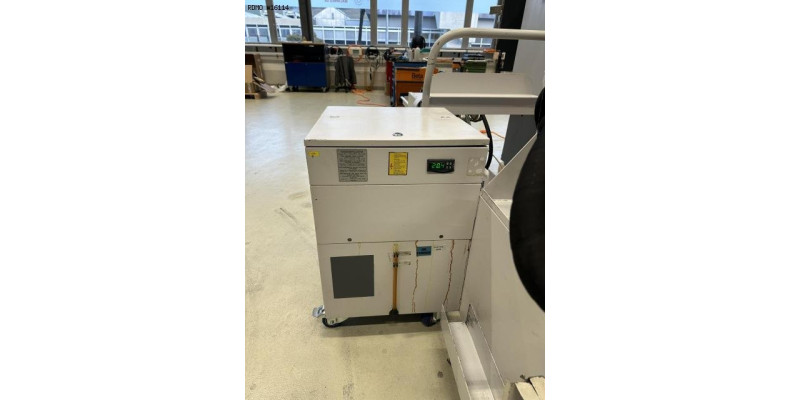

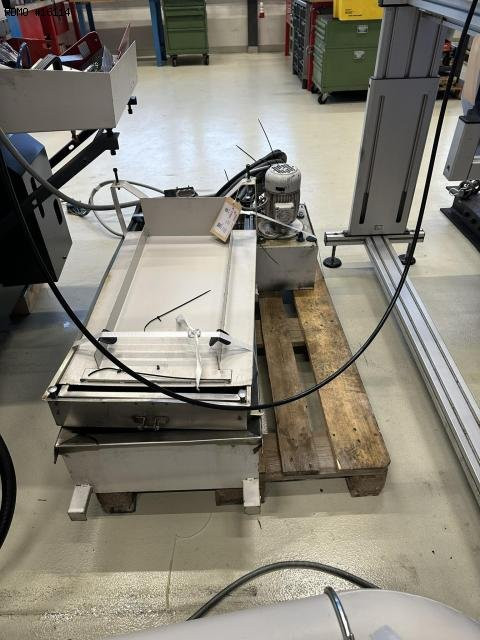

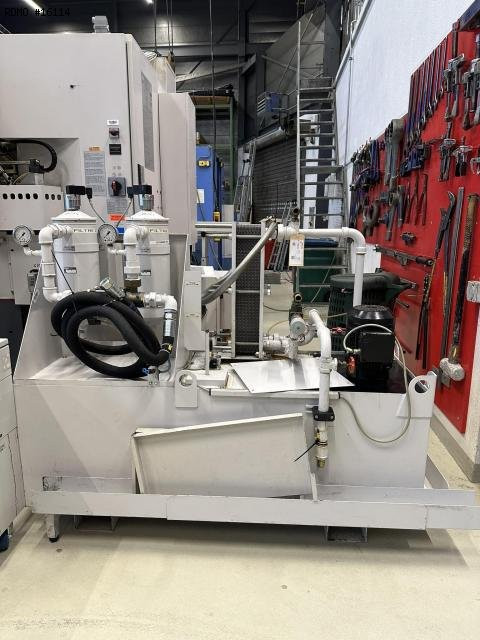

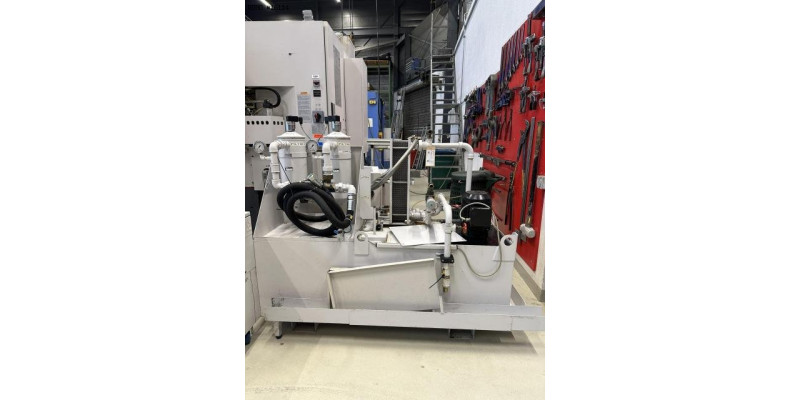

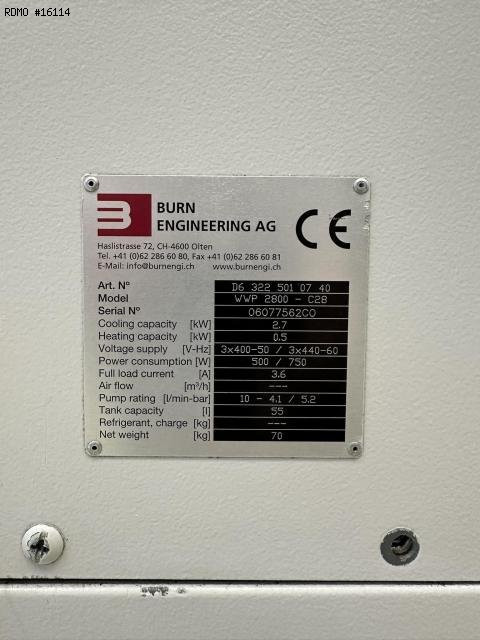

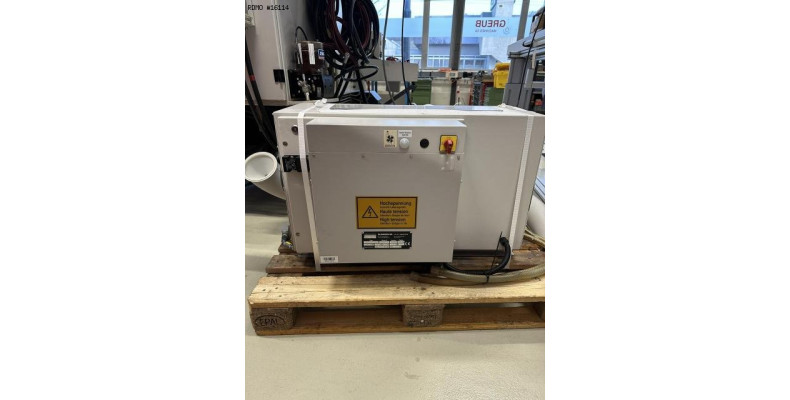

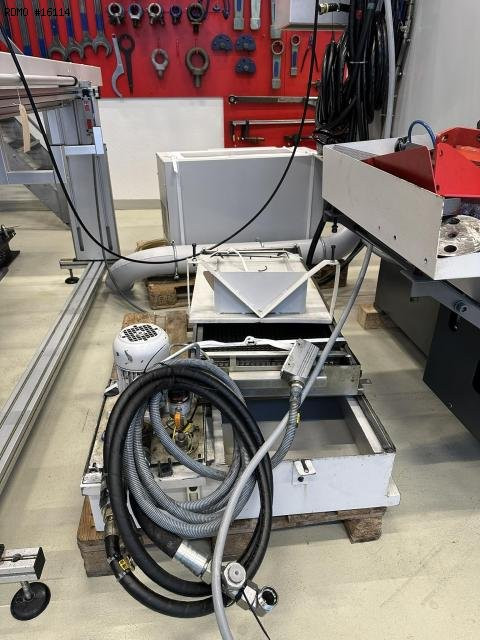

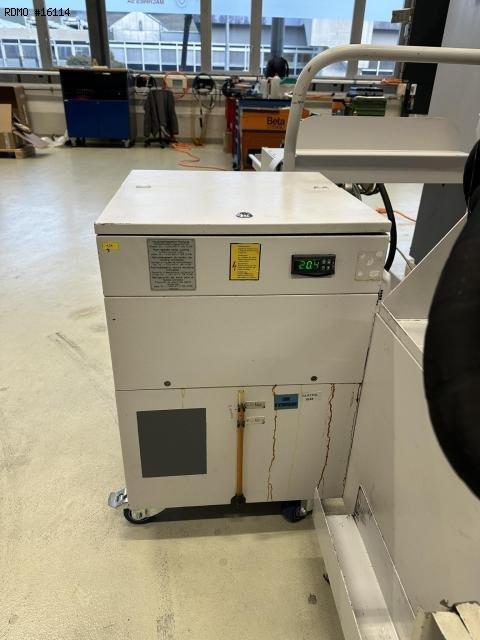

- Coolant system
WEIGHT & DIMENSIONS
- Machine floor space : 1500X2600 [mm]
- Machine height : 2300 [mm]
- Machine weight : 3400 [kg]
MACHINE HOURS
- Number of hours under power : 64400 [h]

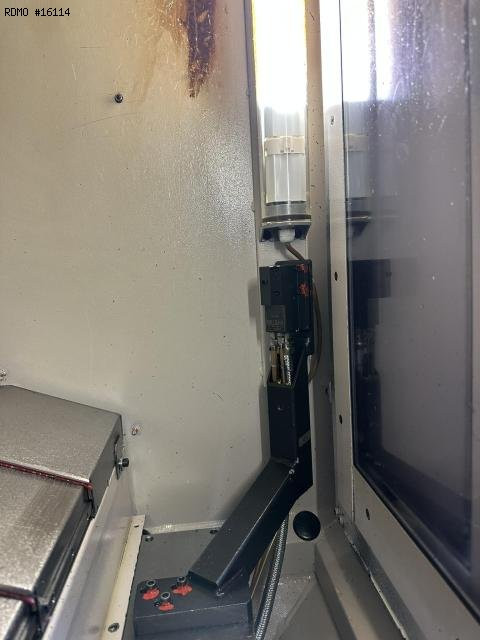

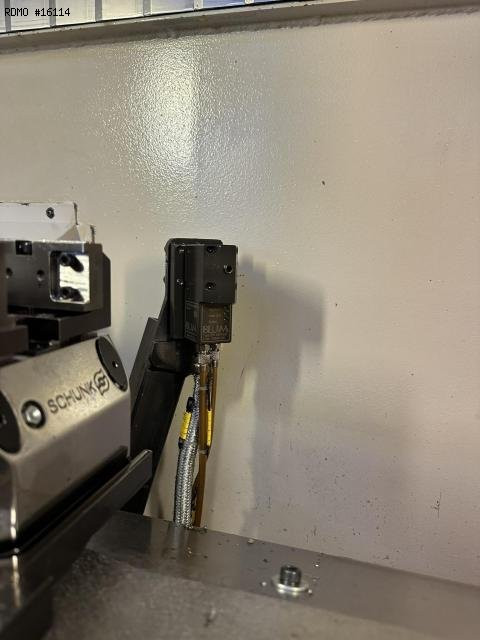

- Renishaw probe
- Parts catcher
