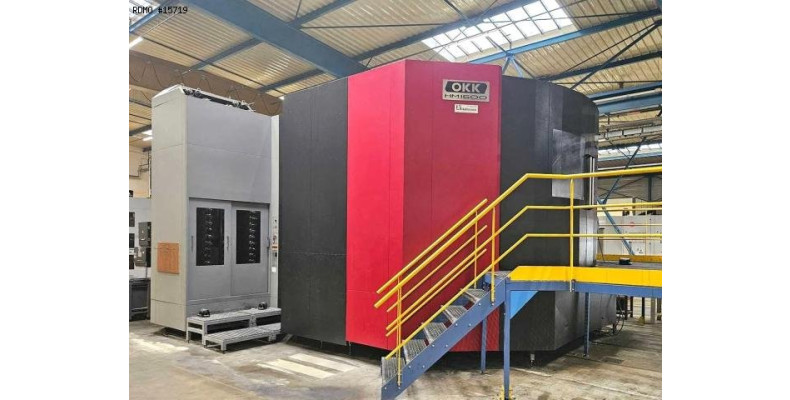

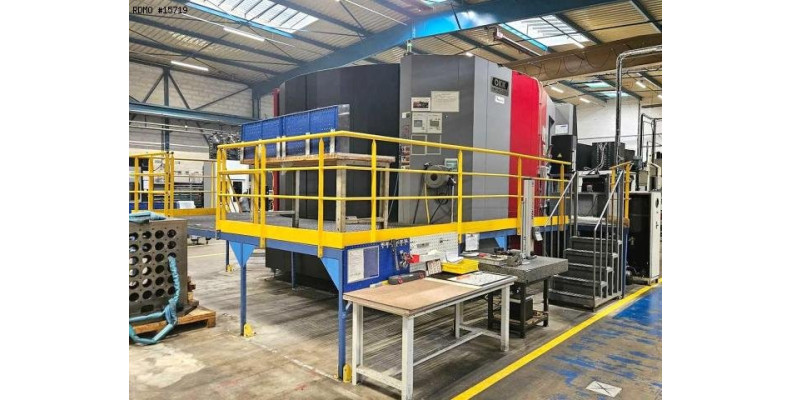

Brand: OKK
Model: HM1600
Year: 2014
Serial: 119
Brand: OKK
Model: HM1600
Year: 2014
Serial: 119

Caracteristics & Equipment

Caracteristics
- Number of axes : 4

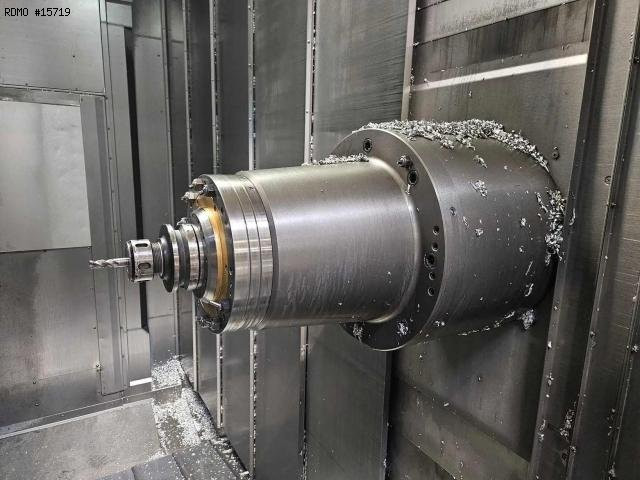

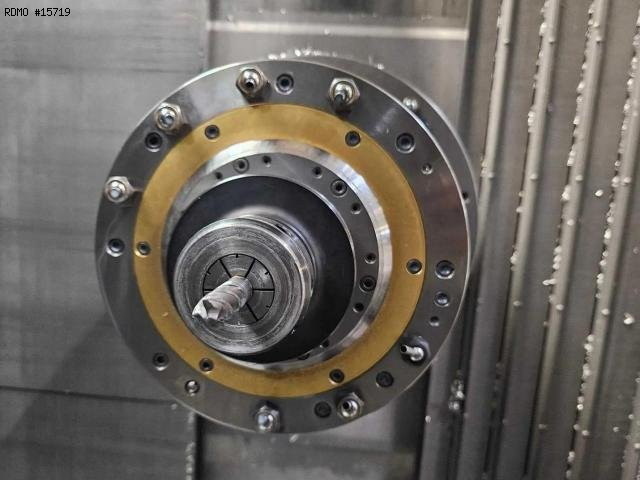

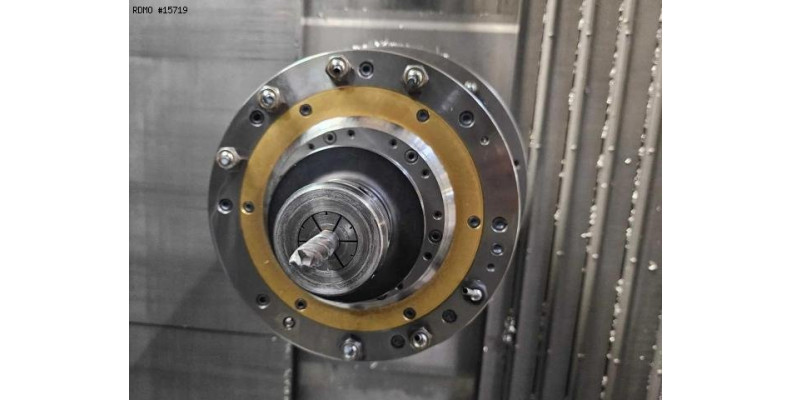

MILLING SPINDLE
- Tool holder type : BT50
- Spindle power : 40 [kW]
- Spindle speeds : 12000 [rpm]

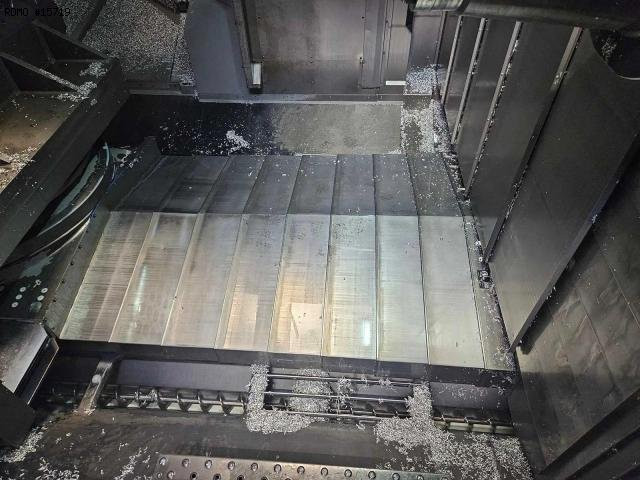

LINEAR AXES
- Travels on X/Y/Z axes : 2400/1650/1750 [mm]
- Rapid traverses rates (X/Y/Z) : 42 [m/min]
- Cutting feed rates (X/Y/Z) : 20 [m/min]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0.001 [°]

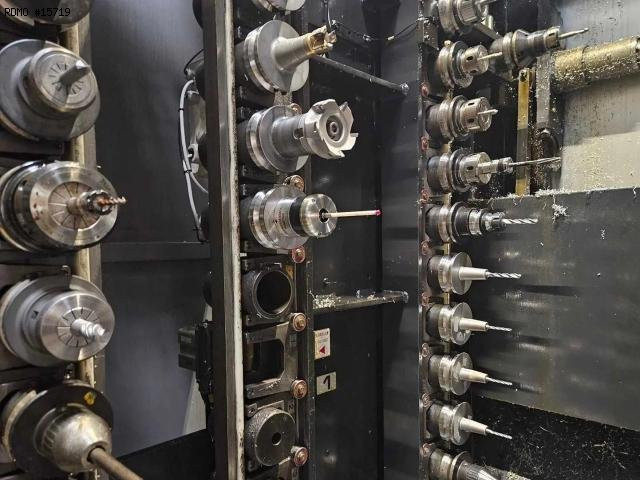

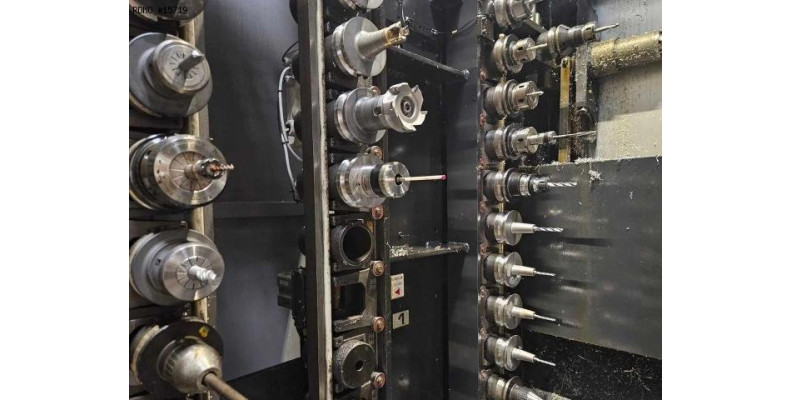

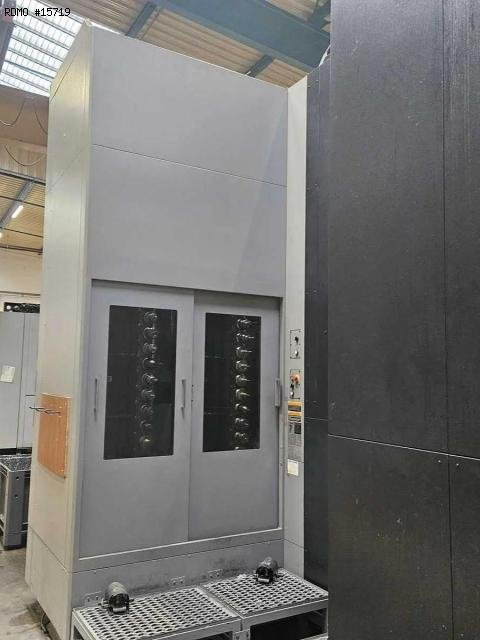

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur

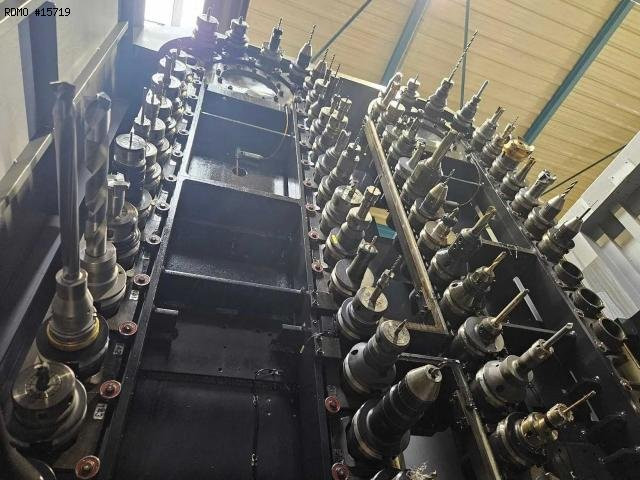

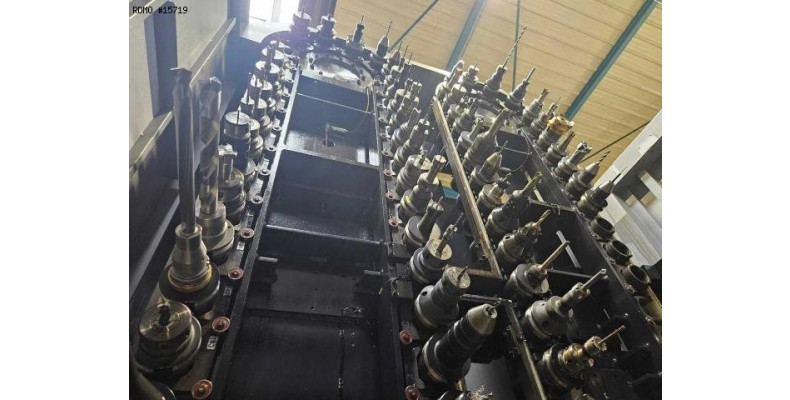

- Tool magazine capacity : 116
- Tool exchange time : 3.8 [sec]

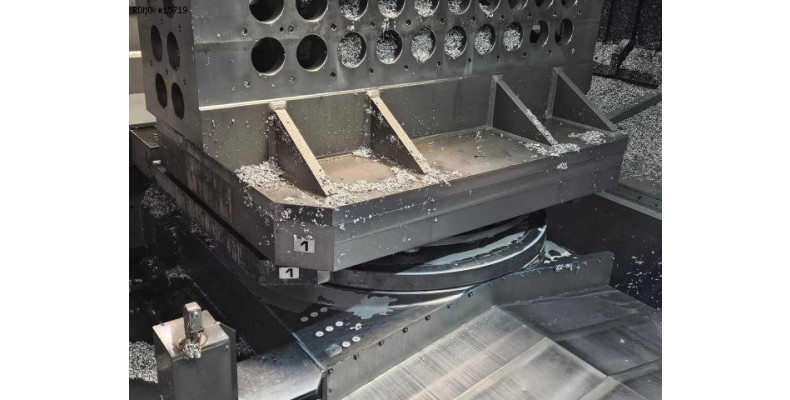

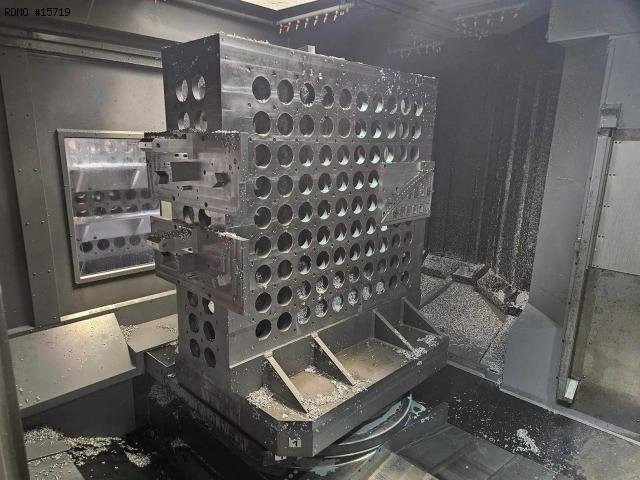

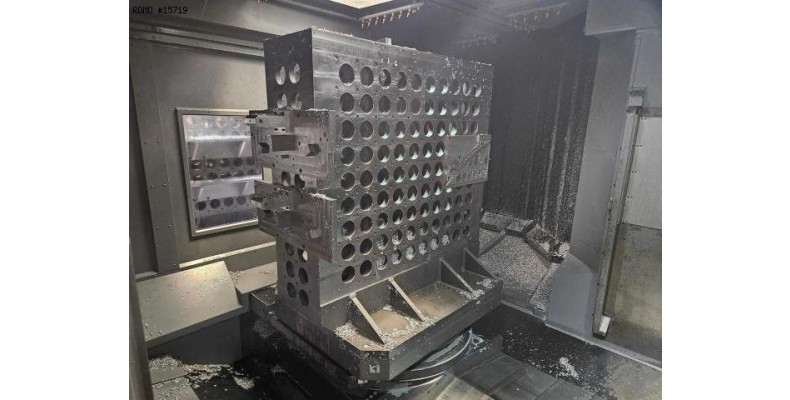

PALLET CHANGER
- Pallet changing device type : Rotopalette
- Pallet size : 1600 x 1250 [mm]
- Pallets number : 2
- Maximum weight upon pallet : 5000 [kg]
- Distance table center / spindle nose (min./max.) : 100 - 1750 [mm]
- Maximum workpiece diameter : 2500 [mm]
- Maximum workpiece height : 1850 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 86 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 9.485 x 6.155 [mm]
- Machine height : 4.370 [mm]
- Machine weight : 50000 [kg]
MACHINE HOURS
- Number of working hours : 15446 [h]
Equipment

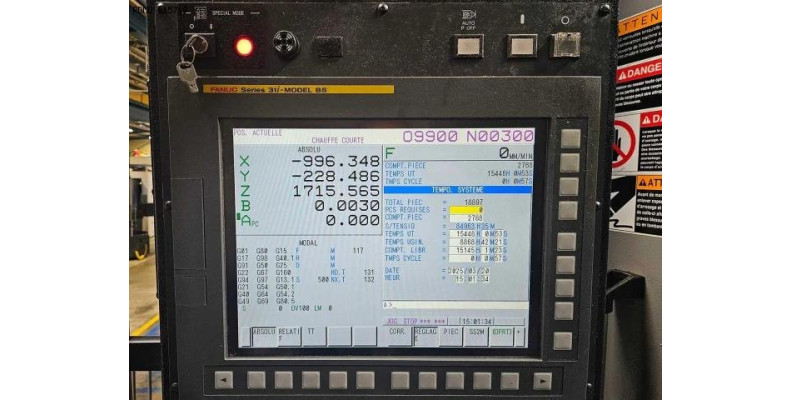

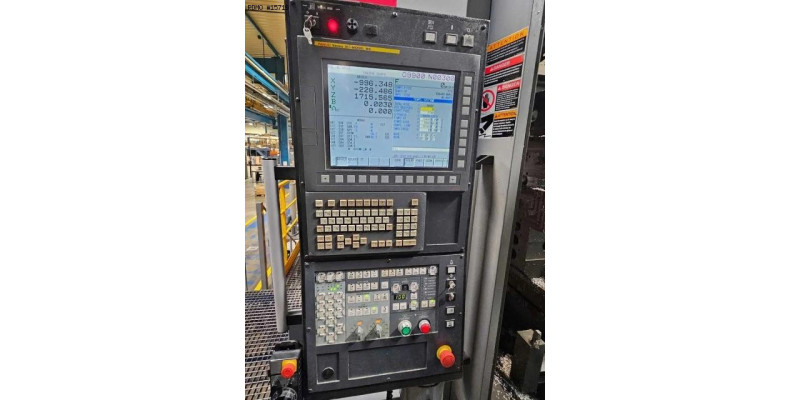

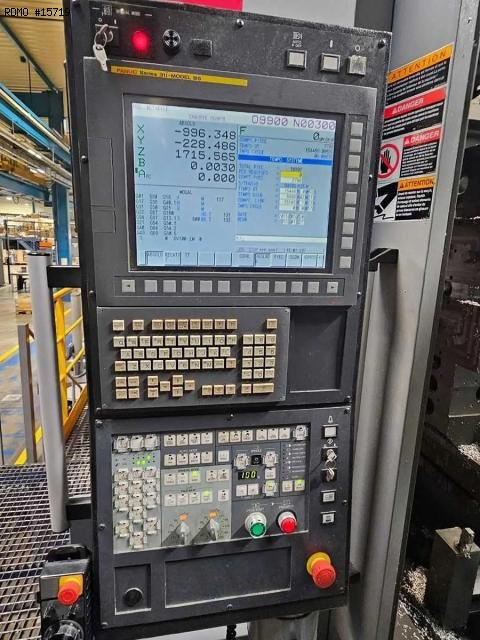

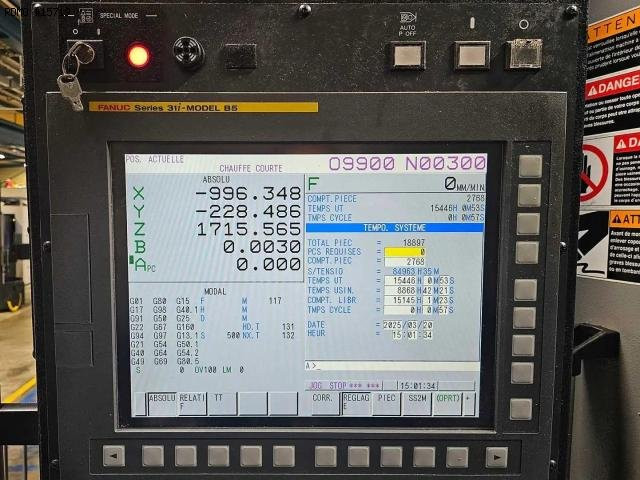

- CNC : Fanuc 31i-model B5
Interface : Ethernet / RS232 / USB / PCMCIA
- Electronic handwheel
- 3 colors status lamp

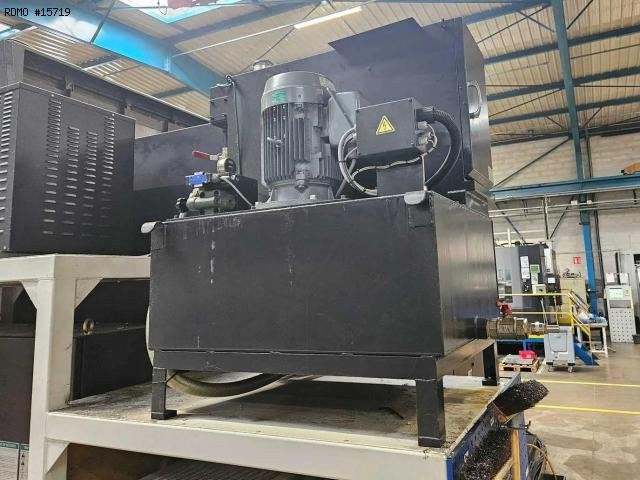

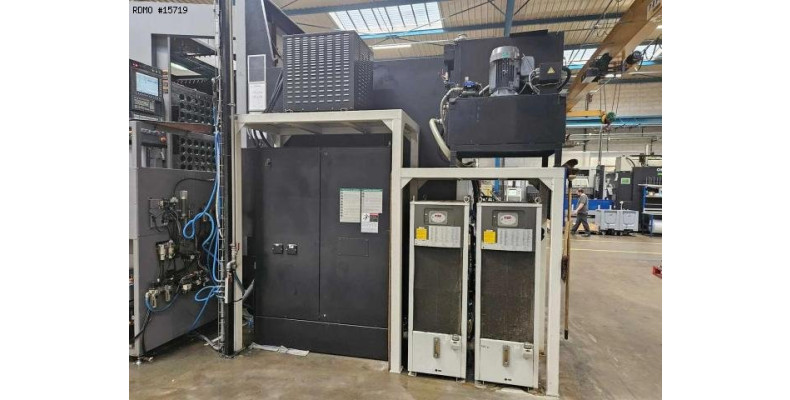

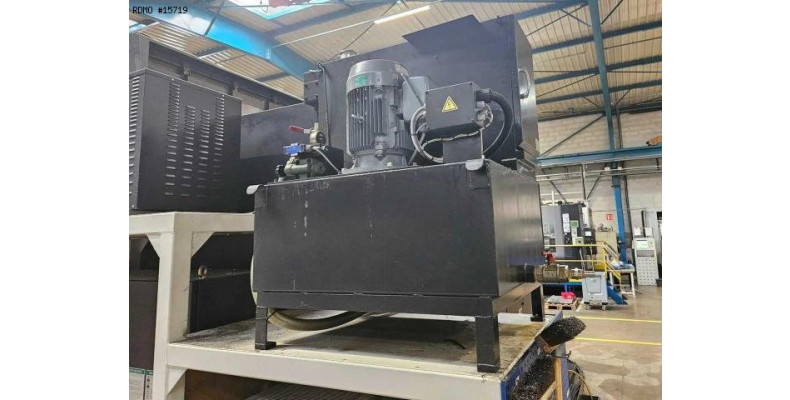

- Coolant tank

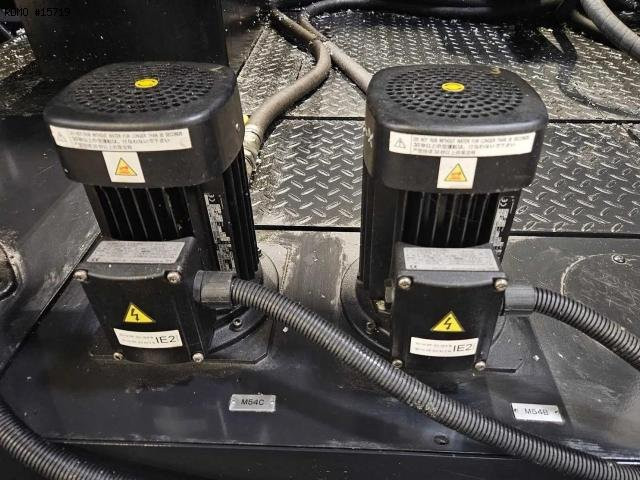

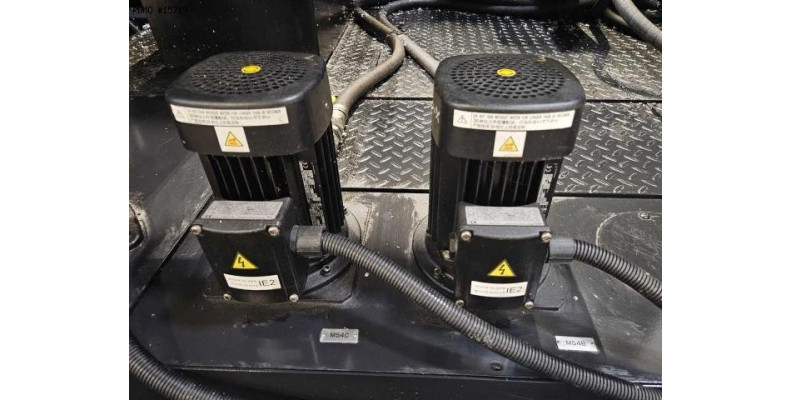

* with high-pressure pump : 70 [bars]

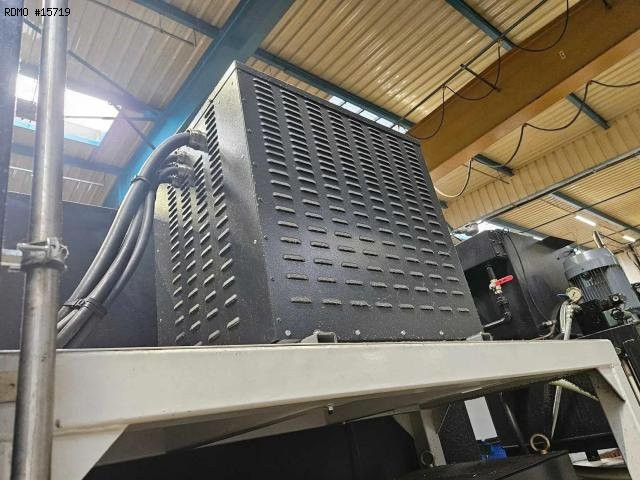

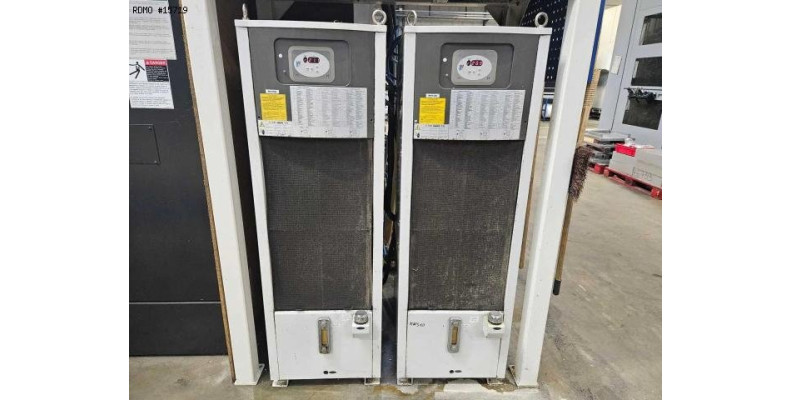

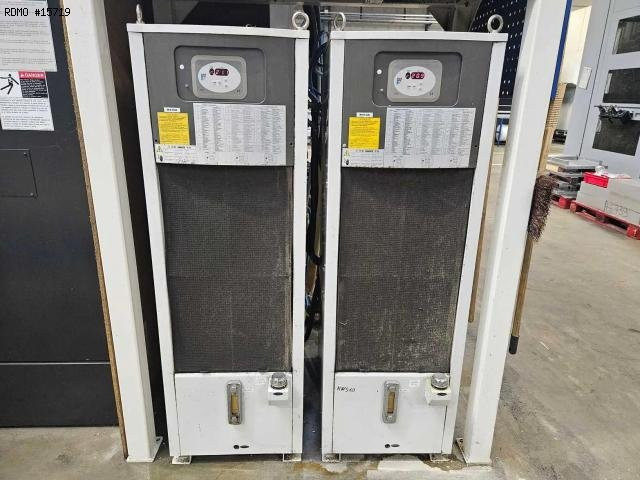

* with cooling unit for coolant
* With washing gun
- Chips conveyor
- Tool probe
- Workpiece probe : Renishaw RMP60
PDF datasheet to download:

Description

Used Machine tools for sale

In order to view this video, first you have to authorize the use of web youtube cookies.

Configure
The machine has been added to the quote

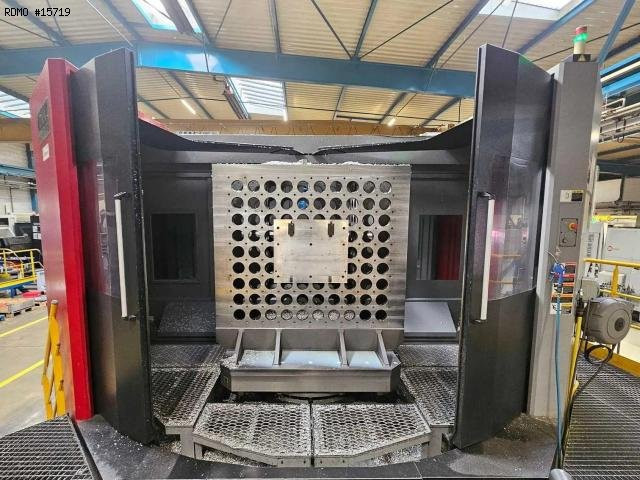

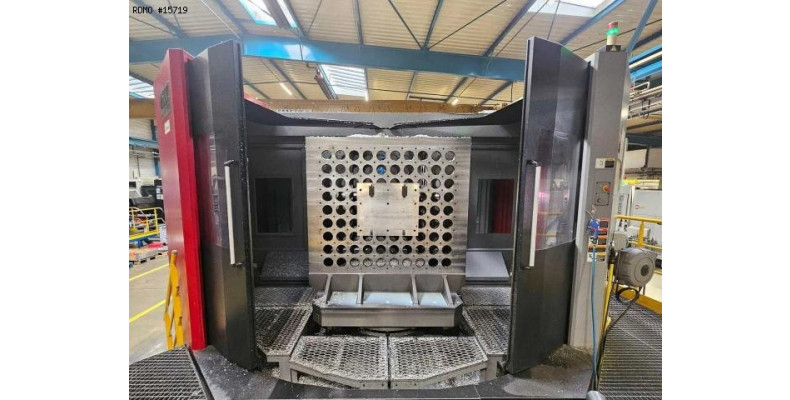

OKK HM1600 4 axes
