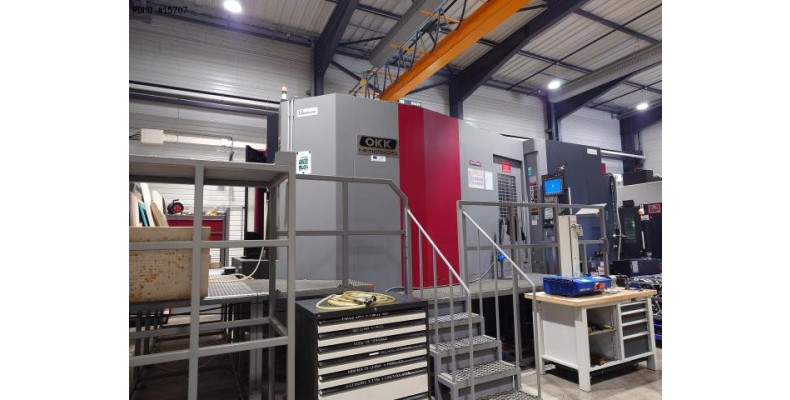

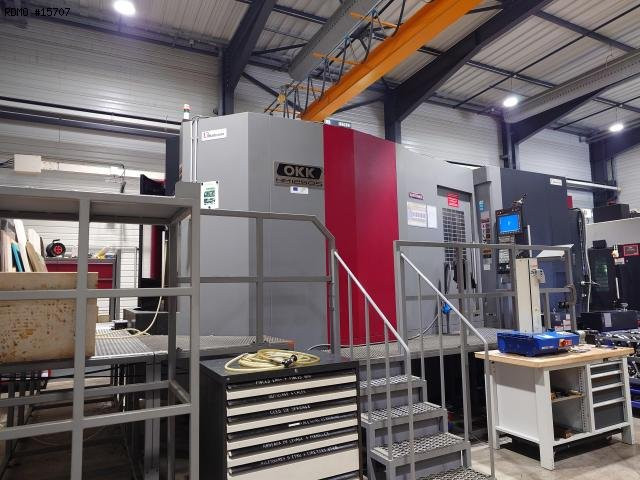

Brand: OKK
Model: HM1250S
Year: 2019
Serial: 207
Brand: OKK
Model: HM1250S
Year: 2019
Serial: 207

Caracteristics & Equipment

Caracteristics
- Number of axes : 4

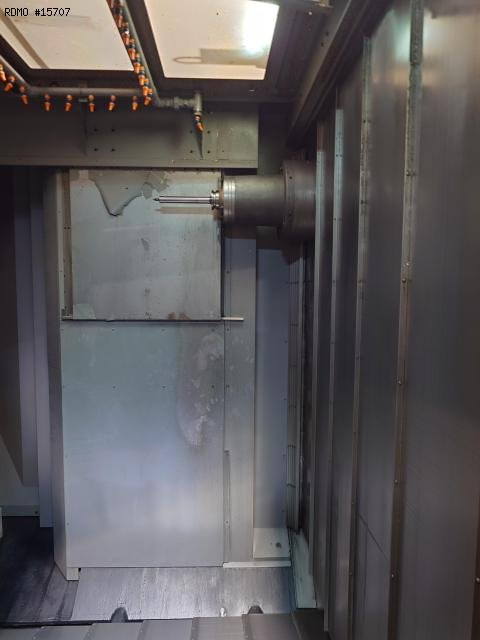

MILLING SPINDLE
- Tool holder type : BT50
- Spindle power : 45 [kW]
- Spindle speeds : 12000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 1700/1400/1240 [mm]
- Rapid traverses rates (X/Y/Z) : 48 [m/min]
- Cutting feed rates (X/Y/Z) : 20 [m/min]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0.001 [°]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 60
- Tool exchange time : 6 [sec]

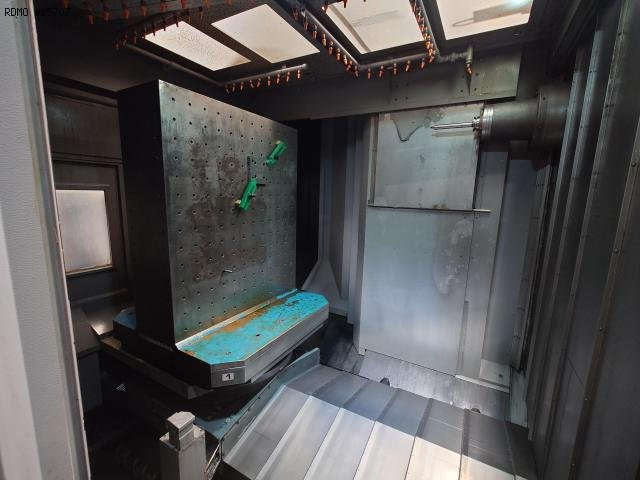

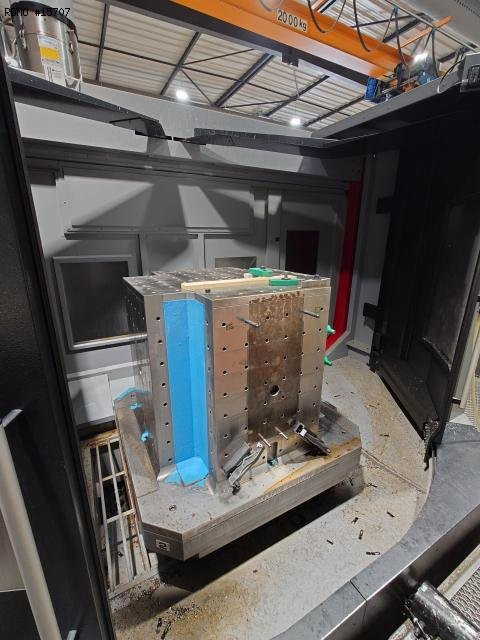

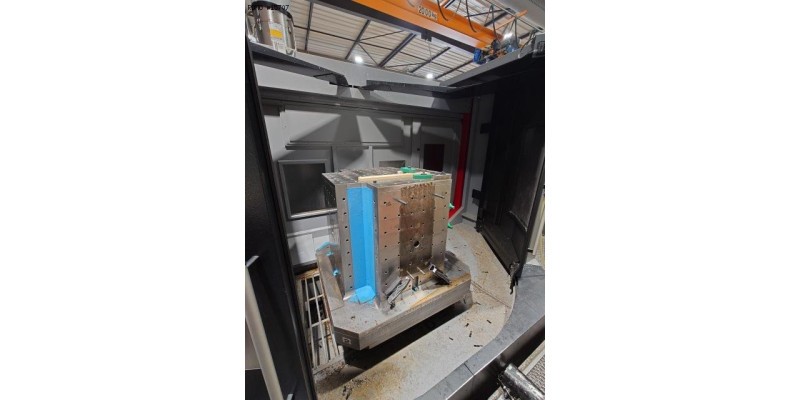

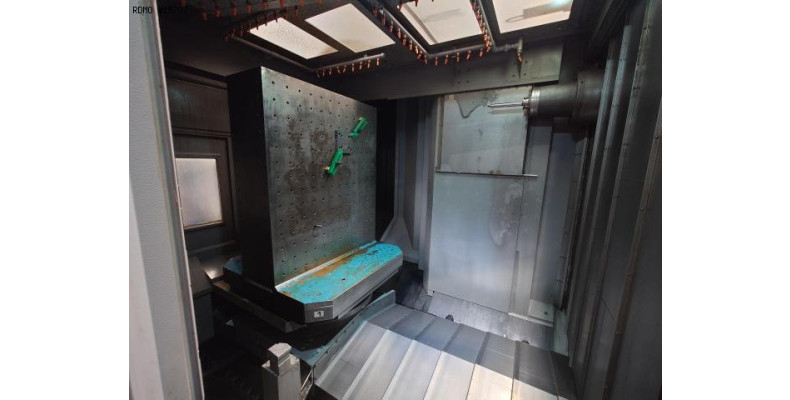

PALLET CHANGER
- Pallet changing device type : Rotopalette
- Pallet size : 1250/1250 [mm]
- Pallets number : 2
- Maximum weight upon pallet : 3000 [kg]
- Distance table center / spindle nose (min./max.) : 70-1470 [mm]
- Maximum workpiece diameter : 1970 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine weight : 32500 [kg]
MACHINE HOURS
- Number of hours under power : 34422 [h]
Equipment

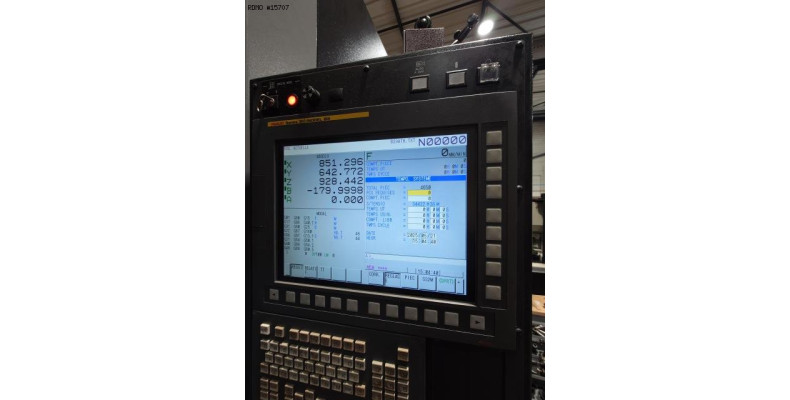

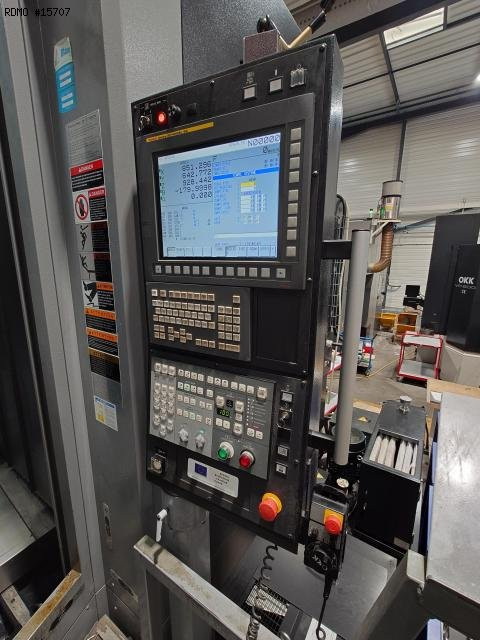

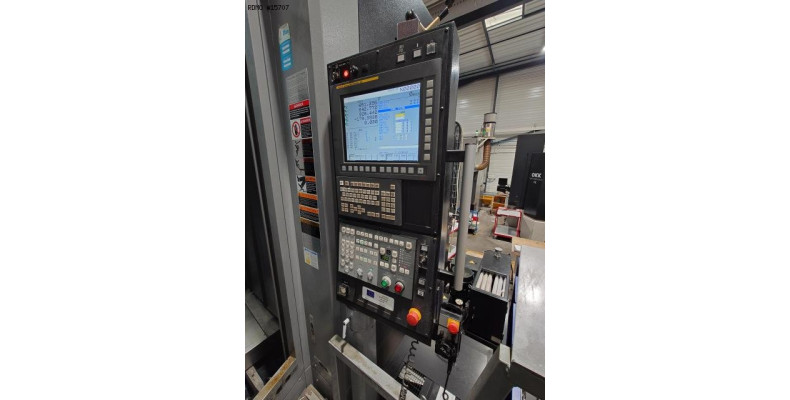

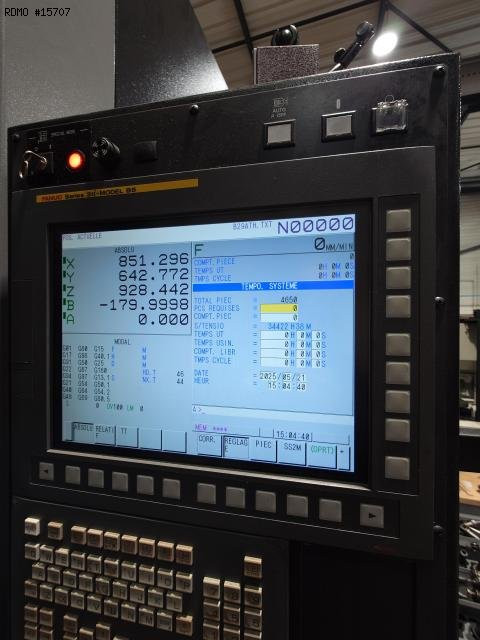

- CNC : Fanuc 31i-model B5
Interface : Ethernet / RS232 / USB / PCMCIA
- Electronic handwheel
- Rigid tapping
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 70 [bars]
* Coolant through spindle

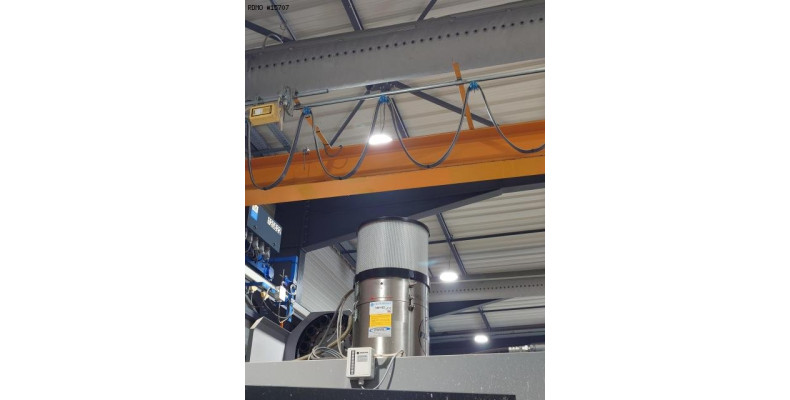

* with paper filtering unit

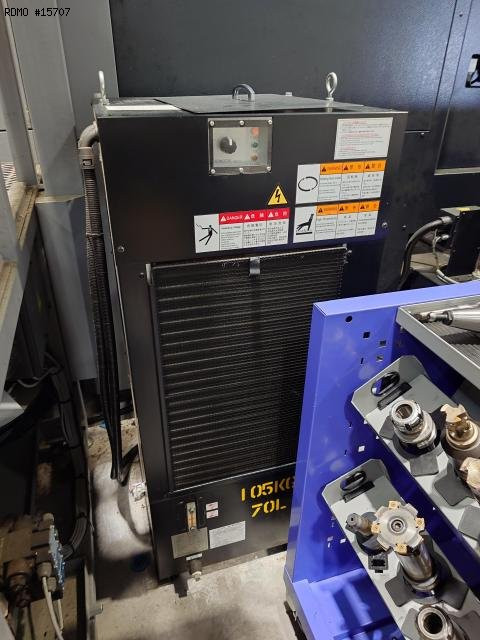

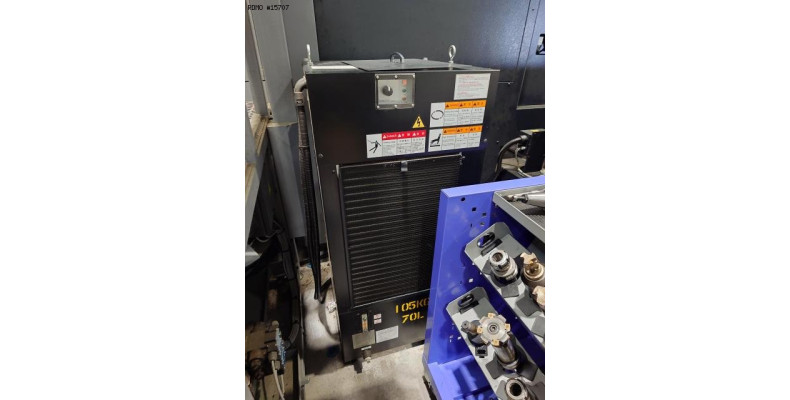

* with cooling unit for coolant
* With cabin washing

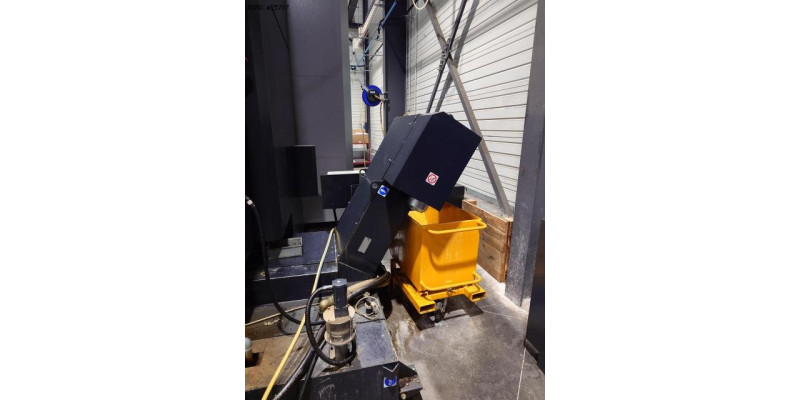

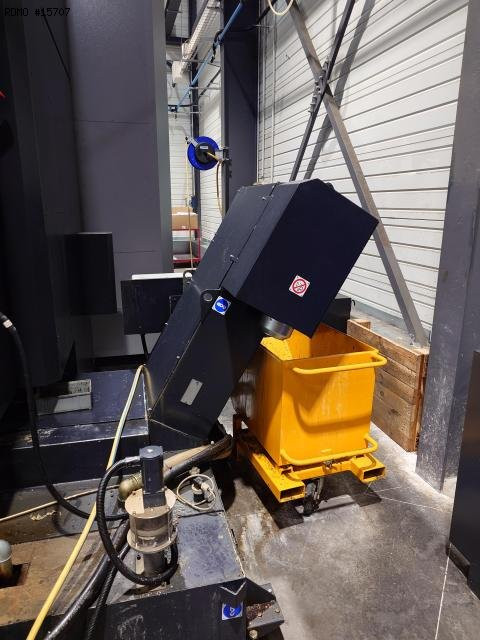

- Chips conveyor
- Tool probe
- Workpiece probe : Renishaw RMP60
- Electric transformer
